GLA11 Uncoated N-BK7 Plano-Convex Lens 12.7 mm

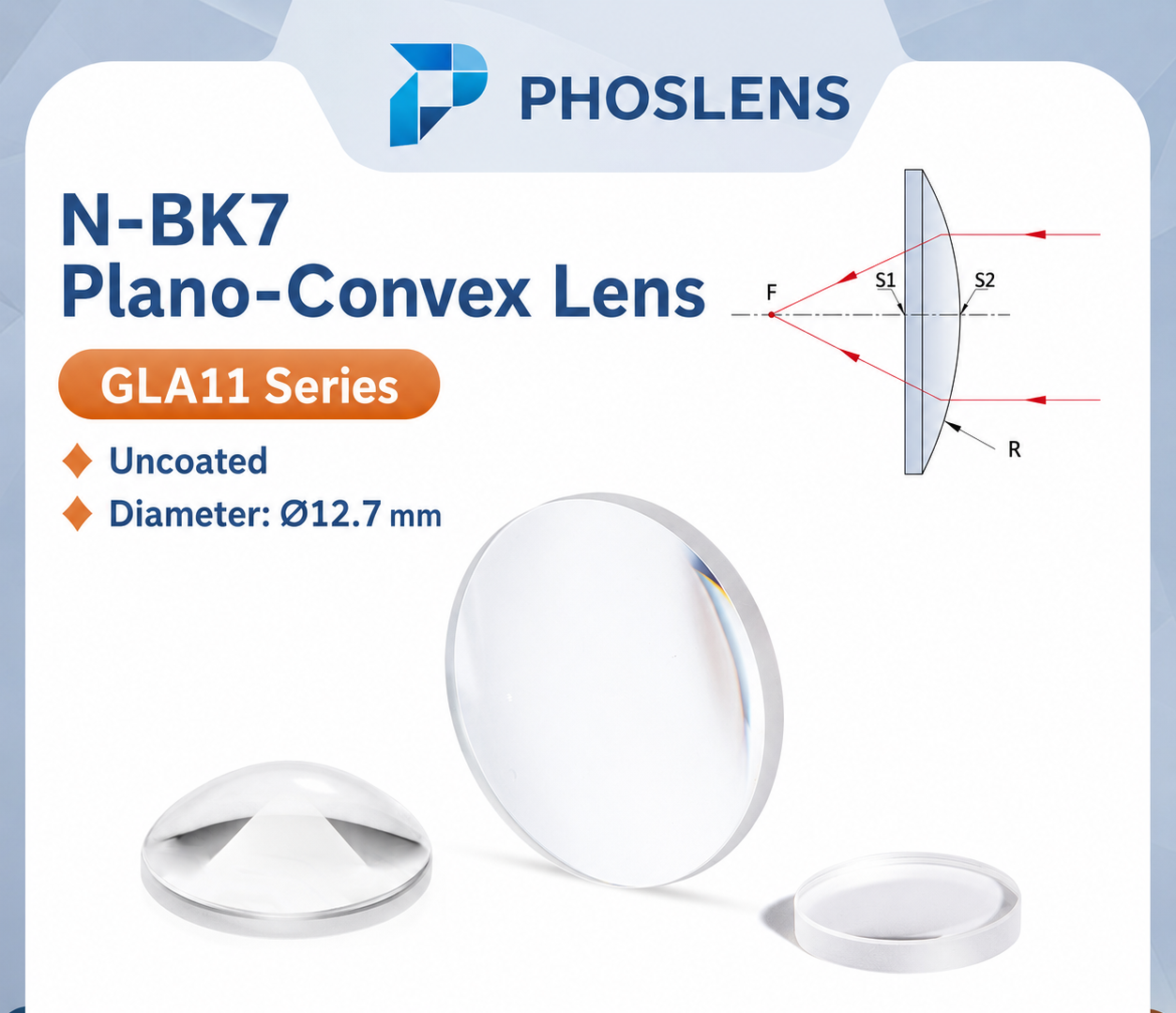

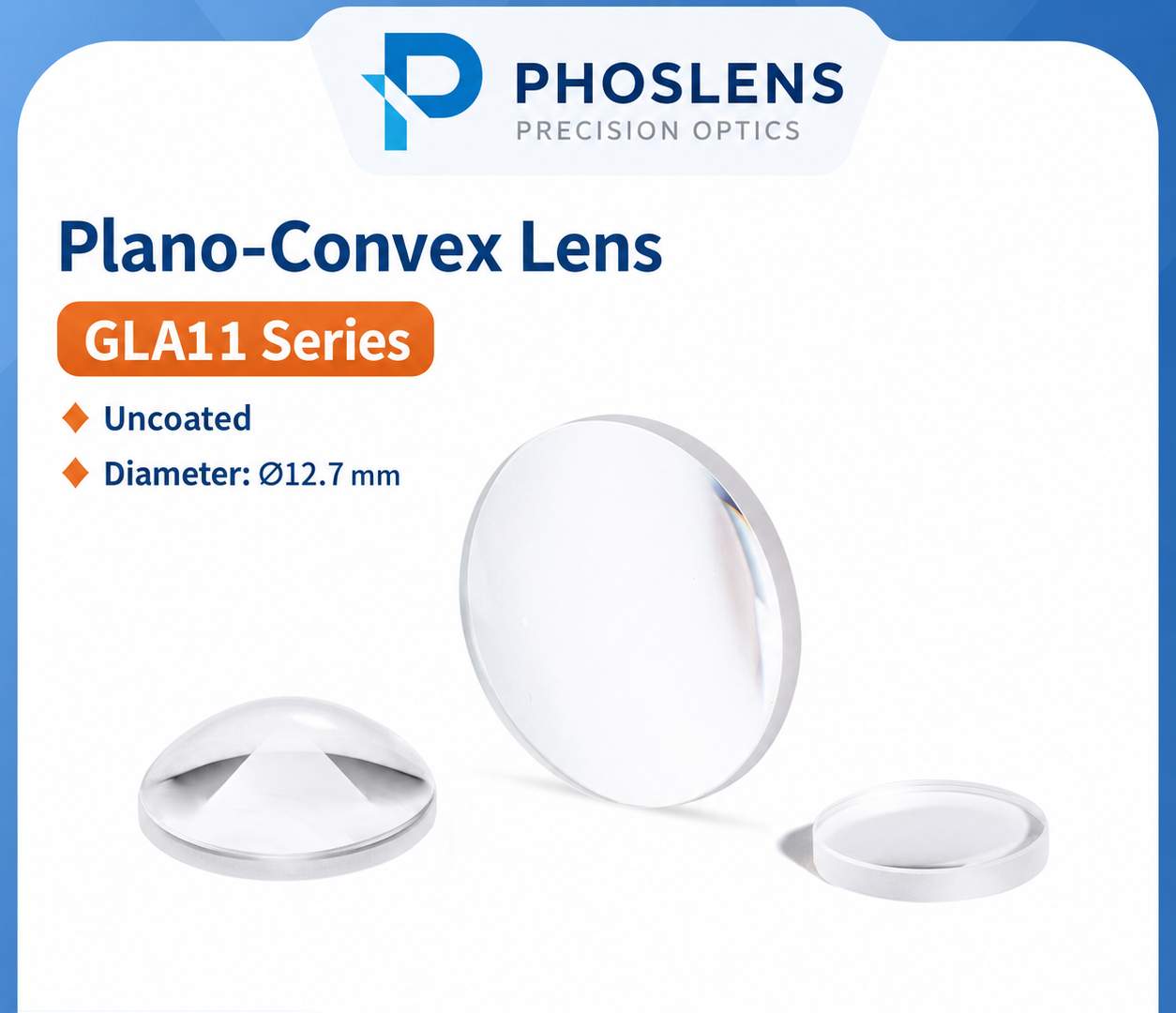

GLA11 Uncoated N-BK7 Plano-Convex Lens 12.7 mm product view

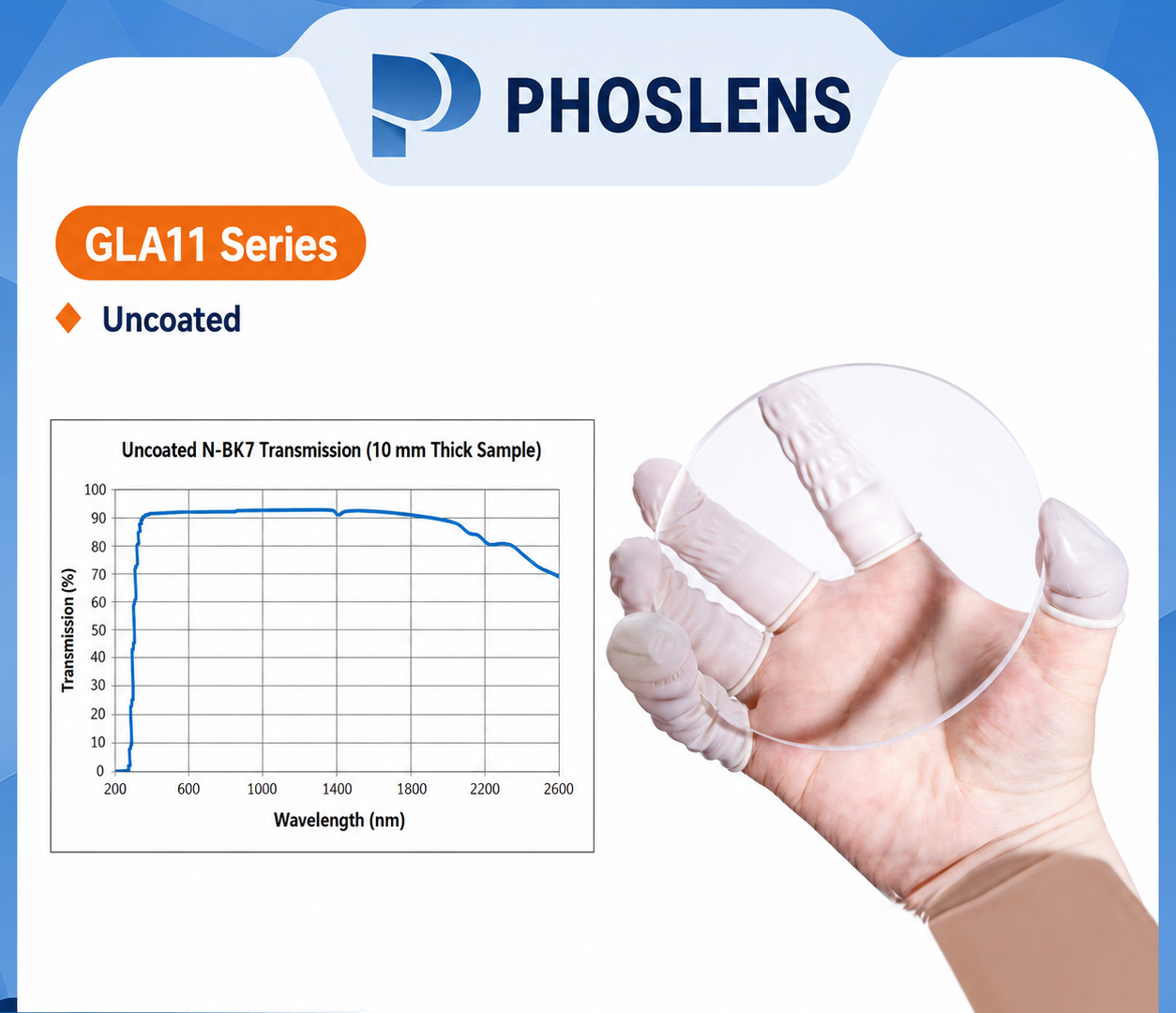

N-BK7 optical glass transmission reference

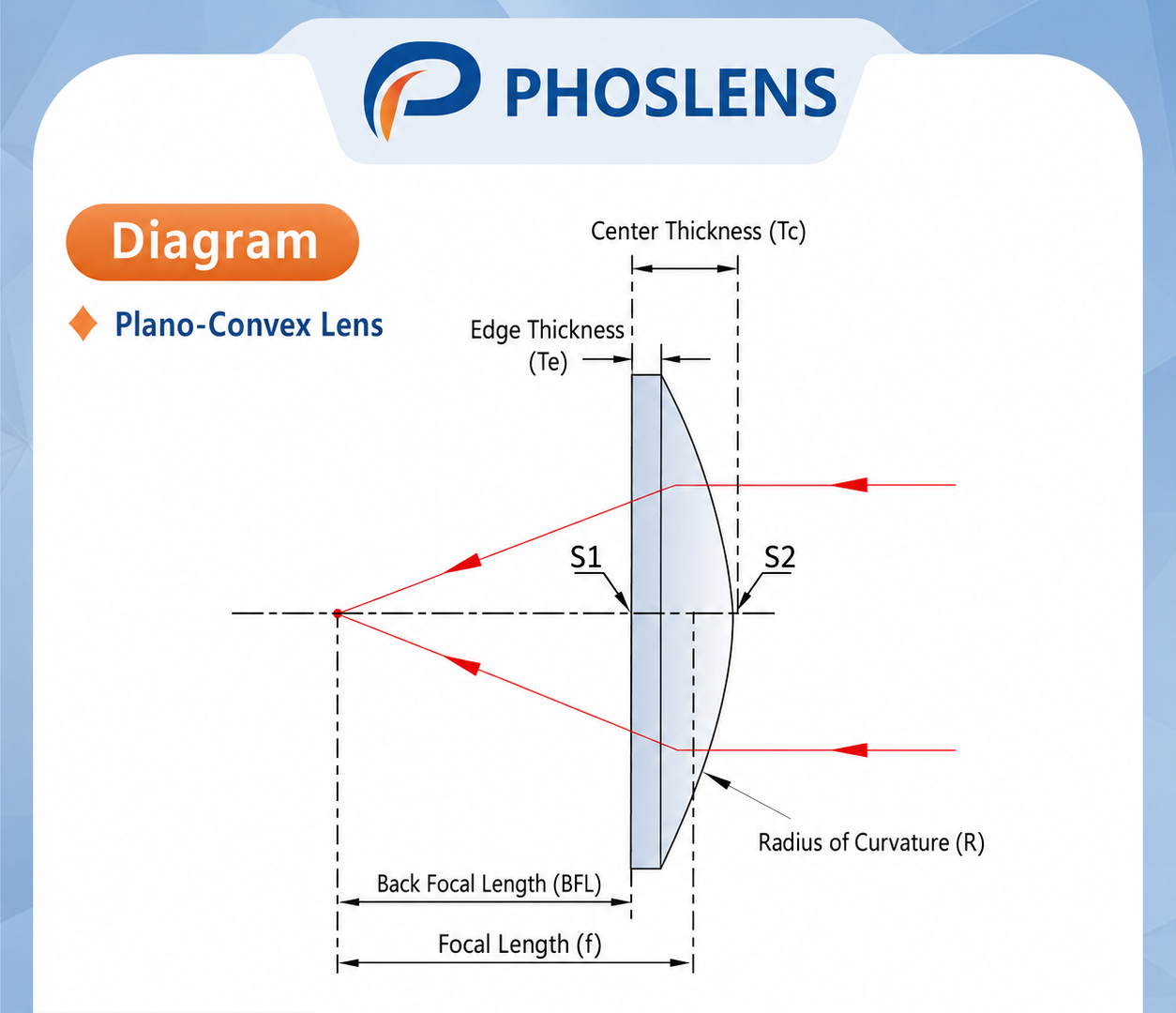

Plano-convex lens geometry diagram
,

GLA11 Uncoated N-BK7 Plano-Convex Lenses, Ø12.7 mm

$27.90

Uncoated GLA11 plano-convex lenses made from N-BK7 optical glass with a 12.7 mm diameter. Multiple focal length options are available for laboratory, optical alignment and focusing applications.

Select a model to view the corresponding price and availability. Please review the Available Models table below for focal length and optical geometry before ordering.
Select Model / SKU
SKU: N/A Categories: ,
Series GLA11
Material N-BK7 Optical Glass
Diameter 12.7 mm
Coating Uncoated
Product Type Plano-Convex Lens

Available Models

Use this table to compare focal length and geometry before selecting a model.

Model / SKU Focal Length Back Focal Length Center Thickness Edge Thickness Radius of Curvature
GLA11-012-015 15 mm 11.63 mm 5.1 mm 1.8 mm 7.73 mm
GLA11-012-020 20 mm 17.36 mm 4 mm 1.8 mm 10.3 mm
GLA11-012-025 25 mm 22.69 mm 3.5 mm 1.8 mm 12.88 mm
GLA11-012-030 30 mm 27.89 mm 3.2 mm 1.8 mm 15.45 mm
GLA11-012-038 38.1 mm 36.1 mm 3 mm 2 mm 19.69 mm
GLA11-012-040 40 mm 38.15 mm 2.8 mm 1.8 mm 20.6 mm
GLA11-012-050 50 mm 48.28 mm 2.6 mm 1.8 mm 25.75 mm
GLA11-012-075 75 mm 74.75 mm 2.38 mm 1.8 mm 38.63 mm
GLA11-012-100 100 mm 98.2 mm 2.22 mm 1.8 mm 51.51 mm
GLA11-012-125 125 mm 124.6 mm 2.3 mm 1.8 mm 64.39 mm
GLA11-012-150 150 mm 148.6 mm 2 mm 1.8 mm 77.5 mm
GLA11-012-175 175 mm 174.421 mm 2.2 mm 1.8 mm 90.14 mm
GLA11-012-200 200 mm 198.6 mm 2 mm 1.8 mm 103.36 mm
GLA11-012-250 250 mm 249.169 mm 2.15 mm 1.8 mm 128.77 mm
GLA11-012-300 300 mm 298.6 mm 2.13 mm 2 mm 155.04 mm
GLA11-012-500 500 mm — — 1.8 mm —
GLA11-012-500-2 500 mm 498.8 mm 2.07 mm 2 mm 259.4 mm
Custom optical requirements

A dedicated Custom Optics process will be available when the contact channel is ready.

View Custom Optics

Product Overview

The GLA11 Uncoated N-BK7 Plano-Convex Lenses, ?12.7 mm are spherical singlet lenses with one flat surface and one convex surface. Plano-convex lenses have a positive focal length and are commonly used to focus collimated beams, collimate light from a point source, or support optical alignment work.

These lenses are made from N-BK7 optical glass and are supplied in an uncoated configuration. This draft product page covers the 12.7 mm diameter GLA11 series. Each selectable model corresponds to a different focal length and optical geometry.

Typical Applications

  • Laboratory optical setups
  • Beam focusing
  • Optical alignment
  • Imaging and inspection systems
  • Educational and research experiments

Technical Notes

  • All listed models share a 12.7 mm diameter.
  • Focal length varies by selected SKU / model.
  • Uncoated optical surfaces may have higher reflection than coated optics.
  • Customers should verify suitability for their optical system before ordering.

General Specifications

Parameter Specification
Product Type Plano-Convex Lens
Series GLA11
Material N-BK7 Optical Glass
Diameter 12.7 mm
Coating Uncoated

Model Selection

Please select the required model based on SKU and focal length. Variation-specific optical geometry such as back focal length, center thickness, edge thickness, and radius of curvature is saved with each variation for internal review and future specification display.

Weight 0.05 kg
Dimensions 8 × 8 × 4 cm
Model

GLA11-012-015, GLA11-012-020, GLA11-012-025, GLA11-012-030, GLA11-012-038, GLA11-012-040, GLA11-012-050, GLA11-012-075, GLA11-012-100, GLA11-012-125, GLA11-012-150, GLA11-012-175, GLA11-012-200, GLA11-012-250, GLA11-012-300, GLA11-012-500-2, GLA11-012-500
Series

GLA11
Material

N-BK7 Optical Glass
Diameter

12.7 mm
Coating

Uncoated
Product Type

Plano-Convex Lens
