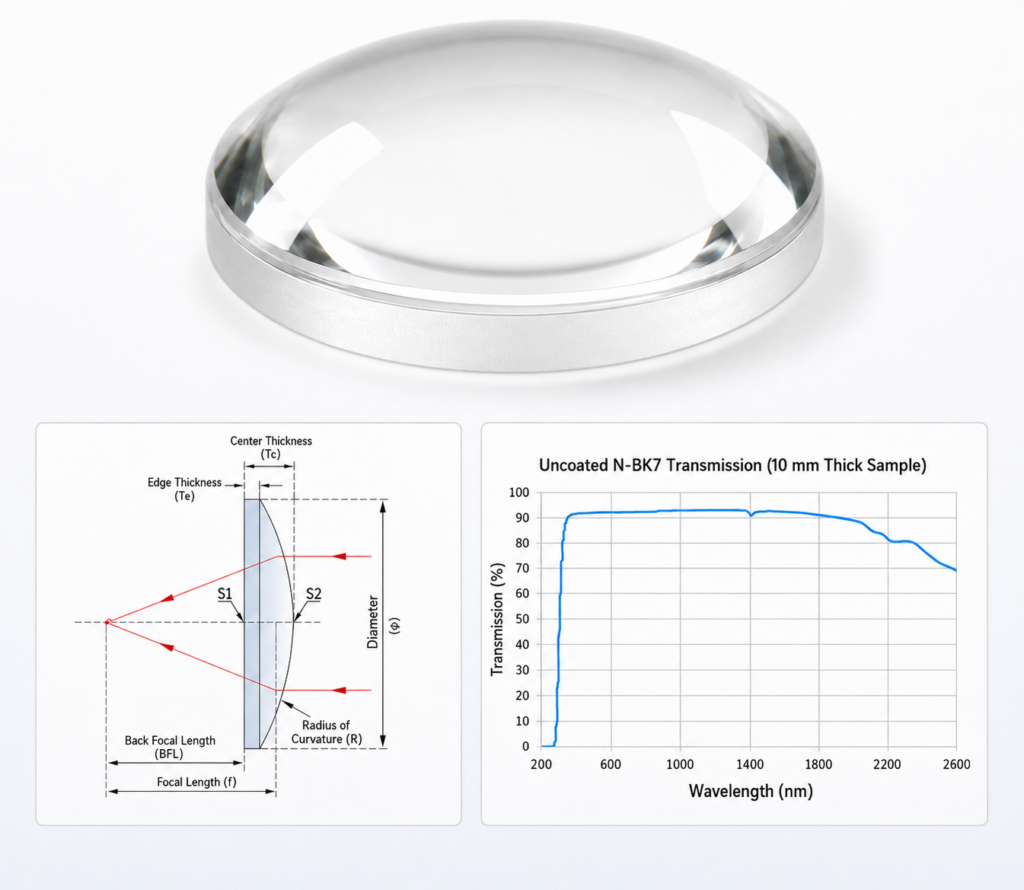

H-K9L Plano-Convex Lenses, Uncoated

H-K9L Plano-Convex Lenses, Uncoated group multiple standard SKU options by diameter and effective focal length in one engineering selection table. Available diameters: 3 mm – 100 mm (15 diameters). Use the filters below to choose the required diameter, EFL, coating and center thickness, then add available items to cart or request a quotation.

H-K9L Plano-Convex Lenses, Uncoated
Material H-K9L
Design Wavelength 587.6 nm
Diameter Tolerance +0.0/-0.1 mm
Center Thickness Tolerance ±0.2 mm
Surface Irregularity λ/4 @ 632.8 nm
EFL Tolerance ±2%
Centration Error 3 arcmin
Surface Quality 40/20~60/40
Chamfer / Bevel 0.2 mm × 45°
Coating Uncoated
Product Selection 69 SKUs
SKU Diameter EFL BFL CT ET ROC Coating Stock Unit Price Qty Action
GLH11-003-004 3 mm 4.5 mm 3.39 mm 1.7 mm 1.15 mm 2.33 mm Uncoated In stock $33.46
GLH11-003-010 3 mm 10 mm 8.88 mm 1.7 mm 1.48 mm 5.17 mm Uncoated In stock $31.35
GLH11-004-005 4 mm 5 mm 3.78 mm 1.9 mm 0.95 mm 2.58 mm Uncoated In stock $33.46
GLH11-004-006 4 mm 6.3 mm 5.18 mm 1.7 mm 1.01 mm 3.25 mm Uncoated In stock $30.21
GLH11-004-010 4 mm 10 mm 8.88 mm 1.7 mm 1.3 mm 5.17 mm Uncoated In stock $30.21
GLH11-005-008 5 mm 8 mm 7.01 mm 1.5 mm 0.66 mm 4.13 mm Uncoated In stock $30.21
GLH11-006-008 6.3 mm 8 mm 6.28 mm 2.6 mm 1.14 mm 4.13 mm Uncoated In stock $24.52
GLH11-006-010 6.3 mm 10 mm 8.3 mm 2.6 mm 1.53 mm 5.17 mm Uncoated In stock $24.52
GLH11-006-012 6.3 mm 12.5 mm 10.98 mm 2.3 mm 1.48 mm 6.46 mm Uncoated In stock $24.52
GLH11-006-016 6.3 mm 16 mm 14.62 mm 2.1 mm 1.48 mm 8.26 mm Uncoated In stock $24.52
GLH11-006-020 6.3 mm 20 mm 18.74 mm 2 mm 1.51 mm 10.36 mm Uncoated In stock $24.52
GLH11-006-025 6.3 mm 25 mm 23.75 mm 1.9 mm 1.51 mm 12.91 mm Uncoated In stock $24.52
GLH11-006-040 6.3 mm 40 mm 38.87 mm 1.7 mm 1.46 mm 20.65 mm Uncoated In stock $24.52
GLH11-006-063 6.3 mm 63 mm 61.82 mm 1.7 mm 1.55 mm 32.5 mm Uncoated In stock $24.52
GLH11-010-012 10 mm 12.5 mm 9.93 mm 3.9 mm 1.53 mm 6.46 mm Uncoated In stock $24.52
GLH11-010-016 10 mm 16 mm 13.89 mm 3.2 mm 1.52 mm 8.26 mm Uncoated In stock $24.52
GLH11-010-020 10 mm 20 mm 18.22 mm 2.8 mm 1.51 mm 10.36 mm Uncoated In stock $24.52
GLH11-010-025 10 mm 25 mm 23.35 mm 2.5 mm 1.49 mm 12.91 mm Uncoated In stock $24.52
GLH11-010-032 10 mm 31.5 mm 29.99 mm 2.3 mm 1.51 mm 16.27 mm Uncoated In stock $24.52
GLH11-010-040 10 mm 40 mm 38.61 mm 2.1 mm 1.49 mm 20.65 mm Uncoated In stock $24.52
GLH11-010-050 10 mm 50 mm 48.72 mm 2 mm 1.51 mm 25.84 mm Uncoated In stock $24.52
GLH11-010-063 10 mm 63 mm 61.69 mm 1.9 mm 1.51 mm 32.5 mm Uncoated In stock $24.52
GLH11-010-100 10 mm 100 mm 98.89 mm 1.7 mm 1.46 mm 51.64 mm Uncoated In stock $24.52
GLH11-012-020 12 mm 20.3 mm 18.34 mm 3 mm 1.12 mm 10.5 mm Uncoated In stock $24.52
GLH11-015-060 15 mm 60 mm 58.51 mm 2.3 mm 1.38 mm 31.02 mm Uncoated In stock $24.52
GLH11-016-020 16 mm 20 mm 16.9 mm 4.8 mm 1.02 mm 10.36 mm Uncoated In stock $27.72
GLH11-016-025 16 mm 25 mm 22.36 mm 4 mm 1.22 mm 12.91 mm Uncoated In stock $25.38
GLH11-016-032 16 mm 31.5 mm 29.13 mm 3.6 mm 1.5 mm 16.27 mm Uncoated In stock $25.38
GLH11-016-040 16 mm 40 mm 37.95 mm 3.1 mm 1.49 mm 20.65 mm Uncoated In stock $25.38
GLH11-016-050 16 mm 50 mm 48.2 mm 2.8 mm 1.53 mm 25.84 mm Uncoated In stock $25.38
GLH11-016-063 16 mm 63 mm 61.29 mm 2.5 mm 1.5 mm 32.5 mm Uncoated In stock $25.38
GLH11-016-080 16 mm 80 mm 78.47 mm 2.3 mm 1.52 mm 41.3 mm Uncoated In stock $25.38
GLH11-016-100 16 mm 100 mm 98.62 mm 2.1 mm 1.48 mm 51.64 mm Uncoated In stock $25.38
GLH11-016-160 16 mm 160 mm 158.75 mm 1.9 mm 1.51 mm 82.62 mm Uncoated In stock $25.38
GLH11-020-030 20 mm 30 mm 27.03 mm 4.5 mm 0.84 mm 15.5 mm Uncoated In stock $25.38
GLH11-020-050 20 mm 50 mm 47.23 mm 4.2 mm 2.19 mm 25.84 mm Uncoated In stock $25.38
GLH11-040-040 40 mm 40 mm 28.04 mm 17.95 mm 2.5 mm 20.67 mm Uncoated In stock $65.19
GLH11-040-050 40 mm 50 mm 42.14 mm 11.98 mm 2.5 mm 25.84 mm Uncoated In stock $63.09
GLH11-040-063 40 mm 63 mm 56.75 mm 9.38 mm 2.5 mm 32.5 mm Uncoated In stock $63.09
GLH11-040-080 40 mm 80 mm 74.93 mm 7.67 mm 2.5 mm 41.3 mm Uncoated In stock $37.66
GLH11-040-100 40 mm 100 mm 95.7 mm 6.53 mm 2.5 mm 51.64 mm Uncoated In stock $31.35
GLH11-040-125 40 mm 125 mm 121.26 mm 5.68 mm 2.5 mm 64.55 mm Uncoated In stock $31.35
GLH11-040-150 40 mm 150 mm 145.98 mm 6 mm 3.5 mm 77.52 mm Uncoated In stock $31.35
GLH11-040-160 40 mm 160 mm 156.73 mm 4.96 mm 2.5 mm 82.62 mm Uncoated In stock $31.35
GLH11-040-200 40 mm 200 mm 197.07 mm 4.45 mm 2.5 mm 103.28 mm Uncoated In stock $31.35
GLH11-040-250 40 mm 250 mm 247.61 mm 4.06 mm 2.5 mm 129.24 mm Uncoated In stock $31.35
GLH11-040-500 40 mm 500 mm 497.83 mm 3.28 mm 2.5 mm 258.18 mm Uncoated In stock $31.35
GLH11-045-100 45 mm 100 mm 96.4 mm 6.1 mm 0.97 mm 51.9 mm Uncoated In stock $31.35
GLH11-045-120 45 mm 120 mm 116 mm 6.1 mm 1.89 mm 62.2 mm Uncoated In stock $31.35
GLH11-050-063 50 mm 63 mm 53.22 mm 14.73 mm 3 mm 32.5 mm Uncoated In stock $65.19
GLH11-050-080 50 mm 80 mm 72.45 mm 11.43 mm 3 mm 41.3 mm Uncoated In stock $58.88
GLH11-050-100 50 mm 100 mm 93.77 mm 9.45 mm 3 mm 51.64 mm Uncoated In stock $37.66
GLH11-050-160 50 mm 160 mm 155.47 mm 6.87 mm 3 mm 82.62 mm Uncoated In stock $37.66
GLH11-050-250 50 mm 250 mm 246.21 mm 5.44 mm 3 mm 129.24 mm Uncoated In stock $37.66
GLH11-050-500 50 mm 500 mm 497.21 mm 4.21 mm 3 mm 258.18 mm Uncoated In stock $37.66
GLH11-063-100 63 mm 100 mm 90.96 mm 13.72 mm 3 mm 51.64 mm Uncoated In stock $50.47
GLH11-063-125 63 mm 125 mm 117.62 mm 11.21 mm 3 mm 64.55 mm Uncoated In stock $46.07
GLH11-063-160 63 mm 160 mm 153.91 mm 9.24 mm 3 mm 82.62 mm Uncoated In stock $46.07
GLH11-063-250 63 mm 250 mm 245.74 mm 6.9 mm 3 mm 129.24 mm Uncoated In stock $46.07
GLH11-063-500 63 mm 500 mm 496.33 mm 4.93 mm 3 mm 258.18 mm Uncoated In stock $46.07
GLH11-063-1000 63 mm 1000 mm 997.64 mm 3.96 mm 3 mm 516.5 mm Uncoated In stock $46.07
GLH11-080-150 80 mm 150 mm 140.69 mm 14.12 mm 3 mm 77.52 mm Uncoated In stock $79.15
GLH11-080-300 80 mm 300 mm 294.56 mm 8.25 mm 3 mm 155.04 mm Uncoated In stock $79.15
GLH11-080-500 80 mm 500 mm 495.54 mm 6.12 mm 3 mm 258.18 mm Uncoated In stock $79.15
GLH11-080-1000 80 mm 1000 mm 996.02 mm 4.6 mm 3 mm 516.82 mm Uncoated In stock $79.15
GLH11-080-2000 80 mm 2000 mm 1997.52 mm 3.76 mm 3 mm 1033.65 mm Uncoated In stock $84.31
GLH11-100-160 100 mm 160 mm 146.25 mm 20.85 mm 4 mm 82.62 mm Uncoated In stock $185.25
GLH11-100-250 100 mm 250 mm 241.37 mm 14.05 mm 4 mm 129.24 mm Uncoated In stock $185.25
GLH11-100-500 100 mm 500 mm 494.13 mm 8.89 mm 4 mm 258.18 mm Uncoated In stock $185.25
