Optical Lenses
Find an optical lens by its shape and role in the beam path. This catalogue includes spherical singlets, cylindrical lenses, meniscus lenses, achromatic doublets, ball and drum lenses, and zinc selenide aspheres. Each family leads to material choices and model specifications.

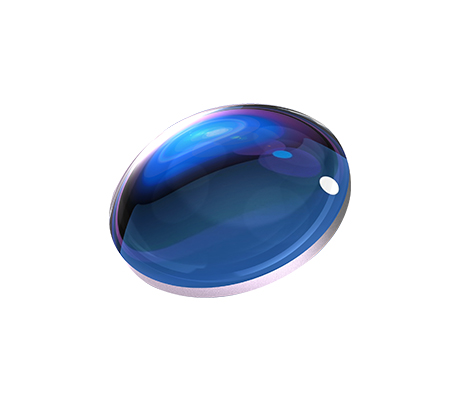

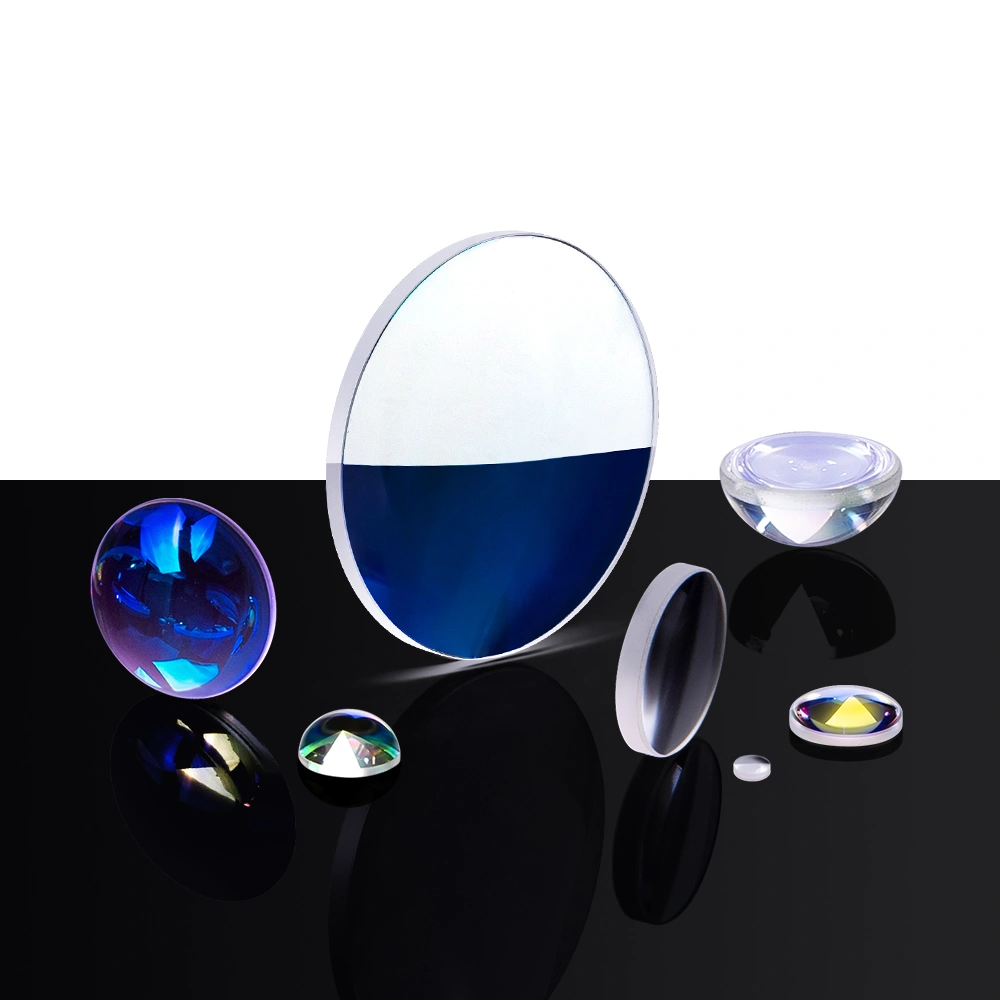

Plano-Convex Lenses

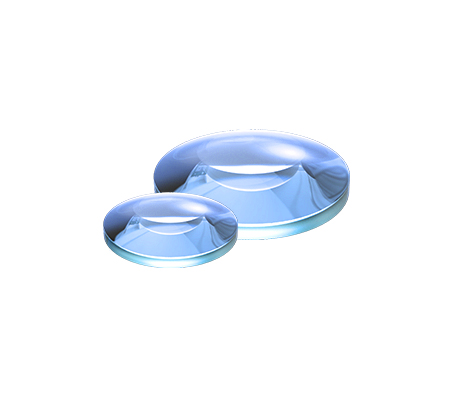

Double-Convex Lenses

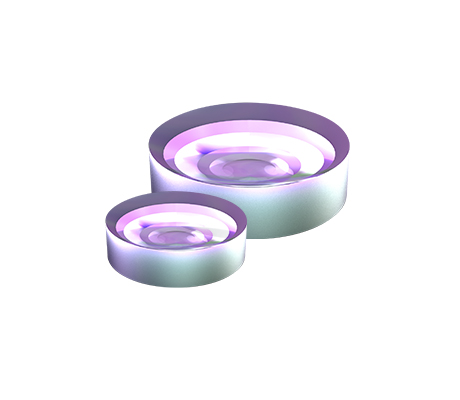

Plano-Concave Lenses

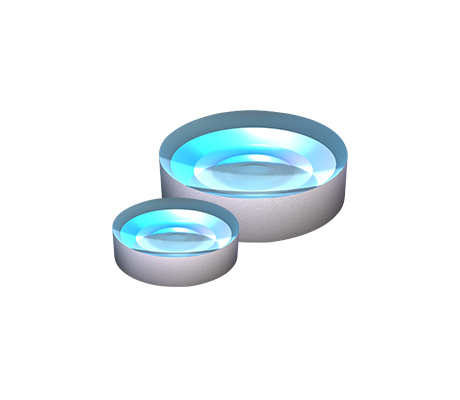

Double-Concave Lenses

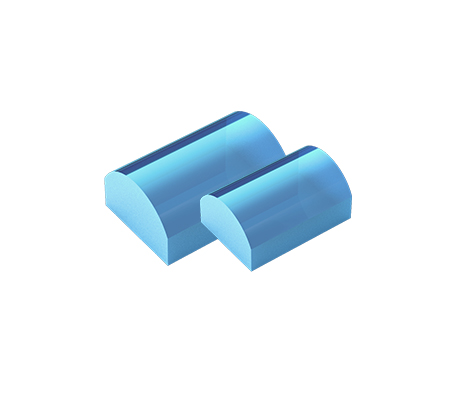

Plano-Convex Cylindrical Lenses
Plano-Concave Cylindrical Lenses
Meniscus Lenses
Drum Lenses

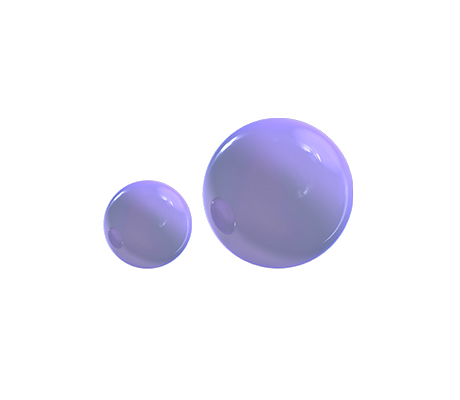

Ball Lenses

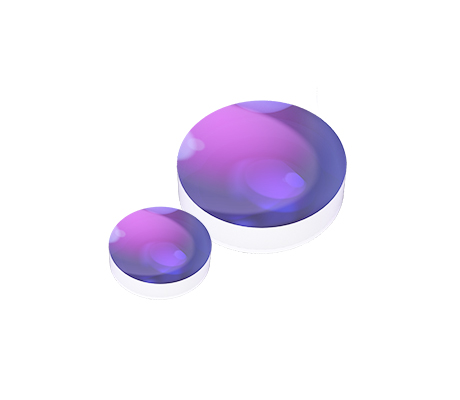

Achromatic Lenses

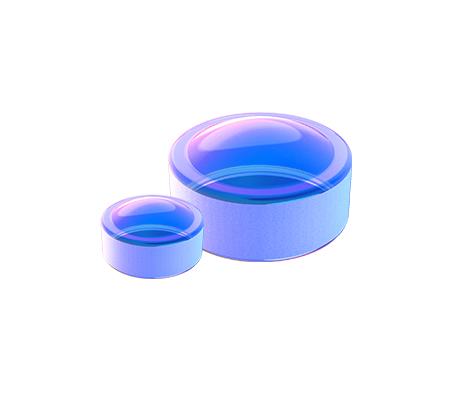

Aspheric Lenses
Choosing Optical Lenses
- Start with required optical power and geometry: positive or negative power, two-dimensional focusing, or control in one cylindrical direction.
- Choose the material and coating for the operating wavelength, then compare focal length and usable aperture.
- For an existing design, match the complete prescription and installation dimensions rather than treating focal length alone as a replacement specification.
Use the optical-parameter guide to distinguish focal, aperture and surface specifications.
