K9 Double-Sided Optical Flats — GFH12 Series

From $94 USD

Product description

GFH12 K9 double-sided optical flats have two precision-ground and polished optical surfaces with high flatness and parallelism. Either surface can serve as a reference flat for assessing flatness errors and wringing performance of other highly finished surfaces.

The source states that each optical flat is precision-ground and tested using a Zygo interferometer to verify surface accuracy.

K9 optical glass offers high transmission over 350–2000 nm. The source describes high hardness, resistance to physical and chemical effects, and low bubble and impurity content, making it suitable as a substrate for optical components.

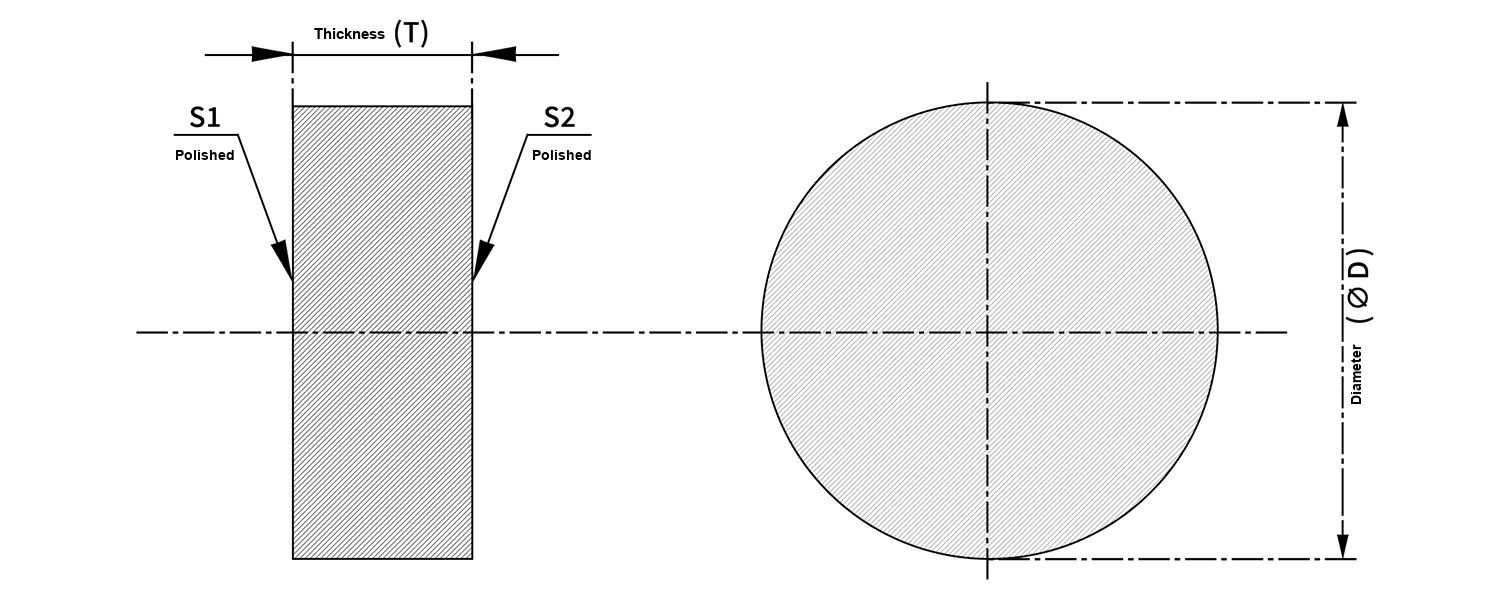

Double-sided optical flat dimensions — Supplier schematic
Original supplier dimensions and surface labels are retained.

Product drawings are for reference only. Actual products may have dimensional deviations; the drawings must not be used for manufacturing.

The common category specification states a diameter tolerance of +0.2 mm, while the individual model rows state ±0.2 mm. Both supplier statements are retained; refer to the model row for the selected part.

General specifications

Specifications common to this series. Refer to the individual model rows for model-specific values.

Material: Fine-annealed H-K9L optical glass

Surface quality: 60-40

Surface flatness: λ/10 at 633 nm

Parallelism: See model specification table

Diameter tolerance: +0.2 mm

Thickness tolerance: See model specification table

Protective chamfer: 0.2–0.5 mm × 45°

Coating: Uncoated

S1 surface: Polished

S2 surface: Polished

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

16 models

Dia. = diameter. Units remain shown in each heading.

								Quote
GFH12-0254-2-1	λ/10 at 633 nm	<5 arcsec	φ25.4 mm	12.7 mm	±0.2 mm	±1 mm	$94	Quantity for GFH12-0254-2-1

GFH12-0508-2-1	λ/10 at 633 nm	<5 arcsec	φ50.8 mm	12.7 mm	±0.2 mm	±1 mm	$172	Quantity for GFH12-0508-2-1

GFH12-0762-2-1	λ/10 at 633 nm	<5 arcsec	φ76.2 mm	19.1 mm	±0.2 mm	±1 mm	$234	Quantity for GFH12-0762-2-1

GFH12-1016-2-1	λ/10 at 633 nm	<5 arcsec	φ101.6 mm	19.1 mm	±0.2 mm	±1 mm	$638	Quantity for GFH12-1016-2-1

GFH12-1524-2-1	λ/10 at 633 nm	<5 arcsec	φ152.4 mm	25.4 mm	±0.2 mm	±2 mm	$2,334	Quantity for GFH12-1524-2-1

GFH12-2032-2-1	λ/10 at 633 nm	<5 arcsec	φ203.2 mm	38.1 mm	±0.2 mm	±2 mm	$3,314	Quantity for GFH12-2032-2-1

GFH12-2540-2-1	λ/10 at 633 nm	<5 arcsec	φ254 mm	38.1 mm	±0.2 mm	±2 mm	$4,200	Quantity for GFH12-2540-2-1

GFH12-3048-2-1	λ/10 at 633 nm	<5 arcsec	φ304.8 mm	38.1 mm	±0.2 mm	±2 mm	$9,800	Quantity for GFH12-3048-2-1

GFH12-0254-2-2	λ/10 at 633 nm	<2 arcmin	φ25.4 mm	12.7 mm	±0.2 mm	±1 mm	$94	Quantity for GFH12-0254-2-2

GFH12-0508-2-2	λ/10 at 633 nm	<2 arcmin	φ50.8 mm	12.7 mm	±0.2 mm	±1 mm	$125	Quantity for GFH12-0508-2-2

GFH12-0762-2-2	λ/10 at 633 nm	<2 arcmin	φ76.2 mm	19.1 mm	±0.2 mm	±1 mm	$203	Quantity for GFH12-0762-2-2

GFH12-1016-2-2	λ/10 at 633 nm	<2 arcmin	φ101.6 mm	19.1 mm	±0.2 mm	±1 mm	$576	Quantity for GFH12-1016-2-2

GFH12-1524-2-2	λ/10 at 633 nm	<2 arcmin	φ152.4 mm	25.4 mm	±0.2 mm	±2 mm	$2,116	Quantity for GFH12-1524-2-2

GFH12-2032-2-2	λ/10 at 633 nm	<2 arcmin	φ203.2 mm	38.1 mm	±0.2 mm	±2 mm	$2,956	Quantity for GFH12-2032-2-2

GFH12-2540-2-2	λ/10 at 633 nm	<2 arcmin	φ254 mm	38.1 mm	±0.2 mm	±2 mm	$4,029	Quantity for GFH12-2540-2-2

GFH12-3048-2-2	λ/10 at 633 nm	<2 arcmin	φ304.8 mm	38.1 mm	±0.2 mm	±2 mm	$8,089	Quantity for GFH12-3048-2-2

Technical notes

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
