Rhomboid Prisms — RBP Series
From $85 USD
Request a quoteProduct description
RBP rhomboid prisms laterally displace a beam while preserving its propagation direction. Source-listed applications include stereomicroscopes and periscopes.
The model table lists individual A, B and C edge lengths, K9 or quartz material, and total angular error below 30 arcsec. Quartz is retained as the source material designation without assuming a UV fused silica grade.
The source provides no model coating specification; an uncoated finish is not inferred.

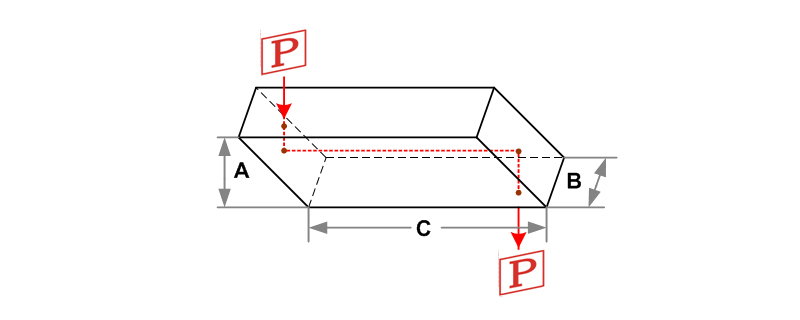

Schematic
Dimensions in mm.
Source illustrations are for reference. Use the model-specific specifications when selecting a prism.
General specifications
No additional general parameters are specified for this legacy source series. The complete model table below is authoritative. The source provides no model coating specification; an uncoated finish is not inferred.
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
13 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
| Details | Quote | |||||||
|---|---|---|---|---|---|---|---|---|
| RBP0005 | K9 | 5 | 5 | 7.1 | <30 arcsec | $85 | ||
| RBP0110 | K9 | 7.1 | 10 | 14.1 | <30 arcsec | $88 | ||
| RBP0112 | K9 | 9 | 12.7 | 18 | <30 arcsec | $88 | ||
| RBP0120 | K9 | 14.1 | 20 | 28.3 | <30 arcsec | $100 | ||
| RBP0125 | K9 | 18 | 25.4 | 35.9 | <30 arcsec | $110 | ||
| RBP0113 | K9 | 7 | 13 | 27 | <30 arcsec | $100 | ||
| RBP0130 | K9 | 3 | 5 | 27 | <30 arcsec | $100 | ||
| RBP0131 | K9 | 5 | 5 | 27 | <30 arcsec | $100 | ||
| RBP0142 | Quartz | 4 | 6 | 38 | <30 arcsec | $123 | ||
| RBP0143 | Quartz | 6 | 6 | 30 | <30 arcsec | $123 | ||
| RBP0136 | K9 | 12 | 7 | 36 | <30 arcsec | $100 | ||
| RBP0115 | K9 | 9 | 15 | 18 | <30 arcsec | $87 | ||
| RBP0139 | Quartz | 3 | 6 | 39 | <30 arcsec | $123 | ||
No matching models. Change or clear your filters.
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
