GMH20 K9 Hollow Corner-Cube Retroreflectors
From $678 USD
Request a quoteProduct description
GMH20 hollow corner-cube retroreflectors use three mutually perpendicular reflective faces in a trihedral arrangement. The category describes a 180° return direction that is independent of the incoming beam angle.
The three listed models specify K9 material, a 23 mm clear aperture and an SM05 threaded mounting adapter. Choose among the model-listed protected UV-reflective aluminum, protected silver and protected gold coatings.
The source describes an open optical path intended to avoid dispersion, chromatic effects, material absorption and front-surface reflection associated with a solid glass prism. The three coating choices are identified on the individual model records.

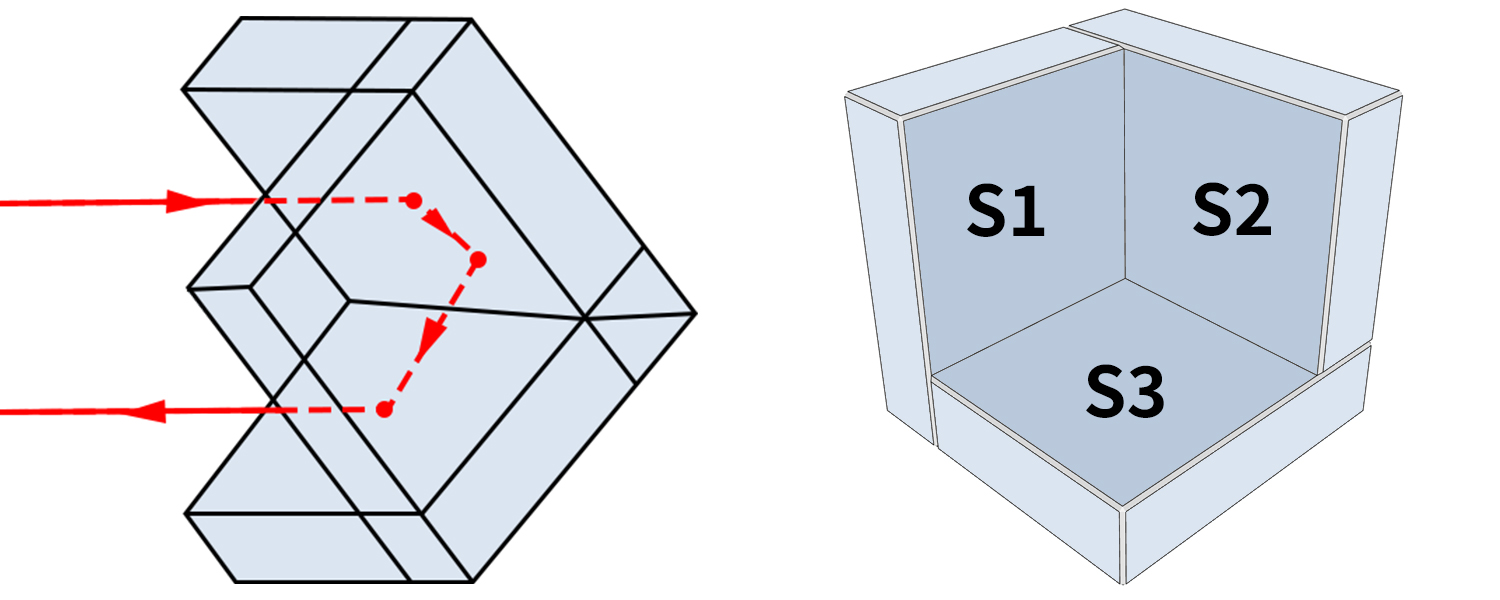

GMH20 original optical ray schematic
Original source reference drawing; obtain a model-specific manufacturing drawing before integration.
The category describes the adapter as having SM05 (0.535-40) external threads for an LMR-05 mount. Source drawings are reference-only and the delivered product may vary; confirm the model and mounting details for the intended setup.
General specifications
Category-level specifications from source category 1145. Product model rows preserve each SKU declaration; do not assume category substrate values override model material fields.
- Material
- Fine-annealed H-K9L optical glass
- Surface figure
- λ/10 @632.8 nm
- Height tolerance
- ±0.2 mm
- Diameter tolerance
- +0.0/-0.1 mm
- Beam deviation
- <5 arcsec
- Surface quality
- 40-20
- Bevel
- <0.25 mm ×45°
- Coating
- See individual product listings
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
3 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
| Details | Quote | ||||||
|---|---|---|---|---|---|---|---|
| GMH20-025-UVAL | K9 optical glass | φ23 mm | Protected UV-reflective aluminum coating | Includes an SM05 threaded mounting adapter | $678 | ||
| GMH20-025-AG | K9 optical glass | φ23 mm | Protected silver reflective coating | Includes an SM05 threaded mounting adapter | $678 | ||
| GMH20-025-AU | K9 optical glass | φ23 mm | Protected gold reflective coating | Includes an SM05 threaded mounting adapter | $678 | ||
No matching models. Change or clear your filters.

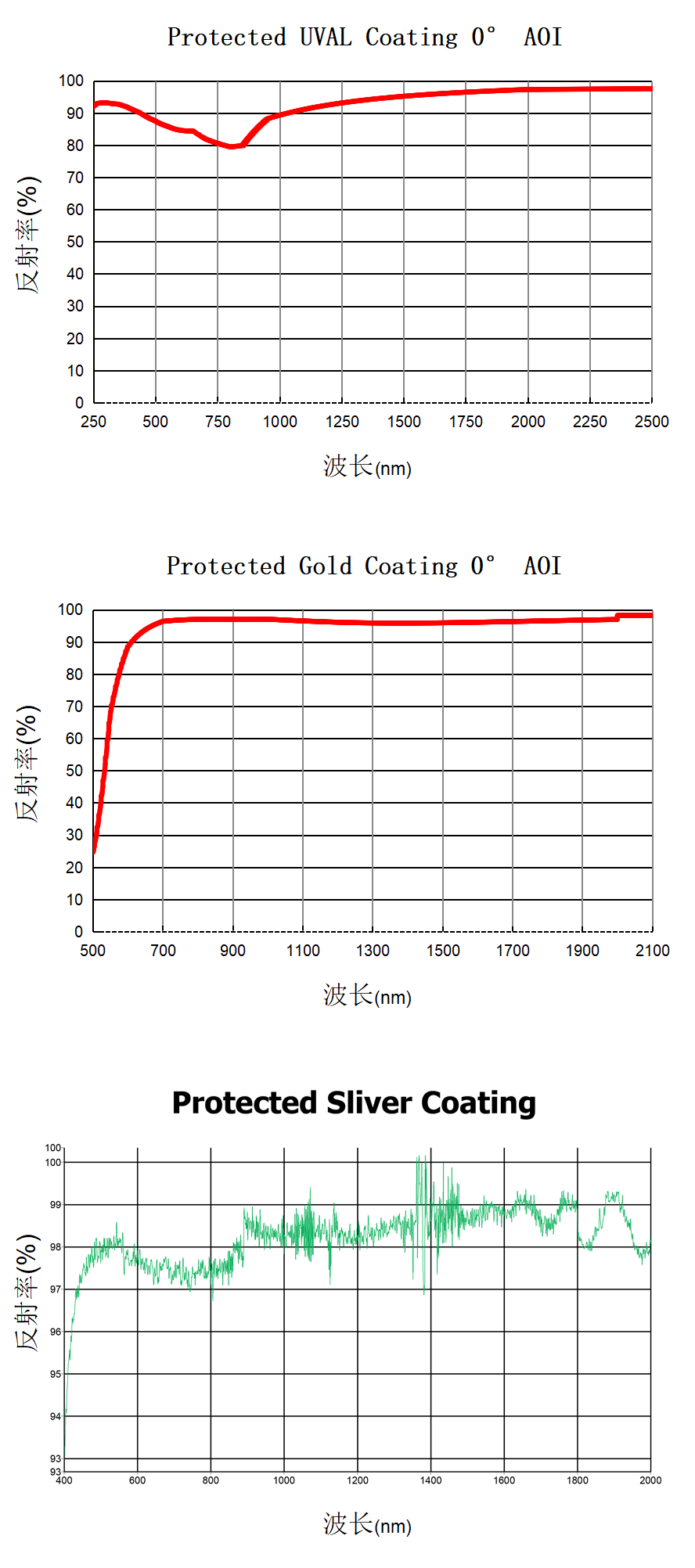

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
