GMH19 K9 Hollow Right-Angle Reflecting Prisms
From $500 USD
Request a quoteProduct description
GMH19 hollow right-angle mirror assemblies combine two first-surface right-angle reflectors fixed to a glass base. The category specifies a 90° ±10 arcsec angle between the reflecting faces and describes the hollow path as avoiding refraction, dispersion and material absorption.
The four listed models share a stated size of 25.4 ×25.4 ×19 mm and a 90° ±10 arcsec dihedral angle. Each model record identifies its own protected UV-reflective aluminum, enhanced protected aluminum, protected silver or protected gold coating.
The category lists reflected wavefront distortion of λ/2 at 633 nm, clear aperture above 90%, 40-20 surface quality and a damage threshold above 1 J/cm² at 1064 nm under 20 ns, 20 Hz conditions. These are category specifications; coating choice is model-specific.

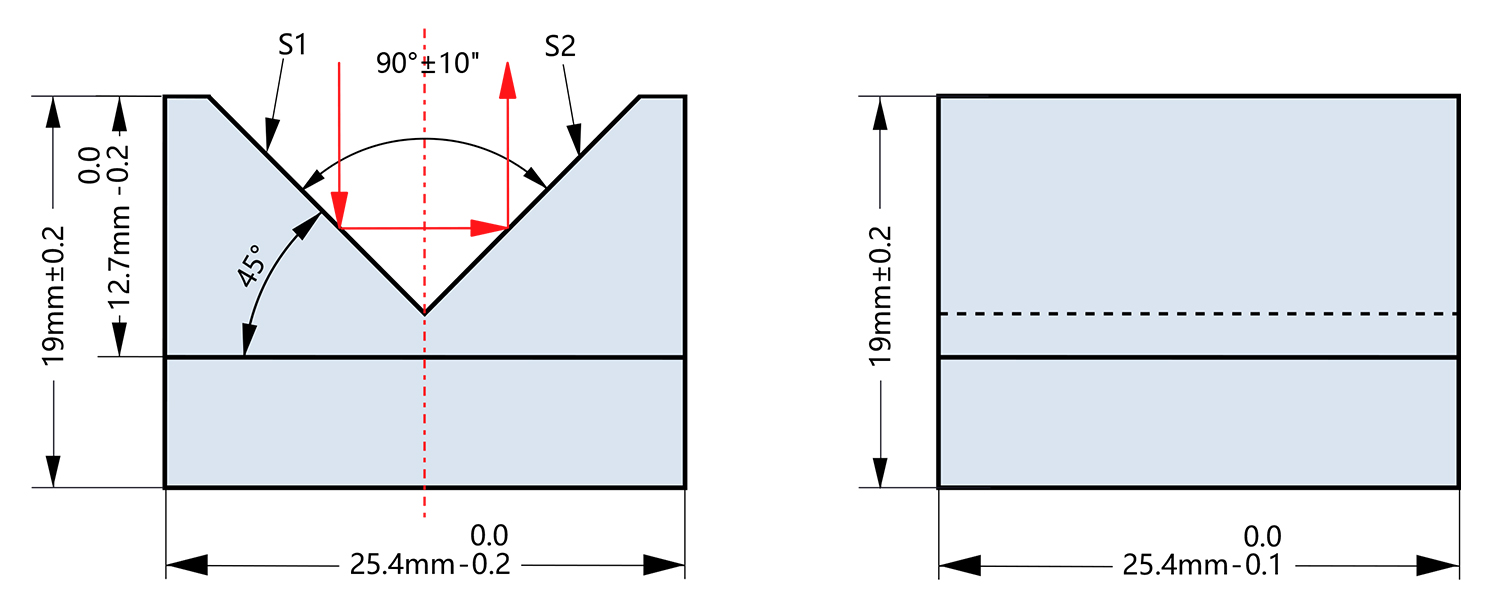

GMH19 original optical ray schematic
Original source reference drawing; obtain a model-specific manufacturing drawing before integration.
The source identifies optical delay lines and interferometric measurements as applications and marks drawings as references that may differ from delivered products. Category material is listed as fine-annealed H-K9L glass, while all four model records say K9; confirm the material declaration for the selected model.
General specifications
Category-level specifications from source category 1146. Product model rows preserve each SKU declaration; do not assume category substrate values override model material fields.
- Material
- Fine-annealed H-K9L optical glass
- Reflected wavefront distortion
- λ/2 @633 nm
- Dimensional tolerance
- ±0.2 mm
- Dihedral angle precision
- 90° ±10 arcsec
- Clear aperture
- >90%
- Surface quality
- 40-20
- Damage threshold
- >1 J/cm², 20 ns, 20 Hz, @1064 nm
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
4 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
| Details | Quote | ||||||
|---|---|---|---|---|---|---|---|
| GMH19-025-UVAL | K9 optical glass | 25.4×25.4×19 mm | 90°±10 arcsec | Protected UV-reflective aluminum coating | $500 | ||
| GMH19-025-AL | K9 optical glass | 25.4×25.4×19 mm | 90°±10 arcsec | Protected enhanced aluminum reflective coating | $500 | ||
| GMH19-025-AG | K9 optical glass | 25.4×25.4×19 mm | 90°±10 arcsec | Protected silver reflective coating | $500 | ||
| GMH19-025-AU | K9 optical glass | 25.4×25.4×19 mm | 90°±10 arcsec | Protected gold reflective coating | $578 | ||
No matching models. Change or clear your filters.

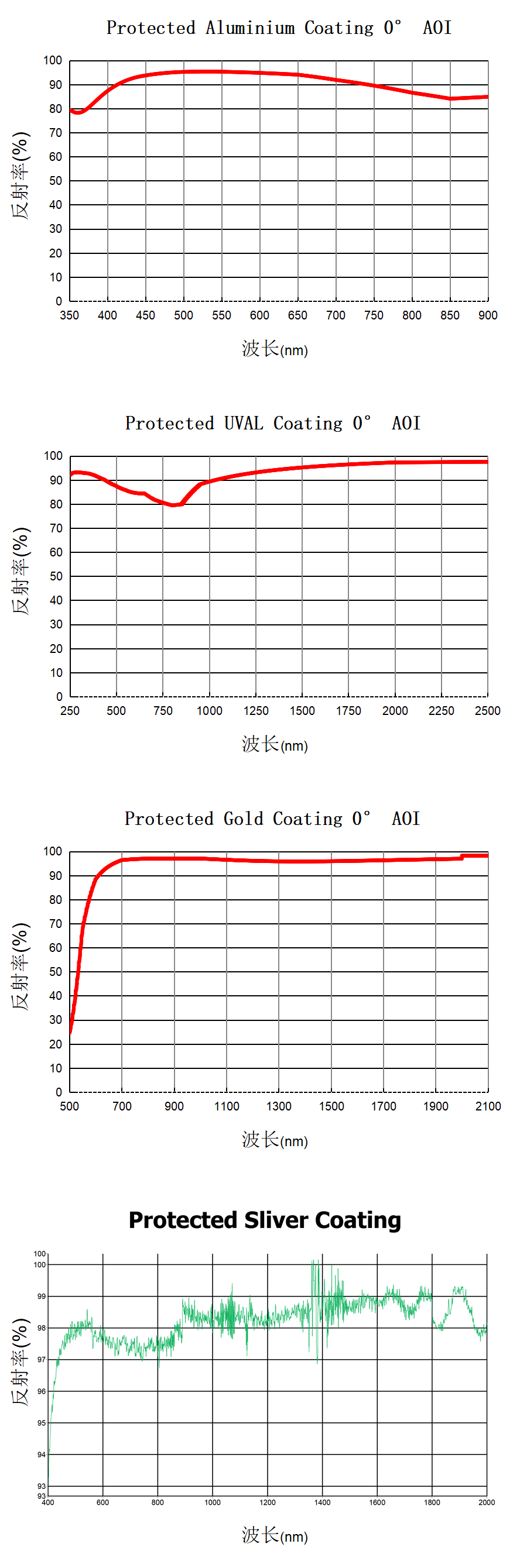

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
