HPC Nd:YAG Output Mirrors

From $67 USD

Product description

HPC output mirrors use a partially reflective dielectric coating on one face and an antireflection coating on the reverse face. The category specifies 0° incidence for this series.

The 28 listed models cover diameters from 10 mm to 50.8 mm and thicknesses from 2 mm to 10 mm. Model materials are listed as quartz or K9. The wavelength field is 1064 nm on most rows and 1030–1064 nm on the remaining rows.

The model options list transmittance values of 2%, 5%, 10%, 15%, 20% and 50%. Category specifications include a surface figure below λ/4 at 632.8 nm, clear aperture above 90%, and a damage threshold above 5 J/cm² at 1064 nm under the stated 20 ns, 20 Hz condition.

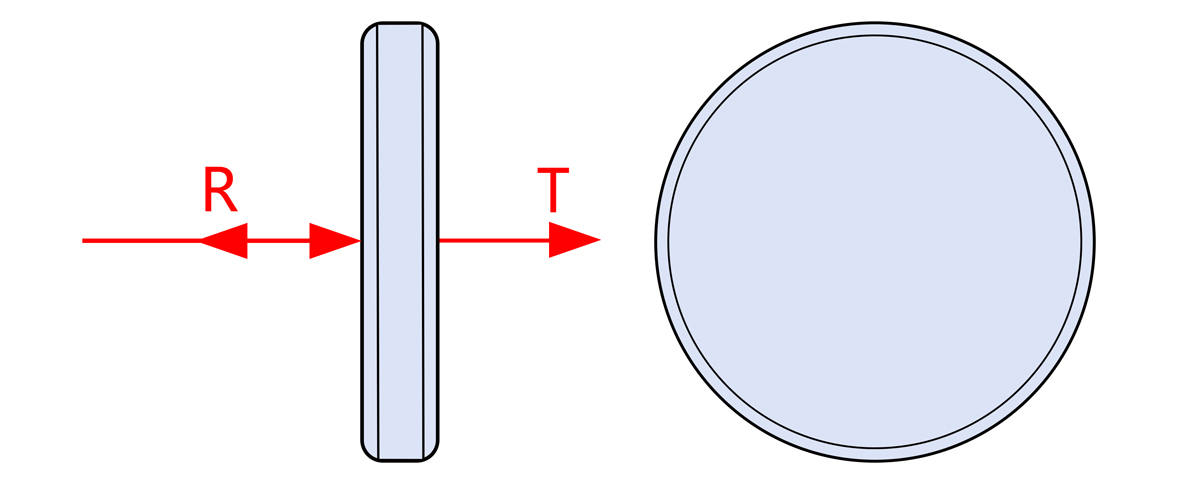

HPC own R and T optical ray schematic — HPC original optical schematic
Original source reference drawing; obtain a model-specific manufacturing drawing before integration.

The source says custom configurations can be requested. It marks drawings as reference-only and says they are not suitable for manufacturing; confirm model-specific requirements before ordering.

General specifications

Category-level specifications from source category 409. Per-model material, diameter, thickness, wavelength, transmittance and coating are listed separately in each model row.

Surface figure: <λ/4 @632.8 nm

Parallelism: <1 arcmin

Surface quality: 60-40

Clear aperture: >90%

Diameter/size tolerance: +0/-0.1 mm

Thickness tolerance: ±0.1 mm

Protective chamfer: <0.5 mm ×45°

Coating: Partial-reflective coating on one side; antireflection coating on the reverse side

Damage threshold: >5 J/cm², 20 ns, 20 Hz, @1064 nm

Note: Custom configurations can be requested; consult the supplier for details

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

28 models

										Quote
HPC010-T2-1064	Quartz	<λ/4 @632.8 nm	10 mm	3 mm	0°	1064 nm	2%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC010-T2-1064

HPC012-T2-1064	K9	<λ/4 @632.8 nm	12.7 mm	3 mm	0°	1064 nm	2%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC012-T2-1064

HPC020-T2-1064	K9	<λ/4 @632.8 nm	20 mm	4 mm	0°	1064 nm	2%	S1: partially reflective dielectric coating; S2: antireflection coating	$100	Quantity for HPC020-T2-1064

HPC025-T2-1064	K9	<λ/4 @632.8 nm	25.4 mm	3 mm	0°	1064 nm	2%	S1: partially reflective dielectric coating; S2: antireflection coating	$134	Quantity for HPC025-T2-1064

HPC050-T2-1064	K9	<λ/4 @632.8 nm	50.8 mm	4 mm	0°	1064 nm	2%	S1: partially reflective dielectric coating; S2: antireflection coating	$245	Quantity for HPC050-T2-1064

HPC012-T5-1064	Quartz	<λ/4 @632.8 nm	12.7 mm	3 mm	0°	1030–1064 nm	5%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC012-T5-1064

HPC025-T5-1064	K9	<λ/4 @632.8 nm	25.4 mm	4 mm	0°	1030–1064 nm	5%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC025-T5-1064

HPC010-T10-1064	Quartz	<λ/4 @632.8 nm	10 mm	3 mm	0°	1064 nm	10%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC010-T10-1064

HPC012-T10-1064	K9	<λ/4 @632.8 nm	12.7 mm	3 mm	0°	1064 nm	10%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC012-T10-1064

HPC020-T10-1064	K9	<λ/4 @632.8 nm	20 mm	4 mm	0°	1064 nm	10%	S1: partially reflective dielectric coating; S2: antireflection coating	$74	Quantity for HPC020-T10-1064

HPC025-T10-1064	K9	<λ/4 @632.8 nm	25.4 mm	4 mm	0°	1064 nm	10%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC025-T10-1064

HPC050-T10-1064	K9	<λ/4 @632.8 nm	50.8 mm	4 mm	0°	1064 nm	10%	S1: partially reflective dielectric coating; S2: antireflection coating	$218	Quantity for HPC050-T10-1064

HPC010-T15-1064	Quartz	<λ/4 @632.8 nm	10 mm	3 mm	0°	1064 nm	15%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC010-T15-1064

HPC012-T15-1064	K9	<λ/4 @632.8 nm	12.7 mm	3 mm	0°	1064 nm	15%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC012-T15-1064

HPC020-T15-1064	K9	<λ/4 @632.8 nm	20 mm	4 mm	0°	1064 nm	15%	S1: partially reflective dielectric coating; S2: antireflection coating	$74	Quantity for HPC020-T15-1064

HPC025-T15-1064	K9	<λ/4 @632.8 nm	25.4 mm	3 mm	0°	1064 nm	15%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC025-T15-1064

HPC050-T15-1064	K9	<λ/4 @632.8 nm	50.8 mm	4 mm	0°	1064 nm	15%	S1: partially reflective dielectric coating; S2: antireflection coating	$218	Quantity for HPC050-T15-1064

HPC010-T20-1064	Quartz	<λ/4 @632.8 nm	10 mm	3 mm	0°	1064 nm	20%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC010-T20-1064

HPC012-T20-1064	Quartz	<λ/4 @632.8 nm	12.7 mm	3 mm	0°	1064 nm	20%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC012-T20-1064

HPC020-T20-1064	K9	<λ/4 @632.8 nm	20 mm	2 mm	0°	1064 nm	20%	S1: partially reflective dielectric coating; S2: antireflection coating	$74	Quantity for HPC020-T20-1064

HPC025-T20-1064	K9	<λ/4 @632.8 nm	25.4 mm	4 mm	0°	1064 nm	20%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC025-T20-1064

HPC050-T20-1064	Quartz	<λ/4 @632.8 nm	50.8 mm	10 mm	0°	1064 nm	20%	S1: partially reflective dielectric coating; S2: antireflection coating	$218	Quantity for HPC050-T20-1064

HPC010-T50-1064	Quartz	<λ/4 @632.8 nm	10 mm	3 mm	0°	1064 nm	50%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC010-T50-1064

HPC012-T50-1064	Quartz	<λ/4 @632.8 nm	12.7 mm	3 mm	0°	1064 nm	50%	S1: partially reflective dielectric coating; S2: antireflection coating	$67	Quantity for HPC012-T50-1064

HPC015-T50-1064	Quartz	<λ/4 @632.8 nm	15 mm	2 mm	0°	1064 nm	50%	S1: partially reflective dielectric coating; S2: antireflection coating	$72	Quantity for HPC015-T50-1064

HPC020-T50-1064	K9	<λ/4 @632.8 nm	20 mm	2 mm	0°	1064 nm	50%	S1: partially reflective dielectric coating; S2: antireflection coating	$74	Quantity for HPC020-T50-1064

HPC025-T50-1064	K9	<λ/4 @632.8 nm	25.4 mm	4 mm	0°	1064 nm	50%	S1: partially reflective dielectric coating; S2: antireflection coating	$78	Quantity for HPC025-T50-1064

HPC050-T50-1064	K9	<λ/4 @632.8 nm	50.8 mm	4 mm	0°	1064 nm	50%	S1: partially reflective dielectric coating; S2: antireflection coating	$189	Quantity for HPC050-T50-1064

Curves

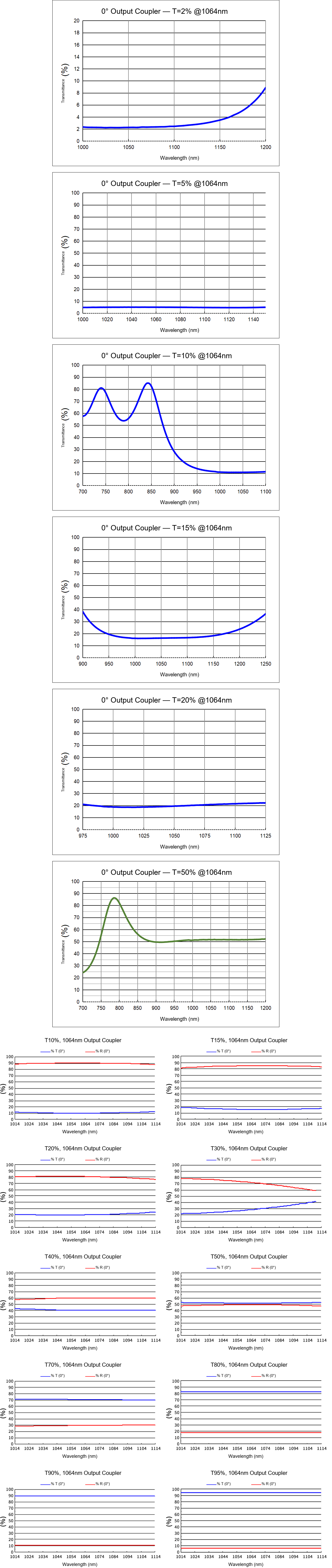

Typical transmission or coating performance. Refer to the model’s coating range.

Technical notes

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
