HOI Optical Isolators
From $420 USD
Request a quoteProduct description

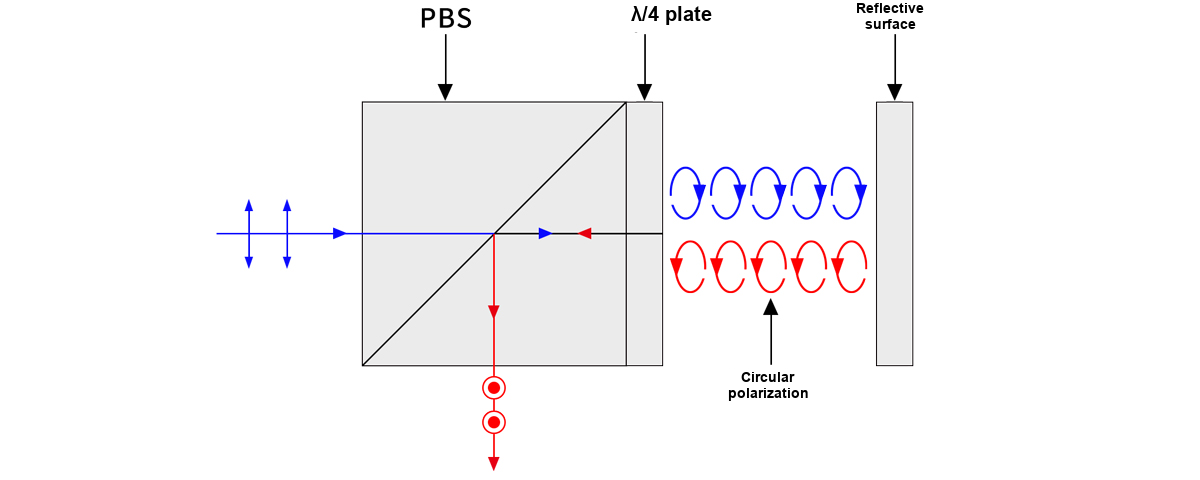

HOI optical isolators combine a polarizing beamsplitter prism with a zero-order quarter-wave plate whose optical axis is oriented at 45°. The source describes p-polarized transmitted light becoming circularly polarized, and reflected return light becoming s-polarized after a second pass so that the beamsplitter diverts it.
Listed design wavelengths are 532, 633, 780, 1064 and 1550 nm, with 5×5×5, 10×10×10 and 12.7×12.7×12.7 mm sizes. Review the individual model values. Isolation is listed as >20 dB; source reference curves are wavelength-dependent and do not establish a uniform value outside each model’s design conditions.
The model wavefront entry reads 1/4 at 632.8 nm without a wavefront unit; it is preserved with that ambiguity. Category common values separately state <λ/4 per 25 mm at 632.8 nm and beam deviation <3 arcmin, while model beam deviation reads 3 arcmin. These category thresholds do not overwrite the individual model entries.
Schematic
Optical path reference; not a manufacturing drawing.
Listed model materials are K9 glass and quartz crystal.
The source damage threshold is >500 mJ/cm², 20 ns, 20 Hz at 1064 nm. That test wavelength remains attached to the threshold even for models designed for other wavelengths. The source RoHS compliance statement is shown as an unverified source claim; no certification document is supplied.
Optical path reference; not a manufacturing drawing.
General specifications
These ten category common specifications are reference values and remain separate from the fifteen model specifications.
- Substrate material
- K9 glass + quartz crystal
- Wavefront distortion
- <λ/4 per 25 mm @ 632.8 nm
- Isolation
- >20 dB
- Beam deviation
- <3 arcmin
- Surface quality
- 60-40
- Clear aperture
- >90%
- Transmission parameters
- Tp>95%, Ts<1%
- Reflection parameters
- Rs>99%, Rp<5%
- Coating
- AR coatings on all entrance and exit faces
- Damage threshold
- >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
15 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
| Details | Quote | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOI-005-532 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 5×5×5 mm | 532 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-010-532 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 10×10×10 mm | 532 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-012-532 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 12.7×12.7×12.7 mm | 532 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $452 | ||
| HOI-005-633 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 5×5×5 mm | 633 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-010-633 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 10×10×10 mm | 633 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-012-633 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 12.7×12.7×12.7 mm | 633 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $452 | ||
| HOI-005-780 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 5×5×5 mm | 780 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-010-780 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 10×10×10 mm | 780 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-012-780 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 12.7×12.7×12.7 mm | 780 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $452 | ||
| HOI-005-1064 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 5×5×5 mm | 1064 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-010-1064 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 10×10×10 mm | 1064 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-012-1064 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 12.7×12.7×12.7 mm | 1064 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $452 | ||
| HOI-005-1550 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 5×5×5 mm | 1550 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-010-1550 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 10×10×10 mm | 1550 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $420 | ||
| HOI-012-1550 | K9 glass + quartz crystal | Source claims compliance; documentation unverified | >20 dB | 12.7×12.7×12.7 mm | 1550 nm | 1/4 @ 632.8 nm (source unit unspecified) | 60-40 | >90% | 3 arcmin | ±0.2 mm | Tp>95%, Ts<1% | Rs>99%, Rp<5% | AR coatings on all entrance and exit faces | >500 mJ/cm², 20 ns, 20 Hz @ 1064 nm | $452 | ||
No matching models. Change or clear your filters.

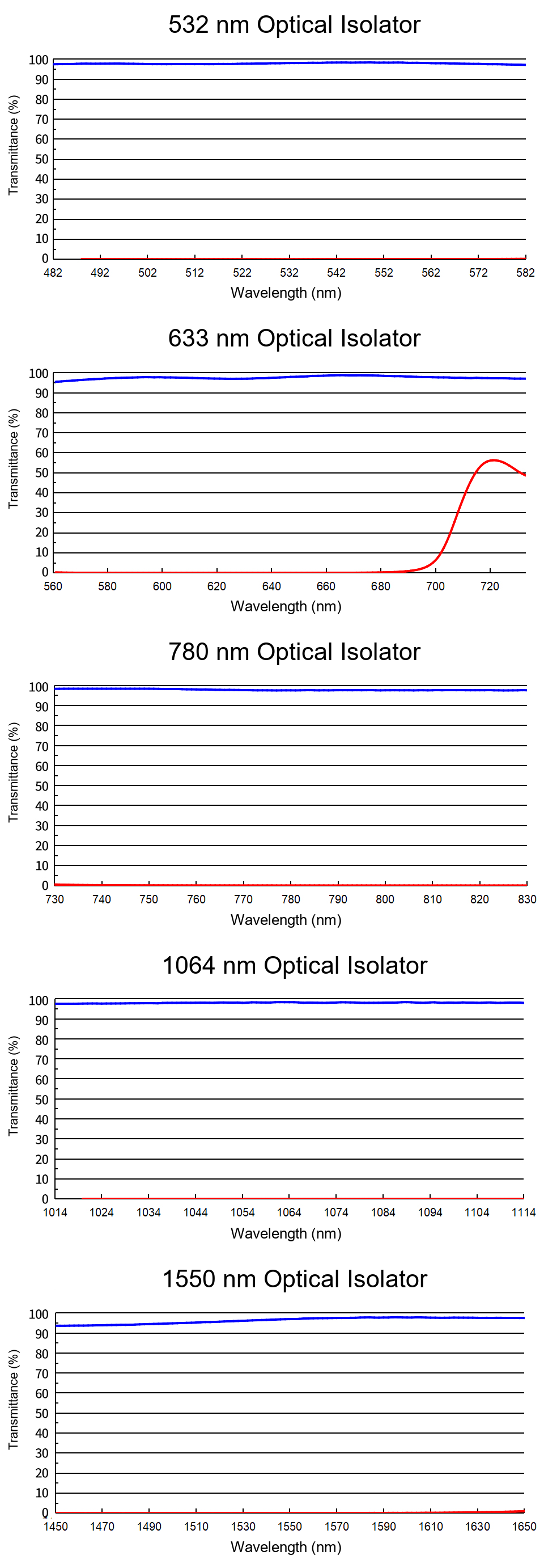

Curves
