Transmission Gratings — HGR03 Series
From $213 USD
Request a quoteProduct description
HGR03 transmission gratings consist of equally spaced parallel grooves and separate light by diffraction and interference. The source lists applications in biochemical instruments, spectroscopy instruments and spectrophotometers.
Transmission gratings offer simple optical layouts and are suitable for fixed-grating applications such as spectrometers. The incident beam is dispersed at a fixed angle behind the grating. The source describes reduced sensitivity to certain grating alignment errors and to polarization.
The source states that a relatively low groove density supports high diffraction efficiency. Diffraction angle increases with groove density, while substrate refractive index limits transmission at longer wavelengths and reduces performance. Their dispersion makes these gratings suitable for compact systems with small detector arrays.

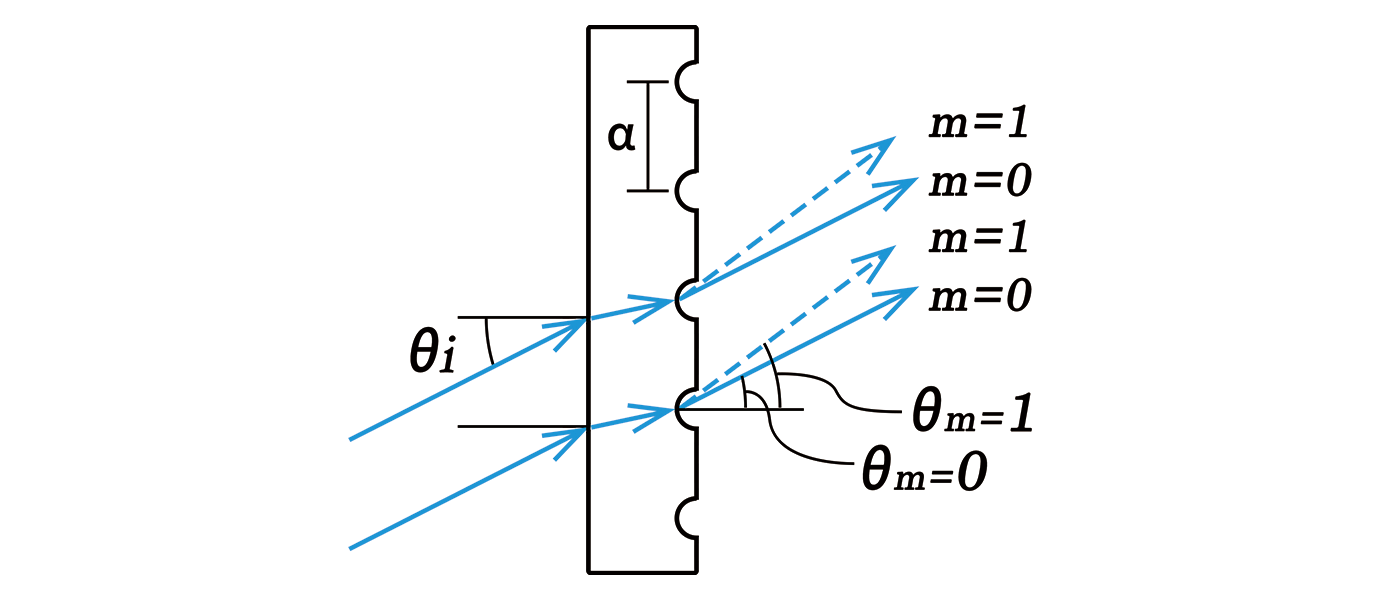

Supplier schematic
Original supplier dimensions and technical labels are retained.
Some supplier records use the same model name with distinct source IDs. All supplied records are retained. A legacy supplier image uses the spelling HGRH03; the category and current model table use HGR03.
General specifications
Specifications common to this series. Refer to the individual model rows for model-specific values.
- Material
- UV quartz (UV) / B270
- Surface quality
- 60-40
- Dimension tolerance
- ±0.5 mm
- Thickness tolerance
- ±0.2 mm
- Clear aperture
- 90%
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
45 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
| Details | Quote | |||||||
|---|---|---|---|---|---|---|---|---|
| HGR03-1313-12UV | UV quartz | 12.7×12.7×2mm | 1200 | 36.87° | Ultraviolet (UV) | $246 | ||
| HGR03-1313-30UV | UV quartz | 12.7×12.7×2mm | 300 | 8.63° | Ultraviolet (UV) | $246 | ||
| HGR03-1313-60UV | UV quartz | 12.7×12.7×2mm | 600 | 22.02° | Ultraviolet (UV) | $246 | ||
| HGR03-1313-83UV | UV quartz | 12.7×12.7×2mm | 830 | 19.39° | Ultraviolet (UV) | $246 | ||
| HGR03-2525-12UV | UV quartz | 25×25×2mm | 1200 | 36.87° | Ultraviolet (UV) | $733 | ||
| HGR03-2525-30UV | UV quartz | 25×25×2mm | 300 | 8.63° | Ultraviolet (UV) | $733 | ||
| HGR03-2525-60UV | UV quartz | 25×25×2mm | 600 | 22.02° | Ultraviolet (UV) | $733 | ||
| HGR03-2525-83UV | UV quartz | 25×25×2mm | 830 | 19.39° | Ultraviolet (UV) | $733 | ||
| HGR03-5050-12UV | UV quartz | 50×50×2mm | 1200 | 36.87° | Ultraviolet (UV) | $1,575 | ||
| HGR03-5050-30UV | UV quartz | 50×50×2mm | 300 | 8.63° | Ultraviolet (UV) | $1,575 | ||
| HGR03-5050-60UV | UV quartz | 50×50×2mm | 600 | 22.02° | Ultraviolet (UV) | $1,575 | ||
| HGR03-5050-83UV | UV quartz | 50×50×2mm | 830 | 19.39° | Ultraviolet (UV) | $1,575 | ||
| HGR03-1313-12VIS | B270 | 12.7×12.7×3mm | 1200 | 36.87° | Visible (VIS) | $213 | ||
| HGR03-1313-30VIS | B270 | 12.7×12.7×3mm | 300 | 17.46° | Visible (VIS) | $213 | ||
| HGR03-1313-60VIS | B270 | 12.7×12.7×3mm | 600 | 28.69° | Visible (VIS) | $213 | ||
| HGR03-1313-83VIS | B270 | 12.7×12.7×3mm | 830 | 29.87° | Visible (VIS) | $213 | ||
| HGR03-2525-12VIS | B270 | 25×25×3mm | 1200 | 36.87° | Visible (VIS) | $304 | ||
| HGR03-2525-30VIS | B270 | 25×25×3mm | 300 | 17.46° | Visible (VIS) | $304 | ||
| HGR03-2525-60VIS | B270 | 25×25×3mm | 600 | 28.69° | Visible (VIS) | $304 | ||
| HGR03-2525-83VIS | B270 | 25×25×3mm | 830 | 29.87° | Visible (VIS) | $304 | ||
| HGR03-5050-12VIS | B270 | 50×50×3mm | 1200 | 36.87° | Visible (VIS) | $997 | ||
| HGR03-5050-30VIS | B270 | 50×50×3mm | 300 | 17.46° | Visible (VIS) | $997 | ||
| HGR03-5050-60VIS | B270 | 50×50×3mm | 600 | 28.69° | Visible (VIS) | $997 | ||
| HGR03-5050-83VIS | B270 | 50×50×3mm | 830 | 29.87° | Visible (VIS) | $997 | ||
| HGR03-1313-30NIR01 | B270 | 12.7×12.7×3mm | 300 | 24.84° | Near infrared (NIR01) | $246 | ||
| HGR03-1313-30NIR02 | B270 | 12.7×12.7×3mm | 300 | 31.67° | Near infrared (NIR02) | $246 | ||
| HGR03-2525-30NIR01 | B270 | 25×25×3mm | 300 | 24.84° | Near infrared (NIR01) | $284 | ||
| HGR03-2525-30NIR02 | B270 | 25×25×3mm | 300 | 31.67° | Near infrared (NIR02) | $284 | ||
| HGR03-5050-30NIR01 | B270 | 50×50×3mm | 300 | 24.84° | Near infrared (NIR01) | $997 | ||
| HGR03-5050-30NIR02 | B270 | 50×50×3mm | 300 | 31.67° | Near infrared (NIR02) | $997 | ||
| HGR03-1313-12UV | UV quartz | 12.7×12.7×2mm | 1200 | 36.87° | Ultraviolet (UV) | $246 | ||
| HGR03-1313-30UV | UV quartz | 12.7×12.7×2mm | 300 | 8.63° | Ultraviolet (UV) | $246 | ||
| HGR03-1313-60UV | UV quartz | 12.7×12.7×2mm | 600 | 22.02° | Ultraviolet (UV) | $246 | ||
| HGR03-1313-83UV | UV quartz | 12.7×12.7×2mm | 830 | 19.39° | Ultraviolet (UV) | $246 | ||
| HGR03-2525-12UV | UV quartz | 25×25×2mm | 1200 | 36.87° | Ultraviolet (UV) | $733 | ||
| HGR03-2525-30UV | UV quartz | 25×25×2mm | 300 | 8.63° | Ultraviolet (UV) | $733 | ||
| HGR03-2525-60UV | UV quartz | 25×25×2mm | 600 | 22.02° | Ultraviolet (UV) | $733 | ||
| HGR03-2525-83UV | UV quartz | 25×25×2mm | 830 | 19.39° | Ultraviolet (UV) | $733 | ||
| HGR03-5050-12UV | UV quartz | 50×50×2mm | 1200 | 36.87° | Ultraviolet (UV) | $1,575 | ||
| HGR03-5050-30UV | UV quartz | 50×50×2mm | 300 | 8.63° | Ultraviolet (UV) | $1,575 | ||
| HGR03-5050-60UV | UV quartz | 50×50×2mm | 600 | 22.02° | Ultraviolet (UV) | $1,575 | ||
| HGR03-5050-83UV | UV quartz | 50×50×2mm | 830 | 19.39° | Ultraviolet (UV) | $1,575 | ||
| HGR03-1313-12VIS | B270 | 12.7×12.7×3mm | 1200 | 36.87° | Visible (VIS) | $213 | ||
| HGR03-1313-30VIS | B270 | 12.7×12.7×3mm | 300 | 17.46° | Visible (VIS) | $213 | ||
| HGR03-1313-60VIS | B270 | 12.7×12.7×3mm | 600 | 28.69° | Visible (VIS) | $213 | ||
No matching models. Change or clear your filters.

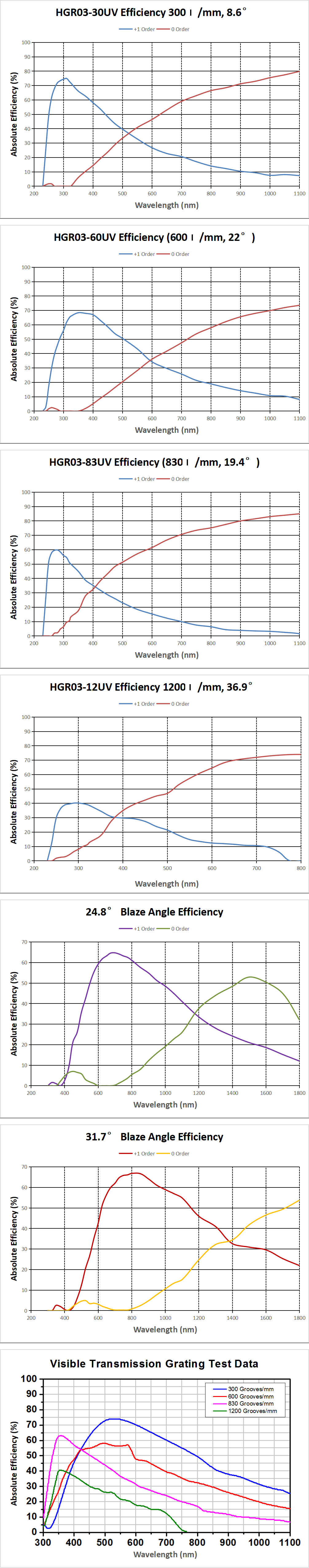

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
