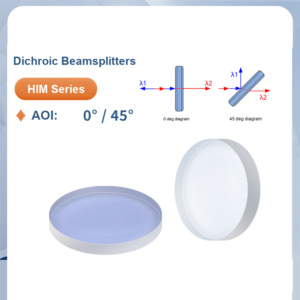

HIM Dichroic Beam Splitter Series
Compare the HIM and HIM-DZ dichroic beamsplitter families using the listed spectral division and model dimensions. Begin by defining the transmitted and reflected wavelength regions so that the appropriate family can be checked against the two beam paths.
Choosing HIM Dichroic Beam Splitter Series
- List the wavelengths required in each output path and the acceptable transition region between them.
- Check the specified incidence angle and polarization when reading the relevant spectral information.
- Compare outside dimensions with the tilted beam footprint; include a drawing where the transmitted and reflected paths have tight clearance.
Read spectral information with its measurement conditions in the optical-curves guide.
