HIM-DZ Series Dichroic Beamsplitters
From $45 USD
Request a quoteProduct description
HIM-DZ dichroic optics separate light by wavelength. This series includes spherical and flat optics with different substrate materials, incidence angles and coatings. Select a model using its individual specifications.
The diagram and curves below are shared references from the actual parent HIM series. They illustrate selected configurations and are not measurements for every model. Mounting accessories shown in source examples are not included.
Schematic
Actual parent-category reference diagram; use the selected model incidence angle. This drawing is not for fabrication.
General specifications
The following seven general specifications are shared by the HIM series. Use the selected model’s specifications for its material, dimensions, incidence angle and coating.
- Surface figure
- <λ/8 @632.8 nm
- Parallelism
- <1 arcmin
- Size tolerance
- +0/-0.2 mm
- Thickness tolerance
- ±0.2 mm
- Surface quality
- 60-40
- Clear aperture
- >90%
- Edge bevel
- Protective bevel <0.5 mm × 45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
11 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
| Details | Quote | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GMH13-025-050-R770-830T450-550 | Ø25mm | 6.78mm | 50mm | 100mm | K9 optical glass | — | 0~45° | Reflection: R >99.5% at 770–830 nm | Transmission: T >90% at 450–550 nm | — | — | — | $145 | ||
| HIM-DZ-1 | — | — | — | — | JGS1 | Ø40 × 5mm | 45° | — | — | S1 reflection: R >99.5% at 355 nm (arrow indicates coated face); S2 transmission: T >50% ±10% at 610–660 nm | — | — | $178 | ||
| HIM-DZ-2 | — | — | — | — | K9 optical glass | 10 × 10 × 1mm | 0° | — | — | S1 reflection: R >99.5% at 633 nm (arrow indicates coated face); S2 transmission: T >98% at 532 nm | — | — | $67 | ||
| HIM-DZ-3 | — | — | — | — | K9 optical glass | Ø12.7 × 3mm | 0° | — | — | S1 reflection: R <0.5% at 808 nm; S2 reflection: R <0.8% at 808 nm and R >99.5% at 1064 nm (arrow indicates coated face) | — | — | $45 | ||
| HIM-DZ-4 | — | — | — | — | K9 optical glass | Ø12.7 × 3mm | 0° | — | — | S1 transmission: T = 20% ±2% at 1064 nm (arrow indicates coated face); S2 reflection: R <0.5% at 1064 nm | — | — | $45 | ||
| HIM-DZ-5 | — | — | — | — | K9 optical glass | Ø12.7 × 3mm | 0° | — | — | S1 transmission: T = 20% ±3% at 1064 nm; S2 reflection: R >99% at 808 nm and R <0.2% at 1064 nm (arrow indicates coated face) | — | — | $45 | ||
| HIM-DZ-6 | — | — | — | — | K9 optical glass | Ø12.7 × 3mm | 0° | — | — | S1 reflection: R >99% at 808 nm and transmission: T = 20% ±2% at 1064 nm (arrow indicates coated face); S2 reflection: R <0.3% at 1064 nm; source also says “high-precision flat” | — | — | $45 | ||
| HIM-DZ-7 | — | — | — | — | K9 optical glass | Ø15 × 3mm | 45° | — | — | S1 reflection: R <0.3% at 808 nm; S2 reflection: R <0.5% at 808 nm and R >99.5% at 1064 nm, S-polarization (arrow indicates coated face) | <λ/10 @632nm | 60/40 | $45 | ||
| HIM-DZ-7一样 | — | — | — | — | K9 optical glass | Ø15 × 3mm | 45° | — | — | S1 reflection: R <0.3% at 808 nm; S2 reflection: R <0.5% at 808 nm and R >99.5% at 1064 nm, S-polarization (arrow indicates coated face) | <λ/10 @632nm | 60/40 | $45 | ||
| HIM51-025-R1064 T2-5微米 | — | — | — | — | Calcium fluoride (CaF₂) | Ø25.4 × 5mm | 0° | — | — | High reflection: R >99.5% at 1064 nm; AR >90% at 2–5 μm; source states suitable for high power (100 W laser) | — | — | $556 | ||
| HIM-5438 | — | — | — | — | K9 optical glass | 54 × 38 × 5.5mm | 45° | — | — | High reflection: R >98% at 1050–1090 nm; antireflection: R >99% at 840 nm (Source labels the second value antireflection but specifies R >99%; retained for confirmation.) | — | — | $267 | ||
No matching models. Change or clear your filters.

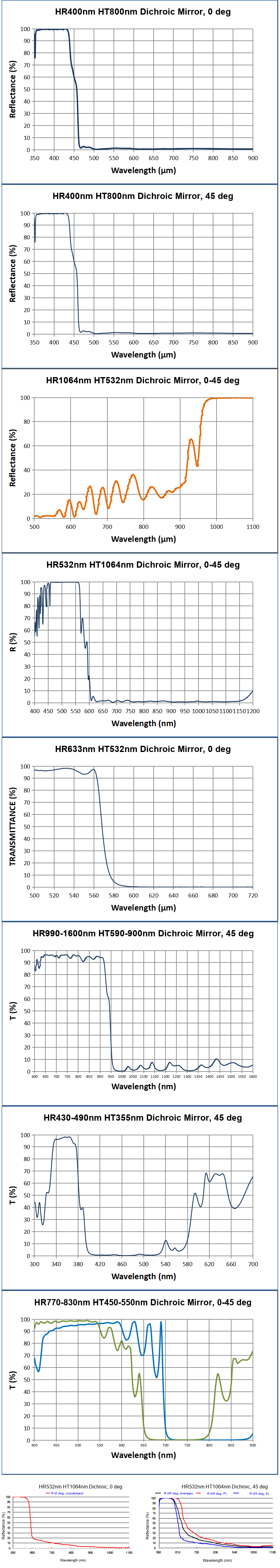

Curves
