HIM Series Dichroic Beamsplitters

From $123 USD

Product description

HIM dichroic optics separate wavelength bands by reflecting light from one band and transmitting another. The source category describes a short-wave-pass operating pattern, but the listed models specify different S1 reflection and S2 transmission bands; use each selected model’s specifications.

The category source says an arrow identifies the coated face. Drawings are reference material only and are not fabrication drawings.

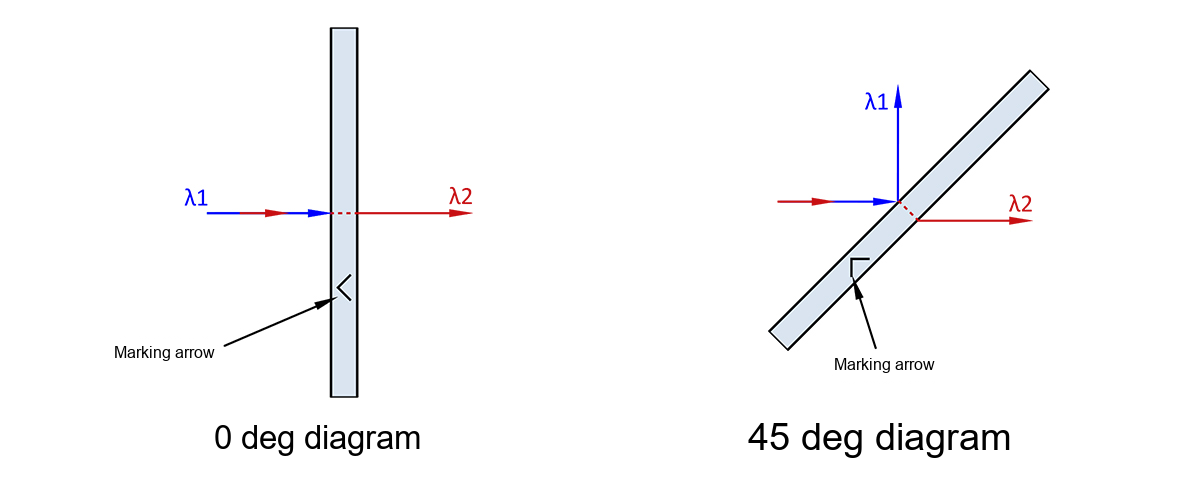

HIM Parent Dichroic Ray Diagram. optical subjects and technical pixels preserved. — Schematic
Actual parent-category reference diagram; use the selected model incidence angle. This drawing is not for fabrication.

General specifications

Seven common specifications are provided by the actual parent HIM category. Model-specific substrate, angle and S1/S2 wavelength specifications are listed below.

Surface figure: <λ/8 @632.8 nm

Parallelism: <1 arcmin

Size tolerance: +0/−0.2 mm

Thickness tolerance: ±0.2 mm

Surface quality: 60-40

Clear aperture: >90%

Edge bevel: Protective bevel <0.5 mm ×45°

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

Substrate materialSizeAngle of incidenceS1 reflection coating specification (arrow indicates coated face)S2 transmission coating specification Search model

34 models

							Quote
HIM012-48-0	K9 optical glass	Ø12.7 × 3mm	0°	Reflection R >99.5% @400 nm	Transmission T >95% @800 nm	$145	Quantity for HIM012-48-0

HIM025-48-0	K9 optical glass	Ø25.4 × 6.35mm	0°	Reflection R >99.5% @400 nm	Transmission T >95% @800 nm	$214	Quantity for HIM025-48-0

HIM050-48-0	K9 optical glass	Ø50.8 × 6.35mm	0°	Reflection R >99.5% @400 nm	Transmission T >95% @800 nm	$267	Quantity for HIM050-48-0

HIM012-48-45	K9 optical glass	Ø12.7 × 3mm	45°	Reflection R >99.5% @400 nm	Transmission T >90% @800 nm	$145	Quantity for HIM012-48-45

HIM025-48-45	K9 optical glass	Ø25.4 × 6.35mm	45°	Reflection R >99.5% @400 nm	Transmission T >90% @800 nm	$214	Quantity for HIM025-48-45

HIM050-48-45	K9 optical glass	Ø50.8 × 6.35mm	45°	Reflection R >99.5% @400 nm	Transmission T >90% @800 nm	$267	Quantity for HIM050-48-45

HIM012-18-0	K9 optical glass	Ø12.7 × 3mm	0°	Reflection R >99.5% @1064 nm	Transmission T >95% @808 nm	$145	Quantity for HIM012-18-0

HIM020-18-0	K9 optical glass	Ø20 × 5mm	0°	Reflection R >99.5% @1064 nm	Transmission T >95% @808 nm	$167	Quantity for HIM020-18-0

HIM025-18-0	K9 optical glass	Ø25.4 × 6.35mm	0°	Reflection R >99.5% @1064 nm	Transmission T >95% @808 nm	$214	Quantity for HIM025-18-0

HIM012-15-0	K9 optical glass	Ø12.7 × 3mm	0°	Reflection R >99.5% @1064 nm	Transmission T >95% @532 nm	$145	Quantity for HIM012-15-0

HIM020-15-0	K9 optical glass	Ø20 × 5mm	0°	Reflection R >99.5% @1064 nm	Transmission T >95% @532 nm	$167	Quantity for HIM020-15-0

HIM025-15-0	K9 optical glass	Ø25.4 × 6.35mm	0°	Reflection R >99.5% @1064 nm	Transmission T >95% @532 nm	$214	Quantity for HIM025-15-0

HIM012-15-45	K9 optical glass	Ø12.7 × 3mm	45°	Reflection R >99.5% @1064 nm	Transmission T >90% @532 nm	$145	Quantity for HIM012-15-45

HIM020-15-45	K9 optical glass	Ø20 × 5mm	45°	Reflection R >99.5% @1064 nm	Transmission T >90% @532 nm	$167	Quantity for HIM020-15-45

HIM025-15-45	K9 optical glass	Ø25.4 × 6.35mm	45°	Reflection R >99.5% @1064 nm	Transmission T >90% @532 nm	$214	Quantity for HIM025-15-45

HIM012-51-0	K9 optical glass	Ø12.7 × 3mm	0°	Reflection R >99.5% @532 nm	Transmission T >95% @1064 nm	$145	Quantity for HIM012-51-0

HIM020-51-0	K9 optical glass	Ø20 × 5mm	0°	Reflection R >99.5% @532 nm	Transmission T >95% @1064 nm	$167	Quantity for HIM020-51-0

HIM025-51-0	K9 optical glass	Ø25.4 × 6.35mm	0°	Reflection R >99.5% @532 nm	Transmission T >95% @1064 nm	$214	Quantity for HIM025-51-0

HIM012-51-45	K9 optical glass	Ø12.7 × 3mm	45°	Reflection R >99.5% @532 nm	Transmission T >90% @1064 nm	$145	Quantity for HIM012-51-45

HIM020-51-45	K9 optical glass	Ø20 × 5mm	45°	Reflection R >99.5% @532 nm	Transmission T >90% @1064 nm	$167	Quantity for HIM020-51-45

HIM025-51-45	K9 optical glass	Ø25.4 × 6.35mm	45°	Reflection R >99.5% @532 nm	Transmission T >90% @1064 nm	$214	Quantity for HIM025-51-45

HIM012-65-0	K9 optical glass	Ø12.7 × 3mm	0°	Reflection R >99.5% @633 nm	Transmission T >98% @532 nm	$145	Quantity for HIM012-65-0

HIM020-65-0	K9 optical glass	Ø20 × 5mm	0°	Reflection R >99.5% @633 nm	Transmission T >98% @532 nm	$167	Quantity for HIM020-65-0

HIM025-65-0	K9 optical glass	Ø25.4 × 6.35mm	0°	Reflection R >99.5% @633 nm	Transmission T >98% @532 nm	$214	Quantity for HIM025-65-0

HIM-R990-1600T590-900-D25	Quartz	Ø25.4 × 3mm	45°	Reflection R >95% @990-1600 nm	Transmission T >90% @590-900 nm	$214	Quantity for HIM-R990-1600T590-900-D25

HIM-R990-1600T590-900-D50	Quartz	Ø50.8 × 4mm	45°	Reflection R >95% @990-1600 nm	Transmission T >90% @590-900 nm	$267	Quantity for HIM-R990-1600T590-900-D50

HIM-R990-1600T590-900-D2536	K9 optical glass	25 × 36 × 3mm	45°	Reflection R >95% @990-1600 nm	Transmission T >90% @590-900 nm	$214	Quantity for HIM-R990-1600T590-900-D2536

HIM-R430-490T355-D12	Quartz	Ø12.7 × 2mm	45°	Reflection R >95% @430-490 nm	Transmission T >90% @355 nm	$174	Quantity for HIM-R430-490T355-D12

HIM-R430-490T355-D25	Quartz	Ø25.4 × 3mm	45°	Reflection R >95% @430-490 nm	Transmission T >90% @355 nm	$214	Quantity for HIM-R430-490T355-D25

HIM-R430-490T355-D50	Quartz	Ø50.8 × 4mm	45°	Reflection R >95% @430-490 nm	Transmission T >90% @355 nm	$267	Quantity for HIM-R430-490T355-D50

HIM-R430-490T355-D76	K9 optical glass	Ø76.2 × 10mm	45°	Reflection R >95% @430-490 nm	Transmission T >90% @355 nm	$334	Quantity for HIM-R430-490T355-D76

HIM-R770-830T450-550-D12	K9 optical glass	Ø12.7 × 3mm	0–45°	Reflection R >99.5% @770 nm-830 nm	Transmission T >90% @450-550 nm	$123	Quantity for HIM-R770-830T450-550-D12

HIM-R770-830T450-550-D25	K9 optical glass	Ø25.4 × 6.35mm	0–45°	Reflection R >99.5% @770 nm-830 nm	Transmission T >90% @450-550 nm	$145	Quantity for HIM-R770-830T450-550-D25

HIM-R770-830T450-550-D50	K9 optical glass	Ø50.8 × 4mm	0–45°	Reflection R >99.5% @770 nm-830 nm	Transmission T >90% @450-550 nm	$167	Quantity for HIM-R770-830T450-550-D50

Curves

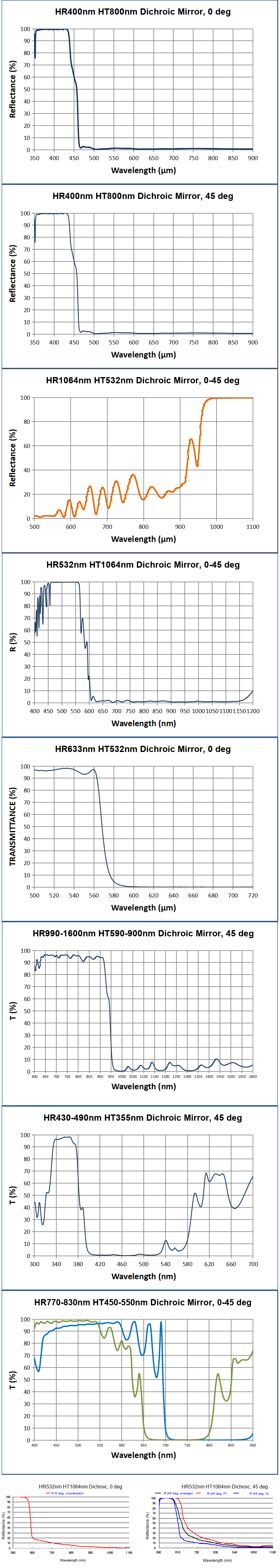

Nine complete original curve frames from the actual parent HIM category are shown as shared reference examples; the last frame includes two angle/polarization charts. Model-specific S1/S2 bands and incidence angles take precedence. Several source axes are labelled micrometres although their titles give nanometres; those original unit labels and plotted ticks are retained. Some source T/R axis labels also differ from the HR/HT title wording, and some traces have no legend. Only Chinese text is translated; no curve, tick or trace assignment is changed.

Technical notes

Select a model and quantity for an itemized quotation.

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.

Quote list

Choose models and quantities above. Your list is saved in this browser and can include models from other product categories.
