VIS–NIR Achromatic Doublet Lenses — GLH-AC Series
From $73 USD
Request a quoteProduct description
GLH-AC positive achromatic doublets combine two glasses with different refractive indices and dispersions to reduce chromatic and spherical aberration. Their constituent glass pair is specified for each model.
Achromatic doublets are used in fluorescence microscopy, imaging inspection and spectroscopy. They can provide smaller focused spots than a singlet; select the positive or negative focal length appropriate to the optical system.
The source recommends orienting the flatter, larger-radius surface away from a collimated beam. Use the individual drawing to identify the correct surfaces and orientation.
Schematic
Dimensions in mm unless otherwise stated.
Available per-model coatings: AB antireflection coating; average reflectance <1% over 400–1100nm.

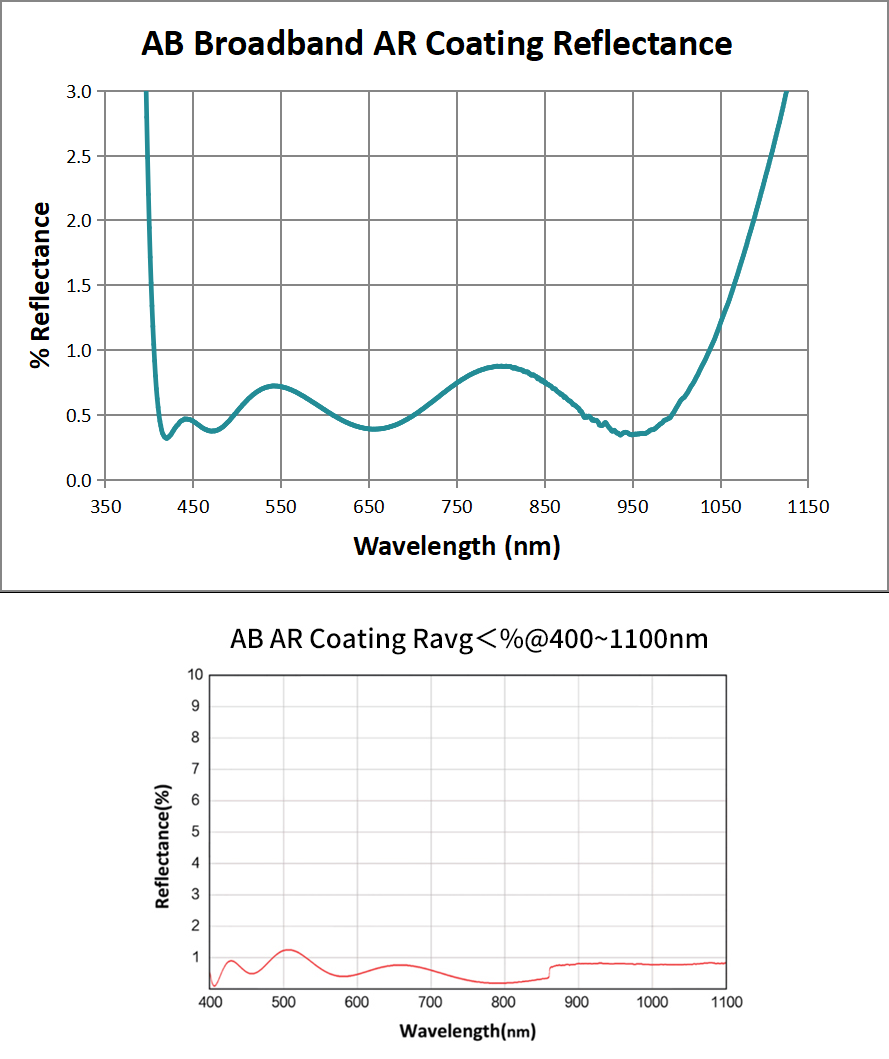

The AB coating model specifications give average reflectance <1% over 400–1100 nm. Both original AB charts are retained; one chart title omits the numeric reflectance bound, so the model specification is authoritative. Only the source-provided spectral-data download is linked.
General specifications
General specifications apply at series level. Each model retains its supplied glass pair and signed focal length, back focal length and radii. Tc1 and Tc2 are constituent center thicknesses; total center thickness is kept separate from legacy center thickness. Infinity denotes an infinite source radius, and Plano is retained for source-listed plane surfaces. A dash denotes a specification not supplied by the source; it is not zero. Reference diagrams are not machining drawings.
- Surface irregularity
- λ/4 @632.8nm
- Design wavelengths
- 488nm, 707nm, and 1064nm
- Diameter tolerance
- +0.0/-0.1mm
- Center thickness tolerance
- ±0.2mm
- Effective focal length tolerance
- ±1%
- Centration error
- < 3 arcmin
- Surface quality
- 40-20
- Clear aperture
- >90% of diameter
- Edge bevel
- 0.2mm×45°
- RoHS
- Compliant (source statement)
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
17 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; BFL = back focal length; ET = edge thickness. Units remain shown in each heading.
| Details | Quote | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH-AC127-019-AB | N-LAK10 / N-SF57 | 12.7 | 19 | 16.29 | 5 | 4 | 1 | 3.2 | 14.3 | -13.8 | -68.5 | AB antireflection coating; average reflectance <1% over 400–1100nm | $73 | ||
| GLH-AC127-025-AB | N-LAK10 / N-SF57 | 12.7 | 25 | 21.89 | 6 | 4 | 2 | 4.6 | 19.1 | -17.8 | -82.3 | AB antireflection coating; average reflectance <1% over 400–1100nm | $73 | ||
| GLH-AC127-030-AB | N-BK7 / N-SF2 | 12.7 | 30 | 27.16 | 5 | 4 | 1 | 3.3 | 16.7 | -13.8 | -52.1 | AB antireflection coating; average reflectance <1% over 400–1100nm | $73 | ||
| GLH-AC127-050-AB | N-BK7 / N-SF2 | 12.7 | 50 | 46.56 | 6 | 4 | 2 | 5 | 26.3 | -22.6 | -102.4 | AB antireflection coating; average reflectance <1% over 400–1100nm | $73 | ||
| GLH-AC127-075-AB | N-BK7 / N-SF2 | 12.7 | 75 | 72.67 | 4 | 2.5 | 1.5 | 3.3 | 38.4 | -35 | -177.3 | AB antireflection coating; average reflectance <1% over 400–1100nm | $73 | ||
| GLH-AC254-030-AB | S-BAH11 / S-TIH6 | 25.4 | 30 | 21.22 | 15 | 12 | 3 | 9.5 | 20 | -17.4 | -93.1 | AB antireflection coating; average reflectance <1% over 400–1100nm | $94 | ||
| GLH-AC254-050-AB | N-BAF10 / N-SF6 | 25.4 | 50 | 43.39 | 12.5 | 9 | 3.5 | 9.5 | 34.9 | -28.8 | -137.5 | AB antireflection coating; average reflectance <1% over 400–1100nm | $94 | ||
| GLH-AC254-075-AB | N-BAF10 / N-SF6 | 25.4 | 75 | 68.72 | 12 | 8 | 4 | 10 | 52 | -43.4 | -217.4 | AB antireflection coating; average reflectance <1% over 400–1100nm | $94 | ||
| GLH-AC254-100-AB | N-LAK22 / N-SF10 | 25.4 | 100 | 95.03 | 12 | 8 | 4 | 10.5 | 92.4 | -48.2 | -152.8 | AB antireflection coating; average reflectance <1% over 400–1100nm | $94 | ||
| GLH-AC254-150-AB | N-LAK22 / N-SF10 | 25.4 | 150 | 143.68 | 9 | 6 | 3 | 8 | 87.9 | -105.6 | Plano | AB antireflection coating; average reflectance <1% over 400–1100nm | $94 | ||
| GLH-AC254-200-AB | N-LAK22 / N-SF10 | 25.4 | 200 | 194.15 | 8 | 5 | 3 | 7.3 | 117.1 | -142.1 | Plano | AB antireflection coating; average reflectance <1% over 400–1100nm | $94 | ||
| GLH-AC508-080-AB | N-LAK22 / N-SF6 | 50.8 | 80 | 72.73 | 15 | 12 | 3 | 7.8 | 63.6 | -80.6 | -181.7 | AB antireflection coating; average reflectance <1% over 400–1100nm | $136 | ||
| GLH-AC508-180-AB | N-LAK22 / N-SF6 | 50.8 | 180 | 173.52 | 13.5 | 9.5 | 4 | 10.2 | 144.4 | -115.4 | -328.2 | AB antireflection coating; average reflectance <1% over 400–1100nm | $136 | ||
| GLH-AC508-300-AB | N-LAK22 / N-SF6 | 50.8 | 300 | 289.81 | 13 | 9 | 4 | 11 | 167.7 | -285.8 | Plano | AB antireflection coating; average reflectance <1% over 400–1100nm | $136 | ||
| GLH-AC508-400-AB | N-BAK4 / N-SF10 | 50.8 | 400 | 388.56 | 13 | 9 | 4 | 11.2 | 184.3 | -274 | Plano | AB antireflection coating; average reflectance <1% over 400–1100nm | $136 | ||
| GLH-AC508-500-AB | N-BAK4 / N-SF10 | 50.8 | 500 | 488.04 | 13 | 9 | 4 | 11.5 | 230.3 | -343.9 | Plano | AB antireflection coating; average reflectance <1% over 400–1100nm | $136 | ||
| GLH-AC508-600-AB | N-BAK4 / N-SF10 | 50.8 | 600 | 590.52 | 13 | 9 | 4 | 11.8 | 276.4 | -413.9 | Plano | AB antireflection coating; average reflectance <1% over 400–1100nm | $136 | ||
No matching models. Change or clear your filters.
Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
