UV Fused Silica Ball Lenses — GLH28 Series
From $30 USD
Request a quoteProduct description
GLH28 ball lenses are made from UV fused silica and are used to improve signal coupling between fibers, emitters and detectors. Other source-listed uses include endoscopy, barcode scanning, sensors and preforms for aspheric lenses.
The short back focal length reduces the lens-to-fiber distance required for fiber-optic coupling. Focal length depends on the refractive index of the material.
All models in this source series are uncoated. Select the diameter, focal length and back focal length from the individual model specifications.
Schematic
Dimensions in mm unless otherwise stated.
The source gives a UV fused silica transmission range of 185 nm to 2.1 μm, low thermal expansion, high homogeneity, chemical resistance and low fluorescence. Its lower refractive index than K9 gives a longer focal length for the same ball diameter.
General specifications
General specifications apply at series level. The table lists the original model diameter, focal length, back focal length and coating. Source diagrams are references and must not be used as machining drawings; verify the individual model drawing when ordering.
- Material
- UV fused silica
- Surface irregularity
- λ/4@632.8nm
- Surface quality
- 40-20
- Diameter tolerance
- +/-0.005mm
- Ellipticity (source tolerance)
- ±0.003mm
- Design wavelength
- 587.6nm
- Surface coating
- Uncoated
- RoHS
- Compliant (source statement)
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
10 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | |||||||
|---|---|---|---|---|---|---|---|---|
| GLH28-001 | UV fused silica | 1 | 0.79 | 0.29 | Uncoated | $39 | ||
| GLH28-002 | UV fused silica | 2 | 1.59 | 0.59 | Uncoated | $30 | ||
| GLH28-003 | UV fused silica | 3 | 2.39 | 0.89 | Uncoated | $30 | ||
| GLH28-004 | UV fused silica | 4 | 3.18 | 1.18 | Uncoated | $34 | ||
| GLH28-005 | UV fused silica | 5 | 3.98 | 1.48 | Uncoated | $34 | ||
| GLH28-006 | UV fused silica | 6 | 4.77 | 1.77 | Uncoated | $42 | ||
| GLH28-007 | UV fused silica | 7 | 5.57 | 2.07 | Uncoated | $42 | ||
| GLH28-008 | UV fused silica | 8 | 6.36 | 2.36 | Uncoated | $42 | ||
| GLH28-009 | UV fused silica | 9 | 7.16 | 2.66 | Uncoated | $48 | ||
| GLH28-010 | UV fused silica | 10 | 7.95 | 2.95 | Uncoated | $53 | ||
No matching models. Change or clear your filters.

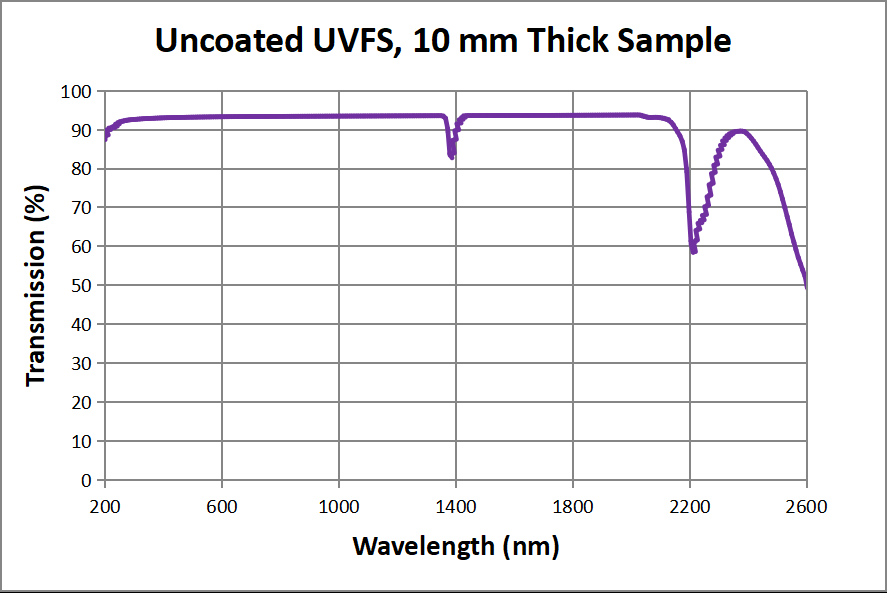

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
