UV Fused Silica Double-Concave Lenses — GLH24 Series
From $45 USD
Request a quoteProduct description
UV fused silica double-concave lenses have two concave surfaces of equal curvature and negative focal length. They diverge incident beams and are used for beam expansion, projection and increasing the focal length of optical systems, including Galilean beam expanders.
Double-concave lenses are generally preferred when the absolute conjugate ratio (object distance divided by image distance) is close to one. Plano-concave lenses are generally preferred for absolute magnification below 0.2 or above 5.
Available coatings: Uncoated; UV antireflection coating; average reflectance <0.5% over 250–450nm; A-band antireflection coating; average reflectance <0.5% over 350–700nm; B-band antireflection coating; average reflectance <0.5% over 650-1100nm; C-band antireflection coating; average reflectance <0.5% over 1050-1700nm.
Schematic
Dimensions in mm unless otherwise stated.
UV fused silica provides transmission from 185 nm to 2.1 μm, with low thermal expansion, high homogeneity, chemical resistance and low fluorescence.
General specifications
General specifications apply at series level. Signed radius values and surface relations follow the source convention; confirm the model drawing for precision optical design.
- Material
- UV fused silica
- Surface irregularity
- λ/4 @632.8nm
- Design wavelength
- 587.6nm
- Surface quality
- 40-20
- Diameter tolerance
- +0.0 / -0.1 mm
- Center thickness tolerance
- ±0.2 mm
- Focal length tolerance
- ±2%
- Centration error
- ≤3 arcmin
- Refractive index
- 1.46
- Abbe number
- v = 67.82
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
45 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH24-006-006 | UV fused silica | 6.3 | -6.3 | 2 | 3.76 | -6.956 | -60.8 | Uncoated | $49 | ||
| GLH24-010-010 | UV fused silica | 10 | -10 | 2 | 4.85 | -10.67 | -9.48 | Uncoated | $49 | ||
| GLH24-012-012 | UV fused silica | 12.7 | -12.7 | 2 | 5.65 | -13.366 | -11.95 | Uncoated | $49 | ||
| GLH24-012-015 | UV fused silica | 12.7 | -15 | 2.4 | 5.42 | -15.805 | -14.12 | Uncoated | $45 | ||
| GLH24-025-025 | UV fused silica | 25.4 | -25.4 | 2 | 9.42 | -26.076 | -23.6 | Uncoated | $62 | ||
| GLH24-025-030 | UV fused silica | 25.4 | -30 | 2 | 8.14 | -30.678 | -27.82 | Uncoated | $58 | ||
| GLH24-025-050 | UV fused silica | 25.4 | -50 | 3.5 | 7 | -51.2 | -46.6 | Uncoated | $58 | ||
| GLH24-025-075 | UV fused silica | 25.4 | -75 | 3.5 | 5.8 | -76.2 | -69.6 | Uncoated | $58 | ||
| GLH24-025-100 | UV fused silica | 25.4 | -100 | 3.5 | 5.3 | -101.2 | -92.6 | Uncoated | $58 | ||
| GLH24-006-006-UV | UV fused silica | 6.3 | -6.3 | 2 | 3.76 | -6.956 | -60.8 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH24-010-010-UV | UV fused silica | 10 | -10 | 2 | 4.85 | -10.67 | -9.48 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH24-012-012-UV | UV fused silica | 12.7 | -12.7 | 2 | 5.65 | -13.366 | -11.95 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH24-012-015-UV | UV fused silica | 12.7 | -15 | 2.4 | 5.42 | -15.805 | -14.12 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH24-025-025-UV | UV fused silica | 25.4 | -25.4 | 2 | 9.42 | -26.076 | -23.6 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $79 | ||
| GLH24-025-030-UV | UV fused silica | 25.4 | -30 | 2 | 8.14 | -30.678 | -27.82 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH24-025-050-UV | UV fused silica | 25.4 | -50 | 3.5 | 7 | -51.2 | -46.6 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH24-025-075-UV | UV fused silica | 25.4 | -75 | 3.5 | 5.8 | -76.2 | -69.6 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH24-025-100-UV | UV fused silica | 25.4 | -100 | 3.5 | 5.3 | -101.2 | -92.6 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH24-006-006-A | UV fused silica | 6.3 | -6.3 | 2 | 3.76 | -6.956 | -60.8 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH24-010-010-A | UV fused silica | 10 | -10 | 2 | 4.85 | -10.67 | -9.48 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH24-012-012-A | UV fused silica | 12.7 | -12.7 | 2 | 5.65 | -13.366 | -11.95 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH24-012-015-A | UV fused silica | 12.7 | -15 | 2.4 | 5.42 | -15.805 | -14.12 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH24-025-025-A | UV fused silica | 25.4 | -25.4 | 2 | 9.42 | -26.076 | -23.6 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $79 | ||
| GLH24-025-030-A | UV fused silica | 25.4 | -30 | 2 | 8.14 | -30.678 | -27.82 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH24-025-050-A | UV fused silica | 25.4 | -50 | 3.5 | 7 | -51.2 | -46.6 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH24-025-075-A | UV fused silica | 25.4 | -75 | 3.5 | 5.8 | -76.2 | -69.6 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH24-025-100-A | UV fused silica | 25.4 | -100 | 3.5 | 5.3 | -101.2 | -92.6 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH24-006-006-B | UV fused silica | 6.3 | -6.3 | 2 | 3.76 | -6.956 | -60.8 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH24-010-010-B | UV fused silica | 10 | -10 | 2 | 4.85 | -10.67 | -9.48 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH24-012-012-B | UV fused silica | 12.7 | -12.7 | 2 | 5.65 | -13.366 | -11.95 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH24-012-015-B | UV fused silica | 12.7 | -15 | 2.4 | 5.42 | -15.805 | -14.12 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH24-025-025-B | UV fused silica | 25.4 | -25.4 | 2 | 9.42 | -26.076 | -23.6 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $79 | ||
| GLH24-025-030-B | UV fused silica | 25.4 | -30 | 2 | 8.14 | -30.678 | -27.82 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH24-025-050-B | UV fused silica | 25.4 | -50 | 3.5 | 7 | -51.2 | -46.6 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH24-025-075-B | UV fused silica | 25.4 | -75 | 3.5 | 5.8 | -76.2 | -69.6 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH24-025-100-B | UV fused silica | 25.4 | -100 | 3.5 | 5.3 | -101.2 | -92.6 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH24-006-006-C | UV fused silica | 6.3 | -6.3 | 2 | 3.76 | -6.956 | -60.8 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH24-010-010-C | UV fused silica | 10 | -10 | 2 | 4.85 | -10.67 | -9.48 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH24-012-012-C | UV fused silica | 12.7 | -12.7 | 2 | 5.65 | -13.366 | -11.95 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH24-012-015-C | UV fused silica | 12.7 | -15 | 2.4 | 5.42 | -15.805 | -14.12 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH24-025-025-C | UV fused silica | 25.4 | -25.4 | 2 | 9.42 | -26.076 | -23.6 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $79 | ||
| GLH24-025-030-C | UV fused silica | 25.4 | -30 | 2 | 8.14 | -30.678 | -27.82 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH24-025-050-C | UV fused silica | 25.4 | -50 | 3.5 | 7 | -51.2 | -46.6 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH24-025-075-C | UV fused silica | 25.4 | -75 | 3.5 | 5.8 | -76.2 | -69.6 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH24-025-100-C | UV fused silica | 25.4 | -100 | 3.5 | 5.3 | -101.2 | -92.6 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
No matching models. Change or clear your filters.

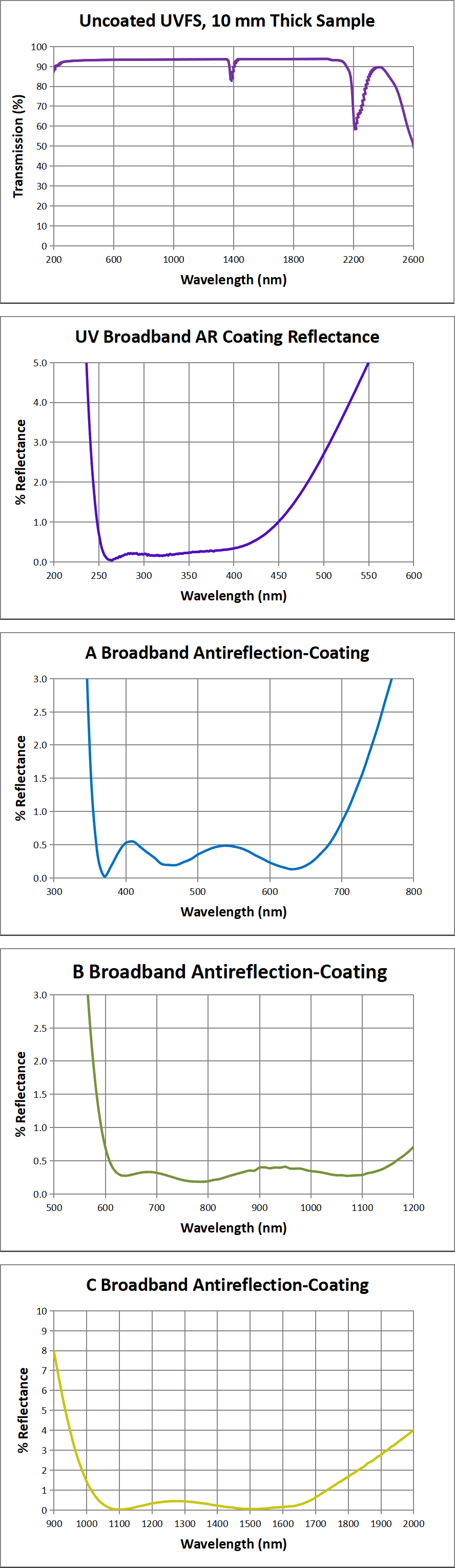

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
