Calcium Fluoride Double-Concave Lenses — GLH54 Series
From $136 USD
Request a quoteProduct description
Calcium fluoride (CaF₂) double-concave lenses have two concave surfaces of equal curvature and negative focal length. They diverge incident beams and are used for beam expansion, projection and increasing the focal length of optical systems, including Galilean beam expanders.
Double-concave lenses are generally preferred when the absolute conjugate ratio (object distance divided by image distance) is close to one. Plano-concave lenses are generally preferred for absolute magnification below 0.2 or above 5.
Available coatings: Uncoated; IR1 antireflection coating; average reflectance <1.5% over 3–5μm.
Schematic
Dimensions in mm unless otherwise stated.
Calcium fluoride transmits from 180 nm to 8.0 μm and offers low fluorescence and high homogeneity. Its relatively soft surface requires careful handling to avoid scratches.
General specifications
General specifications apply at series level. Signed radius values and surface relations follow the source convention; confirm the model drawing for precision optical design. The source lists positive radius values for this series; they are retained as supplied.
- Material
- Calcium fluoride (CaF₂) single crystal
- Design wavelength
- 587.6nm
- Diameter tolerance
- +0.0/-0.1mm
- Center thickness tolerance
- ±0.1mm
- Focal length tolerance
- ±1%
- Centration error
- <3 arcmin
- Surface quality
- 60-40
- Edge bevel
- 0.2mm×45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
8 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH54-012-015 | Calcium fluoride (CaF₂) single crystal | 12.7 | -15 | 2.5 | 5.7 | -15.8 | 13.4 | Uncoated | $136 | ||
| GLH54-012-025 | Calcium fluoride (CaF₂) single crystal | 12.7 | -25 | 3 | 4.9 | -26 | 22.1 | Uncoated | $136 | ||
| GLH54-025-030 | Calcium fluoride (CaF₂) single crystal | 25.4 | -30 | 2.5 | 9 | -30.9 | 26.4 | Uncoated | $157 | ||
| GLH54-025-050 | Calcium fluoride (CaF₂) single crystal | 25.4 | -50 | 3 | 6.8 | -51 | 43.8 | Uncoated | $157 | ||
| GLH54-012-015-IR1 | Calcium fluoride (CaF₂) single crystal | 12.7 | -15 | 2.5 | 5.7 | -15.8 | 13.4 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $146 | ||
| GLH54-012-025-IR1 | Calcium fluoride (CaF₂) single crystal | 12.7 | -25 | 3 | 4.9 | -26 | 22.1 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $146 | ||
| GLH54-025-030-IR1 | Calcium fluoride (CaF₂) single crystal | 25.4 | -30 | 2.5 | 9 | -30.9 | 26.4 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
| GLH54-025-050-IR1 | Calcium fluoride (CaF₂) single crystal | 25.4 | -50 | 3 | 6.8 | -51 | 43.8 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
No matching models. Change or clear your filters.

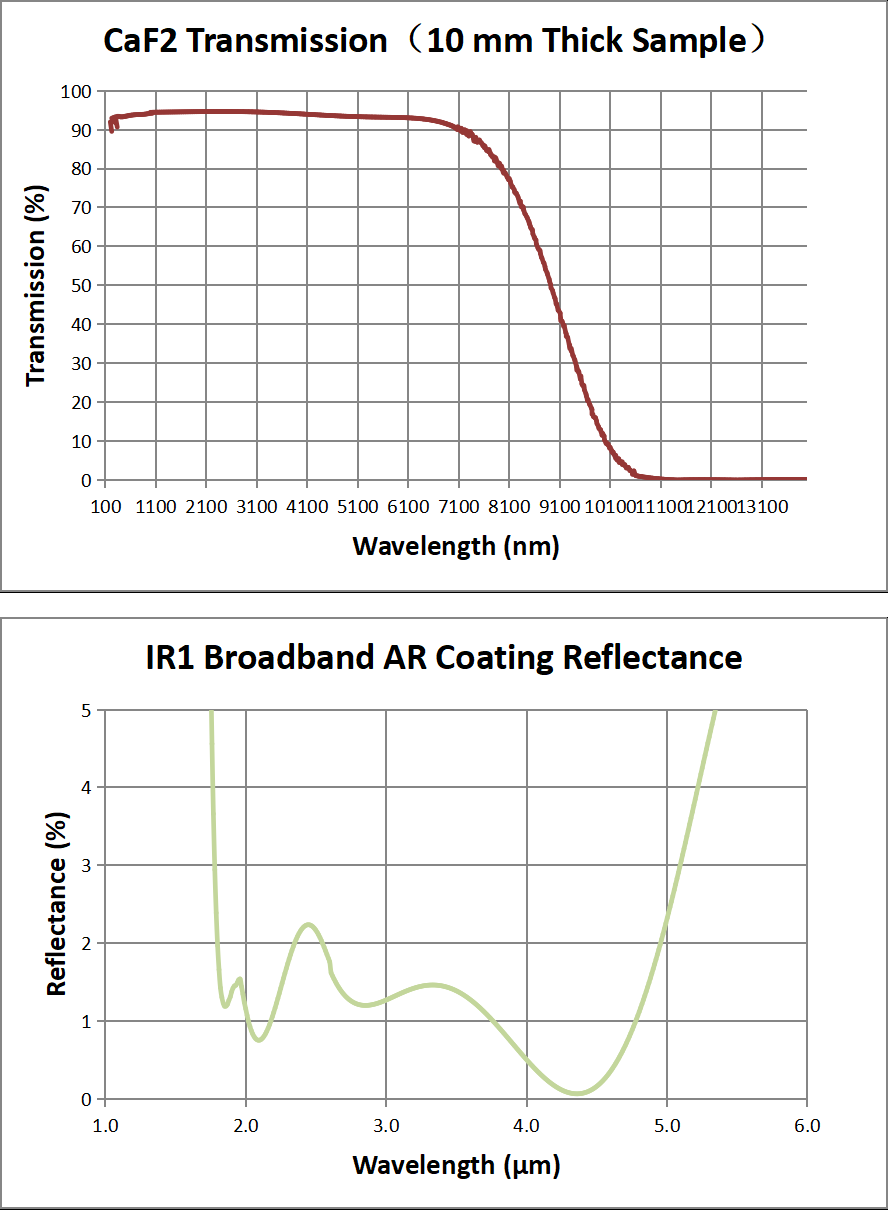

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
