H-K9L Double-Convex Lenses — GLH12 Series
From $19 USD
Request a quoteProduct description
Fine-annealed H-K9L optical glass double-convex lenses have positive focal length and two convex surfaces. The source describes use in imaging relay systems and finite-conjugate imaging, with object and image on opposite sides of the lens. Choose a model by its listed focal length, diameter, thickness and coating, then select a quantity to request a quotation.
Available source-listed coating options include NIR antireflection coating; average reflectance <0.5% over 650–1050nm; SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm; VIS antireflection coating; average reflectance <0.5% over 400–700nm; Uncoated.
The source states that an uncoated surface reflects about 4% of incident light and that antireflection coatings can increase transmission and reduce ghost images.
Schematic
Dimensions in mm unless otherwise stated.
The source describes a typical conjugate ratio range of 0.2 to 5.
General specifications
Category-level specifications supplied by the source; SKU dimensions and coating are listed per model.
- Material
- Fine-annealed H-K9L optical glass (K9 type)
- Surface irregularity
- λ/4 @632.8nm
- Design wavelength
- 587.6nm
- Surface quality
- 60-40
- Diameter tolerance
- +0.0 / -0.1mm
- Center thickness tolerance
- ±0.2mm
- Focal length tolerance
- ±2%
- Centration error
- <3 arcmin
- Refractive index
- 1.5168
- Abbe number
- v = 64.17
- Clear aperture
- >90% of diameter
- Edge bevel
- 0.2mm×45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
88 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH12-002-002 | Fine-annealed H-K9L optical glass | 2 | 2 | 1.63 | 1 | 1.36 | 1.73 | Uncoated | $30 | ||
| GLH12-002-003 | Fine-annealed H-K9L optical glass | 2 | 2.5 | 1.46 | 1 | 1.96 | 2.3 | Uncoated | $30 | ||
| GLH12-003-003 | Fine-annealed H-K9L optical glass | 3 | 3 | 1.9 | 1 | 2.29 | 2.73 | Uncoated | $28 | ||
| GLH12-003-006 | Fine-annealed H-K9L optical glass | 3 | 6.3 | 1.36 | 1 | 5.83 | 6.27 | Uncoated | $28 | ||
| GLH12-004-004 | Fine-annealed H-K9L optical glass | 4 | 4 | 2.16 | 1 | 3.21 | 3.73 | Uncoated | $28 | ||
| GLH12-005-005 | Fine-annealed H-K9L optical glass | 5 | 4.5 | 2.65 | 1 | 3.78 | 4.28 | Uncoated | $26 | ||
| GLH12-006-006 | Fine-annealed H-K9L optical glass | 6.3 | 6.3 | 3.34 | 1.5 | 5.07 | 5.86 | Uncoated | $19 | ||
| GLH12-006-010 | Fine-annealed H-K9L optical glass | 6 | 10 | 6 | 4.98 | 7.66 | 9.1 | Uncoated | $19 | ||
| GLH12-006-030 | Fine-annealed H-K9L optical glass | 6 | 30 | 2.3 | 2 | 29.24 | 30.62 | Uncoated | $19 | ||
| GLH12-010-010 | Fine-annealed H-K9L optical glass | 10 | 10 | 4.87 | 2 | 8.24 | 9.42 | Uncoated | $19 | ||
| GLH12-010-012 | Fine-annealed H-K9L optical glass | 10 | 12.5 | 3.63 | 2 | 11.24 | 12.27 | Uncoated | $19 | ||
| GLH12-012-012 | Fine-annealed H-K9L optical glass | 12.5 | 12.5 | 5.55 | 2 | 10.51 | 11.89 | Uncoated | $20 | ||
| GLH12-012-025 | Fine-annealed H-K9L optical glass | 12.5 | 25 | 2.6 | 1.04 | 24.14 | 25.4 | Uncoated | $25 | ||
| GLH12-013-018 | Fine-annealed H-K9L optical glass | 13 | 18.2 | 4.4 | 1.97 | 16.66 | 18 | Uncoated | $25 | ||
| GLH12-013-020 | Fine-annealed H-K9L optical glass | 12.85 | 20 | 3 | 0.9 | 18.99 | 20.15 | Uncoated | $25 | ||
| GLH12-016-016 | Fine-annealed H-K9L optical glass | 16 | 16 | 6.51 | 2 | 13.67 | 15.31 | Uncoated | $20 | ||
| GLH12-025-025 | Fine-annealed H-K9L optical glass | 25 | 25 | 8.96 | 2 | 21.85 | 24.19 | Uncoated | $22 | ||
| GLH12-025-040 | Fine-annealed H-K9L optical glass | 25 | 40 | 5.5 | 1.59 | 38.16 | 40.4 | Uncoated | $22 | ||
| GLH12-040-040 | Fine-annealed H-K9L optical glass | 40 | 40 | 13.59 | 2.5 | 35.24 | 38.85 | Uncoated | $35 | ||
| GLH12-050-050 | Fine-annealed H-K9L optical glass | 50 | 50 | 16.85 | 3 | 44.1 | 48.59 | Uncoated | $62 | ||
| GLH12-063-063 | Fine-annealed H-K9L optical glass | 63 | 63 | 20.4 | 3 | 55.88 | 61.39 | Uncoated | $88 | ||
| GLH12-100-100 | Fine-annealed H-K9L optical glass | 100 | 100 | 31.52 | 4 | 89.98 | 98.5 | Uncoated | $189 | ||
| GLH12-002-002-VIS | Fine-annealed H-K9L optical glass | 2 | 2 | 1.63 | 1 | 1.36 | 1.73 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $37 | ||
| GLH12-002-003-VIS | Fine-annealed H-K9L optical glass | 2 | 2.5 | 1.46 | 1 | 1.96 | 2.3 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $37 | ||
| GLH12-003-003-VIS | Fine-annealed H-K9L optical glass | 3 | 3 | 1.9 | 1 | 2.29 | 2.73 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $35 | ||
| GLH12-003-006-VIS | Fine-annealed H-K9L optical glass | 3 | 6.3 | 1.36 | 1 | 5.83 | 6.27 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $35 | ||
| GLH12-004-004-VIS | Fine-annealed H-K9L optical glass | 4 | 4 | 2.16 | 1 | 3.21 | 3.73 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $35 | ||
| GLH12-005-005-VIS | Fine-annealed H-K9L optical glass | 5 | 4.5 | 2.65 | 1 | 3.78 | 4.28 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $33 | ||
| GLH12-006-006-VIS | Fine-annealed H-K9L optical glass | 6.3 | 6.3 | 3.34 | 1.5 | 5.07 | 5.86 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $26 | ||
| GLH12-006-010-VIS | Fine-annealed H-K9L optical glass | 6 | 10 | 6 | 4.98 | 7.66 | 9.1 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $26 | ||
| GLH12-006-030-VIS | Fine-annealed H-K9L optical glass | 6 | 30 | 2.3 | 2 | 29.24 | 30.62 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $26 | ||
| GLH12-010-010-VIS | Fine-annealed H-K9L optical glass | 10 | 10 | 4.87 | 2 | 8.24 | 9.42 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $26 | ||
| GLH12-010-012-VIS | Fine-annealed H-K9L optical glass | 10 | 12.5 | 3.63 | 2 | 11.24 | 12.27 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $26 | ||
| GLH12-012-012-VIS | Fine-annealed H-K9L optical glass | 12.5 | 12.5 | 5.55 | 2 | 10.51 | 11.89 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $27 | ||
| GLH12-012-025-VIS | Fine-annealed H-K9L optical glass | 12.5 | 25 | 2.6 | 1.04 | 24.14 | 25.4 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $33 | ||
| GLH12-013-018-VIS | Fine-annealed H-K9L optical glass | 13 | 18.2 | 4.4 | 1.97 | 16.66 | 18 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $33 | ||
| GLH12-013-020-VIS | Fine-annealed H-K9L optical glass | 12.85 | 20 | 3 | 0.9 | 18.99 | 20.15 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $33 | ||
| GLH12-016-016-VIS | Fine-annealed H-K9L optical glass | 16 | 16 | 6.51 | 2 | 13.67 | 15.31 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $27 | ||
| GLH12-025-025-VIS | Fine-annealed H-K9L optical glass | 25 | 25 | 8.96 | 2 | 21.85 | 24.19 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $28 | ||
| GLH12-025-040-VIS | Fine-annealed H-K9L optical glass | 25 | 40 | 5.5 | 1.59 | 38.16 | 40.4 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $28 | ||
| GLH12-040-040-VIS | Fine-annealed H-K9L optical glass | 40 | 40 | 13.59 | 2.5 | 35.24 | 38.85 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $46 | ||
| GLH12-050-050-VIS | Fine-annealed H-K9L optical glass | 50 | 50 | 16.85 | 3 | 44.1 | 48.59 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $74 | ||
| GLH12-063-063-VIS | Fine-annealed H-K9L optical glass | 63 | 63 | 20.4 | 3 | 55.88 | 61.39 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $105 | ||
| GLH12-100-100-VIS | Fine-annealed H-K9L optical glass | 100 | 100 | 31.52 | 4 | 89.98 | 98.5 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $212 | ||
| GLH12-002-002-NIR | Fine-annealed H-K9L optical glass | 2 | 2 | 1.63 | 1 | 1.36 | 1.73 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $40 | ||
| GLH12-002-003-NIR | Fine-annealed H-K9L optical glass | 2 | 2.5 | 1.46 | 1 | 1.96 | 2.3 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $40 | ||
| GLH12-003-003-NIR | Fine-annealed H-K9L optical glass | 3 | 3 | 1.9 | 1 | 2.29 | 2.73 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $38 | ||
| GLH12-003-006-NIR | Fine-annealed H-K9L optical glass | 3 | 6.3 | 1.36 | 1 | 5.83 | 6.27 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $38 | ||
| GLH12-004-004-NIR | Fine-annealed H-K9L optical glass | 4 | 4 | 2.16 | 1 | 3.21 | 3.73 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $38 | ||
| GLH12-005-005-NIR | Fine-annealed H-K9L optical glass | 5 | 4.5 | 2.65 | 1 | 3.78 | 4.28 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $36 | ||
| GLH12-006-006-NIR | Fine-annealed H-K9L optical glass | 6.3 | 6.3 | 3.34 | 1.5 | 5.07 | 5.86 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $29 | ||
| GLH12-006-010-NIR | Fine-annealed H-K9L optical glass | 6 | 10 | 6 | 4.98 | 7.66 | 9.1 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $29 | ||
| GLH12-006-030-NIR | Fine-annealed H-K9L optical glass | 6 | 30 | 2.3 | 2 | 29.24 | 30.62 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $29 | ||
| GLH12-010-010-NIR | Fine-annealed H-K9L optical glass | 10 | 10 | 4.87 | 2 | 8.24 | 9.42 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $29 | ||
| GLH12-010-012-NIR | Fine-annealed H-K9L optical glass | 10 | 12.5 | 3.63 | 2 | 11.24 | 12.27 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $29 | ||
| GLH12-012-012-NIR | Fine-annealed H-K9L optical glass | 12.5 | 12.5 | 5.55 | 2 | 10.51 | 11.89 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $30 | ||
| GLH12-012-025-NIR | Fine-annealed H-K9L optical glass | 12.5 | 25 | 2.6 | 1.04 | 24.14 | 25.4 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $37 | ||
| GLH12-013-018-NIR | Fine-annealed H-K9L optical glass | 13 | 18.2 | 4.4 | 1.97 | 16.66 | 18 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $37 | ||
| GLH12-013-020-NIR | Fine-annealed H-K9L optical glass | 12.85 | 20 | 3 | 0.9 | 18.99 | 20.15 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $37 | ||
| GLH12-016-016-NIR | Fine-annealed H-K9L optical glass | 16 | 16 | 6.51 | 2 | 13.67 | 15.31 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $30 | ||
| GLH12-025-025-NIR | Fine-annealed H-K9L optical glass | 25 | 25 | 8.96 | 2 | 21.85 | 24.19 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $32 | ||
| GLH12-025-040-NIR | Fine-annealed H-K9L optical glass | 25 | 40 | 5.5 | 1.59 | 38.16 | 40.4 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $32 | ||
| GLH12-040-040-NIR | Fine-annealed H-K9L optical glass | 40 | 40 | 13.59 | 2.5 | 35.24 | 38.85 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $49 | ||
| GLH12-050-050-NIR | Fine-annealed H-K9L optical glass | 50 | 50 | 16.85 | 3 | 44.1 | 48.59 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $77 | ||
| GLH12-063-063-NIR | Fine-annealed H-K9L optical glass | 63 | 63 | 20.4 | 3 | 55.88 | 61.39 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $108 | ||
| GLH12-100-100-NIR | Fine-annealed H-K9L optical glass | 100 | 100 | 31.52 | 4 | 89.98 | 98.5 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $234 | ||
| GLH12-002-002-SWIR | Fine-annealed H-K9L optical glass | 2 | 2 | 1.63 | 1 | 1.36 | 1.73 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $40 | ||
| GLH12-002-003-SWIR | Fine-annealed H-K9L optical glass | 2 | 2.5 | 1.46 | 1 | 1.96 | 2.3 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $40 | ||
| GLH12-003-003-SWIR | Fine-annealed H-K9L optical glass | 3 | 3 | 1.9 | 1 | 2.29 | 2.73 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $38 | ||
| GLH12-003-006-SWIR | Fine-annealed H-K9L optical glass | 3 | 6.3 | 1.36 | 1 | 5.83 | 6.27 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $38 | ||
| GLH12-004-004-SWIR | Fine-annealed H-K9L optical glass | 4 | 4 | 2.16 | 1 | 3.21 | 3.73 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $38 | ||
| GLH12-005-005-SWIR | Fine-annealed H-K9L optical glass | 5 | 4.5 | 2.65 | 1 | 3.78 | 4.28 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $36 | ||
| GLH12-006-006-SWIR | Fine-annealed H-K9L optical glass | 6.3 | 6.3 | 3.34 | 1.5 | 5.07 | 5.86 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $29 | ||
| GLH12-006-010-SWIR | Fine-annealed H-K9L optical glass | 6 | 10 | 6 | 4.98 | 7.66 | 9.1 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $29 | ||
| GLH12-006-030-SWIR | Fine-annealed H-K9L optical glass | 6 | 30 | 2.3 | 2 | 29.24 | 30.62 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $29 | ||
| GLH12-010-010-SWIR | Fine-annealed H-K9L optical glass | 10 | 10 | 4.87 | 2 | 8.24 | 9.42 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $29 | ||
| GLH12-010-012-SWIR | Fine-annealed H-K9L optical glass | 10 | 12.5 | 3.63 | 2 | 11.24 | 12.27 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $29 | ||
| GLH12-012-012-SWIR | Fine-annealed H-K9L optical glass | 12.5 | 12.5 | 5.55 | 2 | 10.51 | 11.89 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $30 | ||
| GLH12-012-025-SWIR | Fine-annealed H-K9L optical glass | 12.5 | 25 | 2.6 | 1.04 | 24.14 | 25.4 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $37 | ||
| GLH12-013-018-SWIR | Fine-annealed H-K9L optical glass | 13 | 18.2 | 4.4 | 1.97 | 16.66 | 18 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $37 | ||
| GLH12-013-020-SWIR | Fine-annealed H-K9L optical glass | 12.85 | 20 | 3 | 0.9 | 18.99 | 20.15 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $37 | ||
| GLH12-016-016-SWIR | Fine-annealed H-K9L optical glass | 16 | 16 | 6.51 | 2 | 13.67 | 15.31 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $30 | ||
| GLH12-025-025-SWIR | Fine-annealed H-K9L optical glass | 25 | 25 | 8.96 | 2 | 21.85 | 24.19 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $32 | ||
| GLH12-025-040-SWIR | Fine-annealed H-K9L optical glass | 25 | 40 | 5.5 | 1.59 | 38.16 | 40.4 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $32 | ||
| GLH12-040-040-SWIR | Fine-annealed H-K9L optical glass | 40 | 40 | 13.59 | 2.5 | 35.24 | 38.85 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $49 | ||
| GLH12-050-050-SWIR | Fine-annealed H-K9L optical glass | 50 | 50 | 16.85 | 3 | 44.1 | 48.59 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $77 | ||
| GLH12-063-063-SWIR | Fine-annealed H-K9L optical glass | 63 | 63 | 20.4 | 3 | 55.88 | 61.39 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $108 | ||
| GLH12-100-100-SWIR | Fine-annealed H-K9L optical glass | 100 | 100 | 31.52 | 4 | 89.98 | 98.5 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $234 | ||
No matching models. Change or clear your filters.

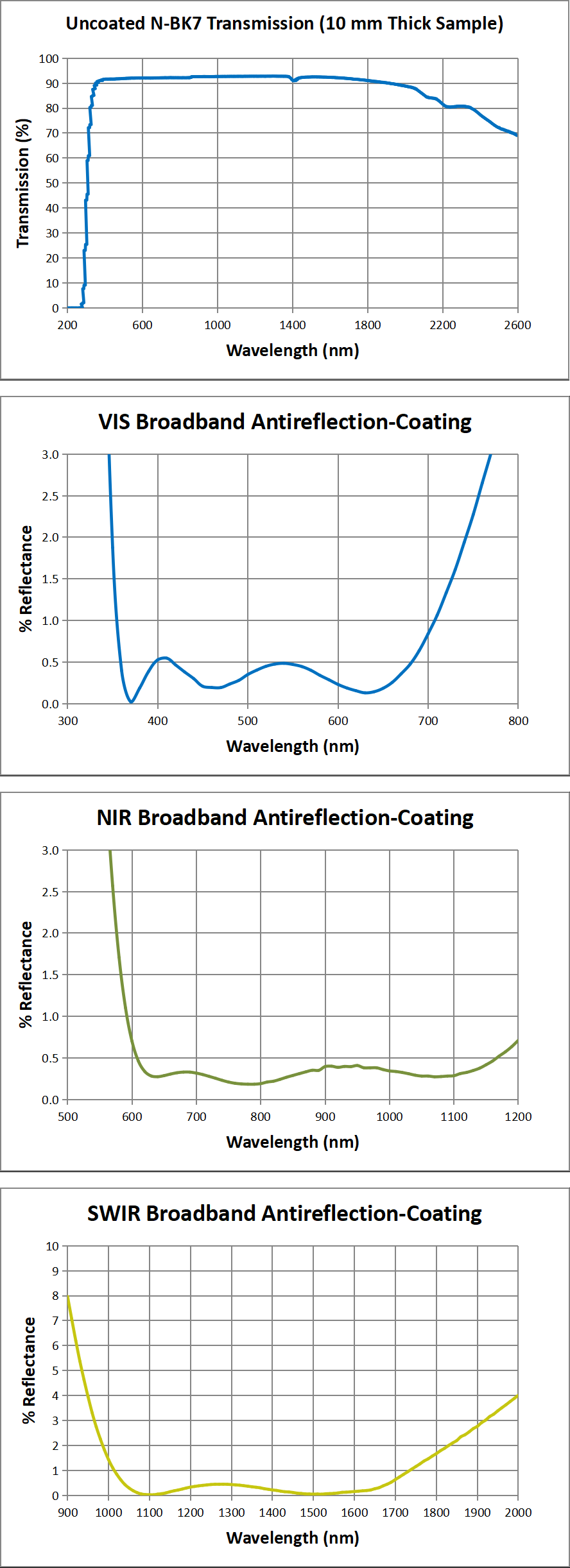

Curves
Technical notes
Thin-lens approximation stated in the source (signed surface radii): f = (R1 × R2) / ((n − 1) × (R2 − R1)); use a thick-lens model for precision design.
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
