Calcium Fluoride Double-Convex Lenses — GLH52 Series
From $136 USD
Request a quoteProduct description
Calcium fluoride (CaF₂) double-convex lenses have positive focal length and two convex surfaces. The source describes use in imaging relay systems and finite-conjugate imaging, with object and image on opposite sides of the lens. Choose a model by its listed focal length, diameter, thickness and coating, then select a quantity to request a quotation.
Available source-listed coating options include IR1 antireflection coating; average reflectance <1.5% over 3–5μm; Uncoated.
The source states that an uncoated surface reflects about 4% of incident light and that antireflection coatings can increase transmission and reduce ghost images.
Schematic
Dimensions in mm unless otherwise stated.
The source states a broad transmission range of 180 nm to 8.0 μm for calcium fluoride.
General specifications
Category-level specifications supplied by the source; SKU dimensions and coating are listed per model.
- Material
- Calcium fluoride (CaF₂) single crystal
- Design wavelength
- 587.6nm
- RoHS
- Compliant with RoHS requirements
- Surface quality
- 60-40
- Diameter tolerance
- +0.0/-0.1mm
- Center thickness tolerance
- ±0.1mm
- Focal length tolerance
- ±1%
- Centration error
- <3 arcmin
- Clear aperture
- >90% of diameter
- Edge bevel
- 0.2mm×45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
16 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH52-012-015 | Calcium fluoride (CaF₂) | 12.7 | 15 | 5.6 | 2 | 12.9 | 12.1 | Uncoated | $136 | ||
| GLH52-012-020 | Calcium fluoride (CaF₂) | 12.7 | 20 | 4.6 | 2 | 18.4 | 16.6 | Uncoated | $136 | ||
| GLH52-012-040 | Calcium fluoride (CaF₂) | 12.7 | 40 | 3.2 | 2 | 38.9 | 34.2 | Uncoated | $136 | ||
| GLH52-025-025 | Calcium fluoride (CaF₂) | 25.4 | 25.4 | 11 | 2 | 21.2 | 20.2 | Uncoated | $157 | ||
| GLH52-025-050 | Calcium fluoride (CaF₂) | 25.4 | 50 | 5.9 | 2 | 47.9 | 42.5 | Uncoated | $157 | ||
| GLH52-025-075 | Calcium fluoride (CaF₂) | 25.4 | 75 | 4.5 | 2 | 73.4 | 64.4 | Uncoated | $157 | ||
| GLH52-025-100 | Calcium fluoride (CaF₂) | 25.4 | 100 | 3.9 | 2 | 98.6 | 86.2 | Uncoated | $157 | ||
| GLH52-025-200 | Calcium fluoride (CaF₂) | 25.4 | 200 | 2.9 | 2 | 199 | 173.1 | Uncoated | $157 | ||
| GLH52-012-015-IR1 | Calcium fluoride (CaF₂) | 12.7 | 15 | 5.6 | 2 | 12.9 | 12.1 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $146 | ||
| GLH52-012-020-IR1 | Calcium fluoride (CaF₂) | 12.7 | 20 | 4.6 | 2 | 18.4 | 16.6 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $146 | ||
| GLH52-012-040-IR1 | Calcium fluoride (CaF₂) | 12.7 | 40 | 3.2 | 2 | 38.9 | 34.2 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $146 | ||
| GLH52-025-025-IR1 | Calcium fluoride (CaF₂) | 25.4 | 25.4 | 11 | 2 | 21.2 | 20.2 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
| GLH52-025-050-IR1 | Calcium fluoride (CaF₂) | 25.4 | 50 | 5.9 | 2 | 47.9 | 42.5 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
| GLH52-025-075-IR1 | Calcium fluoride (CaF₂) | 25.4 | 75 | 4.5 | 2 | 73.4 | 64.4 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
| GLH52-025-100-IR1 | Calcium fluoride (CaF₂) | 25.4 | 100 | 3.9 | 2 | 98.6 | 86.2 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
| GLH52-025-200-IR1 | Calcium fluoride (CaF₂) | 25.4 | 200 | 2.9 | 2 | 199 | 173.1 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $172 | ||
No matching models. Change or clear your filters.

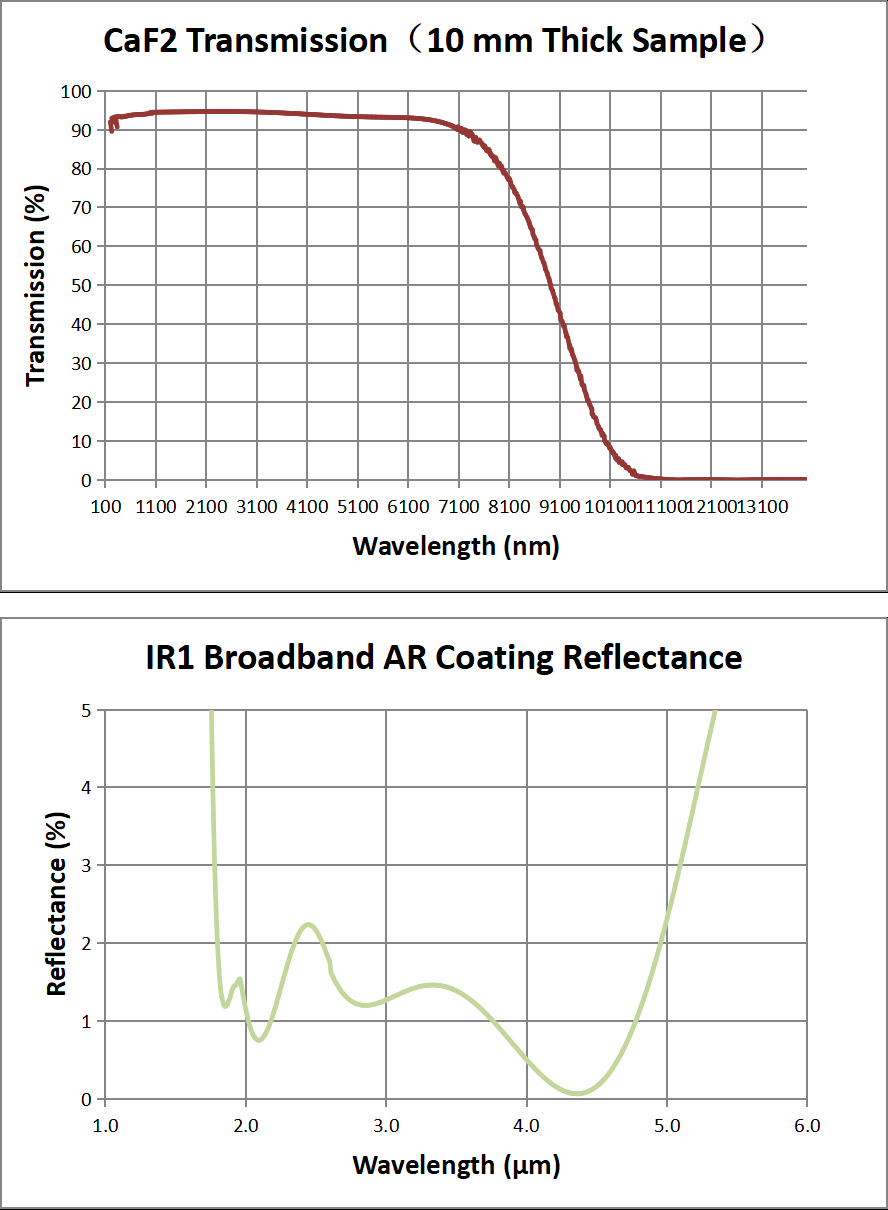

Curves
Technical notes
Thin-lens approximation stated in the source (signed surface radii): f = (R1 × R2) / ((n − 1) × (R2 − R1)); use a thick-lens model for precision design.
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
