Zinc Selenide Double-Convex Lenses — GLH72 Series

From $204 USD

Product description

CVD laser-grade zinc selenide (ZnSe) double-convex lenses have positive focal length and two convex surfaces. The source describes use in imaging relay systems and finite-conjugate imaging, with object and image on opposite sides of the lens. Choose a model by its listed focal length, diameter, thickness and coating, then select a quantity to request a quotation.

Available source-listed coating options include IR2 antireflection coating; average reflectance <1.5% over 8–12μm; Uncoated.

The source states that an uncoated surface reflects about 4% of incident light and that antireflection coatings can increase transmission and reduce ghost images.

Double-convex lens geometry diagram for GLH72 series — Schematic
Dimensions in mm unless otherwise stated.

The source states a transmission range of 600 nm to 16 μm for ZnSe.

Handle with gloves, avoid direct contact, and wash hands after handling, as directed by the source.

General specifications

Category-level specifications supplied by the source; SKU dimensions and coating are listed per model.

Material: CVD laser-grade zinc selenide (ZnSe)

Design wavelength: 10.6μm

RoHS: Compliant with RoHS requirements

Surface quality: 60-40

Diameter tolerance: +0.0/-0.1mm

Center thickness tolerance: ±0.2mm

Focal length tolerance: ±1%

Centration error: <3 arcmin

Clear aperture: >90% of diameter

Edge bevel: 0.2mm×45°

Handling note: Use gloves, avoid direct contact, and wash hands after handling.

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

16 models

Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.

										Quote
GLH72-012-015	Zinc selenide (ZnSe)	12.7	15	3	2	14.4	41.2	Uncoated	$204	Quantity for GLH72-012-015

GLH72-012-020	Zinc selenide (ZnSe)	12.7	20	2.7	2	19.4	55.3	Uncoated	$204	Quantity for GLH72-012-020

GLH72-012-040	Zinc selenide (ZnSe)	12.7	40	2.4	2	39.5	111.5	Uncoated	$204	Quantity for GLH72-012-040

GLH72-025-025	Zinc selenide (ZnSe)	25.4	25.4	4.3	2	24.5	70	Uncoated	$366	Quantity for GLH72-025-025

GLH72-025-050	Zinc selenide (ZnSe)	25.4	50	3.2	2	49.3	139.3	Uncoated	$366	Quantity for GLH72-025-050

GLH72-025-075	Zinc selenide (ZnSe)	25.4	75	2.8	2	74.4	209.6	Uncoated	$366	Quantity for GLH72-025-075

GLH72-025-100	Zinc selenide (ZnSe)	25.4	100	2.6	2	99.5	279.8	Uncoated	$366	Quantity for GLH72-025-100

GLH72-025-200	Zinc selenide (ZnSe)	25.4	200	2.3	2	199.5	560.4	Uncoated	$366	Quantity for GLH72-025-200

GLH72-012-015-IR2	Zinc selenide (ZnSe)	12.7	15	3	2	14.4	41.2	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$231	Quantity for GLH72-012-015-IR2

GLH72-012-020-IR2	Zinc selenide (ZnSe)	12.7	20	2.7	2	19.4	55.3	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$231	Quantity for GLH72-012-020-IR2

GLH72-012-040-IR2	Zinc selenide (ZnSe)	12.7	40	2.4	2	39.5	111.5	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$231	Quantity for GLH72-012-040-IR2

GLH72-025-025-IR2	Zinc selenide (ZnSe)	25.4	25.4	4.3	2	24.5	70	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$420	Quantity for GLH72-025-025-IR2

GLH72-025-050-IR2	Zinc selenide (ZnSe)	25.4	50	3.2	2	49.3	139.3	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$420	Quantity for GLH72-025-050-IR2

GLH72-025-075-IR2	Zinc selenide (ZnSe)	25.4	75	2.8	2	74.4	209.6	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$420	Quantity for GLH72-025-075-IR2

GLH72-025-100-IR2	Zinc selenide (ZnSe)	25.4	100	2.6	2	99.5	279.8	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$420	Quantity for GLH72-025-100-IR2

GLH72-025-200-IR2	Zinc selenide (ZnSe)	25.4	200	2.3	2	199.5	560.4	IR2 antireflection coating; average reflectance <1.5% over 8–12μm	$420	Quantity for GLH72-025-200-IR2

Curves

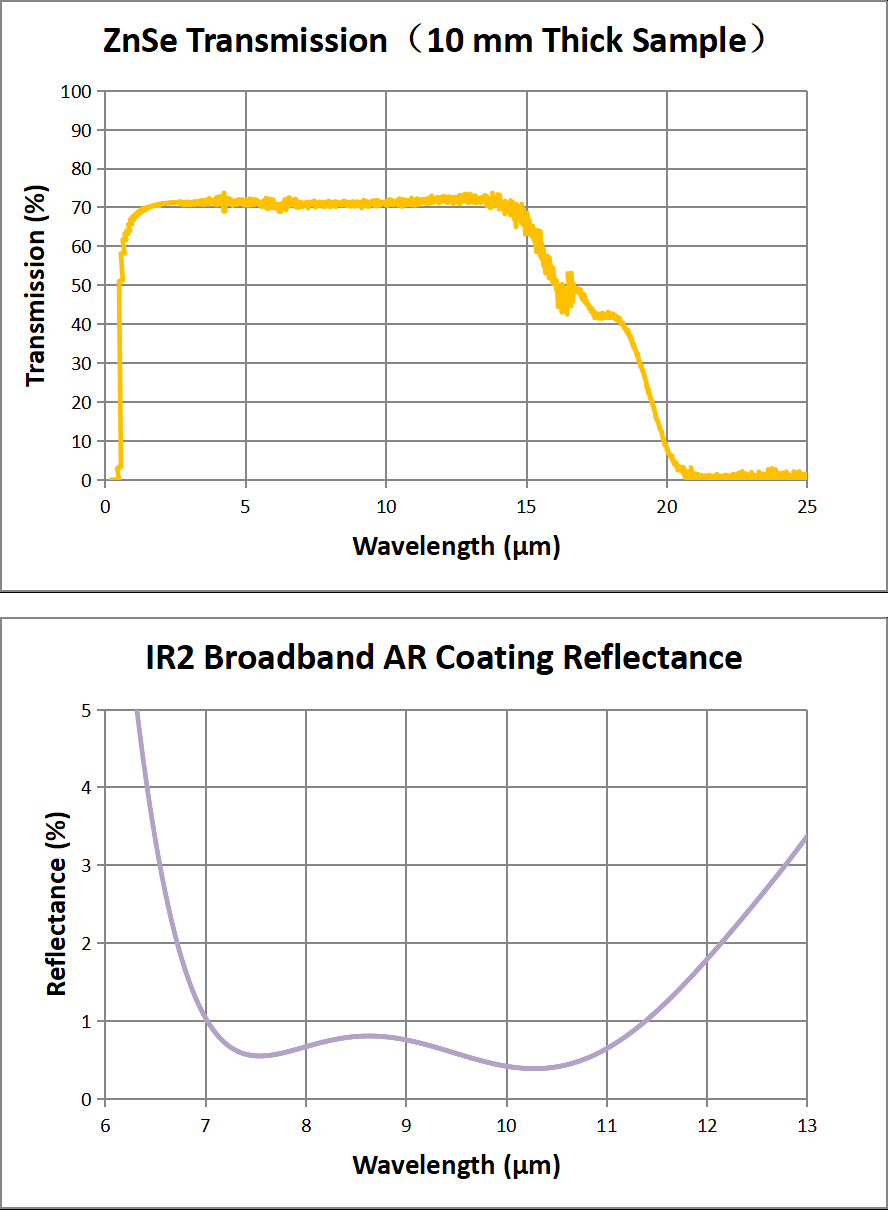

Typical transmission or coating performance. Refer to the model’s coating range.

Technical notes

Thin-lens approximation stated in the source (signed surface radii): f = (R1 × R2) / ((n − 1) × (R2 − R1)); use a thick-lens model for precision design.

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
