K9 Plano-Concave Cylindrical Lenses — GLH16 Series
From $46 USD
Request a quoteProduct description
GLH16 plano-concave cylindrical lenses are made from H-K9L optical glass and have one plane surface and one concave cylindrical surface. Their negative focal length expands light in one direction and changes the aspect ratio of a beam or image.
Unlike a spherical lens, a cylindrical lens acts along one axis. A single negative cylindrical lens can turn a collimated laser beam into a diverging line beam; a pair of cylindrical lenses can reshape an image or beam.
When diverging a beam, orient the curved surface toward the light source to minimize spherical aberration.

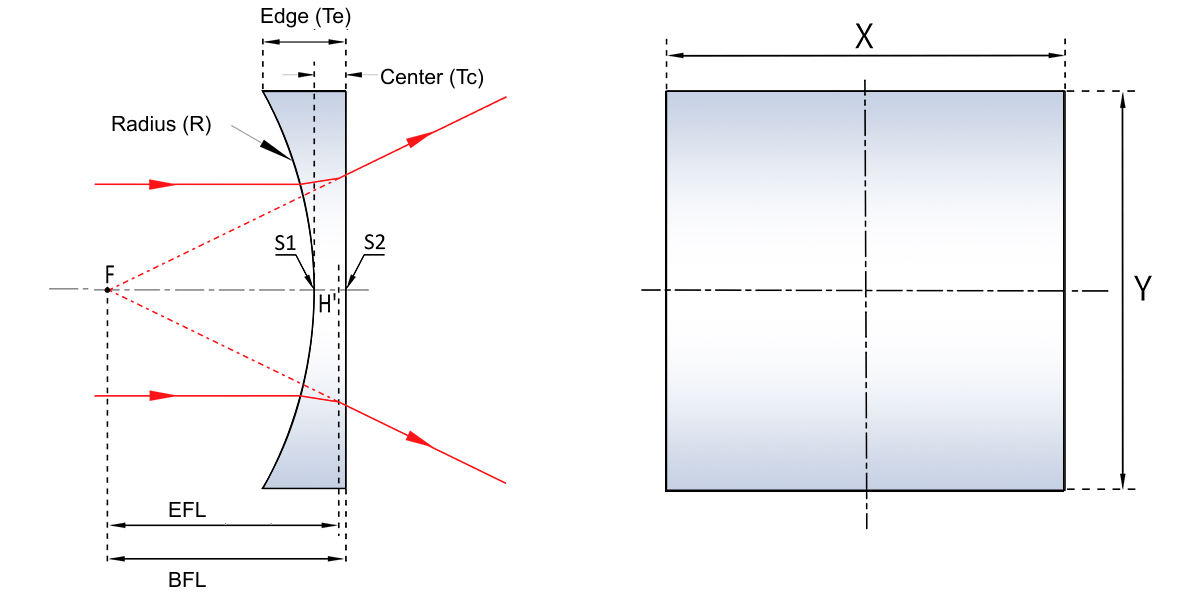

Schematic
Dimensions in mm unless otherwise stated.

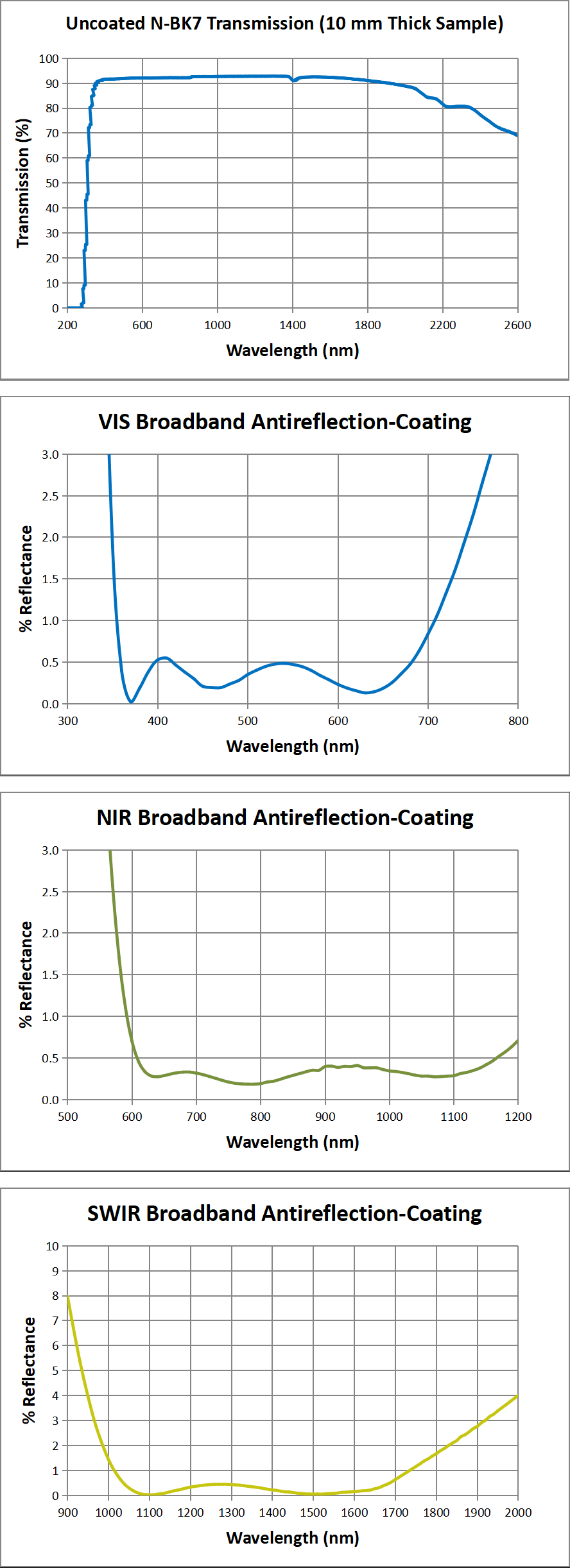

Available per-model coatings: Uncoated; VIS antireflection coating; average reflectance <0.5% over 400–700nm; NIR antireflection coating; average reflectance <0.5% over 650–1050nm; SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm.
H-K9L optical glass is commonly selected when the ultraviolet transmission and lower thermal expansion of UV fused silica are not required. The series general specifications identify fine-annealed H-K9L; the models list H-K9L. The supplied uncoated chart is labeled N-BK7 and is a reference curve; confirm its applicability to the selected model.
Antireflection coatings reduce surface reflections and ghost images. Select the coating band specified for the individual model.
Adjustable cylindrical lens mounts can be used for these rectangular lenses. Mounts are separate components.
General specifications
Rectangular dimensions retain the source X × Y order. Focal length, back focal length and radius retain their negative source values. A slash (/) means the source does not supply the value; it is not zero. General specifications apply at series level; verify the individual model drawing for precision optical design.
- Material
- Fine-annealed H-K9L optical glass
- RoHS
- Compliant
- Surface quality
- 60/40
- Clear aperture
- >90% of diameter
- Dimensions tolerance
- +0.0/-0.1mm
- Center thickness tolerance
- ±0.2mm
- Focal length tolerance
- ±2%
- Centration error
- 3′~5′
- Design wavelength
- 587.6nm
- Edge bevel
- 0.2mm×45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
132 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH16-8x4-004 | H-K9L optical glass | 8×4 | -4 | 2 | 3.54 | -5.3 | -2.07 | Uncoated | $46 | ||
| GLH16-8x4-006 | H-K9L optical glass | 8×4 | -5.8 | 2 | 2.76 | -7.1 | -3 | Uncoated | $46 | ||
| GLH16-8x6-007 | H-K9L optical glass | 8×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | Uncoated | $46 | ||
| GLH16-10x10-012 | H-K9L optical glass | 10×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | Uncoated | $48 | ||
| GLH16-10x10-025 | H-K9L optical glass | 10×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | Uncoated | $48 | ||
| GLH16-12x6-007 | H-K9L optical glass | 12×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | Uncoated | $48 | ||
| GLH16-12x10-012 | H-K9L optical glass | 12×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | Uncoated | $48 | ||
| GLH16-12x10-015 | H-K9L optical glass | 12×10 | -15 | 2 | 3.83 | -16.3 | -7.76 | Uncoated | $48 | ||
| GLH16-12x10-025 | H-K9L optical glass | 12×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | Uncoated | $48 | ||
| GLH16-12x10-040 | H-K9L optical glass | 12×10 | -40 | 2 | 2.61 | -41.3 | -20.68 | Uncoated | $48 | ||
| GLH16-20x10-012 | H-K9L optical glass | 20×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | Uncoated | $48 | ||
| GLH16-20x10-025 | H-K9L optical glass | 20×10 | -25 | 2 | 3.01 | -26.3 | -12.93 | Uncoated | $48 | ||
| GLH16-20x20-050 | H-K9L optical glass | 20×20 | -50 | 2 | 4.01 | -51.3 | -25.85 | Uncoated | $48 | ||
| GLH16-20x20-075 | H-K9L optical glass | 20×20 | -75 | 3 | 4.31 | -76.3 | -38.78 | Uncoated | $48 | ||
| GLH16-20x20-100 | H-K9L optical glass | 20×20 | -100 | 3 | 3.98 | -101.3 | -51.64 | Uncoated | $48 | ||
| GLH16-20x20-150 | H-K9L optical glass | 20×20 | -150 | 3 | 3.65 | -152 | -77.55 | Uncoated | $48 | ||
| GLH16-20x20-200 | H-K9L optical glass | 20×20 | -200 | 3 | 3.48 | -202 | -103.4 | Uncoated | $48 | ||
| GLH16-20x20-250 | H-K9L optical glass | 20×20 | -250 | 3 | 3.39 | -252 | -129.25 | Uncoated | $48 | ||
| GLH16-20x20-300 | H-K9L optical glass | 20×20 | -300 | 3 | 3.32 | -301.7 | -155.1 | Uncoated | $48 | ||
| GLH16-20x20-500 | H-K9L optical glass | 20×20 | -500 | 3 | 3.19 | -502 | -258.5 | Uncoated | $53 | ||
| GLH16-20x20-1000 | H-K9L optical glass | 20×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | Uncoated | $53 | ||
| GLH16-21x19-019 | H-K9L optical glass | 21×19 | -19 | 2 | 9.39 | -20.3 | -9.8 | Uncoated | $48 | ||
| GLH16-25x16-025 | H-K9L optical glass | 25×16 | -25.2 | 1.5 | 4.25 | -26.14 | -13 | Uncoated | $53 | ||
| GLH16-40x20-050 | H-K9L optical glass | 40×20 | -50 | 2 | 4.01 | -52 | -25.85 | Uncoated | $95 | ||
| GLH16-40x20-075 | H-K9L optical glass | 40×20 | -75 | 3 | 4.31 | -77 | -38.78 | Uncoated | $95 | ||
| GLH16-40x20-100 | H-K9L optical glass | 40×20 | -100 | 3 | 3.98 | -101.3 | -51.68 | Uncoated | $95 | ||
| GLH16-40x20-150 | H-K9L optical glass | 40×20 | -150 | 3 | 3.65 | -152 | -77.55 | Uncoated | $95 | ||
| GLH16-40x20-200 | H-K9L optical glass | 40×20 | -200 | 3 | 3.48 | -202 | -103.4 | Uncoated | $95 | ||
| GLH16-40x20-250 | H-K9L optical glass | 40×20 | -250 | 3 | 3.39 | -252 | -129.25 | Uncoated | $100 | ||
| GLH16-40x20-500 | H-K9L optical glass | 40×20 | -500 | 3 | 3.19 | -502 | -258.5 | Uncoated | $105 | ||
| GLH16-40x20-1000 | H-K9L optical glass | 40×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | Uncoated | $105 | ||
| GLH16-53x50-050 | H-K9L optical glass | 53×50.8 | -50.8 | 2 | 19.92 | -52.3 | -26.4 | Uncoated | $167 | ||
| GLH16-53x50-075 | H-K9L optical glass | 53×50.8 | -75 | 2 | 11.13 | -76.3 | -38.8 | Uncoated | $167 | ||
| GLH16-8x4-004-VIS | H-K9L optical glass | 8×4 | -4 | 2 | 3.54 | -5.3 | -2.07 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $53 | ||
| GLH16-8x4-006-VIS | H-K9L optical glass | 8×4 | -5.8 | 2 | 2.76 | -7.1 | -3 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $53 | ||
| GLH16-8x6-007-VIS | H-K9L optical glass | 8×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $53 | ||
| GLH16-10x10-012-VIS | H-K9L optical glass | 10×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-10x10-025-VIS | H-K9L optical glass | 10×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-12x6-007-VIS | H-K9L optical glass | 12×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-12x10-012-VIS | H-K9L optical glass | 12×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-12x10-015-VIS | H-K9L optical glass | 12×10 | -15 | 2 | 3.83 | -16.3 | -7.76 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-12x10-025-VIS | H-K9L optical glass | 12×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-12x10-040-VIS | H-K9L optical glass | 12×10 | -40 | 2 | 2.61 | -41.3 | -20.68 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-20x10-012-VIS | H-K9L optical glass | 20×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-20x10-025-VIS | H-K9L optical glass | 20×10 | -25 | 2 | 3.01 | -26.3 | -12.93 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-20x20-050-VIS | H-K9L optical glass | 20×20 | -50 | 2 | 4.01 | -51.3 | -25.85 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-075-VIS | H-K9L optical glass | 20×20 | -75 | 3 | 4.31 | -76.3 | -38.78 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-100-VIS | H-K9L optical glass | 20×20 | -100 | 3 | 3.98 | -101.3 | -51.64 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-150-VIS | H-K9L optical glass | 20×20 | -150 | 3 | 3.65 | -152 | -77.55 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-200-VIS | H-K9L optical glass | 20×20 | -200 | 3 | 3.48 | -202 | -103.4 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-250-VIS | H-K9L optical glass | 20×20 | -250 | 3 | 3.39 | -252 | -129.25 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-300-VIS | H-K9L optical glass | 20×20 | -300 | 3 | 3.32 | -301.7 | -155.1 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $57 | ||
| GLH16-20x20-500-VIS | H-K9L optical glass | 20×20 | -500 | 3 | 3.19 | -502 | -258.5 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $62 | ||
| GLH16-20x20-1000-VIS | H-K9L optical glass | 20×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $62 | ||
| GLH16-21x19-019-VIS | H-K9L optical glass | 21×19 | -19 | 2 | 9.39 | -20.3 | -9.8 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $55 | ||
| GLH16-25x16-025-VIS | H-K9L optical glass | 25×16 | -25.2 | 1.5 | 4.25 | -26.14 | -13 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $62 | ||
| GLH16-40x20-050-VIS | H-K9L optical glass | 40×20 | -50 | 2 | 4.01 | -52 | -25.85 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $106 | ||
| GLH16-40x20-075-VIS | H-K9L optical glass | 40×20 | -75 | 3 | 4.31 | -77 | -38.78 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $106 | ||
| GLH16-40x20-100-VIS | H-K9L optical glass | 40×20 | -100 | 3 | 3.98 | -101.3 | -51.68 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $106 | ||
| GLH16-40x20-150-VIS | H-K9L optical glass | 40×20 | -150 | 3 | 3.65 | -152 | -77.55 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $106 | ||
| GLH16-40x20-200-VIS | H-K9L optical glass | 40×20 | -200 | 3 | 3.48 | -202 | -103.4 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $106 | ||
| GLH16-40x20-250-VIS | H-K9L optical glass | 40×20 | -250 | 3 | 3.39 | -252 | -129.25 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $112 | ||
| GLH16-40x20-500-VIS | H-K9L optical glass | 40×20 | -500 | 3 | 3.19 | -502 | -258.5 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $116 | ||
| GLH16-40x20-1000-VIS | H-K9L optical glass | 40×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $116 | ||
| GLH16-53x50-050-VIS | H-K9L optical glass | 53×50.8 | -50.8 | 2 | 19.92 | -52.3 | -26.4 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $183 | ||
| GLH16-53x50-075-VIS | H-K9L optical glass | 53×50.8 | -75 | 2 | 11.13 | -76.3 | -38.8 | VIS antireflection coating; average reflectance <0.5% over 400–700nm | $183 | ||
| GLH16-8x4-004-NIR | H-K9L optical glass | 8×4 | -4 | 2 | 3.54 | -5.3 | -2.07 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $56 | ||
| GLH16-8x4-006-NIR | H-K9L optical glass | 8×4 | -5.8 | 2 | 2.76 | -7.1 | -3 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $56 | ||
| GLH16-8x6-007-NIR | H-K9L optical glass | 8×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $56 | ||
| GLH16-10x10-012-NIR | H-K9L optical glass | 10×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-10x10-025-NIR | H-K9L optical glass | 10×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-12x6-007-NIR | H-K9L optical glass | 12×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-12x10-012-NIR | H-K9L optical glass | 12×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-12x10-015-NIR | H-K9L optical glass | 12×10 | -15 | 2 | 3.83 | -16.3 | -7.76 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-12x10-025-NIR | H-K9L optical glass | 12×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-12x10-040-NIR | H-K9L optical glass | 12×10 | -40 | 2 | 2.61 | -41.3 | -20.68 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-20x10-012-NIR | H-K9L optical glass | 20×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-20x10-025-NIR | H-K9L optical glass | 20×10 | -25 | 2 | 3.01 | -26.3 | -12.93 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-20x20-050-NIR | H-K9L optical glass | 20×20 | -50 | 2 | 4.01 | -51.3 | -25.85 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-075-NIR | H-K9L optical glass | 20×20 | -75 | 3 | 4.31 | -76.3 | -38.78 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-100-NIR | H-K9L optical glass | 20×20 | -100 | 3 | 3.98 | -101.3 | -51.64 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-150-NIR | H-K9L optical glass | 20×20 | -150 | 3 | 3.65 | -152 | -77.55 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-200-NIR | H-K9L optical glass | 20×20 | -200 | 3 | 3.48 | -202 | -103.4 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-250-NIR | H-K9L optical glass | 20×20 | -250 | 3 | 3.39 | -252 | -129.25 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-300-NIR | H-K9L optical glass | 20×20 | -300 | 3 | 3.32 | -301.7 | -155.1 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $60 | ||
| GLH16-20x20-500-NIR | H-K9L optical glass | 20×20 | -500 | 3 | 3.19 | -502 | -258.5 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $65 | ||
| GLH16-20x20-1000-NIR | H-K9L optical glass | 20×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $65 | ||
| GLH16-21x19-019-NIR | H-K9L optical glass | 21×19 | -19 | 2 | 9.39 | -20.3 | -9.8 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $58 | ||
| GLH16-25x16-025-NIR | H-K9L optical glass | 25×16 | -25.2 | 1.5 | 4.25 | -26.14 | -13 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $65 | ||
| GLH16-40x20-050-NIR | H-K9L optical glass | 40×20 | -50 | 2 | 4.01 | -52 | -25.85 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $109 | ||
| GLH16-40x20-075-NIR | H-K9L optical glass | 40×20 | -75 | 3 | 4.31 | -77 | -38.78 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $109 | ||
| GLH16-40x20-100-NIR | H-K9L optical glass | 40×20 | -100 | 3 | 3.98 | -101.3 | -51.68 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $109 | ||
| GLH16-40x20-150-NIR | H-K9L optical glass | 40×20 | -150 | 3 | 3.65 | -152 | -77.55 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $109 | ||
| GLH16-40x20-200-NIR | H-K9L optical glass | 40×20 | -200 | 3 | 3.48 | -202 | -103.4 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $109 | ||
| GLH16-40x20-250-NIR | H-K9L optical glass | 40×20 | -250 | 3 | 3.39 | -252 | -129.25 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $115 | ||
| GLH16-40x20-500-NIR | H-K9L optical glass | 40×20 | -500 | 3 | 3.19 | -502 | -258.5 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $119 | ||
| GLH16-40x20-1000-NIR | H-K9L optical glass | 40×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $119 | ||
| GLH16-53x50-050-NIR | H-K9L optical glass | 53×50.8 | -50.8 | 2 | 19.92 | -52.3 | -26.4 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $186 | ||
| GLH16-53x50-075-NIR | H-K9L optical glass | 53×50.8 | -75 | 2 | 11.13 | -76.3 | -38.8 | NIR antireflection coating; average reflectance <0.5% over 650–1050nm | $186 | ||
| GLH16-8x4-004-SWIR | H-K9L optical glass | 8×4 | -4 | 2 | 3.54 | -5.3 | -2.07 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $56 | ||
| GLH16-8x4-006-SWIR | H-K9L optical glass | 8×4 | -5.8 | 2 | 2.76 | -7.1 | -3 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $56 | ||
| GLH16-8x6-007-SWIR | H-K9L optical glass | 8×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $56 | ||
| GLH16-10x10-012-SWIR | H-K9L optical glass | 10×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-10x10-025-SWIR | H-K9L optical glass | 10×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-12x6-007-SWIR | H-K9L optical glass | 12×6 | -6.4 | 2 | 3.93 | -7.7 | -3.3 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-12x10-012-SWIR | H-K9L optical glass | 12×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-12x10-015-SWIR | H-K9L optical glass | 12×10 | -15 | 2 | 3.83 | -16.3 | -7.76 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-12x10-025-SWIR | H-K9L optical glass | 12×10 | -25 | 2 | 3.01 | -26.2 | -12.93 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-12x10-040-SWIR | H-K9L optical glass | 12×10 | -40 | 2 | 2.61 | -41.3 | -20.68 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-20x10-012-SWIR | H-K9L optical glass | 20×10 | -12.7 | 2 | 4.31 | -14 | -6.56 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-20x10-025-SWIR | H-K9L optical glass | 20×10 | -25 | 2 | 3.01 | -26.3 | -12.93 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-20x20-050-SWIR | H-K9L optical glass | 20×20 | -50 | 2 | 4.01 | -51.3 | -25.85 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-075-SWIR | H-K9L optical glass | 20×20 | -75 | 3 | 4.31 | -76.3 | -38.78 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-100-SWIR | H-K9L optical glass | 20×20 | -100 | 3 | 3.98 | -101.3 | -51.64 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-150-SWIR | H-K9L optical glass | 20×20 | -150 | 3 | 3.65 | -152 | -77.55 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-200-SWIR | H-K9L optical glass | 20×20 | -200 | 3 | 3.48 | -202 | -103.4 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-250-SWIR | H-K9L optical glass | 20×20 | -250 | 3 | 3.39 | -252 | -129.25 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-300-SWIR | H-K9L optical glass | 20×20 | -300 | 3 | 3.32 | -301.7 | -155.1 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $60 | ||
| GLH16-20x20-500-SWIR | H-K9L optical glass | 20×20 | -500 | 3 | 3.19 | -502 | -258.5 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $65 | ||
| GLH16-20x20-1000-SWIR | H-K9L optical glass | 20×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $65 | ||
| GLH16-21x19-019-SWIR | H-K9L optical glass | 21×19 | -19 | 2 | 9.39 | -20.3 | -9.8 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $58 | ||
| GLH16-25x16-025-SWIR | H-K9L optical glass | 25×16 | -25.2 | 1.5 | 4.25 | -26.14 | -13 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $65 | ||
| GLH16-40x20-050-SWIR | H-K9L optical glass | 40×20 | -50 | 2 | 4.01 | -52 | -25.85 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $109 | ||
| GLH16-40x20-075-SWIR | H-K9L optical glass | 40×20 | -75 | 3 | 4.31 | -77 | -38.78 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $109 | ||
| GLH16-40x20-100-SWIR | H-K9L optical glass | 40×20 | -100 | 3 | 3.98 | -101.3 | -51.68 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $109 | ||
| GLH16-40x20-150-SWIR | H-K9L optical glass | 40×20 | -150 | 3 | 3.65 | -152 | -77.55 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $109 | ||
| GLH16-40x20-200-SWIR | H-K9L optical glass | 40×20 | -200 | 3 | 3.48 | -202 | -103.4 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $109 | ||
| GLH16-40x20-250-SWIR | H-K9L optical glass | 40×20 | -250 | 3 | 3.39 | -252 | -129.25 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $115 | ||
| GLH16-40x20-500-SWIR | H-K9L optical glass | 40×20 | -500 | 3 | 3.19 | -502 | -258.5 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $119 | ||
| GLH16-40x20-1000-SWIR | H-K9L optical glass | 40×20 | -1000 | 3 | 3.1 | -1002.2 | -516.8 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $119 | ||
| GLH16-53x50-050-SWIR | H-K9L optical glass | 53×50.8 | -50.8 | 2 | 19.92 | -52.3 | -26.4 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $186 | ||
| GLH16-53x50-075-SWIR | H-K9L optical glass | 53×50.8 | -75 | 2 | 11.13 | -76.3 | -38.8 | SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm | $186 | ||
