UV Fused Silica Plano-Concave Cylindrical Lenses — GLH26 Series
From $78 USD
Request a quoteProduct description
GLH26 plano-concave cylindrical lenses are made from UV fused silica and have one plane surface and one concave cylindrical surface. Their negative focal length expands light in one direction and changes the aspect ratio of a beam or image.
Unlike a spherical lens, a cylindrical lens acts along one axis. A single negative cylindrical lens can turn a collimated laser beam into a diverging line beam; a pair of cylindrical lenses can reshape an image or beam.
When diverging a beam, orient the curved surface toward the light source to minimize spherical aberration.

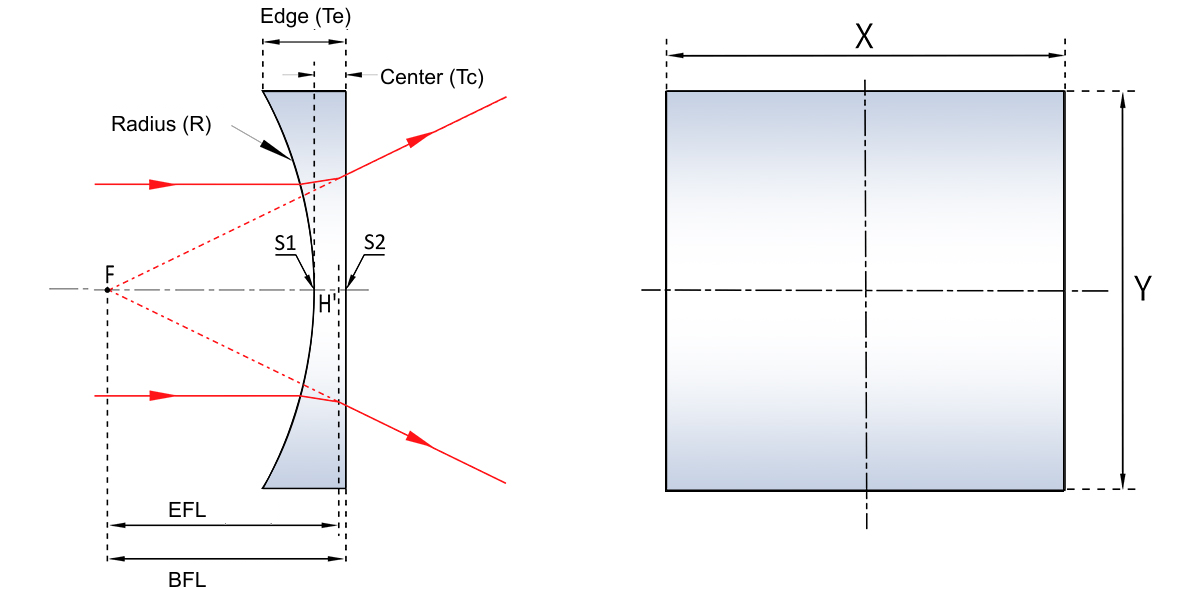

Schematic
Dimensions in mm unless otherwise stated.
Available per-model coatings: Uncoated; UV antireflection coating; average reflectance <0.5% over 250–450nm.
The source states a UV fused silica transmission range of 185 nm to 2.1 μm, low thermal expansion, high homogeneity, chemical resistance and low fluorescence.
Antireflection coatings reduce surface reflections and ghost images. Select the coating band specified for the individual model.
Adjustable cylindrical lens mounts can be used for these rectangular lenses. Mounts are separate components.
General specifications
Rectangular dimensions retain the source X × Y order. Focal length, back focal length and radius retain their negative source values. A slash (/) means the source does not supply the value; it is not zero. General specifications apply at series level; verify the individual model drawing for precision optical design.
- Material
- UV fused silica
- Surface irregularity
- λ/4 @632.8nm
- Surface quality
- 40-20
- Clear aperture
- >90% of diameter
- Dimensions tolerance
- +0.0/-0.2mm
- Center thickness tolerance
- ±0.2mm
- Focal length tolerance
- ±2%
- Centration error
- 3′~5′
- Design wavelength
- 587.6nm
- Edge bevel
- 0.2mm×45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
55 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH26-10x10-012 | UV fused silica | 10×10 | -12.7 | 2 | 4.84 | -14.07 | -5.82 | Uncoated | $78 | ||
| GLH26-10x10-020 | UV fused silica | 10×10 | -20 | 2 | 3.49 | -21.35 | -9.16 | Uncoated | $78 | ||
| GLH26-10x10-025 | UV fused silica | 10×10 | -25 | 2 | 3.15 | -26.35 | -11.45 | Uncoated | $78 | ||
| GLH26-10x10-040 | UV fused silica | 10×10 | -40 | 2 | 2.7 | -41.33 | -18.32 | Uncoated | $78 | ||
| GLH26-10x10-050 | UV fused silica | 10×10 | -50 | 2 | 2.55 | -51.36 | -22.92 | Uncoated | $78 | ||
| GLH26-10x10-075 | UV fused silica | 10×10 | -75 | 2 | 2.37 | -76.3 | -34.35 | Uncoated | $78 | ||
| GLH26-10x10-100 | UV fused silica | 10×10 | -100 | 2 | 2.27 | -101.38 | -45.85 | Uncoated | $78 | ||
| GLH26-10x10-150 | UV fused silica | 10×10 | -150 | 2 | 2.18 | -151.39 | -68.78 | Uncoated | $78 | ||
| GLH26-10x10-200 | UV fused silica | 10×10 | -200 | 2 | 2.14 | -201.39 | -91.7 | Uncoated | $78 | ||
| GLH26-10x10-250 | UV fused silica | 10×10 | -250 | 2 | 2.11 | -251.38 | -114.62 | Uncoated | $78 | ||
| GLH26-10x10-300 | UV fused silica | 10×10 | -300 | 2 | 2.09 | -301.4 | -137.55 | Uncoated | $78 | ||
| GLH26-20x10-012 | UV fused silica | 20×10 | -12.7 | 2 | 4.84 | -14.07 | -5.82 | Uncoated | $88 | ||
| GLH26-20x10-020 | UV fused silica | 20×10 | -20 | 2 | 3.49 | -21.35 | -9.16 | Uncoated | $88 | ||
| GLH26-20x10-025 | UV fused silica | 20×10 | -25 | 2 | 3.15 | -26.35 | -11.45 | Uncoated | $88 | ||
| GLH26-20x10-040 | UV fused silica | 20×10 | -40 | 2 | 2.7 | -41.33 | -18.32 | Uncoated | $88 | ||
| GLH26-20x10-050 | UV fused silica | 20×10 | -50 | 2 | 2.55 | -51.36 | -22.92 | Uncoated | $88 | ||
| GLH26-20x10-075 | UV fused silica | 20×10 | -75 | 2 | 2.37 | -76.3 | -34.35 | Uncoated | $88 | ||
| GLH26-20x10-100 | UV fused silica | 20×10 | -100 | 2 | 2.27 | -101.38 | -45.85 | Uncoated | $88 | ||
| GLH26-20x10-150 | UV fused silica | 20×10 | -150 | 2 | 2.18 | -151.39 | -68.78 | Uncoated | $88 | ||
| GLH26-20x10-200 | UV fused silica | 20×10 | -200 | 2 | 2.14 | -201.39 | -91.7 | Uncoated | $88 | ||
| GLH26-20x10-250 | UV fused silica | 20×10 | -250 | 2 | 2.11 | -251.38 | -114.62 | Uncoated | $88 | ||
| GLH26-20x10-300 | UV fused silica | 20×10 | -300 | 2 | 2.09 | -301.4 | -137.55 | Uncoated | $88 | ||
| GLH26-30x20-025 | UV fused silica | 30×20 | -25 | 2 | 7.87 | -26.35 | -11.45 | Uncoated | $110 | ||
| GLH26-30x20-050 | UV fused silica | 30×20 | -50 | 2 | 4.3 | -51.36 | -22.92 | Uncoated | $110 | ||
| GLH26-30x20-075 | UV fused silica | 30×20 | -75 | 2 | 3.49 | -76.3 | -34.35 | Uncoated | $110 | ||
| GLH26-30x20-100 | UV fused silica | 30×20 | -100 | 2 | 3.1 | -101.38 | -45.85 | Uncoated | $110 | ||
| GLH26-30x30-040 | UV fused silica | 30×30 | -40 | 5 | 12.12 | / | -18.32 | Uncoated | $110 | ||
| GLH26-25x25-030 | UV fused silica | 25×25 | -30 | 3 | 8.5 | / | -13.755 | Uncoated | $110 | ||
| GLH26-25x25-050 | UV fused silica | 25×25 | -50 | 3 | 6 | / | -22.925 | Uncoated | $110 | ||
| GLH26-10x10-012-UV | UV fused silica | 10×10 | -12.7 | 2 | 4.84 | -14.07 | -5.82 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-020-UV | UV fused silica | 10×10 | -20 | 2 | 3.49 | -21.35 | -9.16 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-025-UV | UV fused silica | 10×10 | -25 | 2 | 3.15 | -26.35 | -11.45 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-040-UV | UV fused silica | 10×10 | -40 | 2 | 2.7 | -41.33 | -18.32 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-050-UV | UV fused silica | 10×10 | -50 | 2 | 2.55 | -51.36 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-075-UV | UV fused silica | 10×10 | -75 | 2 | 2.37 | -76.3 | -34.35 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-100-UV | UV fused silica | 10×10 | -100 | 2 | 2.27 | -101.38 | -45.85 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-150-UV | UV fused silica | 10×10 | -150 | 2 | 2.18 | -151.39 | -68.78 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-200-UV | UV fused silica | 10×10 | -200 | 2 | 2.14 | -201.39 | -91.7 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-250-UV | UV fused silica | 10×10 | -250 | 2 | 2.11 | -251.38 | -114.62 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-10x10-300-UV | UV fused silica | 10×10 | -300 | 2 | 2.09 | -301.4 | -137.55 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $88 | ||
| GLH26-20x10-012-UV | UV fused silica | 20×10 | -12.7 | 2 | 4.84 | -14.07 | -5.82 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-020-UV | UV fused silica | 20×10 | -20 | 2 | 3.49 | -21.35 | -9.16 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-025-UV | UV fused silica | 20×10 | -25 | 2 | 3.15 | -26.35 | -11.45 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-040-UV | UV fused silica | 20×10 | -40 | 2 | 2.7 | -41.33 | -18.32 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-050-UV | UV fused silica | 20×10 | -50 | 2 | 2.55 | -51.36 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-075-UV | UV fused silica | 20×10 | -75 | 2 | 2.37 | -76.3 | -34.35 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-100-UV | UV fused silica | 20×10 | -100 | 2 | 2.27 | -101.38 | -45.85 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-150-UV | UV fused silica | 20×10 | -150 | 2 | 2.18 | -151.39 | -68.78 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-200-UV | UV fused silica | 20×10 | -200 | 2 | 2.14 | -201.39 | -91.7 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-250-UV | UV fused silica | 20×10 | -250 | 2 | 2.11 | -251.38 | -114.62 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-20x10-300-UV | UV fused silica | 20×10 | -300 | 2 | 2.09 | -301.4 | -137.55 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $100 | ||
| GLH26-30x20-025-UV | UV fused silica | 30×20 | -25 | 2 | 7.87 | -26.35 | -11.45 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $128 | ||
| GLH26-30x20-050-UV | UV fused silica | 30×20 | -50 | 2 | 4.3 | -51.36 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $128 | ||
| GLH26-30x20-075-UV | UV fused silica | 30×20 | -75 | 2 | 3.49 | -76.3 | -34.35 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $128 | ||
| GLH26-30x20-100-UV | UV fused silica | 30×20 | -100 | 2 | 3.1 | -101.38 | -45.85 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $128 | ||
No matching models. Change or clear your filters.

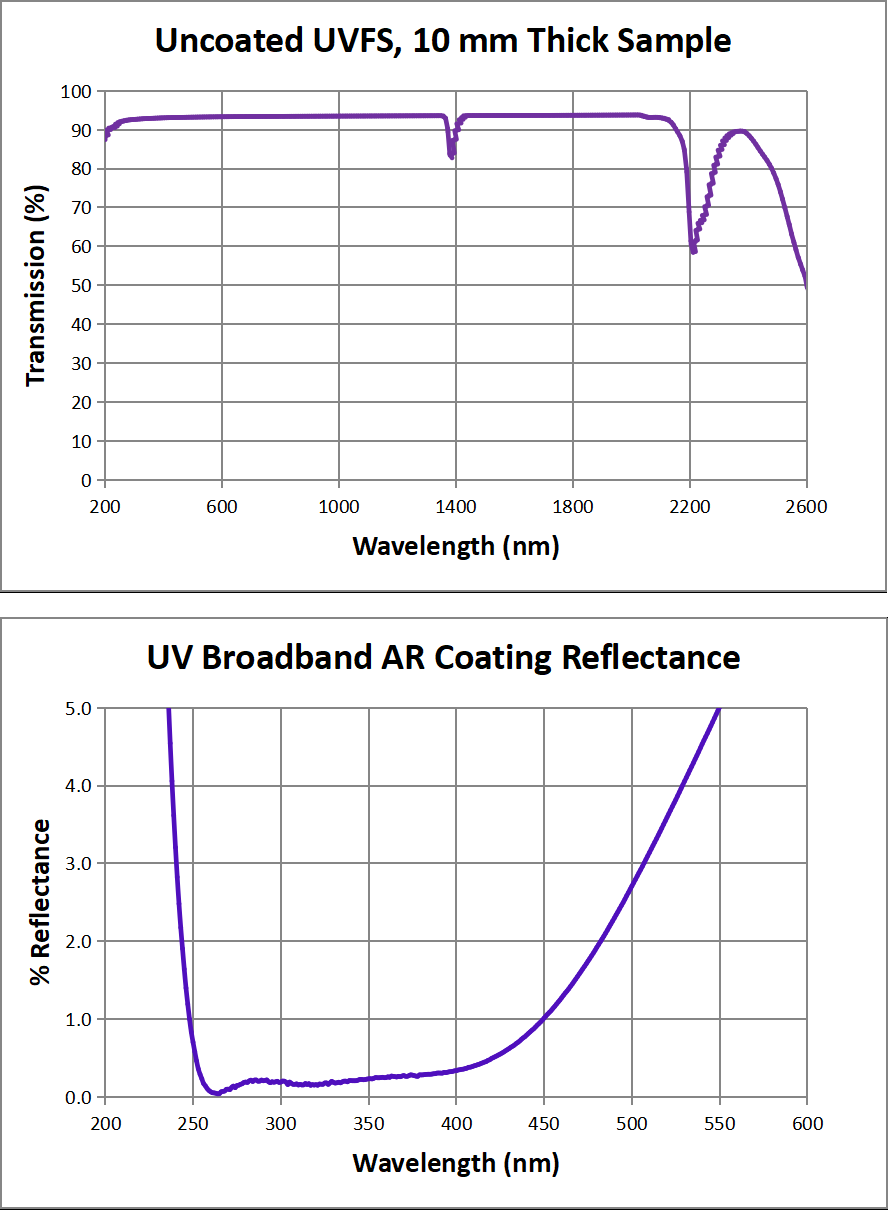

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
