K9 Plano-Concave Lenses — GLA13 Series
From $18 USD
Request a quoteProduct description
K9 plano-concave lenses have one flat and one concave surface and a negative focal length. They turn collimated incident light into a diverging beam with a virtual focus and are commonly used in Galilean beam expanders. Orient the concave surface toward the incident beam, with the plane surface toward the focal plane.
Plano-concave lenses provide negative spherical aberration and can compensate aberrations from other lenses in an optical system. For source-recommended conjugate magnitudes below 0.2 or above 5, plano-concave lenses are generally selected; double-concave lenses are often used between these values.
Available coatings: Uncoated; A-band antireflection coating; average reflectance <0.5% over 350–700nm; B-band antireflection coating; average reflectance <0.5% over 650-1100nm; C-band antireflection coating; average reflectance <0.5% over 1050-1700nm; AB-band antireflection coating; Ravg<1% over 400–1100nm.

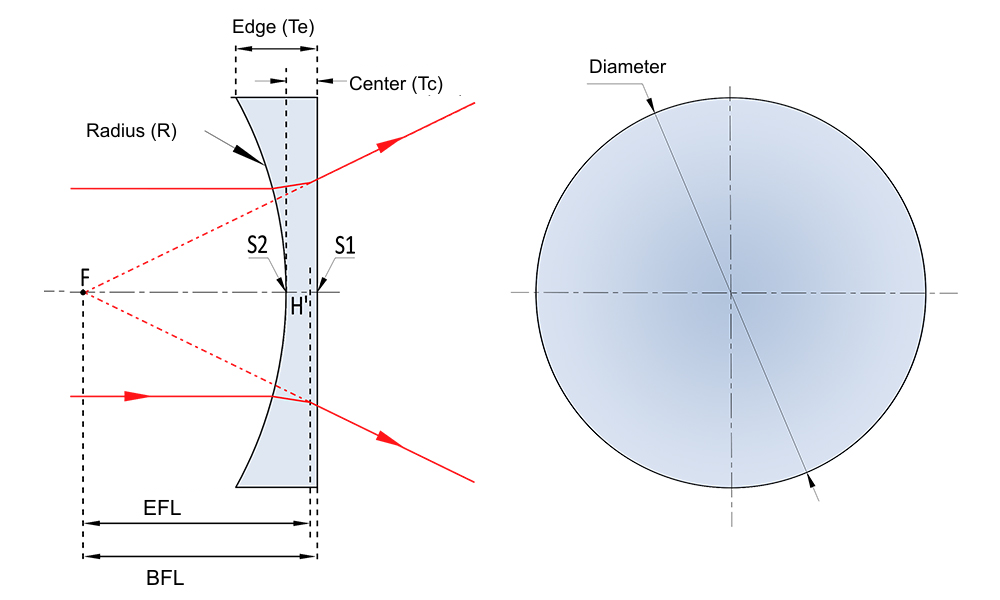

Schematic
Dimensions in mm unless otherwise stated.
Antireflection coatings reduce surface reflections and ghost images. An uncoated glass surface reflects approximately 4% of incident light; coatings on both surfaces improve transmission in multi-element systems.
General specifications
The source general material is N-BK7, while every model lists H-K9L. Per-model H-K9L material is authoritative; confirm the applicable refractive-index specification when ordering.
- Material
- N-BK7 optical glass
- Surface irregularity
- λ/4 @632.8nm
- Design wavelength
- 587.6nm
- Surface quality
- 40-20
- Diameter tolerance
- +0.0 / -0.1 mm
- Thickness tolerance
- ±0.1 mm
- Focal length tolerance
- ±1%
- Centration error
- <3 arcmin
- Refractive index
- 1.517
- Abbe number
- v = 64.17
- Clear aperture
- >90% of diameter
- Edge bevel
- 0.2mm×45°
- RoHS
- Compliant with RoHS requirements
- Coating
- Coating on both surfaces
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
108 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLA13-006-009 | H-K9L optical glass | 6 | -9.8 | 1 | 1.98 | -10.05 | -5.609 | Uncoated | $18 | ||
| GLA13-006-018 | H-K9L optical glass | 6 | -18 | 2 | 2.5 | -19.32 | -9.27 | Uncoated | $18 | ||
| GLA13-006-024 | H-K9L optical glass | 6 | -24 | 2 | 2.4 | -25.32 | -12.36 | Uncoated | $18 | ||
| GLA13-009-027 | H-K9L optical glass | 9 | -27 | 2 | 2.7 | -28.32 | -13.91 | Uncoated | $18 | ||
| GLA13-012-025 | H-K9L optical glass | 12.7 | -25 | 3 | 4.7 | -26.98 | -12.88 | Uncoated | $18 | ||
| GLA13-012-030 | H-K9L optical glass | 12.7 | -30 | 3 | 4.4 | -31.98 | -15.45 | Uncoated | $18 | ||
| GLA13-012-050 | H-K9L optical glass | 12.7 | -50 | 3.5 | 4.3 | -52.31 | -25.75 | Uncoated | $18 | ||
| GLA13-012-075 | H-K9L optical glass | 12.7 | -75 | 3.5 | 4.02 | -77.05 | -38.63 | Uncoated | $18 | ||
| GLA13-012-100 | H-K9L optical glass | 12.7 | -100 | 3.5 | 3.89 | -102.3 | -51.68 | Uncoated | $18 | ||
| GLA13-012-150 | H-K9L optical glass | 12.7 | -150 | 3.5 | 3.76 | -152.3 | -77.5 | Uncoated | $18 | ||
| GLA13-012-200 | H-K9L optical glass | 12.7 | -200 | 3.5 | 3.69 | -202.3 | -103.36 | Uncoated | $18 | ||
| GLA13-012-300 | H-K9L optical glass | 12.7 | -300 | 3.5 | 3.63 | -302.3 | -155 | Uncoated | $18 | ||
| GLA13-012-500 | H-K9L optical glass | 12.7 | -500 | 3.5 | 3.57 | -502.5 | -258.5 | Uncoated | $18 | ||
| GLA13-025-050 | H-K9L optical glass | 25 | -50 | 3.5 | 6.7 | -52.31 | -25.75 | Uncoated | $20 | ||
| GLA13-025-075 | H-K9L optical glass | 25 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | Uncoated | $20 | ||
| GLA13-025-100 | H-K9L optical glass | 25 | -100 | 4 | 5.5 | -102.64 | -51.51 | Uncoated | $20 | ||
| GLA13-025B-050 | H-K9L optical glass | 25.4 | -50 | 3.5 | 6.9 | -52.31 | -25.75 | Uncoated | $20 | ||
| GLA13-025B-075 | H-K9L optical glass | 25.4 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | Uncoated | $20 | ||
| GLA13-025B-100 | H-K9L optical glass | 25.4 | -100 | 4 | 5.6 | -102.64 | -51.51 | Uncoated | $20 | ||
| GLA13-025B-150 | H-K9L optical glass | 25.4 | -150 | 4 | 5.05 | -151.576 | -77.26 | Uncoated | $20 | ||
| GLA13-025B-200 | H-K9L optical glass | 25.4 | -200 | 4.21 | 5 | -202.03 | -103.36 | Uncoated | $20 | ||
| GLA13-025B-300 | H-K9L optical glass | 25.4 | -300 | 4.48 | 5 | -301.84 | -155.04 | Uncoated | $20 | ||
| GLA13-025B-600 | H-K9L optical glass | 25.4 | -600 | 4.74 | 5 | -600.89 | -310.08 | Uncoated | $20 | ||
| GLA13-025B-1000 | H-K9L optical glass | 25.4 | -1000 | 4.84 | 5 | -999.48 | -516.8 | Uncoated | $20 | ||
| GLA13-050-075 | H-K9L optical glass | 50.8 | -75 | 3.5 | 13 | -77.31 | -38.63 | Uncoated | $57 | ||
| GLA13-050-100 | H-K9L optical glass | 50.8 | -100 | 4 | 10.7 | -102.64 | -51.51 | Uncoated | $47 | ||
| GLA13-050-150 | H-K9L optical glass | 50.8 | -150 | 4 | 8.3 | -152.64 | -77.26 | Uncoated | $47 | ||
| GLA13-006-009-A | H-K9L optical glass | 6 | -9.8 | 1 | 1.98 | -10.05 | -5.069 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-006-018-A | H-K9L optical glass | 6 | -18 | 2 | 2.5 | -19.32 | -9.27 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-006-024-A | H-K9L optical glass | 6 | -24 | 2 | 2.4 | -25.32 | -12.36 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-009-027-A | H-K9L optical glass | 9 | -27 | 2 | 2.7 | -28.32 | -13.91 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-025-A | H-K9L optical glass | 12.7 | -25 | 3 | 4.7 | -26.98 | -12.88 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-030-A | H-K9L optical glass | 12.7 | -30 | 3 | 4.4 | -31.98 | -15.45 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-050-A | H-K9L optical glass | 12.7 | -50 | 3.5 | 4.3 | -52.31 | -25.75 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-075-A | H-K9L optical glass | 12.7 | -75 | 3.5 | 4.02 | -77.05 | -38.63 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-100-A | H-K9L optical glass | 12.7 | -100 | 3.5 | 3.89 | -102.3 | -51.68 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-150-A | H-K9L optical glass | 12.7 | -150 | 3.5 | 3.76 | -152.3 | -77.5 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-200-A | H-K9L optical glass | 12.7 | -200 | 3.5 | 3.69 | -202.3 | -103.36 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-300-A | H-K9L optical glass | 12.7 | -300 | 3.5 | 3.63 | -302.3 | -155 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-012-500-A | H-K9L optical glass | 12.7 | -500 | 3.5 | 3.57 | -502.5 | -258.5 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $25 | ||
| GLA13-025-050-A | H-K9L optical glass | 25 | -50 | 3.5 | 6.7 | -52.31 | -25.75 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025-075-A | H-K9L optical glass | 25 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025-100-A | H-K9L optical glass | 25 | -100 | 4 | 5.5 | -102.64 | -51.51 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-050-A | H-K9L optical glass | 25.4 | -50 | 3.5 | 6.9 | -52.31 | -25.75 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-075-A | H-K9L optical glass | 25.4 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-100-A | H-K9L optical glass | 25.4 | -100 | 4 | 5.6 | -102.64 | -51.51 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-150-A | H-K9L optical glass | 25.4 | -150 | 4 | 5.05 | -151.576 | -77.26 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-200-A | H-K9L optical glass | 25.4 | -200 | 4.21 | 5 | -202.03 | -103.36 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-300-A | H-K9L optical glass | 25.4 | -300 | 4.48 | 5 | -301.84 | -155.04 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-025B-1000-A | H-K9L optical glass | 25.4 | -1000 | 4.84 | 5 | -999.48 | -516.8 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $33 | ||
| GLA13-050-075-A | H-K9L optical glass | 50.8 | -75 | 3.5 | 13 | -77.31 | -38.63 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $47 | ||
| GLA13-050-100-A | H-K9L optical glass | 50.8 | -100 | 4 | 10.7 | -102.64 | -51.51 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $47 | ||
| GLA13-050-150-A | H-K9L optical glass | 50.8 | -150 | 4 | 8.3 | -152.64 | -77.26 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $47 | ||
| GLA13-006-009-B | H-K9L optical glass | 6 | -9.8 | 1 | 1.98 | -10.05 | -5.069 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-006-018-B | H-K9L optical glass | 6 | -18 | 2 | 2.5 | -19.32 | -9.27 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-006-024-B | H-K9L optical glass | 6 | -24 | 2 | 2.4 | -25.32 | -12.36 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-009-027-B | H-K9L optical glass | 9 | -27 | 2 | 2.7 | -28.32 | -13.91 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-025-B | H-K9L optical glass | 12.7 | -25 | 3 | 4.7 | -26.98 | -12.88 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-030-B | H-K9L optical glass | 12.7 | -30 | 3 | 4.4 | -31.98 | -15.45 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-050-B | H-K9L optical glass | 12.7 | -50 | 3.5 | 4.3 | -52.31 | -25.75 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-075-B | H-K9L optical glass | 12.7 | -75 | 3.5 | 4.02 | -77.05 | -38.63 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-100-B | H-K9L optical glass | 12.7 | -100 | 3.5 | 3.89 | -102.3 | -51.68 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-150-B | H-K9L optical glass | 12.7 | -150 | 3.5 | 3.76 | -152.3 | -77.5 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-200-B | H-K9L optical glass | 12.7 | -200 | 3.5 | 3.69 | -202.3 | -103.36 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-300-B | H-K9L optical glass | 12.7 | -300 | 3.5 | 3.63 | -302.3 | -155 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-012-500-B | H-K9L optical glass | 12.7 | -500 | 3.5 | 3.57 | -502.5 | -258.5 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $25 | ||
| GLA13-025-050-B | H-K9L optical glass | 25 | -50 | 3.5 | 6.7 | -52.31 | -25.75 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025-075-B | H-K9L optical glass | 25 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025-100-B | H-K9L optical glass | 25 | -100 | 4 | 5.5 | -102.64 | -51.51 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-050-B | H-K9L optical glass | 25.4 | -50 | 3.5 | 6.9 | -52.31 | -25.75 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-075-B | H-K9L optical glass | 25.4 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-100-B | H-K9L optical glass | 25.4 | -100 | 4 | 5.6 | -102.64 | -51.51 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-150-B | H-K9L optical glass | 25.4 | -150 | 4 | 5.05 | -151.576 | -77.26 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-200-B | H-K9L optical glass | 25.4 | -200 | 4.21 | 5 | -202.03 | -103.36 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-300-B | H-K9L optical glass | 25.4 | -300 | 4.48 | 5 | -301.84 | -155.04 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-025B-1000-B | H-K9L optical glass | 25.4 | -1000 | 4.84 | 5 | -999.48 | -516.8 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $33 | ||
| GLA13-050-075-B | H-K9L optical glass | 50.8 | -75 | 3.5 | 13 | -77.31 | -38.63 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $78 | ||
| GLA13-050-100-B | H-K9L optical glass | 50.8 | -100 | 4 | 10.7 | -102.64 | -51.51 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $63 | ||
| GLA13-050-150-B | H-K9L optical glass | 50.8 | -150 | 4 | 8.3 | -152.64 | -77.26 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $63 | ||
| GLA13-006-009-C | H-K9L optical glass | 6 | -9.8 | 1 | 1.98 | -10.05 | -5.069 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-006-024-C | H-K9L optical glass | 6 | -24 | 2 | 2.4 | -25.32 | -12.36 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-009-027-C | H-K9L optical glass | 9 | -27 | 2 | 2.7 | -28.32 | -13.91 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-025-C | H-K9L optical glass | 12.7 | -25 | 3 | 4.7 | -26.98 | -12.88 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-030-C | H-K9L optical glass | 12.7 | -30 | 3 | 4.4 | -31.98 | -15.45 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-050-C | H-K9L optical glass | 12.7 | -50 | 3.5 | 4.3 | -52.31 | -25.75 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-075-C | H-K9L optical glass | 12.7 | -75 | 3.5 | 4.02 | -77.05 | -38.63 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-100-C | H-K9L optical glass | 12.7 | -100 | 3.5 | 3.89 | -102.3 | -51.68 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-150-C | H-K9L optical glass | 12.7 | -150 | 3.5 | 3.76 | -152.3 | -77.5 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-200-C | H-K9L optical glass | 12.7 | -200 | 3.5 | 3.69 | -202.3 | -103.36 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-300-C | H-K9L optical glass | 12.7 | -300 | 3.5 | 3.63 | -302.3 | -155 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-012-500-C | H-K9L optical glass | 12.7 | -500 | 3.5 | 3.57 | -502.5 | -258.5 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $25 | ||
| GLA13-025-050-C | H-K9L optical glass | 25 | -50 | 3.5 | 6.7 | -52.31 | -25.75 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025-075-C | H-K9L optical glass | 25 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025-100-C | H-K9L optical glass | 25 | -100 | 4 | 5.5 | -102.64 | -51.51 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025B-050-C | H-K9L optical glass | 25.4 | -50 | 3.5 | 6.9 | -52.31 | -25.75 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025B-075-C | H-K9L optical glass | 25.4 | -75 | 3.5 | 5.6 | -77.31 | -38.63 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025B-100-C | H-K9L optical glass | 25.4 | -100 | 4 | 5.6 | -102.64 | -51.51 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025B-200-C | H-K9L optical glass | 25.4 | -200 | 4.21 | 5 | -202.03 | -103.36 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-025B-1000-C | H-K9L optical glass | 25.4 | -1000 | 4.84 | 5 | -999.48 | -516.8 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $33 | ||
| GLA13-050-075-C | H-K9L optical glass | 50.8 | -75 | 3.5 | 13 | -77.31 | -38.63 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $78 | ||
| GLA13-050-100-C | H-K9L optical glass | 50.8 | -100 | 4 | 10.7 | -102.64 | -51.51 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $63 | ||
| GLA13-050-150-C | H-K9L optical glass | 50.8 | -150 | 4 | 8.3 | -152.64 | -77.26 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $63 | ||
| GLA13-012-075-AB | H-K9L optical glass | 12.7 | -75 | 3.5 | 4.02 | -77.05 | -38.63 | AB-band antireflection coating; Ravg<1% over 400–1100nm | $33 | ||
| GLA13-012-100-AB | H-K9L optical glass | 12.7 | -100 | 3.5 | 3.89 | -102.3 | -51.68 | AB-band antireflection coating; Ravg<1% over 400–1100nm | $33 | ||
| GLA13-012-150-AB | H-K9L optical glass | 12.7 | -150 | 3.5 | 3.76 | -152.3 | -77.5 | AB-band antireflection coating; Ravg<1% over 400–1100nm | $33 | ||
| GLA13-012-200-AB | H-K9L optical glass | 12.7 | -200 | 3.5 | 3.69 | -202.3 | -103.36 | AB-band antireflection coating; Ravg<1% over 400–1100nm | $33 | ||
| GLA13-012-300-AB | H-K9L optical glass | 12.7 | -300 | 3.5 | 3.63 | -302.3 | -155 | AB-band antireflection coating; Ravg<1% over 400–1100nm | $33 | ||
| GLA13-012-500-AB | H-K9L optical glass | 12.7 | -500 | 3.5 | 3.57 | -502.5 | -258.5 | AB-band antireflection coating; Ravg<1% over 400–1100nm | $33 | ||
No matching models. Change or clear your filters.

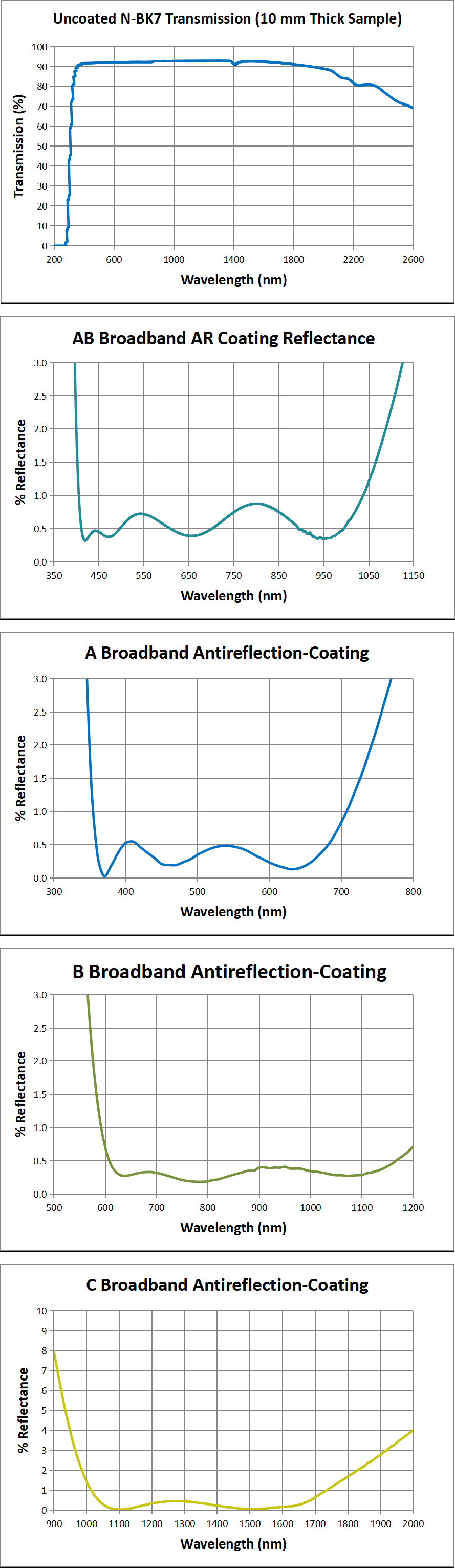

Curves
