H-K9L Plano-Concave Lenses — GLH13 Series

From $18 USD

Product description

H-K9L optical glass plano-concave lenses have one flat and one concave surface and a negative focal length. They turn collimated incident light into a diverging beam with a virtual focus and are commonly used in Galilean beam expanders. Orient the concave surface toward the incident beam, with the plane surface toward the focal plane.

Plano-concave lenses provide negative spherical aberration and can compensate aberrations from other lenses in an optical system. For source-recommended conjugate magnitudes below 0.2 or above 5, plano-concave lenses are generally selected; double-concave lenses are often used between these values.

Available coatings: Uncoated; VIS antireflection coating; average reflectance <0.5% over 400–700nm; NIR antireflection coating; average reflectance <0.5% over 650–1050nm; SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm.

Plano-concave lens geometry diagram for GLH13 series — Schematic
Dimensions in mm unless otherwise stated.

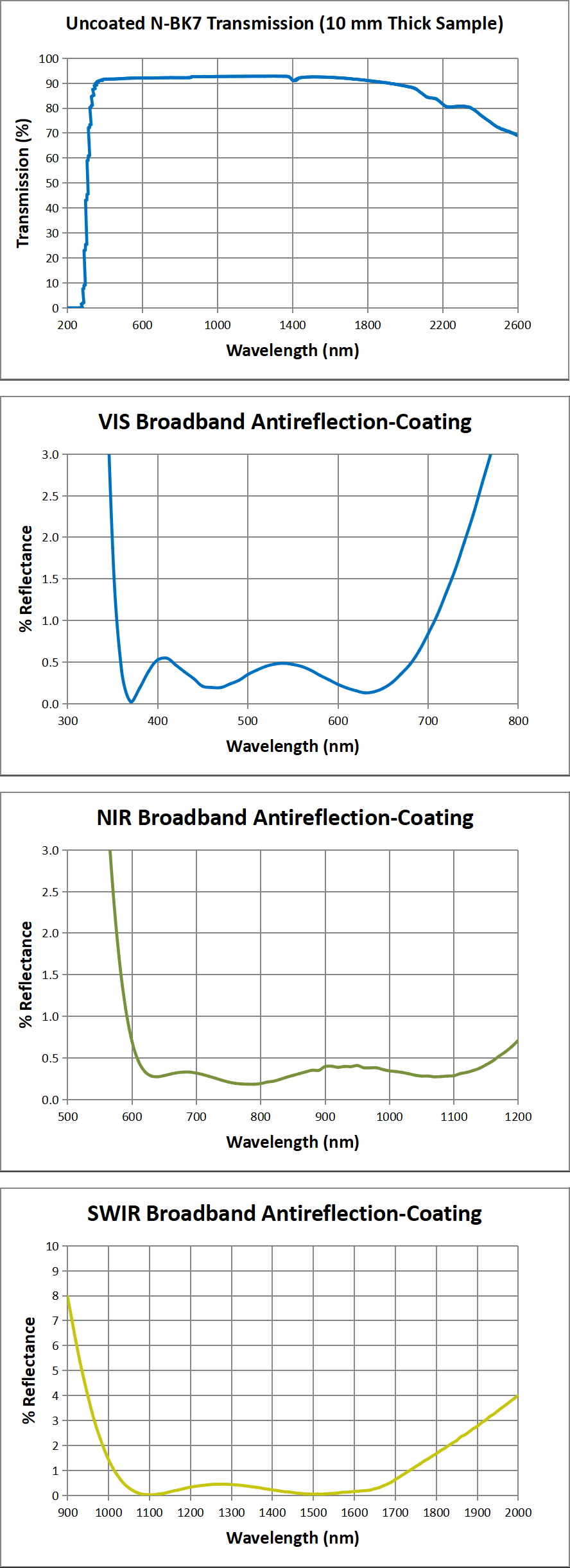

Antireflection coatings reduce surface reflections and ghost images. An uncoated glass surface reflects approximately 4% of incident light; coatings on both surfaces improve transmission in multi-element systems.

General specifications

General specifications apply at series level; refer to each model for its dimensions, material and coating.

Material: Fine-annealed H-K9L optical glass

Surface irregularity: λ/4 @632.8nm

Design wavelength: 587.6nm

Surface quality: 60-40

Diameter tolerance: +0.0 / -0.1mm

Center thickness tolerance: ±0.2mm

Focal length tolerance: ±2%

Centration error: <3 arcmin

Refractive index: 1.5168

Abbe number: v = 64.17

Clear aperture: >90% of diameter

Edge bevel: 0.2mm×45°

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

MaterialDiameter (mm)Focal length (mm)Center thickness (mm)Edge thickness (mm)Back focal length (mm)Radius (mm)Surface coating Search model

240 models

Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.

										Quote
GLH13-004-005	H-K9L optical glass	4	-5	1.5	2.45	-5.99	-2.58	Uncoated	$30	Quantity for GLH13-004-005

GLH13-004-006	H-K9L optical glass	4	-6.3	1.5	2.19	-7.29	-3.25	Uncoated	$27	Quantity for GLH13-004-006

GLH13-004-010	H-K9L optical glass	4	-10	1.5	1.9	-10.99	-5.17	Uncoated	$27	Quantity for GLH13-004-010

GLH13-006-008	H-K9L optical glass	6.3	-8	1.5	2.96	-8.99	-4.13	Uncoated	$18	Quantity for GLH13-006-008

GLH13-006-010	H-K9L optical glass	6.3	-10	1.5	2.57	-11	-5.17	Uncoated	$18	Quantity for GLH13-006-010

GLH13-006-012	H-K9L optical glass	6.3	-12.5	1.5	2.32	-13.5	-6.46	Uncoated	$18	Quantity for GLH13-006-012

GLH13-006-016	H-K9L optical glass	6.3	-16	1.5	2.12	-16.99	-8.26	Uncoated	$18	Quantity for GLH13-006-016

GLH13-006-020	H-K9L optical glass	6.3	-20	1.5	1.99	-20.99	-10.33	Uncoated	$18	Quantity for GLH13-006-020

GLH13-006-025	H-K9L optical glass	6.3	-25	1.5	1.89	-25.99	-12.91	Uncoated	$18	Quantity for GLH13-006-025

GLH13-006-040	H-K9L optical glass	6.3	-40	1.5	1.71	-40.98	-20.65	Uncoated	$18	Quantity for GLH13-006-040

GLH13-010-012	H-K9L optical glass	10	-12.5	1.5	3.87	-13.5	-6.46	Uncoated	$18	Quantity for GLH13-010-012

GLH13-010-016	H-K9L optical glass	10	-16	1.5	3.19	-16.99	-8.26	Uncoated	$18	Quantity for GLH13-010-016

GLH13-010-020	H-K9L optical glass	10	-20	1.5	2.79	-20.99	-10.33	Uncoated	$18	Quantity for GLH13-010-020

GLH13-010-025	H-K9L optical glass	10	-25	1.5	2.51	-25.99	-12.91	Uncoated	$18	Quantity for GLH13-010-025

GLH13-010-032	H-K9L optical glass	10	-31.5	1.5	2.29	-32.5	-16.27	Uncoated	$18	Quantity for GLH13-010-032

GLH13-010-040	H-K9L optical glass	10	-40	1.5	2.11	-40.98	-20.65	Uncoated	$18	Quantity for GLH13-010-040

GLH13-010-050	H-K9L optical glass	10	-50	1.5	1.99	-51.03	-25.84	Uncoated	$18	Quantity for GLH13-010-050

GLH13-010-063	H-K9L optical glass	10	-63	1.5	1.89	-63.93	-32.5	Uncoated	$18	Quantity for GLH13-010-063

GLH13-010-100	H-K9L optical glass	10	-100	1.5	1.74	-101	-51.64	Uncoated	$18	Quantity for GLH13-010-100

GLH13-016-020	H-K9L optical glass	16	-20	1.5	5.29	-20.99	-10.33	Uncoated	$20	Quantity for GLH13-016-020

GLH13-016-025	H-K9L optical glass	16	-25	1.5	4.22	-25.99	-12.91	Uncoated	$19	Quantity for GLH13-016-025

GLH13-016-032	H-K9L optical glass	16	-31.5	1.5	3.6	-32.5	-16.27	Uncoated	$19	Quantity for GLH13-016-032

GLH13-016-040	H-K9L optical glass	16	-40	1.5	3.11	-40.98	-20.65	Uncoated	$19	Quantity for GLH13-016-040

GLH13-016-050	H-K9L optical glass	16	-50	1.5	2.77	-51.66	-25.84	Uncoated	$19	Quantity for GLH13-016-050

GLH13-016-063	H-K9L optical glass	16	-63	1.5	2.5	-63.98	-32.5	Uncoated	$19	Quantity for GLH13-016-063

GLH13-016-080	H-K9L optical glass	16	-80	1.5	2.28	-80.97	-41.3	Uncoated	$19	Quantity for GLH13-016-080

GLH13-016-100	H-K9L optical glass	16	-100	1.5	2.12	-101	-51.64	Uncoated	$19	Quantity for GLH13-016-100

GLH13-016-160	H-K9L optical glass	16	-160	1.5	1.89	-161	-82.62	Uncoated	$19	Quantity for GLH13-016-160

GLH13-020-050	H-K9L optical glass	20	-50	2.1	4.11	-51.38	-25.84	Uncoated	$19	Quantity for GLH13-020-050

GLH13-025-025	H-K9L optical glass	25	-25.4	2	11.16	-26.71	-13.11	Uncoated	$22	Quantity for GLH13-025-025

GLH13-025-032	H-K9L optical glass	25	-31.5	2	7.86	-32.83	-16.27	Uncoated	$22	Quantity for GLH13-025-032

GLH13-025-040	H-K9L optical glass	25	-40	2	6.21	-40.98	-20.65	Uncoated	$20	Quantity for GLH13-025-040

GLH13-025-050	H-K9L optical glass	25	-50	2	5.22	-51.36	-25.84	Uncoated	$20	Quantity for GLH13-025-050

GLH13-025-063	H-K9L optical glass	25	-63	2	4.5	-64.26	-32.5	Uncoated	$20	Quantity for GLH13-025-063

GLH13-025-080	H-K9L optical glass	25	-80	2	3.94	-81.3	-41.30	Uncoated	$20	Quantity for GLH13-025-080

GLH13-025-100	H-K9L optical glass	25	-100	2	3.54	-101.3	-51.64	Uncoated	$20	Quantity for GLH13-025-100

GLH13-025-125	H-K9L optical glass	25	-125	2	3.22	-126.3	-64.55	Uncoated	$20	Quantity for GLH13-025-125

GLH13-025-160	H-K9L optical glass	25	-160	2	2.95	-161.3	-82.62	Uncoated	$20	Quantity for GLH13-025-160

GLH13-025-200	H-K9L optical glass	25	-200	2	2.75	-201.3	-103.28	Uncoated	$20	Quantity for GLH13-025-200

GLH13-025-250	H-K9L optical glass	25	-250	2	2.61	-251.4	-129.13	Uncoated	$20	Quantity for GLH13-025-250

GLH13-025-400	H-K9L optical glass	25	-400	2	2.38	-400.5	-206.1	Uncoated	$20	Quantity for GLH13-025-400

GLH13-025-500	H-K9L optical glass	25	-500	2	2.3	-503.3	-258.18	Uncoated	$20	Quantity for GLH13-025-500

GLH13-025-1000	H-K9L optical glass	25	-1000	2	2.15	-1001	-516.5	Uncoated	$22	Quantity for GLH13-025-1000

GLH13-034-170	H-K9L optical glass	34	-170	3.25	4.91	-172.42	-88	Uncoated	$28	Quantity for GLH13-034-170

GLH13-040-050	H-K9L optical glass	40	-50	2.5	11.98	-51.69	-25.84	Uncoated	$62	Quantity for GLH13-040-050

GLH13-040-063	H-K9L optical glass	40	-63	2.5	9.38	-64.58	-32.5	Uncoated	$62	Quantity for GLH13-040-063

GLH13-040-080	H-K9L optical glass	40	-80	2.5	7.57	-81.63	-41.3	Uncoated	$28	Quantity for GLH13-040-080

GLH13-040-100	H-K9L optical glass	40	-100	2.5	6.53	-101.7	-51.64	Uncoated	$28	Quantity for GLH13-040-100

GLH13-040-125	H-K9L optical glass	40	-125	2.5	5.68	-126.7	-64.55	Uncoated	$28	Quantity for GLH13-040-125

GLH13-040-160	H-K9L optical glass	40	-160	2.5	4.96	-161.7	-82.62	Uncoated	$28	Quantity for GLH13-040-160

GLH13-040-200	H-K9L optical glass	40	-200	2.5	4.46	-201.6	-103.28	Uncoated	$28	Quantity for GLH13-040-200

GLH13-040-250	H-K9L optical glass	40	-250	2.5	4.06	-251.9	-129.24	Uncoated	$28	Quantity for GLH13-040-250

GLH13-040-500	H-K9L optical glass	40	-500	2.5	3.28	-501.6	-258.18	Uncoated	$28	Quantity for GLH13-040-500

GLH13-045-150	H-K9L optical glass	45	-150	3	6.32	-151.98	-77.52	Uncoated	$28	Quantity for GLH13-045-150

GLH13-050-063	H-K9L optical glass	50	-63	3	14.73	-64.92	-32.5	Uncoated	$64	Quantity for GLH13-050-063

GLH13-050-080	H-K9L optical glass	50	-80	3	11.43	-81.96	-41.3	Uncoated	$57	Quantity for GLH13-050-080

GLH13-050-100	H-K9L optical glass	50	-100	3	9.45	-102	-51.64	Uncoated	$35	Quantity for GLH13-050-100

GLH13-050-160	H-K9L optical glass	50	-160	3	6.87	-162	-82.62	Uncoated	$35	Quantity for GLH13-050-160

GLH13-050-250	H-K9L optical glass	50	-250	3	5.11	-252.3	-129.24	Uncoated	$35	Quantity for GLH13-050-250

GLH13-050-500	H-K9L optical glass	50	-500	3	4.21	-502	-258.18	Uncoated	$35	Quantity for GLH13-050-500

GLH13-004-005-VIS	H-K9L optical glass	4	-5	1.5	2.45	-5.99	-2.58	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$37	Quantity for GLH13-004-005-VIS

GLH13-004-006-VIS	H-K9L optical glass	4	-6.3	1.5	2.19	-7.29	-3.25	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$34	Quantity for GLH13-004-006-VIS

GLH13-004-010-VIS	H-K9L optical glass	4	-10	1.5	1.9	-10.99	-5.17	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$34	Quantity for GLH13-004-010-VIS

GLH13-006-008-VIS	H-K9L optical glass	6.3	-8	1.5	2.96	-8.99	-4.13	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-008-VIS

GLH13-006-010-VIS	H-K9L optical glass	6.3	-10	1.5	2.57	-11	-5.17	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-010-VIS

GLH13-006-012-VIS	H-K9L optical glass	6.3	-12.5	1.5	2.32	-13.5	-6.46	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-012-VIS

GLH13-006-016-VIS	H-K9L optical glass	6.3	-16	1.5	2.12	-16.99	-8.26	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-016-VIS

GLH13-006-020-VIS	H-K9L optical glass	6.3	-20	1.5	1.99	-20.99	-10.33	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-020-VIS

GLH13-006-025-VIS	H-K9L optical glass	6.3	-25	1.5	1.89	-25.99	-12.91	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-025-VIS

GLH13-006-040-VIS	H-K9L optical glass	6.3	-40	1.5	1.71	-40.98	-20.65	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-006-040-VIS

GLH13-010-012-VIS	H-K9L optical glass	10	-12.5	1.5	3.87	-13.5	-6.46	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-012-VIS

GLH13-010-016-VIS	H-K9L optical glass	10	-16	1.5	3.19	-16.99	-8.26	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-016-VIS

GLH13-010-020-VIS	H-K9L optical glass	10	-20	1.5	2.79	-20.99	-10.33	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-020-VIS

GLH13-010-025-VIS	H-K9L optical glass	10	-25	1.5	2.51	-25.99	-12.91	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-025-VIS

GLH13-010-032-VIS	H-K9L optical glass	10	-31.5	1.5	2.29	-32.5	-16.27	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-032-VIS

GLH13-010-040-VIS	H-K9L optical glass	10	-40	1.5	2.11	-40.98	-20.65	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-040-VIS

GLH13-010-050-VIS	H-K9L optical glass	10	-50	1.5	1.99	-51.03	-25.84	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-050-VIS

GLH13-010-063-VIS	H-K9L optical glass	10	-63	1.5	1.89	-63.93	-32.5	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-063-VIS

GLH13-010-100-VIS	H-K9L optical glass	10	-100	1.5	1.74	-101	-51.64	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$25	Quantity for GLH13-010-100-VIS

GLH13-016-020-VIS	H-K9L optical glass	16	-20	1.5	5.29	-20.99	-10.33	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$27	Quantity for GLH13-016-020-VIS

GLH13-016-025-VIS	H-K9L optical glass	16	-25	1.5	4.22	-25.99	-12.91	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-025-VIS

GLH13-016-032-VIS	H-K9L optical glass	16	-31.5	1.5	3.6	-32.5	-16.27	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-032-VIS

GLH13-016-040-VIS	H-K9L optical glass	16	-40	1.5	3.11	-40.98	-20.65	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-040-VIS

GLH13-016-050-VIS	H-K9L optical glass	16	-50	1.5	2.77	-51.66	-25.84	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-050-VIS

GLH13-016-063-VIS	H-K9L optical glass	16	-63	1.5	2.5	-63.98	-32.5	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-063-VIS

GLH13-016-080-VIS	H-K9L optical glass	16	-80	1.5	2.28	-80.97	-41.3	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-080-VIS

GLH13-016-100-VIS	H-K9L optical glass	16	-100	1.5	2.12	-101	-51.64	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-100-VIS

GLH13-016-160-VIS	H-K9L optical glass	16	-160	1.5	1.89	-161	-82.62	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-016-160-VIS

GLH13-020-050-VIS	H-K9L optical glass	20	-50	2.1	4.11	-51.38	-25.84	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$26	Quantity for GLH13-020-050-VIS

GLH13-025-025-VIS	H-K9L optical glass	25	-25.4	2	11.16	-26.71	-13.11	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$30	Quantity for GLH13-025-025-VIS

GLH13-025-032-VIS	H-K9L optical glass	25	-31.5	2	7.86	-32.83	-16.27	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$30	Quantity for GLH13-025-032-VIS

GLH13-025-040-VIS	H-K9L optical glass	25	-40	2	6.21	-40.98	-20.65	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-040-VIS

GLH13-025-050-VIS	H-K9L optical glass	25	-50	2	5.22	-51.36	-25.84	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-050-VIS

GLH13-025-063-VIS	H-K9L optical glass	25	-63	2	4.5	-64.26	-32.5	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-063-VIS

GLH13-025-080-VIS	H-K9L optical glass	25	-80	2	3.94	-81.3	-41.30	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-080-VIS

GLH13-025-100-VIS	H-K9L optical glass	25	-100	2	3.54	-101.3	-51.64	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-100-VIS

GLH13-025-125-VIS	H-K9L optical glass	25	-125	2	3.22	-126.3	-64.55	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-125-VIS

GLH13-025-160-VIS	H-K9L optical glass	25	-160	2	2.95	-161.3	-82.62	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-160-VIS

GLH13-025-200-VIS	H-K9L optical glass	25	-200	2	2.75	-201.3	-103.28	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-200-VIS

GLH13-025-250-VIS	H-K9L optical glass	25	-250	2	2.61	-251.4	-129.13	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-250-VIS

GLH13-025-400-VIS	H-K9L optical glass	25	-400	2	2.38	-400.5	-206.1	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-400-VIS

GLH13-025-500-VIS	H-K9L optical glass	25	-500	2	2.3	-503.3	-258.18	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$29	Quantity for GLH13-025-500-VIS

GLH13-025-1000-VIS	H-K9L optical glass	25	-1000	2	2.15	-1001	-516.5	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$30	Quantity for GLH13-025-1000-VIS

GLH13-034-170-VIS	H-K9L optical glass	34	-170	3.25	4.91	-172.42	-88	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-034-170-VIS

GLH13-040-050-VIS	H-K9L optical glass	40	-50	2.5	11.98	-51.69	-25.84	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$73	Quantity for GLH13-040-050-VIS

GLH13-040-063-VIS	H-K9L optical glass	40	-63	2.5	9.38	-64.58	-32.5	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$73	Quantity for GLH13-040-063-VIS

GLH13-040-080-VIS	H-K9L optical glass	40	-80	2.5	7.57	-81.63	-41.3	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-080-VIS

GLH13-040-100-VIS	H-K9L optical glass	40	-100	2.5	6.53	-101.7	-51.64	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-100-VIS

GLH13-040-125-VIS	H-K9L optical glass	40	-125	2.5	5.68	-126.7	-64.55	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-125-VIS

GLH13-040-160-VIS	H-K9L optical glass	40	-160	2.5	4.96	-161.7	-82.62	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-160-VIS

GLH13-040-200-VIS	H-K9L optical glass	40	-200	2.5	4.46	-201.6	-103.28	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-200-VIS

GLH13-040-250-VIS	H-K9L optical glass	40	-250	2.5	4.06	-251.9	-129.24	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-250-VIS

GLH13-040-500-VIS	H-K9L optical glass	40	-500	2.5	3.28	-501.6	-258.18	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-040-500-VIS

GLH13-045-150-VIS	H-K9L optical glass	45	-150	3	6.32	-151.98	-77.52	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$39	Quantity for GLH13-045-150-VIS

GLH13-050-063-VIS	H-K9L optical glass	50	-63	3	14.73	-64.92	-32.5	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$76	Quantity for GLH13-050-063-VIS

GLH13-050-080-VIS	H-K9L optical glass	50	-80	3	11.43	-81.96	-41.3	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$69	Quantity for GLH13-050-080-VIS

GLH13-050-100-VIS	H-K9L optical glass	50	-100	3	9.45	-102	-51.64	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$47	Quantity for GLH13-050-100-VIS

GLH13-050-160-VIS	H-K9L optical glass	50	-160	3	6.87	-162	-82.62	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$47	Quantity for GLH13-050-160-VIS

GLH13-050-250-VIS	H-K9L optical glass	50	-250	3	5.11	-252.3	-129.24	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$47	Quantity for GLH13-050-250-VIS

GLH13-050-500-VIS	H-K9L optical glass	50	-500	3	4.21	-502	-258.18	VIS antireflection coating; average reflectance <0.5% over 400–700nm	$47	Quantity for GLH13-050-500-VIS

GLH13-004-005-NIR	H-K9L optical glass	4	-5	1.5	2.45	-5.99	-2.58	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$40	Quantity for GLH13-004-005-NIR

GLH13-004-006-NIR	H-K9L optical glass	4	-6.3	1.5	2.19	-7.29	-3.25	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$37	Quantity for GLH13-004-006-NIR

GLH13-004-010-NIR	H-K9L optical glass	4	-10	1.5	1.9	-10.99	-5.17	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$37	Quantity for GLH13-004-010-NIR

GLH13-006-008-NIR	H-K9L optical glass	6.3	-8	1.5	2.96	-8.99	-4.13	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-008-NIR

GLH13-006-010-NIR	H-K9L optical glass	6.3	-10	1.5	2.57	-11	-5.17	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-010-NIR

GLH13-006-012-NIR	H-K9L optical glass	6.3	-12.5	1.5	2.32	-13.5	-6.46	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-012-NIR

GLH13-006-016-NIR	H-K9L optical glass	6.3	-16	1.5	2.12	-16.99	-8.26	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-016-NIR

GLH13-006-020-NIR	H-K9L optical glass	6.3	-20	1.5	1.99	-20.99	-10.33	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-020-NIR

GLH13-006-025-NIR	H-K9L optical glass	6.3	-25	1.5	1.89	-25.99	-12.91	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-025-NIR

GLH13-006-040-NIR	H-K9L optical glass	6.3	-40	1.5	1.71	-40.98	-20.65	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-006-040-NIR

GLH13-010-012-NIR	H-K9L optical glass	10	-12.5	1.5	3.87	-13.5	-6.46	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-012-NIR

GLH13-010-016-NIR	H-K9L optical glass	10	-16	1.5	3.19	-16.99	-8.26	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-016-NIR

GLH13-010-020-NIR	H-K9L optical glass	10	-20	1.5	2.79	-20.99	-10.33	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-020-NIR

GLH13-010-025-NIR	H-K9L optical glass	10	-25	1.5	2.51	-25.99	-12.91	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-025-NIR

GLH13-010-032-NIR	H-K9L optical glass	10	-31.5	1.5	2.29	-32.5	-16.27	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-032-NIR

GLH13-010-040-NIR	H-K9L optical glass	10	-40	1.5	2.11	-40.98	-20.65	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-040-NIR

GLH13-010-050-NIR	H-K9L optical glass	10	-50	1.5	1.99	-51.03	-25.84	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-050-NIR

GLH13-010-063-NIR	H-K9L optical glass	10	-63	1.5	1.89	-63.93	-32.5	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-063-NIR

GLH13-010-100-NIR	H-K9L optical glass	10	-100	1.5	1.74	-101	-51.64	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$28	Quantity for GLH13-010-100-NIR

GLH13-016-020-NIR	H-K9L optical glass	16	-20	1.5	5.29	-20.99	-10.33	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$30	Quantity for GLH13-016-020-NIR

GLH13-016-025-NIR	H-K9L optical glass	16	-25	1.5	4.22	-25.99	-12.91	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-025-NIR

GLH13-016-032-NIR	H-K9L optical glass	16	-31.5	1.5	3.6	-32.5	-16.27	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-032-NIR

GLH13-016-040-NIR	H-K9L optical glass	16	-40	1.5	3.11	-40.98	-20.65	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-040-NIR

GLH13-016-050-NIR	H-K9L optical glass	16	-50	1.5	2.77	-51.66	-25.84	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-050-NIR

GLH13-016-063-NIR	H-K9L optical glass	16	-63	1.5	2.5	-63.98	-32.5	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-063-NIR

GLH13-016-080-NIR	H-K9L optical glass	16	-80	1.5	2.28	-80.97	-41.3	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-080-NIR

GLH13-016-100-NIR	H-K9L optical glass	16	-100	1.5	2.12	-101	-51.64	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-100-NIR

GLH13-016-160-NIR	H-K9L optical glass	16	-160	1.5	1.89	-161	-82.62	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-016-160-NIR

GLH13-020-050-NIR	H-K9L optical glass	20	-50	2.1	4.11	-51.38	-25.84	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$29	Quantity for GLH13-020-050-NIR

GLH13-025-025-NIR	H-K9L optical glass	25	-25.4	2	11.16	-26.71	-13.11	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$34	Quantity for GLH13-025-025-NIR

GLH13-025-032-NIR	H-K9L optical glass	25	-31.5	2	7.86	-32.83	-16.27	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$34	Quantity for GLH13-025-032-NIR

GLH13-025-040-NIR	H-K9L optical glass	25	-40	2	6.21	-40.98	-20.65	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-040-NIR

GLH13-025-050-NIR	H-K9L optical glass	25	-50	2	5.22	-51.36	-25.84	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-050-NIR

GLH13-025-063-NIR	H-K9L optical glass	25	-63	2	4.5	-64.26	-32.5	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-063-NIR

GLH13-025-080-NIR	H-K9L optical glass	25	-80	2	3.94	-81.3	-41.30	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-080-NIR

GLH13-025-100-NIR	H-K9L optical glass	25	-100	2	3.54	-101.3	-51.64	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-100-NIR

GLH13-025-125-NIR	H-K9L optical glass	25	-125	2	3.22	-126.3	-64.55	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-125-NIR

GLH13-025-160-NIR	H-K9L optical glass	25	-160	2	2.95	-161.3	-82.62	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-160-NIR

GLH13-025-200-NIR	H-K9L optical glass	25	-200	2	2.75	-201.3	-103.28	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-200-NIR

GLH13-025-250-NIR	H-K9L optical glass	25	-250	2	2.61	-251.4	-129.13	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-250-NIR

GLH13-025-400-NIR	H-K9L optical glass	25	-400	2	2.38	-400.5	-206.1	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-400-NIR

GLH13-025-500-NIR	H-K9L optical glass	25	-500	2	2.3	-503.3	-258.18	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$33	Quantity for GLH13-025-500-NIR

GLH13-025-1000-NIR	H-K9L optical glass	25	-1000	2	2.15	-1001	-516.5	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$34	Quantity for GLH13-025-1000-NIR

GLH13-034-170-NIR	H-K9L optical glass	34	-170	3.25	4.91	-172.42	-88	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-034-170-NIR

GLH13-040-050-NIR	H-K9L optical glass	40	-50	2.5	11.98	-51.69	-25.84	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$76	Quantity for GLH13-040-050-NIR

GLH13-040-063-NIR	H-K9L optical glass	40	-63	2.5	9.38	-64.58	-32.5	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$76	Quantity for GLH13-040-063-NIR

GLH13-040-080-NIR	H-K9L optical glass	40	-80	2.5	7.57	-81.63	-41.3	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-080-NIR

GLH13-040-100-NIR	H-K9L optical glass	40	-100	2.5	6.53	-101.7	-51.64	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-100-NIR

GLH13-040-125-NIR	H-K9L optical glass	40	-125	2.5	5.68	-126.7	-64.55	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-125-NIR

GLH13-040-160-NIR	H-K9L optical glass	40	-160	2.5	4.96	-161.7	-82.62	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-160-NIR

GLH13-040-200-NIR	H-K9L optical glass	40	-200	2.5	4.46	-201.6	-103.28	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-200-NIR

GLH13-040-250-NIR	H-K9L optical glass	40	-250	2.5	4.06	-251.9	-129.24	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-250-NIR

GLH13-040-500-NIR	H-K9L optical glass	40	-500	2.5	3.28	-501.6	-258.18	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-040-500-NIR

GLH13-045-150-NIR	H-K9L optical glass	45	-150	3	6.32	-151.98	-77.52	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$43	Quantity for GLH13-045-150-NIR

GLH13-050-063-NIR	H-K9L optical glass	50	-63	3	14.73	-64.92	-32.5	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$79	Quantity for GLH13-050-063-NIR

GLH13-050-080-NIR	H-K9L optical glass	50	-80	3	11.43	-81.96	-41.3	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$73	Quantity for GLH13-050-080-NIR

GLH13-050-100-NIR	H-K9L optical glass	50	-100	3	9.45	-102	-51.64	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$50	Quantity for GLH13-050-100-NIR

GLH13-050-160-NIR	H-K9L optical glass	50	-160	3	6.87	-162	-82.62	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$50	Quantity for GLH13-050-160-NIR

GLH13-050-250-NIR	H-K9L optical glass	50	-250	3	5.11	-252.3	-129.24	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$50	Quantity for GLH13-050-250-NIR

GLH13-050-500-NIR	H-K9L optical glass	50	-500	3	4.21	-502	-258.18	NIR antireflection coating; average reflectance <0.5% over 650–1050nm	$50	Quantity for GLH13-050-500-NIR

GLH13-004-005-SWIR	H-K9L optical glass	4	-5	1.5	2.45	-5.99	-2.58	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$40	Quantity for GLH13-004-005-SWIR

GLH13-004-006-SWIR	H-K9L optical glass	4	-6.3	1.5	2.19	-7.29	-3.25	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$37	Quantity for GLH13-004-006-SWIR

GLH13-004-010-SWIR	H-K9L optical glass	4	-10	1.5	1.9	-10.99	-5.17	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$37	Quantity for GLH13-004-010-SWIR

GLH13-006-008-SWIR	H-K9L optical glass	6.3	-8	1.5	2.96	-8.99	-4.13	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-008-SWIR

GLH13-006-010-SWIR	H-K9L optical glass	6.3	-10	1.5	2.57	-11	-5.17	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-010-SWIR

GLH13-006-012-SWIR	H-K9L optical glass	6.3	-12.5	1.5	2.32	-13.5	-6.46	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-012-SWIR

GLH13-006-016-SWIR	H-K9L optical glass	6.3	-16	1.5	2.12	-16.99	-8.26	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-016-SWIR

GLH13-006-020-SWIR	H-K9L optical glass	6.3	-20	1.5	1.99	-20.99	-10.33	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-020-SWIR

GLH13-006-025-SWIR	H-K9L optical glass	6.3	-25	1.5	1.89	-25.99	-12.91	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-025-SWIR

GLH13-006-040-SWIR	H-K9L optical glass	6.3	-40	1.5	1.71	-40.98	-20.65	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-006-040-SWIR

GLH13-010-012-SWIR	H-K9L optical glass	10	-12.5	1.5	3.87	-13.5	-6.46	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-012-SWIR

GLH13-010-016-SWIR	H-K9L optical glass	10	-16	1.5	3.19	-16.99	-8.26	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-016-SWIR

GLH13-010-020-SWIR	H-K9L optical glass	10	-20	1.5	2.79	-20.99	-10.33	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-020-SWIR

GLH13-010-025-SWIR	H-K9L optical glass	10	-25	1.5	2.51	-25.99	-12.91	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-025-SWIR

GLH13-010-032-SWIR	H-K9L optical glass	10	-31.5	1.5	2.29	-32.5	-16.27	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-032-SWIR

GLH13-010-040-SWIR	H-K9L optical glass	10	-40	1.5	2.11	-40.98	-20.65	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-040-SWIR

GLH13-010-050-SWIR	H-K9L optical glass	10	-50	1.5	1.99	-51.03	-25.84	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-050-SWIR

GLH13-010-063-SWIR	H-K9L optical glass	10	-63	1.5	1.89	-63.93	-32.5	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-063-SWIR

GLH13-010-100-SWIR	H-K9L optical glass	10	-100	1.5	1.74	-101	-51.64	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$28	Quantity for GLH13-010-100-SWIR

GLH13-016-020-SWIR	H-K9L optical glass	16	-20	1.5	5.29	-20.99	-10.33	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$30	Quantity for GLH13-016-020-SWIR

GLH13-016-025-SWIR	H-K9L optical glass	16	-25	1.5	4.22	-25.99	-12.91	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-025-SWIR

GLH13-016-032-SWIR	H-K9L optical glass	16	-31.5	1.5	3.6	-32.5	-16.27	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-032-SWIR

GLH13-016-040-SWIR	H-K9L optical glass	16	-40	1.5	3.11	-40.98	-20.65	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-040-SWIR

GLH13-016-050-SWIR	H-K9L optical glass	16	-50	1.5	2.77	-51.66	-25.84	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-050-SWIR

GLH13-016-063-SWIR	H-K9L optical glass	16	-63	1.5	2.5	-63.98	-32.5	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-063-SWIR

GLH13-016-080-SWIR	H-K9L optical glass	16	-80	1.5	2.28	-80.97	-41.3	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-080-SWIR

GLH13-016-100-SWIR	H-K9L optical glass	16	-100	1.5	2.12	-101	-51.64	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-100-SWIR

GLH13-016-160-SWIR	H-K9L optical glass	16	-160	1.5	1.89	-161	-82.62	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-016-160-SWIR

GLH13-020-050-SWIR	H-K9L optical glass	20	-50	2.1	4.11	-51.38	-25.84	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$29	Quantity for GLH13-020-050-SWIR

GLH13-025-025-SWIR	H-K9L optical glass	25	-25.4	2	11.16	-26.71	-13.11	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$34	Quantity for GLH13-025-025-SWIR

GLH13-025-032-SWIR	H-K9L optical glass	25	-31.5	2	7.86	-32.83	-16.27	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$34	Quantity for GLH13-025-032-SWIR

GLH13-025-040-SWIR	H-K9L optical glass	25	-40	2	6.21	-40.98	-20.65	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-040-SWIR

GLH13-025-050-SWIR	H-K9L optical glass	25	-50	2	5.22	-51.36	-25.84	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-050-SWIR

GLH13-025-063-SWIR	H-K9L optical glass	25	-63	2	4.5	-64.26	-32.5	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-063-SWIR

GLH13-025-080-SWIR	H-K9L optical glass	25	-80	2	3.94	-81.3	-41.30	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-080-SWIR

GLH13-025-100-SWIR	H-K9L optical glass	25	-100	2	3.54	-101.3	-51.64	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-100-SWIR

GLH13-025-125-SWIR	H-K9L optical glass	25	-125	2	3.22	-126.3	-64.55	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-125-SWIR

GLH13-025-160-SWIR	H-K9L optical glass	25	-160	2	2.95	-161.3	-82.62	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-160-SWIR

GLH13-025-200-SWIR	H-K9L optical glass	25	-200	2	2.75	-201.3	-103.28	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-200-SWIR

GLH13-025-250-SWIR	H-K9L optical glass	25	-250	2	2.61	-251.4	-129.13	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-250-SWIR

GLH13-025-400-SWIR	H-K9L optical glass	25	-400	2	2.38	-400.5	-206.1	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-400-SWIR

GLH13-025-500-SWIR	H-K9L optical glass	25	-500	2	2.3	-503.3	-258.18	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$33	Quantity for GLH13-025-500-SWIR

GLH13-025-1000-SWIR	H-K9L optical glass	25	-1000	2	2.15	-1001	-516.5	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$34	Quantity for GLH13-025-1000-SWIR

GLH13-034-170-SWIR	H-K9L optical glass	34	-170	3.25	4.91	-172.42	-88	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-034-170-SWIR

GLH13-040-050-SWIR	H-K9L optical glass	40	-50	2.5	11.98	-51.69	-25.84	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$76	Quantity for GLH13-040-050-SWIR

GLH13-040-063-SWIR	H-K9L optical glass	40	-63	2.5	9.38	-64.58	-32.5	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$76	Quantity for GLH13-040-063-SWIR

GLH13-040-080-SWIR	H-K9L optical glass	40	-80	2.5	7.57	-81.63	-41.3	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-080-SWIR

GLH13-040-100-SWIR	H-K9L optical glass	40	-100	2.5	6.53	-101.7	-51.64	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-100-SWIR

GLH13-040-125-SWIR	H-K9L optical glass	40	-125	2.5	5.68	-126.7	-64.55	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-125-SWIR

GLH13-040-160-SWIR	H-K9L optical glass	40	-160	2.5	4.96	-161.7	-82.62	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-160-SWIR

GLH13-040-200-SWIR	H-K9L optical glass	40	-200	2.5	4.46	-201.6	-103.28	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-200-SWIR

GLH13-040-250-SWIR	H-K9L optical glass	40	-250	2.5	4.06	-251.9	-129.24	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-250-SWIR

GLH13-040-500-SWIR	H-K9L optical glass	40	-500	2.5	3.28	-501.6	-258.18	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-040-500-SWIR

GLH13-045-150-SWIR	H-K9L optical glass	45	-150	3	6.32	-151.98	-77.52	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$43	Quantity for GLH13-045-150-SWIR

GLH13-050-063-SWIR	H-K9L optical glass	50	-63	3	14.73	-64.92	-32.5	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$79	Quantity for GLH13-050-063-SWIR

GLH13-050-080-SWIR	H-K9L optical glass	50	-80	3	11.43	-81.96	-41.3	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$73	Quantity for GLH13-050-080-SWIR

GLH13-050-100-SWIR	H-K9L optical glass	50	-100	3	9.45	-102	-51.64	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$50	Quantity for GLH13-050-100-SWIR

GLH13-050-160-SWIR	H-K9L optical glass	50	-160	3	6.87	-162	-82.62	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$50	Quantity for GLH13-050-160-SWIR

GLH13-050-250-SWIR	H-K9L optical glass	50	-250	3	5.11	-252.3	-129.24	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$50	Quantity for GLH13-050-250-SWIR

GLH13-050-500-SWIR	H-K9L optical glass	50	-500	3	4.21	-502	-258.18	SWIR antireflection coating; average reflectance <0.5% over 1000–1650nm	$50	Quantity for GLH13-050-500-SWIR

Curves

Typical transmission or coating performance. Refer to the model’s coating range.

Technical notes

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.

Quote list

Choose models and quantities above. Your list is saved in this browser and can include models from other product categories.
