UV Fused Silica Plano-Concave Lenses — GLH23 Series
From $45 USD
Request a quoteProduct description
UV fused silica plano-concave lenses have one flat and one concave surface and a negative focal length. They turn collimated incident light into a diverging beam with a virtual focus and are commonly used in Galilean beam expanders. Orient the concave surface toward the incident beam, with the plane surface toward the focal plane.
Plano-concave lenses provide negative spherical aberration and can compensate aberrations from other lenses in an optical system. For source-recommended conjugate magnitudes below 0.2 or above 5, plano-concave lenses are generally selected; double-concave lenses are often used between these values.
Available coatings: Uncoated; UV antireflection coating; average reflectance <0.5% over 250–450nm; A-band antireflection coating; average reflectance <0.5% over 350–700nm; B-band antireflection coating; average reflectance <0.5% over 650-1100nm; C-band antireflection coating; average reflectance <0.5% over 1050-1700nm.
Schematic
Dimensions in mm unless otherwise stated.

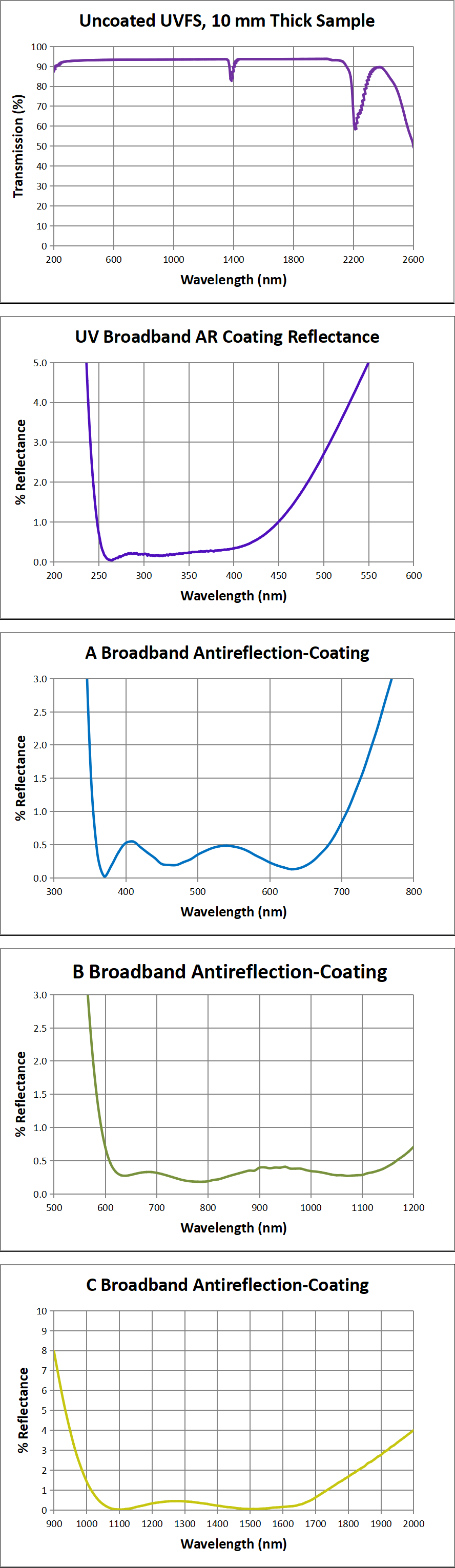

Antireflection coatings reduce surface reflections and ghost images. An uncoated glass surface reflects approximately 4% of incident light; coatings on both surfaces improve transmission in multi-element systems.
UV fused silica provides transmission from 185 nm to 2.1 μm, with low thermal expansion, high homogeneity, chemical resistance and low fluorescence.
General specifications
General specifications apply at series level; refer to each model for its dimensions, material and coating.
- Material
- UV fused silica
- Surface irregularity
- λ/4 @632.8nm
- Design wavelength
- 587.6nm
- Surface quality
- 40-20
- Diameter tolerance
- +0.0 / -0.1 mm
- Center thickness tolerance
- ±0.2 mm
- Focal length tolerance
- ±2%
- Centration error
- ≤3 arcmin
- Refractive index
- 1.46
- Abbe number
- v = 67.82
- Clear aperture
- >90% of diameter
- Edge bevel
- 0.2mm×45°
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
165 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH23-004-006 | UV fused silica | 4 | -6.3 | 1.5 | 2.3 | -7.33 | -2.89 | Uncoated | $49 | ||
| GLH23-004-010 | UV fused silica | 4 | -10 | 1.55 | 2 | -11.06 | -4.58 | Uncoated | $49 | ||
| GLH23-004-015 | UV fused silica | 4 | -15 | 1.71 | 2 | -16.17 | -6.88 | Uncoated | $49 | ||
| GLH23-004-020 | UV fused silica | 4 | -20 | 1.78 | 2 | -21.22 | -9.17 | Uncoated | $45 | ||
| GLH23-006-010 | UV fused silica | 6.3 | -10 | 1 | 2.25 | -10.69 | -4.58 | Uncoated | $49 | ||
| GLH23-006-012 | UV fused silica | 6.3 | -12.5 | 1.5 | 2.44 | -13.53 | -5.73 | Uncoated | $45 | ||
| GLH23-006-015 | UV fused silica | 6.3 | -15 | 1.5 | 2.26 | -16.03 | -6.88 | Uncoated | $49 | ||
| GLH23-006-020 | UV fused silica | 6.3 | -20 | 1.5 | 2.06 | -21.03 | -9.17 | Uncoated | $45 | ||
| GLH23-006-025 | UV fused silica | 6.3 | -25 | 1.5 | 1.94 | -26.03 | -11.46 | Uncoated | $45 | ||
| GLH23-006-040 | UV fused silica | 6.3 | -40 | 2 | 2.27 | -41.37 | -18.34 | Uncoated | $45 | ||
| GLH23-006-050 | UV fused silica | 6.3 | -50 | 2 | 2.22 | -51.37 | -22.92 | Uncoated | $45 | ||
| GLH23-010-012 | UV fused silica | 10 | -12.5 | 1.5 | 4.43 | -13.53 | -5.73 | Uncoated | $49 | ||
| GLH23-010-015 | UV fused silica | 10 | -15 | 1.5 | 3.65 | -16.03 | -6.88 | Uncoated | $45 | ||
| GLH23-010-020 | UV fused silica | 10 | -20 | 1.5 | 2.98 | -21.03 | -9.17 | Uncoated | $45 | ||
| GLH23-010-025 | UV fused silica | 10 | -25 | 1.5 | 2.64 | -26.03 | -11.46 | Uncoated | $45 | ||
| GLH23-010-040 | UV fused silica | 10 | -40 | 1.5 | 2.19 | -41.03 | -18.34 | Uncoated | $45 | ||
| GLH23-010-050 | UV fused silica | 10 | -50 | 1.5 | 2.05 | -51.03 | -22.92 | Uncoated | $45 | ||
| GLH23-012-020 | UV fused silica | 12.7 | -20 | 1.5 | 4.05 | -21.03 | -9.17 | Uncoated | $45 | ||
| GLH23-012-025 | UV fused silica | 12.7 | -25 | 1.5 | 3.42 | -26.03 | -11.46 | Uncoated | $45 | ||
| GLH23-012-030 | UV fused silica | 12.7 | -30 | 1.5 | 3.05 | -31.03 | -13.75 | Uncoated | $45 | ||
| GLH23-012-040 | UV fused silica | 12.7 | -40 | 1.5 | 2.63 | -41.03 | -18.34 | Uncoated | $45 | ||
| GLH23-012-050 | UV fused silica | 12.7 | -50 | 1.5 | 2.4 | -51.03 | -22.92 | Uncoated | $45 | ||
| GLH23-012-100 | UV fused silica | 12.7 | -100 | 1.7 | 2.14 | -101.03 | -45.85 | Uncoated | $45 | ||
| GLH23-025-035 | UV fused silica | 25.4 | -35 | 2 | 8.24 | -36.37 | -16.05 | Uncoated | $62 | ||
| GLH23-025-040 | UV fused silica | 25.4 | -40 | 1.5 | 6.61 | -41.03 | -18.34 | Uncoated | $58 | ||
| GLH23-025-050 | UV fused silica | 25.4 | -50 | 2 | 5.84 | -51.37 | -22.92 | Uncoated | $58 | ||
| GLH23-025-075 | UV fused silica | 25.4 | -75 | 2 | 4.43 | -76.37 | -34.39 | Uncoated | $58 | ||
| GLH23-025-100 | UV fused silica | 25.4 | -100 | 2 | 3.79 | -101.37 | -45.85 | Uncoated | $58 | ||
| GLH23-025-150 | UV fused silica | 25.4 | -150 | 2 | 3.18 | -151.37 | -68.77 | Uncoated | $58 | ||
| GLH23-025-175 | UV fused silica | 25.4 | -175 | 2 | 3.01 | -176.37 | -80.23 | Uncoated | $58 | ||
| GLH23-025-200 | UV fused silica | 25.4 | -200 | 2 | 2.88 | -201.38 | -91.7 | Uncoated | $58 | ||
| GLH23-025-250 | UV fused silica | 25.4 | -250 | 2 | 2.77 | -251.37 | -114.62 | Uncoated | $58 | ||
| GLH23-025-400 | UV fused silica | 25.4 | -400 | 2 | 2.44 | -401.37 | -183.39 | Uncoated | $58 | ||
| GLH23-004-006-UV | UV fused silica | 4 | -6.3 | 1.5 | 2.3 | -7.33 | -2.89 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH23-004-010-UV | UV fused silica | 4 | -10 | 1.55 | 2 | -11.06 | -4.58 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH23-004-015-UV | UV fused silica | 4 | -15 | 1.71 | 2 | -16.17 | -6.88 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH23-004-020-UV | UV fused silica | 4 | -20 | 1.78 | 2 | -21.22 | -9.17 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-006-010-UV | UV fused silica | 6.3 | -10 | 1 | 2.25 | -10.69 | -4.58 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH23-006-012-UV | UV fused silica | 6.3 | -12.5 | 1.5 | 2.44 | -13.53 | -5.73 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-006-015-UV | UV fused silica | 6.3 | -15 | 1.5 | 2.26 | -16.03 | -6.88 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH23-006-020-UV | UV fused silica | 6.3 | -20 | 1.5 | 2.06 | -21.03 | -9.17 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-006-025-UV | UV fused silica | 6.3 | -25 | 1.5 | 1.94 | -26.03 | -11.46 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-006-040-UV | UV fused silica | 6.3 | -40 | 2 | 2.27 | -41.37 | -18.34 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-006-050-UV | UV fused silica | 6.3 | -50 | 2 | 2.22 | -51.37 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-010-012-UV | UV fused silica | 10 | -12.5 | 1.5 | 4.43 | -13.53 | -5.73 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $60 | ||
| GLH23-010-015-UV | UV fused silica | 10 | -15 | 1.5 | 3.65 | -16.03 | -6.88 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-010-020-UV | UV fused silica | 10 | -20 | 1.5 | 2.98 | -21.03 | -9.17 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-010-025-UV | UV fused silica | 10 | -25 | 1.5 | 2.64 | -26.03 | -11.46 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-010-040-UV | UV fused silica | 10 | -40 | 1.5 | 2.19 | -41.03 | -18.34 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-010-050-UV | UV fused silica | 10 | -50 | 1.5 | 2.05 | -51.03 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-012-020-UV | UV fused silica | 12.7 | -20 | 1.5 | 4.05 | -21.03 | -9.17 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-012-025-UV | UV fused silica | 12.7 | -25 | 1.5 | 3.42 | -26.03 | -11.46 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-012-030-UV | UV fused silica | 12.7 | -30 | 1.5 | 3.05 | -31.03 | -13.75 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-012-040-UV | UV fused silica | 12.7 | -40 | 1.5 | 2.63 | -41.03 | -18.34 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-012-050-UV | UV fused silica | 12.7 | -50 | 1.5 | 2.4 | -51.03 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-012-100-UV | UV fused silica | 12.7 | -100 | 1.7 | 2.14 | -101.03 | -45.85 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $56 | ||
| GLH23-025-035-UV | UV fused silica | 25.4 | -35 | 2 | 8.24 | -36.37 | -16.05 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $79 | ||
| GLH23-025-040-UV | UV fused silica | 25.4 | -40 | 1.5 | 6.61 | -41.03 | -18.34 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-050-UV | UV fused silica | 25.4 | -50 | 2 | 5.84 | -51.37 | -22.92 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-075-UV | UV fused silica | 25.4 | -75 | 2 | 4.43 | -76.37 | -34.39 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-100-UV | UV fused silica | 25.4 | -100 | 2 | 3.79 | -101.37 | -45.85 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-150-UV | UV fused silica | 25.4 | -150 | 2 | 3.18 | -151.37 | -68.77 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-175-UV | UV fused silica | 25.4 | -175 | 2 | 3.01 | -176.37 | -80.23 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-200-UV | UV fused silica | 25.4 | -200 | 2 | 2.88 | -201.38 | -91.7 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-250-UV | UV fused silica | 25.4 | -250 | 2 | 2.77 | -251.37 | -114.62 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-025-400-UV | UV fused silica | 25.4 | -400 | 2 | 2.44 | -401.37 | -183.39 | UV antireflection coating; average reflectance <0.5% over 250–450nm | $74 | ||
| GLH23-004-006-A | UV fused silica | 4 | -6.3 | 1.5 | 2.3 | -7.33 | -2.89 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH23-004-010-A | UV fused silica | 4 | -10 | 1.55 | 2 | -11.06 | -4.58 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH23-004-015-A | UV fused silica | 4 | -15 | 1.71 | 2 | -16.17 | -6.88 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH23-004-020-A | UV fused silica | 4 | -20 | 1.78 | 2 | -21.22 | -9.17 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-006-010-A | UV fused silica | 6.3 | -10 | 1 | 2.25 | -10.69 | -4.58 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH23-006-012-A | UV fused silica | 6.3 | -12.5 | 1.5 | 2.44 | -13.53 | -5.73 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-006-015-A | UV fused silica | 6.3 | -15 | 1.5 | 2.26 | -16.03 | -6.88 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH23-006-020-A | UV fused silica | 6.3 | -20 | 1.5 | 2.06 | -21.03 | -9.17 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-006-025-A | UV fused silica | 6.3 | -25 | 1.5 | 1.94 | -26.03 | -11.46 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-006-040-A | UV fused silica | 6.3 | -40 | 2 | 2.27 | -41.37 | -18.34 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-006-050-A | UV fused silica | 6.3 | -50 | 2 | 2.22 | -51.37 | -22.92 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-010-012-A | UV fused silica | 10 | -12.5 | 1.5 | 4.43 | -13.53 | -5.73 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $60 | ||
| GLH23-010-015-A | UV fused silica | 10 | -15 | 1.5 | 3.65 | -16.03 | -6.88 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-010-020-A | UV fused silica | 10 | -20 | 1.5 | 2.98 | -21.03 | -9.17 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-010-025-A | UV fused silica | 10 | -25 | 1.5 | 2.64 | -26.03 | -11.46 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-010-040-A | UV fused silica | 10 | -40 | 1.5 | 2.19 | -41.03 | -18.34 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-010-050-A | UV fused silica | 10 | -50 | 1.5 | 2.05 | -51.03 | -22.92 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-012-020-A | UV fused silica | 12.7 | -20 | 1.5 | 4.05 | -21.03 | -9.17 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-012-025-A | UV fused silica | 12.7 | -25 | 1.5 | 3.42 | -26.03 | -11.46 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-012-030-A | UV fused silica | 12.7 | -30 | 1.5 | 3.05 | -31.03 | -13.75 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-012-040-A | UV fused silica | 12.7 | -40 | 1.5 | 2.63 | -41.03 | -18.34 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-012-050-A | UV fused silica | 12.7 | -50 | 1.5 | 2.4 | -51.03 | -22.92 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-012-100-A | UV fused silica | 12.7 | -100 | 1.7 | 2.14 | -101.03 | -45.85 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $56 | ||
| GLH23-025-035-A | UV fused silica | 25.4 | -35 | 2 | 8.24 | -36.37 | -16.05 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $79 | ||
| GLH23-025-040-A | UV fused silica | 25.4 | -40 | 1.5 | 6.61 | -41.03 | -18.34 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-050-A | UV fused silica | 25.4 | -50 | 2 | 5.84 | -51.37 | -22.92 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-075-A | UV fused silica | 25.4 | -75 | 2 | 4.43 | -76.37 | -34.39 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-100-A | UV fused silica | 25.4 | -100 | 2 | 3.79 | -101.37 | -45.85 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-150-A | UV fused silica | 25.4 | -150 | 2 | 3.18 | -151.37 | -68.77 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-175-A | UV fused silica | 25.4 | -175 | 2 | 3.01 | -176.37 | -80.23 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-200-A | UV fused silica | 25.4 | -200 | 2 | 2.88 | -201.38 | -91.7 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-250-A | UV fused silica | 25.4 | -250 | 2 | 2.77 | -251.37 | -114.62 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-025-400-A | UV fused silica | 25.4 | -400 | 2 | 2.44 | -401.37 | -183.39 | A-band antireflection coating; average reflectance <0.5% over 350–700nm | $74 | ||
| GLH23-004-006-B | UV fused silica | 4 | -6.3 | 1.5 | 2.3 | -7.33 | -2.89 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH23-004-010-B | UV fused silica | 4 | -10 | 1.55 | 2 | -11.06 | -4.58 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH23-004-015-B | UV fused silica | 4 | -15 | 1.71 | 2 | -16.17 | -6.88 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH23-004-020-B | UV fused silica | 4 | -20 | 1.78 | 2 | -21.22 | -9.17 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-006-010-B | UV fused silica | 6.3 | -10.00 | 1 | 2.25 | -10.69 | -4.58 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH23-006-012-B | UV fused silica | 6.3 | -12.5 | 1.5 | 2.44 | -13.53 | -5.73 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-006-015-B | UV fused silica | 6.3 | -15 | 1.5 | 2.26 | -16.03 | -6.88 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH23-006-020-B | UV fused silica | 6.3 | -20 | 1.5 | 2.06 | -21.03 | -9.17 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-006-025-B | UV fused silica | 6.3 | -25 | 1.5 | 1.94 | -26.03 | -11.46 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-006-040-B | UV fused silica | 6.3 | -40 | 2 | 2.27 | -41.37 | -18.34 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-006-050-B | UV fused silica | 6.3 | -50 | 2 | 2.22 | -51.37 | -22.92 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-010-012-B | UV fused silica | 10 | -12.5 | 1.5 | 4.43 | -13.53 | -5.73 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $60 | ||
| GLH23-010-015-B | UV fused silica | 10 | -15 | 1.5 | 3.65 | -16.03 | -6.88 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-010-020-B | UV fused silica | 10 | -20 | 1.5 | 2.98 | -21.03 | -9.17 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-010-025-B | UV fused silica | 10 | -25 | 1.5 | 2.64 | -26.03 | -11.46 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-010-040-B | UV fused silica | 10 | -40 | 1.5 | 2.19 | -41.03 | -18.34 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-010-050-B | UV fused silica | 10 | -50 | 1.5 | 2.05 | -51.03 | -22.92 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-012-020-B | UV fused silica | 12.7 | -20 | 1.5 | 4.05 | -21.03 | -9.17 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-012-025-B | UV fused silica | 12.7 | -25 | 1.5 | 3.42 | -26.03 | -11.46 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-012-030-B | UV fused silica | 12.7 | -30 | 1.5 | 3.05 | -31.03 | -13.75 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-012-040-B | UV fused silica | 12.7 | -40 | 1.5 | 2.63 | -41.03 | -18.34 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-012-050-B | UV fused silica | 12.7 | -50 | 1.5 | 2.4 | -51.03 | -22.92 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-012-100-B | UV fused silica | 12.7 | -100 | 1.7 | 2.14 | -101.03 | -45.85 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $56 | ||
| GLH23-025-035-B | UV fused silica | 25.4 | -35 | 2 | 8.24 | -36.37 | -16.05 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $79 | ||
| GLH23-025-040-B | UV fused silica | 25.4 | -40 | 1.5 | 6.61 | -41.03 | -18.34 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-050-B | UV fused silica | 25.4 | -50 | 2 | 5.84 | -51.37 | -22.92 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-075-B | UV fused silica | 25.4 | -75 | 2 | 4.43 | -76.37 | -34.39 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-100-B | UV fused silica | 25.4 | -100 | 2 | 3.79 | -101.37 | -45.85 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-150-B | UV fused silica | 25.4 | -150 | 2 | 3.18 | -151.37 | -68.77 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-175-B | UV fused silica | 25.4 | -175 | 2 | 3.01 | -176.37 | -80.23 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-200-B | UV fused silica | 25.4 | -200 | 2 | 2.88 | -201.38 | -91.7 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-250-B | UV fused silica | 25.4 | -250 | 2 | 2.77 | -251.37 | -114.62 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-025-400-B | UV fused silica | 25.4 | -400 | 2 | 2.44 | -401.37 | -183.39 | B-band antireflection coating; average reflectance <0.5% over 650-1100nm | $74 | ||
| GLH23-004-006-C | UV fused silica | 4 | -6.3 | 1.5 | 2.3 | -7.33 | -2.89 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH23-004-010-C | UV fused silica | 4 | -10 | 1.55 | 2 | -11.06 | -4.58 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH23-004-015-C | UV fused silica | 4 | -15 | 1.71 | 2 | -16.17 | -6.88 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH23-004-020-C | UV fused silica | 4 | -20 | 1.78 | 2 | -21.22 | -9.17 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-006-010-C | UV fused silica | 6.3 | -10 | 1 | 2.25 | -10.69 | -4.58 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH23-006-012-C | UV fused silica | 6.3 | -12.5 | 1.5 | 2.44 | -13.53 | -5.73 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-006-015-C | UV fused silica | 6.3 | -15 | 1.5 | 2.26 | -16.03 | -6.88 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH23-006-020-C | UV fused silica | 6.3 | -20 | 1.5 | 2.06 | -21.03 | -9.17 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-006-025-C | UV fused silica | 6.3 | -25 | 1.5 | 1.94 | -26.03 | -11.46 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-006-040-C | UV fused silica | 6.3 | -40 | 2 | 2.27 | -41.37 | -18.34 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-006-050-C | UV fused silica | 6.3 | -50 | 2 | 2.22 | -51.37 | -22.92 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-010-012-C | UV fused silica | 10 | -12.5 | 1.5 | 4.43 | -13.53 | -5.73 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $60 | ||
| GLH23-010-015-C | UV fused silica | 10 | -15 | 1.5 | 3.65 | -16.03 | -6.88 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-010-020-C | UV fused silica | 10 | -20 | 1.5 | 2.98 | -21.03 | -9.17 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-010-025-C | UV fused silica | 10 | -25 | 1.5 | 2.64 | -26.03 | -11.46 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-010-040-C | UV fused silica | 10 | -40 | 1.5 | 2.19 | -41.03 | -18.34 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-010-050-C | UV fused silica | 10 | -50 | 1.5 | 2.05 | -51.03 | -22.92 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-012-020-C | UV fused silica | 12.7 | -20 | 1.5 | 4.05 | -21.03 | -9.17 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-012-025-C | UV fused silica | 12.7 | -25 | 1.5 | 3.42 | -26.03 | -11.46 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-012-030-C | UV fused silica | 12.7 | -30 | 1.5 | 3.05 | -31.03 | -13.75 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-012-040-C | UV fused silica | 12.7 | -40 | 1.5 | 2.63 | -41.03 | -18.34 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-012-050-C | UV fused silica | 12.7 | -50 | 1.5 | 2.40 | -51.03 | -22.92 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-012-100-C | UV fused silica | 12.7 | -100 | 1.7 | 2.14 | -101.03 | -45.85 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $56 | ||
| GLH23-025-035-C | UV fused silica | 25.4 | -35 | 2 | 8.24 | -36.37 | -16.05 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $79 | ||
| GLH23-025-040-C | UV fused silica | 25.4 | -40 | 1.5 | 6.61 | -41.03 | -18.34 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-050-C | UV fused silica | 25.4 | -50 | 2 | 5.84 | -51.37 | -22.92 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-075-C | UV fused silica | 25.4 | -75 | 2 | 4.43 | -76.37 | -34.39 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-100-C | UV fused silica | 25.4 | -100 | 2 | 3.79 | -101.37 | -45.85 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-150-C | UV fused silica | 25.4 | -150 | 2 | 3.18 | -151.37 | -68.77 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-175-C | UV fused silica | 25.4 | -175 | 2 | 3.01 | -176.37 | -80.23 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-200-C | UV fused silica | 25.4 | -200 | 2 | 2.88 | -201.38 | -91.7 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-250-C | UV fused silica | 25.4 | -250 | 2 | 2.77 | -251.37 | -114.62 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
| GLH23-025-400-C | UV fused silica | 25.4 | -400 | 2 | 2.44 | -401.37 | -183.39 | C-band antireflection coating; average reflectance <0.5% over 1050-1700nm | $74 | ||
No matching models. Change or clear your filters.
Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
Quote list
Choose models and quantities above. Your list is saved in this browser and can include models from other product categories.
