UV Fused Silica Plano-Convex Cylindrical Lenses — GLH25 Series

From $78 USD

Product description

GLH25 plano-convex cylindrical lenses are made from UV fused silica and have one plane surface and one convex cylindrical surface. Their positive focal length focuses parallel or diverging beams into a line or changes an image aspect ratio.

Cylindrical lenses act in one direction and are suitable for one-dimensional magnification. A pair can reshape an elliptical beam or collimate and circularize laser-diode output; a single lens can focus a diverging beam onto a detector array.

For line focusing of a collimated beam, orient the curved surface toward the incident light. For collimating a line source, orient the plane surface toward the source.

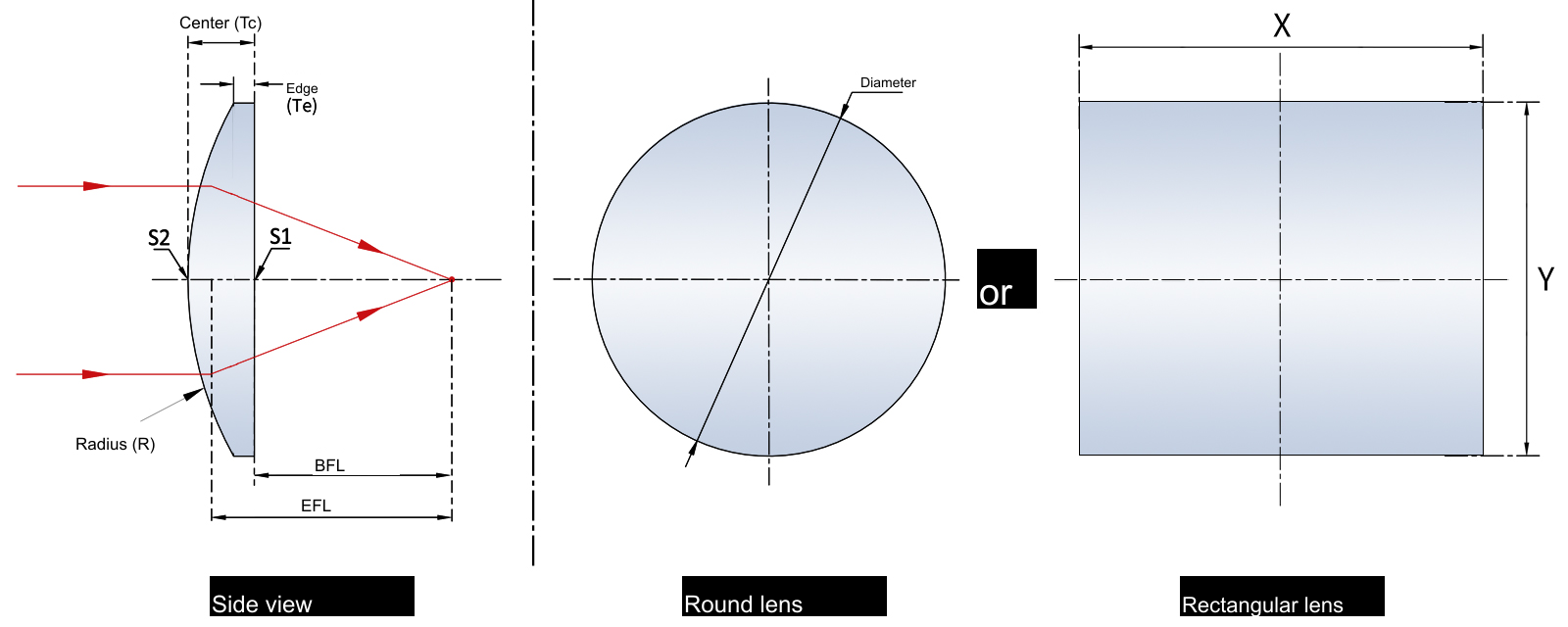

Plano-convex cylindrical lens geometry diagram for GLH25 series — Schematic
Dimensions in mm unless otherwise stated.

Available per-model coatings: SWIR antireflection coating; average reflectance <0.5% over 900–1700nm; Uncoated; UV antireflection coating; average reflectance <0.5% over 250–450nm.

The source states a UV fused silica transmission range of 185 nm to 2.1 μm, low thermal expansion, high homogeneity, chemical resistance and low fluorescence.

Antireflection coatings reduce surface reflections and ghost images. Select the coating band specified for the individual model.

Rectangular cylindrical lenses can use adjustable cylindrical lens mounts; round versions can use adjustable round lens mounts. Mounts are separate components.

General specifications

Dimensions retain the source order for rectangular sizes and the Ø designation for round sizes. A slash (/) means the source does not supply that value; it is not zero. General tolerances are reproduced at series level; verify the individual model drawing for precision design. The 6.3 mm edge thickness for GLH25-025-300-SWIR includes its housing. SWIR models appear in the current source model table, but the source series curve set contains only uncoated and UV charts.

Material: UV fused silica

Design wavelength: 587.6nm

Surface quality: 40-20

Clear aperture: >90% of diameter

Diameter tolerance: +0.0/-0.2mm

Center thickness tolerance: ±0.2mm

Focal length tolerance: ±2%

Centration error: 3′~5′

Edge bevel: 0.2mm×45°

RoHS: Compliant

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

70 models

CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.

										Quote
GLH25-025-300-SWIR	UV fused silica	Ø25.4	300	4	6.3(including housing)	296	137.5	SWIR antireflection coating; average reflectance <0.5% over 900–1700nm	$100	Quantity for GLH25-025-300-SWIR

GLH25-10x10-012	UV fused silica	10×10	12.7	4.84	2	9.38	5.82	Uncoated	$78	Quantity for GLH25-10x10-012

GLH25-10x10-020	UV fused silica	10×10	20	3.49	2	17.59	9.16	Uncoated	$78	Quantity for GLH25-10x10-020

GLH25-10x10-025	UV fused silica	10×10	25	3.15	2	22.81	11.45	Uncoated	$78	Quantity for GLH25-10x10-025

GLH25-10x10-040	UV fused silica	10×10	40	2.7	2	38.11	18.32	Uncoated	$78	Quantity for GLH25-10x10-040

GLH25-10x10-050	UV fused silica	10×10	50	2.55	2	48.24	22.92	Uncoated	$78	Quantity for GLH25-10x10-050

GLH25-10x10-075	UV fused silica	10×10	75	2.37	2	73.3	34.35	Uncoated	$78	Quantity for GLH25-10x10-075

GLH25-10x10-100	UV fused silica	10×10	100	2.27	2	98.44	45.85	Uncoated	$78	Quantity for GLH25-10x10-100

GLH25-10x10-150	UV fused silica	10×10	150	2.18	2	148.52	68.78	Uncoated	$78	Quantity for GLH25-10x10-150

GLH25-10x10-200	UV fused silica	10×10	200	2.14	2	198.53	91.7	Uncoated	$78	Quantity for GLH25-10x10-200

GLH25-10x10-250	UV fused silica	10×10	250	2.11	2	248.54	114.62	Uncoated	$78	Quantity for GLH25-10x10-250

GLH25-10x10-300	UV fused silica	10×10	300	2.09	2	298.57	137.55	Uncoated	$78	Quantity for GLH25-10x10-300

GLH25-012-025	UV fused silica	Ø12.5	25	3.85	2	22.36	11.46	Uncoated	$84	Quantity for GLH25-012-025

GLH25-012-050	UV fused silica	Ø12.5	50	2.87	2	48.05	22.93	Uncoated	$84	Quantity for GLH25-012-050

GLH25-012-075	UV fused silica	Ø12.5	75	2.57	2	73.23	34.38	Uncoated	$84	Quantity for GLH25-012-075

GLH25-012-100	UV fused silica	Ø12.5	100	2.43	2	98.34	45.85	Uncoated	$84	Quantity for GLH25-012-100

GLH25-20x10-012	UV fused silica	20×10	12.7	4.84	2	9.38	5.82	Uncoated	$88	Quantity for GLH25-20x10-012

GLH25-20x10-020	UV fused silica	20×10	20	3.49	2	17.59	9.16	Uncoated	$88	Quantity for GLH25-20x10-020

GLH25-20x10-025	UV fused silica	20×10	25	3.15	2	22.81	11.45	Uncoated	$88	Quantity for GLH25-20x10-025

GLH25-20x10-040	UV fused silica	20×10	40	2.7	2	38.11	18.32	Uncoated	$88	Quantity for GLH25-20x10-040

GLH25-20x10-050	UV fused silica	20×10	50	2.55	2	48.24	22.92	Uncoated	$88	Quantity for GLH25-20x10-050

GLH25-20x10-075	UV fused silica	20×10	75	2.37	2	73.3	34.35	Uncoated	$88	Quantity for GLH25-20x10-075

GLH25-20x10-100	UV fused silica	20×10	100	2.27	2	98.44	45.85	Uncoated	$88	Quantity for GLH25-20x10-100

GLH25-20x10-150	UV fused silica	20×10	150	2.18	2	148.52	68.78	Uncoated	$88	Quantity for GLH25-20x10-150

GLH25-20x10-200	UV fused silica	20×10	200	2.14	2	198.53	91.7	Uncoated	$88	Quantity for GLH25-20x10-200

GLH25-20x10-250	UV fused silica	20×10	250	2.11	2	248.54	114.62	Uncoated	$88	Quantity for GLH25-20x10-250

GLH25-20x10-300	UV fused silica	20×10	300	2.09	2	298.57	137.55	Uncoated	$88	Quantity for GLH25-20x10-300

GLH25-025-075	UV fused silica	Ø25.4	75	4.35	2	72.03	34.39	Uncoated	$100	Quantity for GLH25-025-075

GLH25-025-100	UV fused silica	Ø25.4	100	3.74	2	97.44	45.85	Uncoated	$100	Quantity for GLH25-025-100

GLH25-025-150	UV fused silica	Ø25.4	150	3.15	2	147.86	68.78	Uncoated	$100	Quantity for GLH25-025-150

GLH25-30x20-025	UV fused silica	30×20	25	7.87	2	19.58	11.45	Uncoated	$110	Quantity for GLH25-30x20-025

GLH25-30x20-050	UV fused silica	30×20	50	4.3	2	47.04	22.92	Uncoated	$110	Quantity for GLH25-30x20-050

GLH25-30x20-075	UV fused silica	30×20	75	3.49	2	72.53	34.35	Uncoated	$110	Quantity for GLH25-30x20-075

GLH25-30x20-100	UV fused silica	30×20	100	3.1	2	97.88	45.85	Uncoated	$110	Quantity for GLH25-30x20-100

GLH25-30x30-150	UV fused silica	30×30	150	5	3	/	76.2	Uncoated	$178	Quantity for GLH25-30x30-150

GLH25-50x30-300	UV fused silica	50×30	300	5	/	/	/	Uncoated	$223	Quantity for GLH25-50x30-300

GLH25-10x10-012-UV	UV fused silica	10×10	12.7	4.84	2	9.38	5.82	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-012-UV

GLH25-10x10-020-UV	UV fused silica	10×10	20	3.49	2	17.59	9.16	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-020-UV

GLH25-10x10-025-UV	UV fused silica	10×10	25	3.15	2	22.81	11.45	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-025-UV

GLH25-10x10-040-UV	UV fused silica	10×10	40	2.7	2	38.11	18.32	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-040-UV

GLH25-10x10-050-UV	UV fused silica	10×10	50	2.55	2	48.24	22.92	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-050-UV

GLH25-10x10-075-UV	UV fused silica	10×10	75	2.37	2	73.3	34.35	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-075-UV

GLH25-10x10-100-UV	UV fused silica	10×10	100	2.27	2	98.44	45.85	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-100-UV

GLH25-10x10-150-UV	UV fused silica	10×10	150	2.18	2	148.52	68.78	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-150-UV

GLH25-10x10-200-UV	UV fused silica	10×10	200	2.14	2	198.53	91.7	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-200-UV

GLH25-10x10-250-UV	UV fused silica	10×10	250	2.11	2	248.54	114.62	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-250-UV

GLH25-10x10-300-UV	UV fused silica	10×10	300	2.09	2	298.57	137.55	UV antireflection coating; average reflectance <0.5% over 250–450nm	$88	Quantity for GLH25-10x10-300-UV

GLH25-012-025-UV	UV fused silica	Ø12.5	25	3.85	2	22.36	11.46	UV antireflection coating; average reflectance <0.5% over 250–450nm	$95	Quantity for GLH25-012-025-UV

GLH25-012-050-UV	UV fused silica	Ø12.5	50	2.87	2	48.05	22.93	UV antireflection coating; average reflectance <0.5% over 250–450nm	$95	Quantity for GLH25-012-050-UV

GLH25-012-075-UV	UV fused silica	Ø12.5	75	2.57	2	73.23	34.38	UV antireflection coating; average reflectance <0.5% over 250–450nm	$95	Quantity for GLH25-012-075-UV

GLH25-012-100-UV	UV fused silica	Ø12.5	100	2.43	2	98.34	45.85	UV antireflection coating; average reflectance <0.5% over 250–450nm	$95	Quantity for GLH25-012-100-UV

GLH25-20x10-012-UV	UV fused silica	20×10	12.7	4.84	2	9.38	5.82	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-012-UV

GLH25-20x10-020-UV	UV fused silica	20×10	20	3.49	2	17.59	9.16	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-020-UV

GLH25-20x10-025-UV	UV fused silica	20×10	25	3.15	2	22.81	11.45	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-025-UV

GLH25-20x10-040-UV	UV fused silica	20×10	40	2.7	2	38.11	18.32	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-040-UV

GLH25-20x10-050-UV	UV fused silica	20×10	50	2.55	2	48.24	22.92	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-050-UV

GLH25-20x10-075-UV	UV fused silica	20×10	75	2.37	2	73.3	34.35	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-075-UV

GLH25-20x10-100-UV	UV fused silica	20×10	100	2.27	2	98.44	45.85	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-100-UV

GLH25-20x10-150-UV	UV fused silica	20×10	150	2.18	2	148.52	68.78	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-150-UV

GLH25-20x10-200-UV	UV fused silica	20×10	200	2.14	2	198.53	91.7	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-200-UV

GLH25-20x10-250-UV	UV fused silica	20×10	250	2.11	2	248.54	114.62	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-250-UV

GLH25-20x10-300-UV	UV fused silica	20×10	300	2.09	2	298.57	137.55	UV antireflection coating; average reflectance <0.5% over 250–450nm	$100	Quantity for GLH25-20x10-300-UV

GLH25-025-050-UV	UV fused silica	Ø25.4	50	5.71	2	46.1	22.93	UV antireflection coating; average reflectance <0.5% over 250–450nm	$118	Quantity for GLH25-025-050-UV

GLH25-025-075-UV	UV fused silica	Ø25.4	75	4.35	2	72.03	34.39	UV antireflection coating; average reflectance <0.5% over 250–450nm	$118	Quantity for GLH25-025-075-UV

GLH25-025-100-UV	UV fused silica	Ø25.4	100	3.74	2	97.44	45.85	UV antireflection coating; average reflectance <0.5% over 250–450nm	$118	Quantity for GLH25-025-100-UV

GLH25-025-150-UV	UV fused silica	Ø25.4	150	3.15	2	147.86	68.78	UV antireflection coating; average reflectance <0.5% over 250–450nm	$118	Quantity for GLH25-025-150-UV

GLH25-30x20-025-UV	UV fused silica	30×20	25	7.87	2	19.58	11.45	UV antireflection coating; average reflectance <0.5% over 250–450nm	$128	Quantity for GLH25-30x20-025-UV

GLH25-30x20-050-UV	UV fused silica	30×20	50	4.3	2	47.04	22.92	UV antireflection coating; average reflectance <0.5% over 250–450nm	$128	Quantity for GLH25-30x20-050-UV

GLH25-30x20-075-UV	UV fused silica	30×20	75	3.49	2	72.53	34.35	UV antireflection coating; average reflectance <0.5% over 250–450nm	$128	Quantity for GLH25-30x20-075-UV

GLH25-30x20-100-UV	UV fused silica	30×20	100	3.1	2	97.88	45.85	UV antireflection coating; average reflectance <0.5% over 250–450nm	$128	Quantity for GLH25-30x20-100-UV

Curves

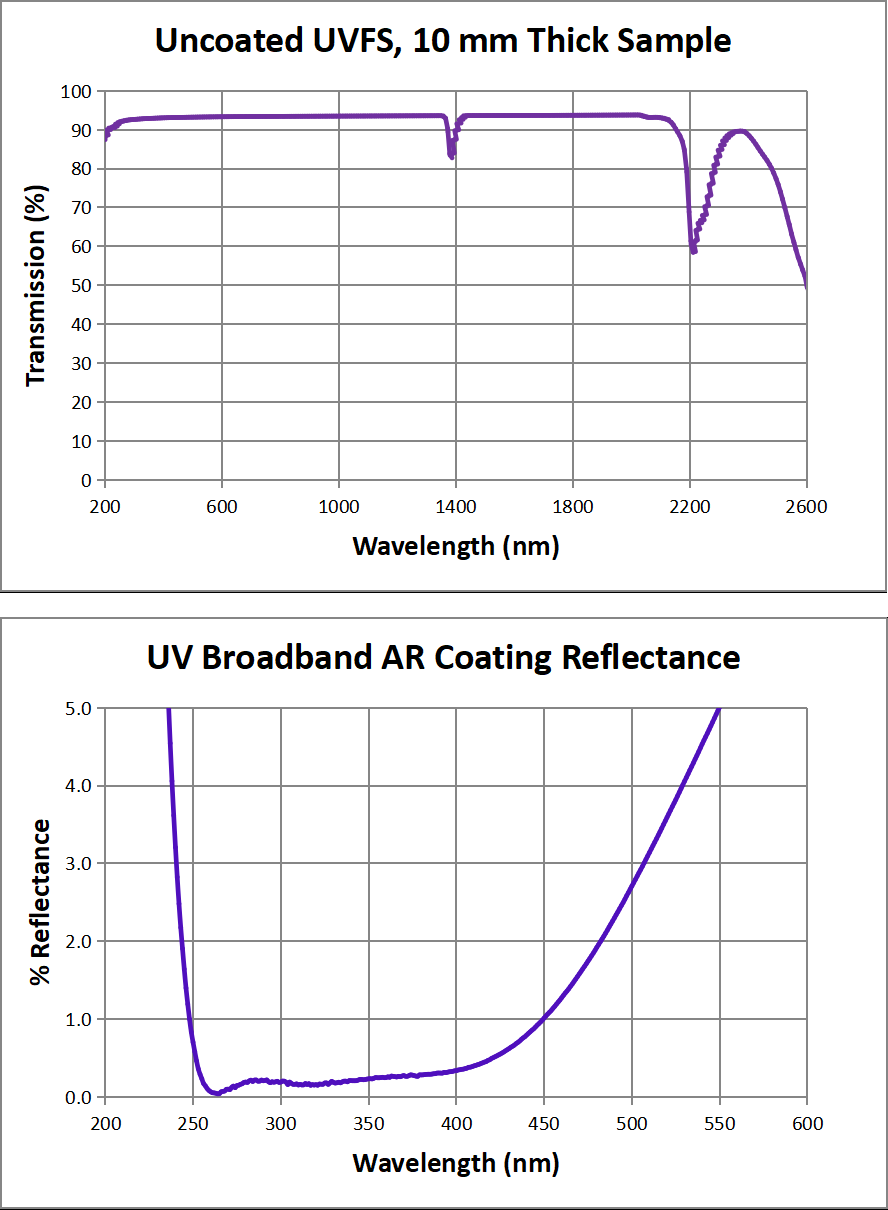

Typical transmission or coating performance. Refer to the model’s coating range.

Technical notes

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.

Quote list

Choose models and quantities above. Your list is saved in this browser and can include models from other product categories.
