Calcium Fluoride Plano-Convex Cylindrical Lenses — GLH55 Series
From $258 USD
Request a quoteProduct description
GLH55 plano-convex cylindrical lenses are made from calcium fluoride (CaF₂) and have one plane surface and one convex cylindrical surface. Their positive focal length focuses parallel or diverging beams into a line or changes an image aspect ratio.
Cylindrical lenses act in one direction and are suitable for one-dimensional magnification. A pair can reshape an elliptical beam or collimate and circularize laser-diode output; a single lens can focus a diverging beam onto a detector array.
For line focusing of a collimated beam, orient the curved surface toward the incident light. For collimating a line source, orient the plane surface toward the source.

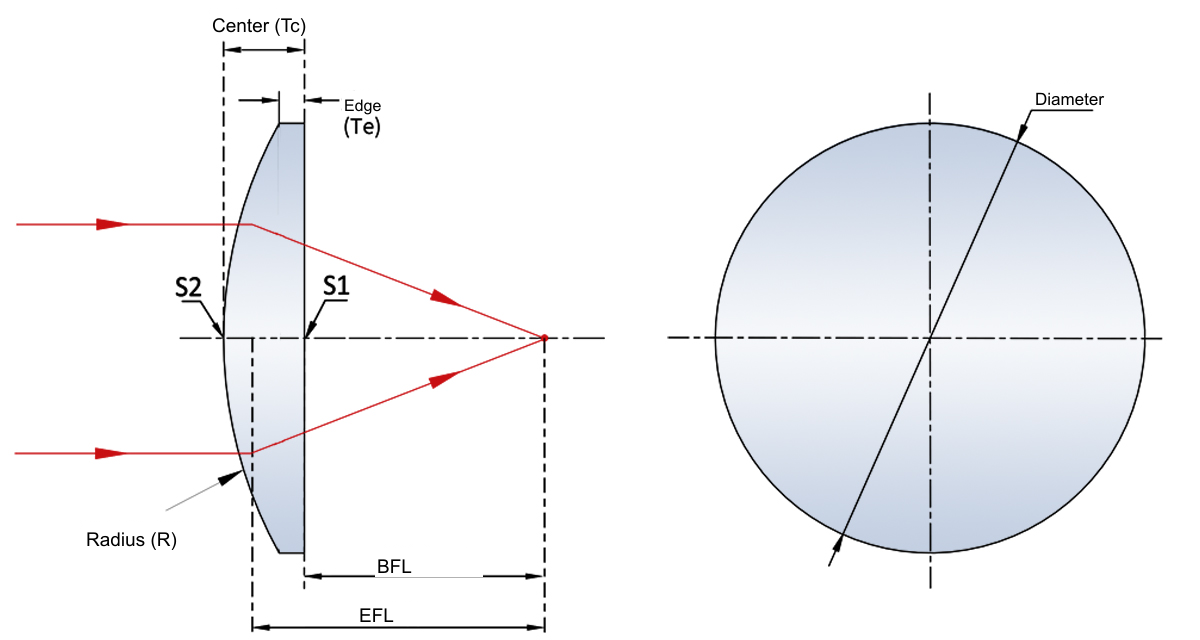

Schematic
Dimensions in mm unless otherwise stated.
Available per-model coatings: Uncoated; IR1 antireflection coating; average reflectance <1.5% over 3–5μm.
Calcium fluoride has a source-stated transmission range of 180 nm to 8.0 μm, low fluorescence and high homogeneity. Its soft surface requires careful handling to avoid scratches.
Antireflection coatings reduce surface reflections and ghost images. Select the coating band specified for the individual model.
Rectangular cylindrical lenses can use adjustable cylindrical lens mounts; round versions can use adjustable round lens mounts. Mounts are separate components.
General specifications
Dimensions retain the source order for rectangular sizes and the Ø designation for round sizes. A slash (/) means the source does not supply that value; it is not zero. General tolerances are reproduced at series level; verify the individual model drawing for precision design.
- Material
- Calcium fluoride (CaF₂) single crystal
- Design wavelength
- 4μm
- Surface quality
- 60-40
- Clear aperture
- ＞90%
- Diameter tolerance
- +0.0/-0.2mm
- Center thickness tolerance
- ±0.2mm
- Effective focal length tolerance
- ±2%
- Centration error
- 3′~5′
- Edge bevel
- 0.2mm×45°
- RoHS
- Compliant
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
14 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH55-012-020 | Calcium fluoride (CaF₂) single crystal | Ø12.7 | 20 | 5 | 7.4 | 16.4 | 8.19 | Uncoated | $258 | ||
| GLH55-012-050 | Calcium fluoride (CaF₂) single crystal | Ø12.7 | 50 | 3 | 5 | 47.9 | 20.48 | Uncoated | $258 | ||
| GLH55-012-080 | Calcium fluoride (CaF₂) single crystal | Ø12.7 | 80 | 2.5 | 5 | 78.2 | 32.77 | Uncoated | $258 | ||
| GLH55-025-050 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 50 | 6 | 7.9 | 45.7 | 20.48 | Uncoated | $312 | ||
| GLH55-025-075 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 75 | 4.5 | 7 | 71.8 | 30.72 | Uncoated | $312 | ||
| GLH55-025-100 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 100 | 4 | 7 | 97.2 | 40.96 | Uncoated | $312 | ||
| GLH55-025-200 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 200 | 3.5 | 5.3 | 197.5 | 81.93 | Uncoated | $312 | ||
| GLH55-012-020-IR1 | Calcium fluoride (CaF₂) single crystal | Ø12.7 | 20 | 5 | 7.4 | 16.4 | 8.19 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $258 | ||
| GLH55-012-050-IR1 | Calcium fluoride (CaF₂) single crystal | Ø12.7 | 50 | 3 | 5 | 47.9 | 20.48 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $258 | ||
| GLH55-012-080-IR1 | Calcium fluoride (CaF₂) single crystal | Ø12.7 | 80 | 2.5 | 5 | 78.2 | 32.77 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $258 | ||
| GLH55-025-050-IR1 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 50 | 6 | 7.9 | 45.7 | 20.48 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $312 | ||
| GLH55-025-075-IR1 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 75 | 4.5 | 7 | 71.8 | 30.72 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $312 | ||
| GLH55-025-100-IR1 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 100 | 4 | 7 | 97.2 | 40.96 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $312 | ||
| GLH55-025-200-IR1 | Calcium fluoride (CaF₂) single crystal | Ø25.4 | 200 | 3.5 | 5.3 | 197.5 | 81.93 | IR1 antireflection coating; average reflectance <1.5% over 3–5μm | $312 | ||
No matching models. Change or clear your filters.

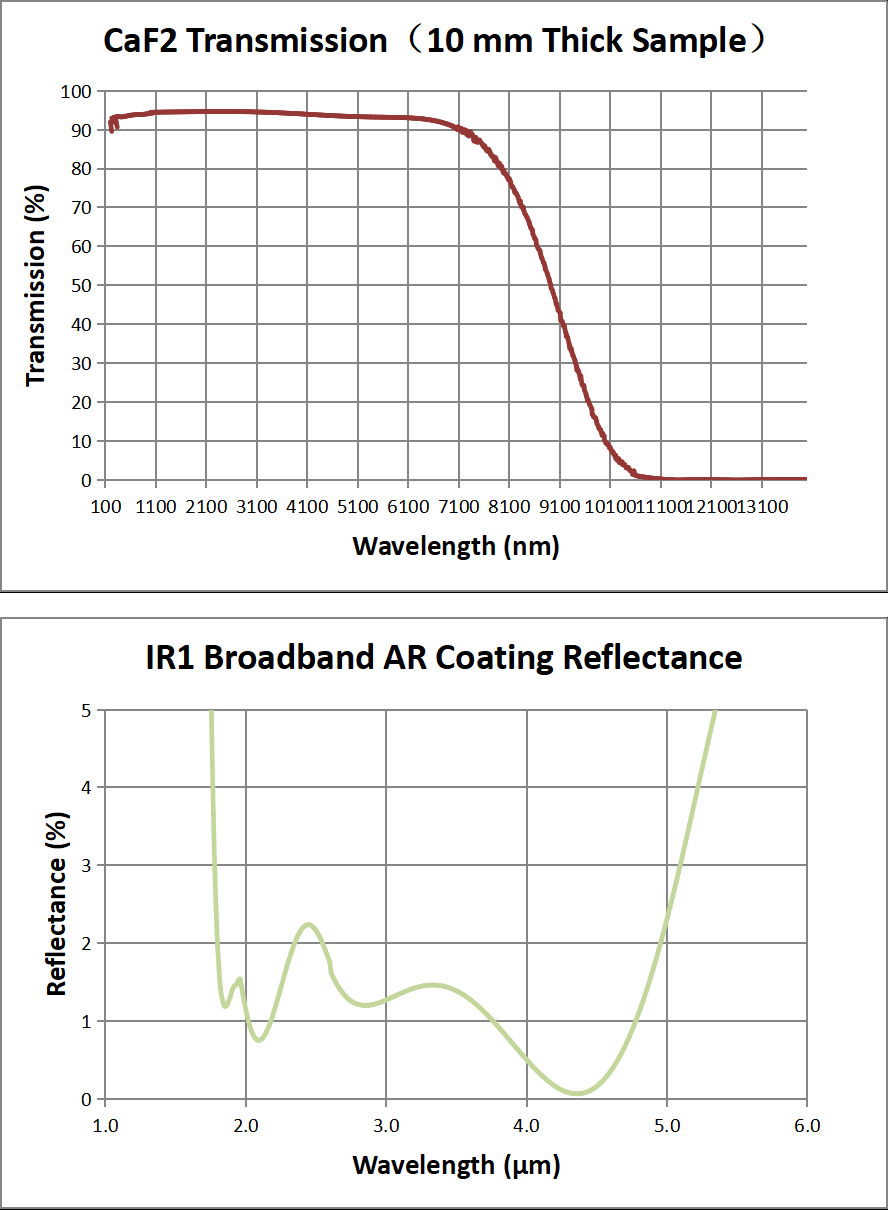

Curves
Technical notes
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
