Zinc Selenide (ZnSe) Plano-Convex Lenses — GLH71 Series
From $217 USD
Request a quoteProduct description
GLH71 plano-convex lenses have one flat surface and one convex surface, with a positive focal length. They focus collimated light, collimate point sources and reduce beam divergence.
CVD laser-grade zinc selenide is used for infrared focusing and thermal imaging. The source lists a material transmission range of 600 nm–16 μm and a design wavelength of 10.6 μm.
To reduce spherical aberration when focusing a collimated beam, orient the curved surface toward the incoming light. When collimating a point source, orient the flat surface toward the source.
Schematic
Dimensions in mm unless otherwise stated.
Options include uncoated and IR2 antireflection coating for 8–12 μm; the source specifies average reflectance below 1.5%. Use gloves, avoid direct contact and wash hands after handling. The material is soft and should be protected from scratches.
Antireflection coatings reduce surface reflection and help suppress ghost reflections. Choose the wavelength range specified for the individual model.
Select a mount appropriate to the lens diameter and curvature. Compatible thread sizes described in the source include SM05 (0.535″-40), SM1 (1.035″-40) and SM2 (2.035″-40). Mounts and other components are separate from the lens.
The schematic is for reference only and must not be used as a manufacturing drawing. Refer to the individual model specifications and drawing for engineering decisions.
General specifications
GLH71 series specifications; individual model specifications take precedence.
- Material
- CVD laser-grade zinc selenide (ZnSe)
- RoHS (supplier specification)
- Compliant, as stated by supplier
- Design wavelength
- 10.6μm
- Surface quality (scratch-dig)
- 60-40
- Diameter tolerance
- +0.0 / -0.1mm
- Center thickness tolerance
- ±0.2mm
- Focal length tolerance
- ±1%
- Centration
- <3 arcmin
- Clear aperture
- >90% of diameter
- Chamfer
- 0.2mm×45°
- Handling
- Handle zinc selenide with gloves, avoid direct contact and wash hands after use. Handle carefully to avoid scratching.
Available specifications
USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.
24 models
Choose comparison fields
Compare up to four fields. Expand a model to read every specification.
Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.
| Details | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GLH71-012-015 | Zinc selenide (ZnSe) | 12.7 | 15 | 3 | 2 | 13.8 | 21 | Uncoated | $217 | ||
| GLH71-012-020 | Zinc selenide (ZnSe) | 12.7 | 20 | 2.7 | 2 | 18.9 | 28.1 | Uncoated | $217 | ||
| GLH71-012-040 | Zinc selenide (ZnSe) | 12.7 | 40 | 2.4 | 2 | 39 | 56.1 | Uncoated | $217 | ||
| GLH71-025-025 | Zinc selenide (ZnSe) | 25.4 | 25.4 | 4.3 | 2 | 23.6 | 35.6 | Uncoated | $390 | ||
| GLH71-025-050 | Zinc selenide (ZnSe) | 25.4 | 50 | 4 | 2.8 | 48.4 | 70.2 | Uncoated | $390 | ||
| GLH71-025-075 | Zinc selenide (ZnSe) | 25.4 | 75 | 4 | 3.2 | 73.3 | 105.2 | Uncoated | $390 | ||
| GLH71-025-100 | Zinc selenide (ZnSe) | 25.4 | 100 | 4 | 3.4 | 98.5 | 140.5 | Uncoated | $390 | ||
| GLH71-025-150 | Zinc selenide (ZnSe) | 25.4 | 150 | 4 | 3.6 | 147.3 | 209 | Uncoated | $390 | ||
| GLH71-025-200 | Zinc selenide (ZnSe) | 25.4 | 200 | 4 | 3.7 | 198.3 | 280.5 | Uncoated | $390 | ||
| GLH71-025-500 | Zinc selenide (ZnSe) | 25.4 | 500 | 2.1 | 2 | 499.1 | 701.3 | Uncoated | $390 | ||
| GLH71-025-750 | Zinc selenide (ZnSe) | 25.4 | 750 | 2.1 | 2 | 749.1 | 1052 | Uncoated | $390 | ||
| GLH71-025-1000 | Zinc selenide (ZnSe) | 25.4 | 1000 | 2.1 | 2 | 999.1 | 1402.7 | Uncoated | $390 | ||
| GLH71-012-015-IR2 | Zinc selenide (ZnSe) | 12.7 | 15 | 3 | 2 | 13.8 | 21 | IR2 AR coating: Ravg<1.5% @8–12μm | $246 | ||
| GLH71-012-020-IR2 | Zinc selenide (ZnSe) | 12.7 | 20 | 2.7 | 2 | 18.9 | 28.1 | IR2 AR coating: Ravg<1.5% @8–12μm | $246 | ||
| GLH71-012-040-IR2 | Zinc selenide (ZnSe) | 12.7 | 40 | 2.4 | 2 | 39 | 56.1 | IR2 AR coating: Ravg<1.5% @8–12μm | $246 | ||
| GLH71-025-025-IR2 | Zinc selenide (ZnSe) | 25.4 | 25.4 | 4.3 | 2 | 23.6 | 35.6 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-050-IR2 | Zinc selenide (ZnSe) | 25.4 | 50 | 4 | 2.8 | 48.4 | 70.2 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-075-IR2 | Zinc selenide (ZnSe) | 25.4 | 75 | 4 | 3.2 | 73.3 | 105.2 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-100-IR2 | Zinc selenide (ZnSe) | 25.4 | 100 | 4 | 3.4 | 98.5 | 140.5 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-150-IR2 | Zinc selenide (ZnSe) | 25.4 | 150 | 4 | 3.6 | 147.3 | 209 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-200-IR2 | Zinc selenide (ZnSe) | 25.4 | 200 | 4 | 3.7 | 198.3 | 280.5 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-500-IR2 | Zinc selenide (ZnSe) | 25.4 | 500 | 2.1 | 2 | 499.1 | 701.3 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-750-IR2 | Zinc selenide (ZnSe) | 25.4 | 750 | 2.1 | 2 | 749.1 | 1052 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
| GLH71-025-1000-IR2 | Zinc selenide (ZnSe) | 25.4 | 1000 | 2.1 | 2 | 999.1 | 1402.7 | IR2 AR coating: Ravg<1.5% @8–12μm | $448 | ||
No matching models. Change or clear your filters.

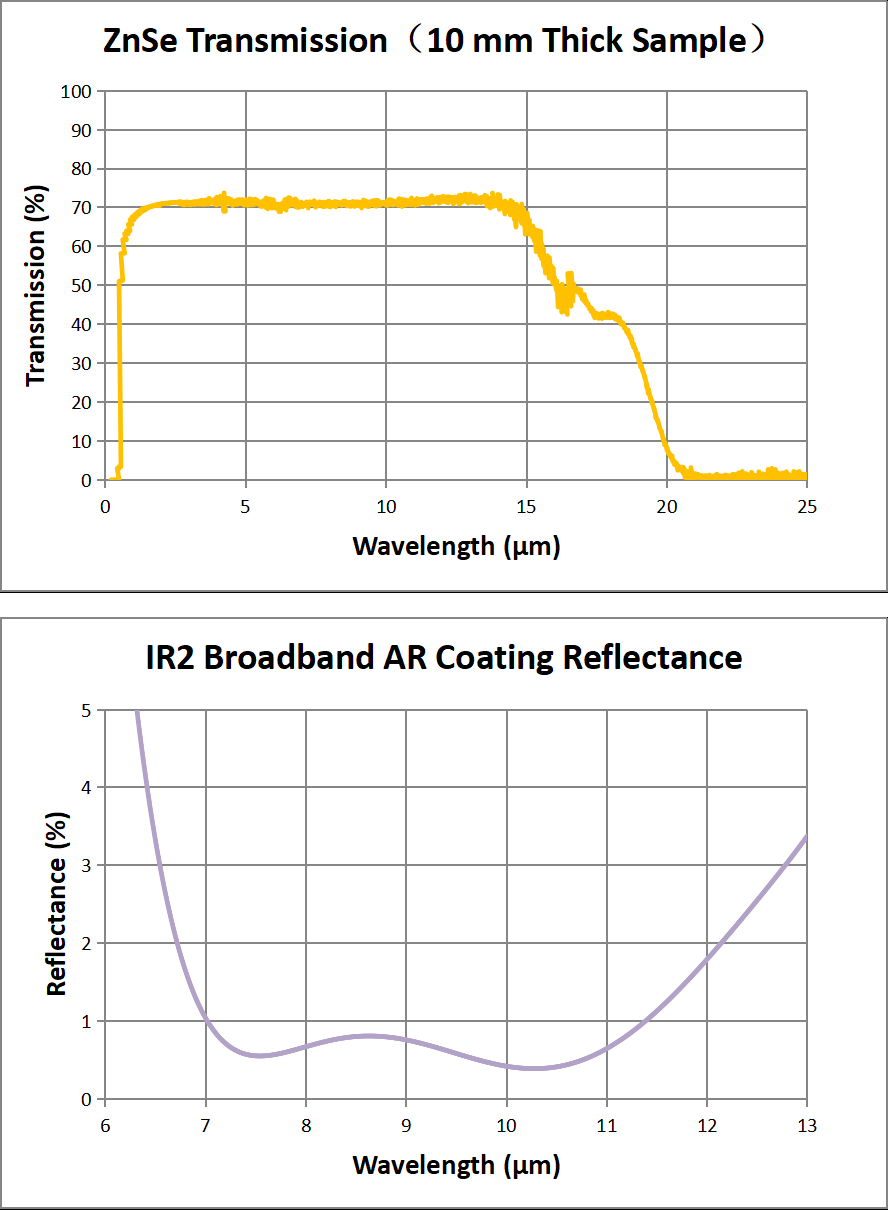

Curves
Technical notes
Paraxial thin-lens estimate: f ≈ R / (n − 1), where R is the curved-surface radius and n is the refractive index at the relevant wavelength. Use each model’s listed focal length and back focal length.
Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.
Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
