N-BK7 Plano-Convex Lenses (A Coating: 350–700 nm) — GLA11-A

From $22 USD

Request a quote

Product description

Plano-convex lenses have one flat surface and one convex surface, with a positive focal length. They can focus collimated light, collimate a point source or reduce the divergence of a beam.

GLA11 standard lenses use N-BK7 glass and suit infinite- and finite-conjugate applications. N-BK7 has a nominal refractive index of 1.517 and an Abbe number of 64.17. Select UV fused silica instead when its UV transmission or lower thermal expansion is required.

To reduce spherical aberration when focusing a collimated beam, orient the curved surface toward the incoming light. For collimating a point source, orient the flat surface toward the source.

Schematic

Dimensions in mm unless otherwise stated.
Plano-convex lens geometry: diameter, thickness, focal length and curvature radius

GLA11 standard lenses are available uncoated or with four broadband antireflection coatings: A (350–700 nm), B (650–1100 nm), C (1050–1700 nm) and AB (400–1100 nm). Special wavelength and material requirements, including 532 nm, 808 nm, 1064 nm, 400–700 nm and 650–1200 nm, can be discussed through a custom quotation.

An uncoated glass surface reflects approximately 4% of normally incident light. Antireflection coatings reduce surface reflection, improve transmission and help limit ghost reflections in systems with multiple optical elements.

For mounting, select a holder appropriate to the lens diameter and curvature. The referenced fixed lens mounts use SM05 (0.535″-40), SM1 (1.035″-40) or SM2 (2.035″-40) threads; MLNR-style mounts provide additional retaining-ring tool clearance. Mounts and other components are separate from the lens.

The schematic is for reference only and must not be used as a manufacturing drawing. Use the individual model specifications and model drawing when selecting a lens.

General specifications

Standard N-BK7 models; individual model specifications take precedence.

Material
N-BK7
Surface irregularity
λ/4 @632.8nm
Design wavelength
587.6 nm
Surface quality (scratch-dig)
40-20
Surface flatness
λ/2
Spherical surface power
3λ/2
Diameter tolerance
+0.0 / -0.1mm
Thickness tolerance
±0.1 mm
Focal length tolerance
±1%
Centration
<3 arcmin
Refractive index
1.517
Abbe number
v = 64.17
Clear aperture
>90% of diameter
Chamfer
0.2mm×45°
Coating on S1 and S2
A AR coating: Ravg<0.5% @350–700nm

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

112 models

Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.

DetailsQuote
GLA11-025B-350-AN-BK725.43502.52.1348.4180.9A Coating: Ravg<0.5% @350–700nm$39
GLA11-025B-045-AN-BK725.4455.21.4341.5723.26A Coating: Ravg<0.5% @350–700nm$29
GLA11-006-010-AN-BK76102.51.58.355.15A Coating: Ravg<0.5% @350–700nm$34
GLA11-006-012-AN-BK76122.31.510.486.18A Coating: Ravg<0.5% @350–700nm$33
GLA11-006-015-AN-BK76152.11.513.617.73A Coating: Ravg<0.5% @350–700nm$33
GLA11-006-030-AN-BK76301.81.528.8115.45A Coating: Ravg<0.5% @350–700nm$32
GLA11-009-012-AN-BK79123.41.59.766.18A Coating: Ravg<0.5% @350–700nm$35
GLA11-009-020-AN-BK79202.51.518.3510.3A Coating: Ravg<0.5% @350–700nm$33
GLA11-010-010-AN-BK710104.81.16.85.191A Coating: Ravg<0.5% @350–700nm$25
GLA11-010-015-AN-BK710152.91.113.17.753A Coating: Ravg<0.5% @350–700nm$25
GLA11-012-015-AN-BK712.7155.11.811.637.73A Coating: Ravg<0.5% @350–700nm$35
GLA11-012-020-AN-BK712.72041.817.3610.3A Coating: Ravg<0.5% @350–700nm$35
GLA11-012-025-AN-BK712.7253.51.822.6912.88A Coating: Ravg<0.5% @350–700nm$33
GLA11-012-030-AN-BK712.7303.21.827.8915.45A Coating: Ravg<0.5% @350–700nm$33
GLA11-012-038-AN-BK712.738.13236.119.69A Coating: Ravg<0.5% @350–700nm$25
GLA11-012-040-AN-BK712.7402.81.838.1520.6A Coating: Ravg<0.5% @350–700nm$32
GLA11-012-050-AN-BK712.7502.61.848.2825.75A Coating: Ravg<0.5% @350–700nm$32
GLA11-012-075-AN-BK712.7752.381.874.7538.63A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-100-AN-BK712.71002.221.898.251.51A Coating: Ravg<0.5% @350–700nm$32
GLA11-012-125-AN-BK712.71252.31.8124.664.39A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-150-AN-BK712.715021.8148.677.5A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-175-AN-BK712.71752.21.8174.42190.14A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-200-AN-BK712.720021.8198.6103.36A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-250-AN-BK712.72502.151.8249.169128.77A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-300-AN-BK712.73002.132298.6155.04A Coating: Ravg<0.5% @350–700nm$36
GLA11-012-500-AN-BK712.75002.072498.8259.4A Coating: Ravg<0.5% @350–700nm$36
GLA11-018-020-AN-BK718207.11.815.3110.3A Coating: Ravg<0.5% @350–700nm$36
GLA11-018-025-AN-BK718255.51.821.3712.88A Coating: Ravg<0.5% @350–700nm$35
GLA11-018-030-AN-BK718304.71.826.915.45A Coating: Ravg<0.5% @350–700nm$34
GLA11-018-040-AN-BK718403.81.835.0220.67A Coating: Ravg<0.5% @350–700nm$27
GLA11-018-050-AN-BK718503.41.847.7625.75A Coating: Ravg<0.5% @350–700nm$34
GLA11-018-060-AN-BK718603.11.855.9531A Coating: Ravg<0.5% @350–700nm$27
GLA11-018-065-AN-BK7186531.861.1233.6A Coating: Ravg<0.5% @350–700nm$27
GLA11-018-070-AN-BK718702.91.866.2436.76A Coating: Ravg<0.5% @350–700nm$27
GLA11-020-025-AN-BK7202561.2621.0412.92A Coating: Ravg<0.5% @350–700nm$33
GLA11-020-040-AN-BK720404.623720.679A Coating: Ravg<0.5% @350–700nm$33
GLA11-020-060-AN-BK720603.7257.631.009A Coating: Ravg<0.5% @350–700nm$33
GLA11-020-080-AN-BK720803.2277.941.344A Coating: Ravg<0.5% @350–700nm$33
GLA11-020-100-AN-BK720100329851.686A Coating: Ravg<0.5% @350–700nm$33
GLA11-025-025-AN-BK72525.411.72.517.6813.08A Coating: Ravg<0.5% @350–700nm$39
GLA11-025-050-AN-BK725505.32.0746.525.75A Coating: Ravg<0.5% @350–700nm$37
GLA11-025-075-AN-BK725754.12.0272.2938.63A Coating: Ravg<0.5% @350–700nm$36
GLA11-025-100-AN-BK7251003.62.0697.6251.51A Coating: Ravg<0.5% @350–700nm$36
GLA11-025-200-AN-BK7252002.82.04198.15103.02A Coating: Ravg<0.5% @350–700nm$34
GLA11-025B-025-AN-BK725.425.411.71.817.6813.08A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-030-AN-BK725.4308.6224.3215.45A Coating: Ravg<0.5% @350–700nm$37
GLA11-025B-035-AN-BK725.4357.2230.2518.03A Coating: Ravg<0.5% @350–700nm$37
GLA11-025B-040-AN-BK725.4406.4235.7820.6A Coating: Ravg<0.5% @350–700nm$36
GLA11-025B-050-AN-BK725.4505.3246.525.75A Coating: Ravg<0.5% @350–700nm$35
GLA11-025B-060-AN-BK725.4604.7256.930.91A Coating: Ravg<0.5% @350–700nm$35
GLA11-025B-075-AN-BK725.4754.1272.2938.63A Coating: Ravg<0.5% @350–700nm$35
GLA11-025B-085-AN-BK725.4854.32.4282.1743.93A Coating: Ravg<0.5% @350–700nm$29
GLA11-025B-100-AN-BK725.41003.6297.6251.51A Coating: Ravg<0.5% @350–700nm$34
GLA11-025B-125-AN-BK725.41253.32122.8264.39A Coating: Ravg<0.5% @350–700nm$34
GLA11-025B-150-AN-BK725.41503.12147.9577.26A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-175-AN-BK725.41752.92173.0990.14A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-200-AN-BK725.42002.82198.15103.02A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-250-AN-BK725.42502.62248.28128.77A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-300-AN-BK725.43002.52298.35154.53A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-400-AN-BK725.44002.42398.42206.04A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-500-AN-BK725.45002.32498.48257.55A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-600-AN-BK725.46002.21.93596.32523310.08A Coating: Ravg<0.5% @350–700nm$39
GLA11-025B-750-AN-BK725.47502.22748.55386.32A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-1000-AN-BK725.410002.22998.55515.09A Coating: Ravg<0.5% @350–700nm$33
GLA11-025B-2000-AN-BK725.420002.121998.661037A Coating: Ravg<0.5% @350–700nm$34
GLA11-030-040-AN-BK7304092.534.0620.6A Coating: Ravg<0.5% @350–700nm$44
GLA11-030-050-AN-BK730507.32.545.1825.75A Coating: Ravg<0.5% @350–700nm$43
GLA11-030-060-AN-BK730606.42.555.831.009A Coating: Ravg<0.5% @350–700nm$37
GLA11-030-075-AN-BK730755.52.571.3738.63A Coating: Ravg<0.5% @350–700nm$43
GLA11-030-100-AN-BK7301004.72.596.951.51A Coating: Ravg<0.5% @350–700nm$42
GLA11-030-120-AN-BK7301204.32.5117.1661.81A Coating: Ravg<0.5% @350–700nm$37
GLA11-030-150-AN-BK7301503.11.6147.9577.26A Coating: Ravg<0.5% @350–700nm$43
GLA11-030-200-AN-BK7302002.81.7198.15103.02A Coating: Ravg<0.5% @350–700nm$43
GLA11-030-250-AN-BK7302502.61.7248.28128.77A Coating: Ravg<0.5% @350–700nm$43
GLA11-030-300-AN-BK7303002.51.8298.35154.53A Coating: Ravg<0.5% @350–700nm$43
GLA11-030-500-AN-BK7305002.31.8498.48257.55A Coating: Ravg<0.5% @350–700nm$43
GLA11-050-060-AN-BK750.86016.3349.2430.91A Coating: Ravg<0.5% @350–700nm$76
GLA11-050-075-AN-BK750.87512.5366.7538.63A Coating: Ravg<0.5% @350–700nm$63
GLA11-050-100-AN-BK750.81009.7393.651.51A Coating: Ravg<0.5% @350–700nm$47
GLA11-050-125-AN-BK750.81258.23119.5964.39A Coating: Ravg<0.5% @350–700nm$47
GLA11-050-150-AN-BK750.81507.33145.1877.26A Coating: Ravg<0.5% @350–700nm$47
GLA11-050-175-AN-BK750.81756.73170.5890.14A Coating: Ravg<0.5% @350–700nm$62
GLA11-050-200-AN-BK750.82006.23195.91103.02A Coating: Ravg<0.5% @350–700nm$47
GLA11-050-250-AN-BK750.82505.53246.37128.77A Coating: Ravg<0.5% @350–700nm$62
GLA11-050-300-AN-BK750.83005.13296.63154.53A Coating: Ravg<0.5% @350–700nm$50
GLA11-050-400-AN-BK750.84004.63396.96206.04A Coating: Ravg<0.5% @350–700nm$50
GLA11-050-500-AN-BK750.85004.33497.16257.55A Coating: Ravg<0.5% @350–700nm$50
GLA11-050-750-AN-BK750.87503.83747.49386.32A Coating: Ravg<0.5% @350–700nm$60
GLA11-050-1000-AN-BK750.810003.63997.62515.09A Coating: Ravg<0.5% @350–700nm$60
GLA11-050-350-AN-BK750.83504.83348181.7A Coating:350–700nm$61
GLA11-050-420-AN-BK750.84204.493417217.06A Coating:350–700nm$47
GLA11-050-430-AN-BK750.84304.453427222.3A Coating:350–700nm$47
GLA11-050-450-AN-BK750.84504.393447232.6A Coating:350–700nm$61
GLA11-050-550-AN-BK750.85504.133547284.3A Coating:350–700nm$47
GLA11-050-600-AN-BK750.86004.043597310.08A Coating:350–700nm$61
GLA11-050-650-AN-BK750.86503.963647336A Coating:350–700nm$47
GLA11-076-085-AN-BK776.28524.2369.0343.78A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-100-AN-BK776.210019.2387.3351.51A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-150-AN-BK776.215012.73141.6277.26A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-200-AN-BK776.220010.13193.33103.02A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-175-AN-BK776.2175145.6165.890.454A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-300-AN-BK776.2300105.2293.4155.04A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-500-AN-BK776.250085.2494.7258.398A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-700-AN-BK776.270075695.4361.758A Coating: Ravg<0.5% @350–700nm$123
GLA11-076-1000-AN-BK776.2100075.6995.4516.797A Coating: Ravg<0.5% @350–700nm$123
GLA11-101.6-160-AN-BK7101.616022.44146.2582.688A Coating: Ravg<0.5% @350–700nm$156
GLA11-101.6-250-AN-BK7101.625014.54241.37129.2A Coating: Ravg<0.5% @350–700nm$156
GLA11-101.6-300-AN-BK7101.630013.55291.039155.616A Coating: Ravg<0.5% @350–700nm$156
GLA11-101.6-500-AN-BK7101.65009.95493.5258.399A Coating: Ravg<0.5% @350–700nm$156
GLA11-101.6-800-AN-BK7101.680085794.7413.437A Coating: Ravg<0.5% @350–700nm$156
GLA11-101.6-1000-AN-BK7101.610007.45995.1516.797A Coating: Ravg<0.5% @350–700nm$156
GLA11-025-040-AN-BK725406.4235.7820.6A Coating: Ravg<0.5% @350–700nm$22

Curves

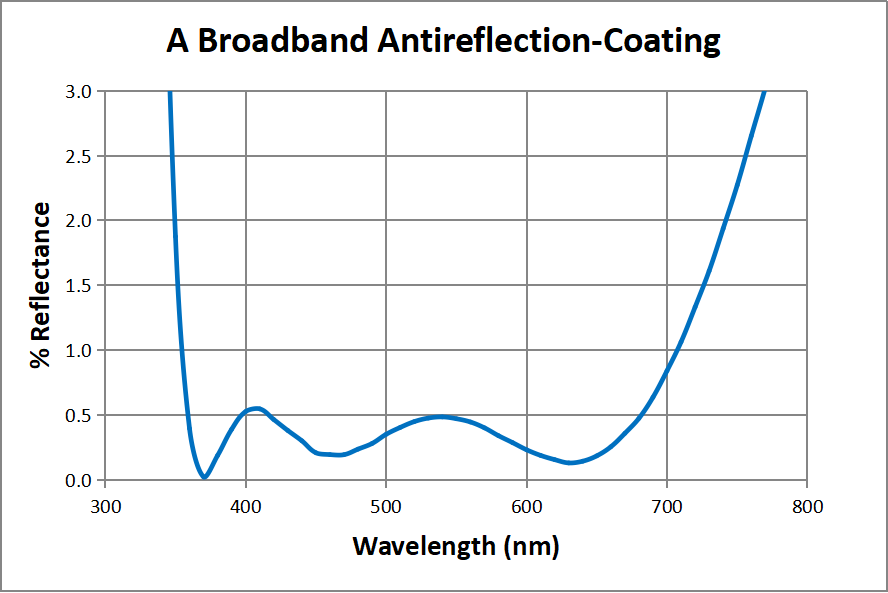

GLA11 A coating transmission or reflectance curve
Typical transmission or coating performance. Refer to the model’s coating range.

Technical notes

Paraxial thin-lens estimate: f ≈ R / (n − 1), where R is the radius of the curved surface and n is the refractive index. Use the listed focal length and back focal length for each model.

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.
