K9 Plano-Convex Lenses — GLH11 Series

From $18 USD

Product description

GLH11 plano-convex lenses have one flat surface and one convex surface, with a positive focal length. They focus collimated light, collimate a point source or reduce beam divergence.

These lenses use H-K9L optical glass (K9), as specified in the model data. The nominal refractive index is 1.5168 and the Abbe number is 64.17. The series supports infinite- and finite-conjugate applications.

To reduce spherical aberration when focusing a collimated beam, orient the curved surface toward the incoming light. When collimating a point source, orient the flat surface toward the source.

Plano-convex lens geometry: diameter, thickness, focal length and curvature radius — Schematic
Dimensions in mm unless otherwise stated.

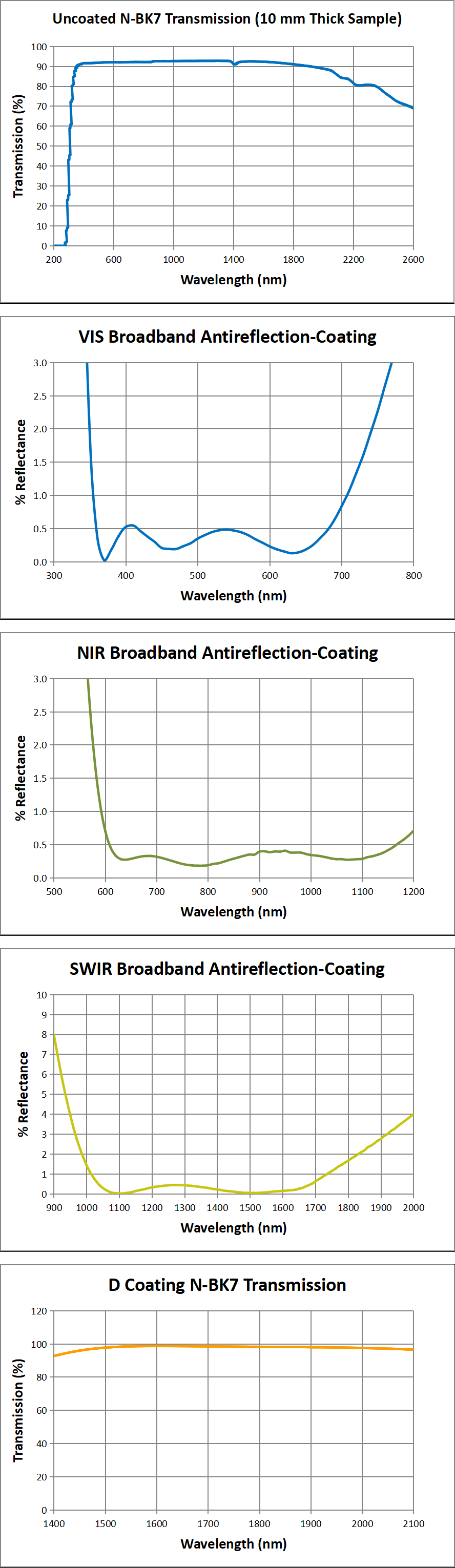

Coating options include uncoated, VIS (400–700 nm), NIR (650–1050 nm) and SWIR (1000–1650 nm). A D-coated model for 1460–2080 nm is also listed. Use the coating filter and individual model specifications to select the required wavelength range.

An uncoated glass surface reflects approximately 4% of normally incident light. Antireflection coatings reduce surface reflection, improve transmission and help limit ghost reflections in systems with multiple optical elements.

Select a mount appropriate to the lens diameter and curvature. Compatible thread sizes described in the source include SM05 (0.535″-40), SM1 (1.035″-40) and SM2 (2.035″-40). Mounts and other components are separate from the lens.

The schematic is for reference only and must not be used as a manufacturing drawing. Refer to the individual model specifications and drawing for engineering decisions.

General specifications

GLH11 H-K9L models. Individual model specifications take precedence.

Material: H-K9L(K9)

Surface irregularity: λ/4 @632.8nm

Design wavelength: 587.6 nm

Surface quality (scratch-dig): 40-20

Diameter tolerance: +0.0 / -0.1mm

Center thickness tolerance: ±0.2mm

Focal length tolerance: ±2%

Centration: <3 arcmin

Refractive index: 1.5168

Abbe number: v = 64.17

Clear aperture: >90% of diameter

Chamfer: 0.2mm×45°

Available specifications

USD unit prices. Shipping, taxes and dispatch timing are confirmed with your quotation. Select models and quantities to build your quote list.

MaterialDiameter (mm)Focal length (mm)Center thickness (mm)Edge thickness (mm)Back focal length (mm)Radius of curvature (mm)Coating Search model

361 models

Dia. = diameter; CT = center thickness; ET = edge thickness; BFL = back focal length. Units remain shown in each heading.

										Quote
GLH11-003-004	H-K9L	3	4.5	1.7	1.15	3.39	2.33	Uncoated	$30	Quantity for GLH11-003-004

GLH11-003-010	H-K9L	3	10	1.7	1.48	8.88	5.17	Uncoated	$28	Quantity for GLH11-003-010

GLH11-004-005	H-K9L	4	5	1.9	0.95	3.78	2.58	Uncoated	$30	Quantity for GLH11-004-005

GLH11-004-006	H-K9L	4	6.3	1.7	1.01	5.18	3.25	Uncoated	$27	Quantity for GLH11-004-006

GLH11-004-010	H-K9L	4	10	1.7	1.3	8.88	5.17	Uncoated	$27	Quantity for GLH11-004-010

GLH11-005-008	H-K9L	5	8	1.5	0.66	7.01	4.13	Uncoated	$27	Quantity for GLH11-005-008

GLH11-006-008	H-K9L	6.3	8	2.6	1.14	6.28	4.13	Uncoated	$18	Quantity for GLH11-006-008

GLH11-006-010	H-K9L	6.3	10	2.6	1.53	8.3	5.17	Uncoated	$18	Quantity for GLH11-006-010

GLH11-006-012	H-K9L	6.3	12.5	2.3	1.48	10.98	6.46	Uncoated	$18	Quantity for GLH11-006-012

GLH11-006-016	H-K9L	6.3	16	2.1	1.48	14.62	8.26	Uncoated	$18	Quantity for GLH11-006-016

GLH11-006-020	H-K9L	6.3	20	2	1.51	18.74	10.36	Uncoated	$18	Quantity for GLH11-006-020

GLH11-006-025	H-K9L	6.3	25	1.9	1.51	23.75	12.91	Uncoated	$18	Quantity for GLH11-006-025

GLH11-006-040	H-K9L	6.3	40	1.7	1.46	38.87	20.65	Uncoated	$18	Quantity for GLH11-006-040

GLH11-006-063	H-K9L	6.3	63	1.7	1.55	61.82	32.5	Uncoated	$18	Quantity for GLH11-006-063

GLH11-010-012	H-K9L	10	12.5	3.9	1.53	9.93	6.46	Uncoated	$18	Quantity for GLH11-010-012

GLH11-010-016	H-K9L	10	16	3.2	1.52	13.89	8.26	Uncoated	$18	Quantity for GLH11-010-016

GLH11-010-020	H-K9L	10	20	2.8	1.51	18.22	10.36	Uncoated	$18	Quantity for GLH11-010-020

GLH11-010-025	H-K9L	10	25	2.5	1.49	23.35	12.91	Uncoated	$18	Quantity for GLH11-010-025

GLH11-010-032	H-K9L	10	31.5	2.3	1.51	29.99	16.27	Uncoated	$18	Quantity for GLH11-010-032

GLH11-010-040	H-K9L	10	40	2.1	1.49	38.61	20.65	Uncoated	$18	Quantity for GLH11-010-040

GLH11-010-050	H-K9L	10	50	2	1.51	48.72	25.84	Uncoated	$18	Quantity for GLH11-010-050

GLH11-010-063	H-K9L	10	63	1.9	1.51	61.69	32.5	Uncoated	$18	Quantity for GLH11-010-063

GLH11-010-100	H-K9L	10	100	1.7	1.46	98.89	51.64	Uncoated	$18	Quantity for GLH11-010-100

GLH11-012-020	H-K9L	12	20.3	3	1.12	18.34	10.5	Uncoated	$18	Quantity for GLH11-012-020

GLH11-015-060	H-K9L	15	60	2.3	1.38	58.51	31.02	Uncoated	$18	Quantity for GLH11-015-060

GLH11-016-020	H-K9L	16	20	4.8	1.02	16.9	10.36	Uncoated	$22	Quantity for GLH11-016-020

GLH11-016-025	H-K9L	16	25	4	1.22	22.36	12.91	Uncoated	$19	Quantity for GLH11-016-025

GLH11-016-032	H-K9L	16	31.5	3.6	1.5	29.13	16.27	Uncoated	$19	Quantity for GLH11-016-032

GLH11-016-040	H-K9L	16	40	3.1	1.49	37.95	20.65	Uncoated	$19	Quantity for GLH11-016-040

GLH11-016-050	H-K9L	16	50	2.8	1.53	48.2	25.84	Uncoated	$19	Quantity for GLH11-016-050

GLH11-016-063	H-K9L	16	63	2.5	1.5	61.29	32.5	Uncoated	$19	Quantity for GLH11-016-063

GLH11-016-080	H-K9L	16	80	2.3	1.52	78.47	41.3	Uncoated	$19	Quantity for GLH11-016-080

GLH11-016-100	H-K9L	16	100	2.1	1.48	98.62	51.64	Uncoated	$19	Quantity for GLH11-016-100

GLH11-016-160	H-K9L	16	160	1.9	1.51	158.75	82.62	Uncoated	$19	Quantity for GLH11-016-160

GLH11-020-030	H-K9L	20	30	4.5	0.84	27.03	15.5	Uncoated	$19	Quantity for GLH11-020-030

GLH11-020-050	H-K9L	20	50	4.2	2.19	47.23	25.84	Uncoated	$19	Quantity for GLH11-020-050

GLH11-025-027	H-K9L	25	26.7	9.5	1.55	20.44	13.8	Uncoated	$22	Quantity for GLH11-025-027

GLH11-025-032	H-K9L	25	31.5	7.86	2	26.33	16.27	Uncoated	$22	Quantity for GLH11-025-032

GLH11-025-040	H-K9L	25	40	6.21	2	35.89	20.65	Uncoated	$20	Quantity for GLH11-025-040

GLH11-025-050	H-K9L	25	50	4.7	1.47	46.1	25.84	Uncoated	$20	Quantity for GLH11-025-050

GLH11-025-063	H-K9L	25	63	4	1.5	59.47	32.5	Uncoated	$20	Quantity for GLH11-025-063

GLH11-025-076	H-K9L	25	76	3.6	1.56	73.63	39.28	Uncoated	$20	Quantity for GLH11-025-076

GLH11-025-080	H-K9L	25	80	3.94	2	77.39	41.3	Uncoated	$20	Quantity for GLH11-025-080

GLH11-025-100	H-K9L	25	100	3.54	2	97.67	51.64	Uncoated	$20	Quantity for GLH11-025-100

GLH11-025-125	H-K9L	25	125	3.22	2	122.88	64.55	Uncoated	$20	Quantity for GLH11-025-125

GLH11-025-160	H-K9L	25	160	2.95	2	158.06	82.62	Uncoated	$20	Quantity for GLH11-025-160

GLH11-025-200	H-K9L	25	200	2.76	2	198.19	103.28	Uncoated	$20	Quantity for GLH11-025-200

GLH11-025-250	H-K9L	25	250	2.61	2	248.57	129.24	Uncoated	$20	Quantity for GLH11-025-250

GLH11-025-315	H-K9L	25	315	2	1.5	313.68	162.79	Uncoated	$20	Quantity for GLH11-025-315

GLH11-025-400	H-K9L	25	400	2.38	2	397.56	206.1	Uncoated	$22	Quantity for GLH11-025-400

GLH11-025-500	H-K9L	25	500	2.3	2	498.47	258.18	Uncoated	$22	Quantity for GLH11-025-500

GLH11-025-630	H-K9L	25	630	1.78	1.54	628.82	325.58	Uncoated	$22	Quantity for GLH11-025-630

GLH11-025-800	H-K9L	25	800	1.7	1.5	798.88	413.44	Uncoated	$22	Quantity for GLH11-025-800

GLH11-025-1000	H-K9L	25	1000	2.15	2	998.83	516.5	Uncoated	$22	Quantity for GLH11-025-1000

GLH11-025-1600	H-K9L	25	1600	2.09	2	—	826.88	Uncoated	$24	Quantity for GLH11-025-1600

GLH11-025-2000	H-K9L	25	2000	2.04	2	—	1033.6	Uncoated	$26	Quantity for GLH11-025-2000

GLH11-025-2500	H-K9L	25	2500	2.03	2	—	1292	Uncoated	$26	Quantity for GLH11-025-2500

GLH11-040-040	H-K9L	40	40	17.95	2.5	—	20.67	Uncoated	$64	Quantity for GLH11-040-040

GLH11-040-050	H-K9L	40	50	11.98	2.5	42.14	25.84	Uncoated	$62	Quantity for GLH11-040-050

GLH11-040-063	H-K9L	40	63	9.38	2.5	56.75	32.5	Uncoated	$62	Quantity for GLH11-040-063

GLH11-040-080	H-K9L	40	80	7.67	2.5	74.93	41.3	Uncoated	$35	Quantity for GLH11-040-080

GLH11-040-100	H-K9L	40	100	6.53	2.5	95.7	51.64	Uncoated	$28	Quantity for GLH11-040-100

GLH11-040-125	H-K9L	40	125	5.68	2.5	121.26	64.55	Uncoated	$28	Quantity for GLH11-040-125

GLH11-040-150	H-K9L	40	150	6	3.5	145.98	77.52	Uncoated	$28	Quantity for GLH11-040-150

GLH11-040-160	H-K9L	40	160	4.96	2.5	156.73	82.62	Uncoated	$28	Quantity for GLH11-040-160

GLH11-040-200	H-K9L	40	200	4.45	2.5	197.07	103.28	Uncoated	$28	Quantity for GLH11-040-200

GLH11-040-250	H-K9L	40	250	4.06	2.5	247.61	129.24	Uncoated	$28	Quantity for GLH11-040-250

GLH11-040-500	H-K9L	40	500	3.28	2.5	497.83	258.18	Uncoated	$28	Quantity for GLH11-040-500

GLH11-045-100	H-K9L	45	100	6.1	0.97	96.4	51.9	Uncoated	$28	Quantity for GLH11-045-100

GLH11-045-120	H-K9L	45	120	6.1	1.89	116	62.2	Uncoated	$28	Quantity for GLH11-045-120

GLH11-050-063	H-K9L	50	63	14.73	3	53.22	32.5	Uncoated	$64	Quantity for GLH11-050-063

GLH11-050-080	H-K9L	50	80	11.43	3	72.45	41.3	Uncoated	$57	Quantity for GLH11-050-080

GLH11-050-100	H-K9L	50	100	9.45	3	93.77	51.64	Uncoated	$35	Quantity for GLH11-050-100

GLH11-050-160	H-K9L	50	160	6.87	3	155.47	82.62	Uncoated	$35	Quantity for GLH11-050-160

GLH11-050-250	H-K9L	50	250	5.44	3	246.21	129.24	Uncoated	$35	Quantity for GLH11-050-250

GLH11-050-500	H-K9L	50	500	4.21	3	497.21	258.18	Uncoated	$35	Quantity for GLH11-050-500

GLH11-063-100	H-K9L	63	100	13.72	3	90.96	51.64	Uncoated	$48	Quantity for GLH11-063-100

GLH11-063-125	H-K9L	63	125	11.21	3	117.62	64.55	Uncoated	$44	Quantity for GLH11-063-125

GLH11-063-160	H-K9L	63	160	9.24	3	153.91	82.62	Uncoated	$44	Quantity for GLH11-063-160

GLH11-063-250	H-K9L	63	250	6.9	3	245.74	129.24	Uncoated	$44	Quantity for GLH11-063-250

GLH11-063-500	H-K9L	63	500	4.93	3	496.33	258.18	Uncoated	$44	Quantity for GLH11-063-500

GLH11-063-1000	H-K9L	63	1000	3.96	3	997.64	516.5	Uncoated	$44	Quantity for GLH11-063-1000

GLH11-080-150	H-K9L	80	150	14.12	3	140.69	77.52	Uncoated	$78	Quantity for GLH11-080-150

GLH11-080-300	H-K9L	80	300	8.25	3	294.56	155.04	Uncoated	$78	Quantity for GLH11-080-300

GLH11-080-500	H-K9L	80	500	6.12	3	495.54	258.18	Uncoated	$78	Quantity for GLH11-080-500

GLH11-080-1000	H-K9L	80	1000	4.6	3	996.02	516.82	Uncoated	$78	Quantity for GLH11-080-1000

GLH11-080-2000	H-K9L	80	2000	3.76	3	1997.52	1033.65	Uncoated	$84	Quantity for GLH11-080-2000

GLH11-100-160	H-K9L	100	160	20.85	4	146.25	82.62	Uncoated	$189	Quantity for GLH11-100-160

GLH11-100-250	H-K9L	100	250	14.05	4	241.37	129.24	Uncoated	$189	Quantity for GLH11-100-250

GLH11-100-500	H-K9L	100	500	8.89	4	494.13	258.18	Uncoated	$189	Quantity for GLH11-100-500

GLH11-003-004-VIS	H-K9L	3	4.5	1.7	1.15	3.39	2.33	VIS AR coating: Ravg<0.5% @400–700 nm	$37	Quantity for GLH11-003-004-VIS

GLH11-003-010-VIS	H-K9L	3	10	1.7	1.48	8.88	5.17	VIS AR coating: Ravg<0.5% @400–700 nm	$35	Quantity for GLH11-003-010-VIS

GLH11-004-005-VIS	H-K9L	4	5	1.9	0.95	3.78	2.58	VIS AR coating: Ravg<0.5% @400–700 nm	$37	Quantity for GLH11-004-005-VIS

GLH11-004-006-VIS	H-K9L	4	6.3	1.7	1.01	5.18	3.25	VIS AR coating: Ravg<0.5% @400–700 nm	$34	Quantity for GLH11-004-006-VIS

GLH11-004-010-VIS	H-K9L	4	10	1.7	1.3	8.88	5.17	VIS AR coating: Ravg<0.5% @400–700 nm	$34	Quantity for GLH11-004-010-VIS

GLH11-005-008-VIS	H-K9L	5	8	1.5	0.66	7.01	4.13	VIS AR coating: Ravg<0.5% @400–700 nm	$34	Quantity for GLH11-005-008-VIS

GLH11-006-008-VIS	H-K9L	6.3	8	2.6	1.14	6.28	4.13	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-008-VIS

GLH11-006-010-VIS	H-K9L	6.3	10	2.6	1.53	8.3	5.17	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-010-VIS

GLH11-006-012-VIS	H-K9L	6.3	12.5	2.3	1.48	10.98	6.46	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-012-VIS

GLH11-006-016-VIS	H-K9L	6.3	16	2.1	1.48	14.62	8.26	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-016-VIS

GLH11-006-020-VIS	H-K9L	6.3	20	2	1.51	18.74	10.36	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-020-VIS

GLH11-006-025-VIS	H-K9L	6.3	25	1.9	1.51	23.75	12.91	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-025-VIS

GLH11-006-040-VIS	H-K9L	6.3	40	1.7	1.46	38.87	20.65	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-040-VIS

GLH11-006-063-VIS	H-K9L	6.3	63	1.7	1.55	61.82	32.5	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-006-063-VIS

GLH11-010-012-VIS	H-K9L	10	12.5	3.9	1.53	9.93	6.46	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-012-VIS

GLH11-010-016-VIS	H-K9L	10	16	3.2	1.52	13.89	8.26	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-016-VIS

GLH11-010-020-VIS	H-K9L	10	20	2.8	1.51	18.22	10.36	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-020-VIS

GLH11-010-025-VIS	H-K9L	10	25	2.5	1.49	23.35	12.91	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-025-VIS

GLH11-010-032-VIS	H-K9L	10	31.5	2.3	1.51	29.99	16.27	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-032-VIS

GLH11-010-040-VIS	H-K9L	10	40	2.1	1.49	38.61	20.65	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-040-VIS

GLH11-010-050-VIS	H-K9L	10	50	2	1.51	48.72	25.84	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-050-VIS

GLH11-010-063-VIS	H-K9L	10	63	1.9	1.51	61.69	32.5	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-063-VIS

GLH11-010-100-VIS	H-K9L	10	100	1.7	1.46	98.89	51.64	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-010-100-VIS

GLH11-012-020-VIS	H-K9L	12	20.3	3	1.12	18.34	10.5	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-012-020-VIS

GLH11-015-060-VIS	H-K9L	15	60	2.3	1.38	58.51	31.02	VIS AR coating: Ravg<0.5% @400–700 nm	$25	Quantity for GLH11-015-060-VIS

GLH11-016-020-VIS	H-K9L	16	20	4.8	1.02	16.9	10.36	VIS AR coating: Ravg<0.5% @400–700 nm	$28	Quantity for GLH11-016-020-VIS

GLH11-016-025-VIS	H-K9L	16	25	4	1.22	22.36	12.91	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-025-VIS

GLH11-016-032-VIS	H-K9L	16	31.5	3.6	1.5	29.13	16.27	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-032-VIS

GLH11-016-040-VIS	H-K9L	16	40	3.1	1.49	37.95	20.65	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-040-VIS

GLH11-016-050-VIS	H-K9L	16	50	2.8	1.53	48.2	25.84	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-050-VIS

GLH11-016-063-VIS	H-K9L	16	63	2.5	1.5	61.29	32.5	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-063-VIS

GLH11-016-080-VIS	H-K9L	16	80	2.3	1.52	78.47	41.3	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-080-VIS

GLH11-016-100-VIS	H-K9L	16	100	2.1	1.48	98.62	51.64	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-100-VIS

GLH11-016-160-VIS	H-K9L	16	160	1.9	1.51	158.75	82.62	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-016-160-VIS

GLH11-020-030-VIS	H-K9L	20	30	4.5	0.84	27.03	15.5	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-020-030-VIS

GLH11-020-050-VIS	H-K9L	20	50	4.2	2.19	47.23	25.84	VIS AR coating: Ravg<0.5% @400–700 nm	$26	Quantity for GLH11-020-050-VIS

GLH11-025-027-VIS	H-K9L	25	26.7	9.5	1.55	20.44	13.8	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-027-VIS

GLH11-025-032-VIS	H-K9L	25	31.5	7.86	2	26.33	16.27	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-032-VIS

GLH11-025-040-VIS	H-K9L	25	40	6.21	2	35.89	20.65	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-040-VIS

GLH11-025-050-VIS	H-K9L	25	50	4.7	1.47	46.1	25.84	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-050-VIS

GLH11-025-063-VIS	H-K9L	25	63	4	1.5	59.47	32.5	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-063-VIS

GLH11-025-076-VIS	H-K9L	25	76	3.6	1.56	73.63	39.28	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-076-VIS

GLH11-025-080-VIS	H-K9L	25	80	3.94	2	77.39	41.3	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-080-VIS

GLH11-025-100-VIS	H-K9L	25	100	3.54	2	97.67	51.64	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-100-VIS

GLH11-025-125-VIS	H-K9L	25	125	3.22	2	122.88	64.55	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-125-VIS

GLH11-025-160-VIS	H-K9L	25	160	2.95	2	158.06	82.62	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-160-VIS

GLH11-025-200-VIS	H-K9L	25	200	2.76	2	198.19	103.28	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-200-VIS

GLH11-025-250-VIS	H-K9L	25	250	2.61	2	248.57	129.24	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-250-VIS

GLH11-025-315-VIS	H-K9L	25	315	2	1.5	313.68	162.79	VIS AR coating: Ravg<0.5% @400–700 nm	$29	Quantity for GLH11-025-315-VIS

GLH11-025-400-VIS	H-K9L	25	400	2.38	2	397.56	206.1	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-400-VIS

GLH11-025-500-VIS	H-K9L	25	500	2.3	2	498.47	258.18	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-500-VIS

GLH11-025-630-VIS	H-K9L	25	630	1.78	1.54	628.82	325.58	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-630-VIS

GLH11-025-800-VIS	H-K9L	25	800	1.7	1.5	798.88	413.44	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-800-VIS

GLH11-025-1000-VIS	H-K9L	25	1000	2.15	2	998.83	516.5	VIS AR coating: Ravg<0.5% @400–700 nm	$30	Quantity for GLH11-025-1000-VIS

GLH11-025-1600-VIS	H-K9L	25	1600	2.09	2	—	826.88	VIS AR coating: Ravg<0.5% @400–700 nm	$33	Quantity for GLH11-025-1600-VIS

GLH11-025-2000-VIS	H-K9L	25	2000	2.04	2	—	1033.6	VIS AR coating: Ravg<0.5% @400–700 nm	$35	Quantity for GLH11-025-2000-VIS

GLH11-025-2500-VIS	H-K9L	25	2500	2.03	2	—	1292	VIS AR coating: Ravg<0.5% @400–700 nm	$35	Quantity for GLH11-025-2500-VIS

GLH11-040-040-VIS	H-K9L	40	40	17.95	2.5	—	20.67	VIS AR coating: Ravg<0.5% @400–700 nm	$75	Quantity for GLH11-040-040-VIS

GLH11-040-050-VIS	H-K9L	40	50	11.98	2.5	42.14	25.84	VIS AR coating: Ravg<0.5% @400–700 nm	$73	Quantity for GLH11-040-050-VIS

GLH11-040-063-VIS	H-K9L	40	63	9.38	2.5	56.75	32.5	VIS AR coating: Ravg<0.5% @400–700 nm	$73	Quantity for GLH11-040-063-VIS

GLH11-040-080-VIS	H-K9L	40	80	7.67	2.5	74.93	41.3	VIS AR coating: Ravg<0.5% @400–700 nm	$46	Quantity for GLH11-040-080-VIS

GLH11-040-100-VIS	H-K9L	40	100	6.53	2.5	95.7	51.64	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-100-VIS

GLH11-040-125-VIS	H-K9L	40	125	5.68	2.5	121.26	64.55	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-125-VIS

GLH11-040-150-VIS	H-K9L	40	150	6.1	3.48	145.98	77.52	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-150-VIS

GLH11-040-160-VIS	H-K9L	40	160	4.96	2.5	156.73	82.62	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-160-VIS

GLH11-040-200-VIS	H-K9L	40	200	4.45	2.5	197.07	103.28	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-200-VIS

GLH11-040-250-VIS	H-K9L	40	250	4.06	2.5	247.61	129.24	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-250-VIS

GLH11-040-500-VIS	H-K9L	40	500	3.28	2.5	497.83	258.18	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-040-500-VIS

GLH11-045-100-VIS	H-K9L	45	100	6.1	0.97	96.4	51.9	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-045-100-VIS

GLH11-045-120-VIS	H-K9L	45	120	6.1	1.89	116	62.2	VIS AR coating: Ravg<0.5% @400–700 nm	$39	Quantity for GLH11-045-120-VIS

GLH11-050-063-VIS	H-K9L	50	63	14.73	3	53.22	32.5	VIS AR coating: Ravg<0.5% @400–700 nm	$76	Quantity for GLH11-050-063-VIS

GLH11-050-080-VIS	H-K9L	50	80	11.43	3	72.45	41.3	VIS AR coating: Ravg<0.5% @400–700 nm	$69	Quantity for GLH11-050-080-VIS

GLH11-050-100-VIS	H-K9L	50	100	9.45	3	93.77	51.64	VIS AR coating: Ravg<0.5% @400–700 nm	$47	Quantity for GLH11-050-100-VIS

GLH11-050-160-VIS	H-K9L	50	160	6.87	3	155.47	82.62	VIS AR coating: Ravg<0.5% @400–700 nm	$47	Quantity for GLH11-050-160-VIS

GLH11-050-250-VIS	H-K9L	50	250	5.44	3	246.21	129.24	VIS AR coating: Ravg<0.5% @400–700 nm	$47	Quantity for GLH11-050-250-VIS

GLH11-050-500-VIS	H-K9L	50	500	4.21	3	497.21	258.18	VIS AR coating: Ravg<0.5% @400–700 nm	$47	Quantity for GLH11-050-500-VIS

GLH11-063-100-VIS	H-K9L	63	100	13.72	3	90.96	51.64	VIS AR coating: Ravg<0.5% @400–700 nm	$64	Quantity for GLH11-063-100-VIS

GLH11-063-125-VIS	H-K9L	63	125	11.21	3	117.62	64.55	VIS AR coating: Ravg<0.5% @400–700 nm	$59	Quantity for GLH11-063-125-VIS

GLH11-063-160-VIS	H-K9L	63	160	9.24	3	153.91	82.62	VIS AR coating: Ravg<0.5% @400–700 nm	$59	Quantity for GLH11-063-160-VIS

GLH11-063-250-VIS	H-K9L	63	250	6.9	3	245.74	129.24	VIS AR coating: Ravg<0.5% @400–700 nm	$59	Quantity for GLH11-063-250-VIS

GLH11-063-500-VIS	H-K9L	63	500	4.93	3	496.33	258.18	VIS AR coating: Ravg<0.5% @400–700 nm	$59	Quantity for GLH11-063-500-VIS

GLH11-063-1000-VIS	H-K9L	63	1000	3.96	3	997.64	516.5	VIS AR coating: Ravg<0.5% @400–700 nm	$59	Quantity for GLH11-063-1000-VIS

GLH11-080-150-VIS	H-K9L	80	150	14.12	3	140.69	77.52	VIS AR coating: Ravg<0.5% @400–700 nm	$98	Quantity for GLH11-080-150-VIS

GLH11-080-300-VIS	H-K9L	80	300	8.25	3	294.56	155.04	VIS AR coating: Ravg<0.5% @400–700 nm	$98	Quantity for GLH11-080-300-VIS

GLH11-080-500-VIS	H-K9L	80	500	6.12	3	495.54	258.18	VIS AR coating: Ravg<0.5% @400–700 nm	$98	Quantity for GLH11-080-500-VIS

GLH11-080-1000-VIS	H-K9L	80	1000	4.6	3	996.02	516.82	VIS AR coating: Ravg<0.5% @400–700 nm	$98	Quantity for GLH11-080-1000-VIS

GLH11-080-2000-VIS	H-K9L	80	2000	3.76	3	1997.52	1033.65	VIS AR coating: Ravg<0.5% @400–700 nm	$104	Quantity for GLH11-080-2000-VIS

GLH11-100-160-VIS	H-K9L	100	160	20.85	4	146.25	82.62	VIS AR coating: Ravg<0.5% @400–700 nm	$212	Quantity for GLH11-100-160-VIS

GLH11-100-250-VIS	H-K9L	100	250	14.05	4	241.37	129.24	VIS AR coating: Ravg<0.5% @400–700 nm	$212	Quantity for GLH11-100-250-VIS

GLH11-100-500-VIS	H-K9L	100	500	8.89	4	494.13	258.18	VIS AR coating: Ravg<0.5% @400–700 nm	$212	Quantity for GLH11-100-500-VIS

GLH11-003-004-NIR	H-K9L	3	4.5	1.7	1.15	3.39	2.33	NIR AR coating: Ravg<0.5% @650–1050 nm	$40	Quantity for GLH11-003-004-NIR

GLH11-003-010-NIR	H-K9L	3	10	1.7	1.48	8.88	5.17	NIR AR coating: Ravg<0.5% @650–1050 nm	$38	Quantity for GLH11-003-010-NIR

GLH11-004-005-NIR	H-K9L	4	5	1.9	0.95	3.78	2.58	NIR AR coating: Ravg<0.5% @650–1050 nm	$40	Quantity for GLH11-004-005-NIR

GLH11-004-006-NIR	H-K9L	4	6.3	1.7	1.01	5.18	3.25	NIR AR coating: Ravg<0.5% @650–1050 nm	$37	Quantity for GLH11-004-006-NIR

GLH11-004-010-NIR	H-K9L	4	10	1.7	1.3	8.88	5.17	NIR AR coating: Ravg<0.5% @650–1050 nm	$37	Quantity for GLH11-004-010-NIR

GLH11-005-008-NIR	H-K9L	5	8	1.5	0.66	7.01	4.13	NIR AR coating: Ravg<0.5% @650–1050 nm	$37	Quantity for GLH11-005-008-NIR

GLH11-006-008-NIR	H-K9L	6.3	8	2.6	1.14	6.28	4.13	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-008-NIR

GLH11-006-010-NIR	H-K9L	6.3	10	2.6	1.53	8.3	5.17	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-010-NIR

GLH11-006-012-NIR	H-K9L	6.3	12.5	2.3	1.48	10.98	6.46	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-012-NIR

GLH11-006-016-NIR	H-K9L	6.3	16	2.1	1.48	14.62	8.26	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-016-NIR

GLH11-006-020-NIR	H-K9L	6.3	20	2	1.51	18.74	10.36	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-020-NIR

GLH11-006-025-NIR	H-K9L	6.3	25	1.9	1.51	23.75	12.91	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-025-NIR

GLH11-006-040-NIR	H-K9L	6.3	40	1.7	1.46	38.87	20.65	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-040-NIR

GLH11-006-063-NIR	H-K9L	6.3	63	1.7	1.55	61.82	32.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-006-063-NIR

GLH11-010-012-NIR	H-K9L	10	12.5	3.9	1.53	9.93	6.46	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-012-NIR

GLH11-010-016-NIR	H-K9L	10	16	3.2	1.52	13.89	8.26	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-016-NIR

GLH11-010-020-NIR	H-K9L	10	20	2.8	1.51	18.22	10.36	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-020-NIR

GLH11-010-025-NIR	H-K9L	10	25	2.5	1.49	23.35	12.91	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-025-NIR

GLH11-010-032-NIR	H-K9L	10	31.5	2.3	1.51	29.99	16.27	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-032-NIR

GLH11-010-040-NIR	H-K9L	10	40	2.1	1.49	38.61	20.65	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-040-NIR

GLH11-010-050-NIR	H-K9L	10	50	2	1.51	48.72	25.84	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-050-NIR

GLH11-010-063-NIR	H-K9L	10	63	1.9	1.51	61.69	32.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-063-NIR

GLH11-010-100-NIR	H-K9L	10	100	1.7	1.46	98.89	51.64	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-010-100-NIR

GLH11-012-020-NIR	H-K9L	12	20.3	3	1.12	18.34	10.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-012-020-NIR

GLH11-015-060-NIR	H-K9L	15	60	2.3	1.38	58.51	31.02	NIR AR coating: Ravg<0.5% @650–1050 nm	$28	Quantity for GLH11-015-060-NIR

GLH11-016-020-NIR	H-K9L	16	20	4.8	1.02	16.9	10.36	NIR AR coating: Ravg<0.5% @650–1050 nm	$32	Quantity for GLH11-016-020-NIR

GLH11-016-025-NIR	H-K9L	16	25	4	1.22	22.36	12.91	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-025-NIR

GLH11-016-032-NIR	H-K9L	16	31.5	3.6	1.5	29.13	16.27	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-032-NIR

GLH11-016-040-NIR	H-K9L	16	40	3.1	1.49	37.95	20.65	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-040-NIR

GLH11-016-050-NIR	H-K9L	16	50	2.8	1.53	48.2	25.84	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-050-NIR

GLH11-016-063-NIR	H-K9L	16	63	2.5	1.5	61.29	32.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-063-NIR

GLH11-016-080-NIR	H-K9L	16	80	2.3	1.52	78.47	41.3	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-080-NIR

GLH11-016-100-NIR	H-K9L	16	100	2.1	1.48	98.62	51.64	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-100-NIR

GLH11-016-160-NIR	H-K9L	16	160	1.9	1.51	158.75	82.62	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-016-160-NIR

GLH11-020-030-NIR	H-K9L	20	30	4.5	0.84	27.03	15.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-020-030-NIR

GLH11-020-050-NIR	H-K9L	20	50	4.2	2.19	47.23	25.84	NIR AR coating: Ravg<0.5% @650–1050 nm	$29	Quantity for GLH11-020-050-NIR

GLH11-025-027-NIR	H-K9L	25	26.7	9.5	1.55	20.44	13.8	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-027-NIR

GLH11-025-032-NIR	H-K9L	25	31.5	7.86	2	26.33	16.27	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-032-NIR

GLH11-025-040-NIR	H-K9L	25	40	6.21	2	35.89	20.65	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-040-NIR

GLH11-025-050-NIR	H-K9L	25	50	4.7	1.47	46.1	25.84	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-050-NIR

GLH11-025-063-NIR	H-K9L	25	63	4	1.5	59.47	32.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-063-NIR

GLH11-025-076-NIR	H-K9L	25	76	3.6	1.56	73.63	39.28	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-076-NIR

GLH11-025-080-NIR	H-K9L	25	80	3.94	2	77.39	41.3	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-080-NIR

GLH11-025-100-NIR	H-K9L	25	100	3.54	2	97.67	51.64	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-100-NIR

GLH11-025-125-NIR	H-K9L	25	125	3.22	2	122.88	64.55	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-125-NIR

GLH11-025-160-NIR	H-K9L	25	160	2.95	2	158.06	82.62	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-160-NIR

GLH11-025-200-NIR	H-K9L	25	200	2.76	2	198.19	103.28	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-200-NIR

GLH11-025-250-NIR	H-K9L	25	250	2.61	2	248.57	129.24	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-250-NIR

GLH11-025-315-NIR	H-K9L	25	315	2	1.5	313.68	162.79	NIR AR coating: Ravg<0.5% @650–1050 nm	$33	Quantity for GLH11-025-315-NIR

GLH11-025-400-NIR	H-K9L	25	400	2.38	2	397.56	206.1	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-400-NIR

GLH11-025-500-NIR	H-K9L	25	500	2.3	2	498.47	258.18	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-500-NIR

GLH11-025-630-NIR	H-K9L	25	630	1.78	1.54	628.82	325.58	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-630-NIR

GLH11-025-800-NIR	H-K9L	25	800	1.7	1.5	798.88	413.44	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-800-NIR

GLH11-025-1000-NIR	H-K9L	25	1000	2.15	2	998.83	516.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$34	Quantity for GLH11-025-1000-NIR

GLH11-025-1600-NIR	H-K9L	25	1600	2.09	2	1593.27	826.88	NIR AR coating: Ravg<0.5% @650–1050 nm	$36	Quantity for GLH11-025-1600-NIR

GLH11-025-2000-NIR	H-K9L	25	2000	2.04	2	1992	1033.6	NIR AR coating: Ravg<0.5% @650–1050 nm	$38	Quantity for GLH11-025-2000-NIR

GLH11-025-2500-NIR	H-K9L	25	2500	2.03	2	2490.34	1292	NIR AR coating: Ravg<0.5% @650–1050 nm	$38	Quantity for GLH11-025-2500-NIR

GLH11-040-040-NIR	H-K9L	40	40	17.95	2.5	28.04	20.67	NIR AR coating: Ravg<0.5% @650–1050 nm	$78	Quantity for GLH11-040-040-NIR

GLH11-040-050-NIR	H-K9L	40	50	11.98	2.5	42.14	25.84	NIR AR coating: Ravg<0.5% @650–1050 nm	$76	Quantity for GLH11-040-050-NIR

GLH11-040-063-NIR	H-K9L	40	63	9.38	2.5	56.75	32.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$76	Quantity for GLH11-040-063-NIR

GLH11-040-080-NIR	H-K9L	40	80	7.67	2.5	74.93	41.3	NIR AR coating: Ravg<0.5% @650–1050 nm	$49	Quantity for GLH11-040-080-NIR

GLH11-040-100-NIR	H-K9L	40	100	6.53	2.5	95.7	51.64	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-100-NIR

GLH11-040-125-NIR	H-K9L	40	125	5.68	2.5	121.26	64.55	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-125-NIR

GLH11-040-150-NIR	H-K9L	40	150	6	3.5	145.98	77.52	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-150-NIR

GLH11-040-160-NIR	H-K9L	40	160	4.96	2.5	156.73	82.62	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-160-NIR

GLH11-040-200-NIR	H-K9L	40	200	4.45	2.5	197.07	103.28	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-200-NIR

GLH11-040-250-NIR	H-K9L	40	250	4.06	2.5	247.61	129.24	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-250-NIR

GLH11-040-500-NIR	H-K9L	40	500	3.28	2.5	497.83	258.18	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-040-500-NIR

GLH11-045-100-NIR	H-K9L	45	100	6.1	0.97	96.4	51.9	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-045-100-NIR

GLH11-045-120-NIR	H-K9L	45	120	6.1	1.89	116	62.2	NIR AR coating: Ravg<0.5% @650–1050 nm	$43	Quantity for GLH11-045-120-NIR

GLH11-050-063-NIR	H-K9L	50	63	14.73	3	53.22	32.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$79	Quantity for GLH11-050-063-NIR

GLH11-050-080-NIR	H-K9L	50	80	11.43	3	72.45	41.3	NIR AR coating: Ravg<0.5% @650–1050 nm	$79	Quantity for GLH11-050-080-NIR

GLH11-050-100-NIR	H-K9L	50	100	9.45	3	93.77	51.64	NIR AR coating: Ravg<0.5% @650–1050 nm	$50	Quantity for GLH11-050-100-NIR

GLH11-050-160-NIR	H-K9L	50	160	6.87	3	155.47	82.62	NIR AR coating: Ravg<0.5% @650–1050 nm	$50	Quantity for GLH11-050-160-NIR

GLH11-050-250-NIR	H-K9L	50	250	5.44	3	246.7	129.24	NIR AR coating: Ravg<0.5% @650–1050 nm	$50	Quantity for GLH11-050-250-NIR

GLH11-050-500-NIR	H-K9L	50	500	4.21	3	497.21	258.18	NIR AR coating: Ravg<0.5% @650–1050 nm	$50	Quantity for GLH11-050-500-NIR

GLH11-063-100-NIR	H-K9L	63	100	13.72	3	90.96	51.64	NIR AR coating: Ravg<0.5% @650–1050 nm	$67	Quantity for GLH11-063-100-NIR

GLH11-063-125-NIR	H-K9L	63	125	11.21	3	117.62	64.55	NIR AR coating: Ravg<0.5% @650–1050 nm	$63	Quantity for GLH11-063-125-NIR

GLH11-063-160-NIR	H-K9L	63	160	9.24	3	153.91	82.62	NIR AR coating: Ravg<0.5% @650–1050 nm	$63	Quantity for GLH11-063-160-NIR

GLH11-063-250-NIR	H-K9L	63	250	6.9	3	245.74	129.24	NIR AR coating: Ravg<0.5% @650–1050 nm	$63	Quantity for GLH11-063-250-NIR

GLH11-063-500-NIR	H-K9L	63	500	4.93	3	496.74	258.18	NIR AR coating: Ravg<0.5% @650–1050 nm	$63	Quantity for GLH11-063-500-NIR

GLH11-063-1000-NIR	H-K9L	63	1000	3.96	3	997.64	516.5	NIR AR coating: Ravg<0.5% @650–1050 nm	$63	Quantity for GLH11-063-1000-NIR

GLH11-080-150-NIR	H-K9L	80	150	14.12	3	140.69	77.52	NIR AR coating: Ravg<0.5% @650–1050 nm	$102	Quantity for GLH11-080-150-NIR

GLH11-080-300-NIR	H-K9L	80	300	8.25	3	294.56	155.04	NIR AR coating: Ravg<0.5% @650–1050 nm	$102	Quantity for GLH11-080-300-NIR

GLH11-080-500-NIR	H-K9L	80	500	6.12	3	495.54	258.18	NIR AR coating: Ravg<0.5% @650–1050 nm	$102	Quantity for GLH11-080-500-NIR

GLH11-080-1000-NIR	H-K9L	80	1000	4.6	3	996.02	516.82	NIR AR coating: Ravg<0.5% @650–1050 nm	$102	Quantity for GLH11-080-1000-NIR

GLH11-080-2000-NIR	H-K9L	80	2000	3.76	3	1997.52	1033.65	NIR AR coating: Ravg<0.5% @650–1050 nm	$107	Quantity for GLH11-080-2000-NIR

GLH11-100-160-NIR	H-K9L	100	160	20.85	4	146.25	82.62	NIR AR coating: Ravg<0.5% @650–1050 nm	$234	Quantity for GLH11-100-160-NIR

GLH11-100-250-NIR	H-K9L	100	250	14.05	4	241.37	129.24	NIR AR coating: Ravg<0.5% @650–1050 nm	$234	Quantity for GLH11-100-250-NIR

GLH11-100-500-NIR	H-K9L	100	500	8.89	4	494.13	258.18	NIR AR coating: Ravg<0.5% @650–1050 nm	$234	Quantity for GLH11-100-500-NIR

GLH11-003-004-SWIR	H-K9L	3	4.5	1.7	1.15	3.39	2.33	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$40	Quantity for GLH11-003-004-SWIR

GLH11-003-010-SWIR	H-K9L	3	10	1.7	1.48	8.88	5.17	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$38	Quantity for GLH11-003-010-SWIR

GLH11-004-005-SWIR	H-K9L	4	5	1.9	0.95	3.78	2.58	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$40	Quantity for GLH11-004-005-SWIR

GLH11-004-006-SWIR	H-K9L	4	6.3	1.7	1.01	5.18	3.25	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$37	Quantity for GLH11-004-006-SWIR

GLH11-004-010-SWIR	H-K9L	4	10	1.7	1.3	8.88	5.17	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$37	Quantity for GLH11-004-010-SWIR

GLH11-005-008-SWIR	H-K9L	5	8	1.5	0.66	7.01	4.13	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$37	Quantity for GLH11-005-008-SWIR

GLH11-006-008-SWIR	H-K9L	6.3	8	2.6	1.14	6.28	4.13	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-008-SWIR

GLH11-006-010-SWIR	H-K9L	6.3	10	2.6	1.53	8.3	5.17	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-010-SWIR

GLH11-006-012-SWIR	H-K9L	6.3	12.5	2.3	1.48	10.98	6.46	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-012-SWIR

GLH11-006-016-SWIR	H-K9L	6.3	16	2.1	1.48	14.62	8.26	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-016-SWIR

GLH11-006-020-SWIR	H-K9L	6.3	20	2	1.51	18.74	10.36	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-020-SWIR

GLH11-006-025-SWIR	H-K9L	6.3	25	1.9	1.51	23.75	12.91	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-025-SWIR

GLH11-006-040-SWIR	H-K9L	6.3	40	1.7	1.46	38.87	20.65	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-040-SWIR

GLH11-006-063-SWIR	H-K9L	6.3	63	1.7	1.55	61.82	32.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-006-063-SWIR

GLH11-010-012-SWIR	H-K9L	10	12.5	3.9	1.53	9.93	6.46	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-012-SWIR

GLH11-010-016-SWIR	H-K9L	10	16	3.2	1.52	13.89	8.26	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-016-SWIR

GLH11-010-020-SWIR	H-K9L	10	20	2.8	1.51	18.22	10.36	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-020-SWIR

GLH11-010-025-SWIR	H-K9L	10	25	2.5	1.49	23.35	12.91	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-025-SWIR

GLH11-010-032-SWIR	H-K9L	10	31.5	2.3	1.51	29.99	16.27	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-032-SWIR

GLH11-010-040-SWIR	H-K9L	10	40	2.1	1.49	38.61	20.65	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-040-SWIR

GLH11-010-050-SWIR	H-K9L	10	50	2	1.51	48.72	25.84	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-050-SWIR

GLH11-010-063-SWIR	H-K9L	10	63	1.9	1.51	61.69	32.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-063-SWIR

GLH11-010-100-SWIR	H-K9L	10	100	1.7	1.46	98.89	51.64	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-010-100-SWIR

GLH11-012-020-SWIR	H-K9L	12	20.3	3	1.12	18.34	10.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-012-020-SWIR

GLH11-015-060-SWIR	H-K9L	15	60	2.3	1.38	58.51	31.02	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$28	Quantity for GLH11-015-060-SWIR

GLH11-016-020-SWIR	H-K9L	16	20	4.8	1.02	16.9	10.36	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$32	Quantity for GLH11-016-020-SWIR

GLH11-016-025-SWIR	H-K9L	16	25	4	1.22	22.36	12.91	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-025-SWIR

GLH11-016-032-SWIR	H-K9L	16	31.5	3.6	1.5	29.13	16.27	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-032-SWIR

GLH11-016-040-SWIR	H-K9L	16	40	3.1	1.49	37.95	20.65	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-040-SWIR

GLH11-016-050-SWIR	H-K9L	16	50	2.8	1.53	48.2	25.84	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-050-SWIR

GLH11-016-063-SWIR	H-K9L	16	63	2.5	1.5	61.29	32.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-063-SWIR

GLH11-016-080-SWIR	H-K9L	16	80	2.3	1.52	78.47	41.3	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-080-SWIR

GLH11-016-100-SWIR	H-K9L	16	100	2.1	1.48	98.62	51.64	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-100-SWIR

GLH11-016-160-SWIR	H-K9L	16	160	1.9	1.51	158.75	82.62	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-016-160-SWIR

GLH11-020-030-SWIR	H-K9L	20	30	4.5	0.84	27.03	15.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-020-030-SWIR

GLH11-020-050-SWIR	H-K9L	20	50	4.2	2.19	47.23	25.84	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$29	Quantity for GLH11-020-050-SWIR

GLH11-025-027-SWIR	H-K9L	25	26.7	9.5	1.55	20.44	13.8	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-027-SWIR

GLH11-025-032-SWIR	H-K9L	25	31.5	7.86	2	26.33	16.27	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-032-SWIR

GLH11-025-040-SWIR	H-K9L	25	40	6.21	2	35.89	20.65	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-040-SWIR

GLH11-025-050-SWIR	H-K9L	25	50	4.7	1.47	46.1	25.84	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-050-SWIR

GLH11-025-063-SWIR	H-K9L	25	63	4	1.5	59.47	32.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-063-SWIR

GLH11-025-076-SWIR	H-K9L	25	76	3.6	1.56	73.63	39.28	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-076-SWIR

GLH11-025-080-SWIR	H-K9L	25	80	3.94	2	77.39	41.3	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-080-SWIR

GLH11-025-100-SWIR	H-K9L	25	100	3.54	2	97.67	51.64	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-100-SWIR

GLH11-025-125-SWIR	H-K9L	25	125	3.22	2	122.88	64.55	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-125-SWIR

GLH11-025-160-SWIR	H-K9L	25	160	2.95	2	158.06	82.62	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-160-SWIR

GLH11-025-200-SWIR	H-K9L	25	200	2.76	2	198.19	103.28	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-200-SWIR

GLH11-025-250-SWIR	H-K9L	25	250	2.61	2	248.57	129.24	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-250-SWIR

GLH11-025-315-SWIR	H-K9L	25	315	2	1.5	313.68	162.79	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$33	Quantity for GLH11-025-315-SWIR

GLH11-025-400-SWIR	H-K9L	25	400	2.38	2	397.56	206.1	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-400-SWIR

GLH11-025-500-SWIR	H-K9L	25	500	2.3	2	498.47	258.18	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-500-SWIR

GLH11-025-630-SWIR	H-K9L	25	630	1.78	1.54	628.82	325.58	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-630-SWIR

GLH11-025-800-SWIR	H-K9L	25	800	1.7	1.5	798.88	413.44	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-800-SWIR

GLH11-025-1000-SWIR	H-K9L	25	1000	2.15	2	998.83	516.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$34	Quantity for GLH11-025-1000-SWIR

GLH11-025-1600-SWIR	H-K9L	25	1600	2.09	2	1593.27	826.88	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$36	Quantity for GLH11-025-1600-SWIR

GLH11-025-2000-SWIR	H-K9L	25	2000	2.04	2	1992	1033.6	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$38	Quantity for GLH11-025-2000-SWIR

GLH11-025-2500-SWIR	H-K9L	25	2500	2.03	2	2490.34	1292	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$38	Quantity for GLH11-025-2500-SWIR

GLH11-040-040-SWIR	H-K9L	40	40	17.95	2.5	28.04	20.67	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$78	Quantity for GLH11-040-040-SWIR

GLH11-040-050-SWIR	H-K9L	40	50	11.98	2.5	42.14	25.84	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$76	Quantity for GLH11-040-050-SWIR

GLH11-040-063-SWIR	H-K9L	40	63	9.38	2.5	56.75	32.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$76	Quantity for GLH11-040-063-SWIR

GLH11-040-080-SWIR	H-K9L	40	80	7.67	2.5	74.93	41.3	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$49	Quantity for GLH11-040-080-SWIR

GLH11-040-100-SWIR	H-K9L	40	100	6.53	2.5	95.7	51.64	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-100-SWIR

GLH11-040-125-SWIR	H-K9L	40	125	5.68	2.5	121.26	64.55	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-125-SWIR

GLH11-040-150-SWIR	H-K9L	40	150	6	3.5	145.98	77.52	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-150-SWIR

GLH11-040-160-SWIR	H-K9L	40	160	4.96	2.5	156.73	82.62	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-160-SWIR

GLH11-040-200-SWIR	H-K9L	40	200	4.45	2.5	197.07	103.28	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-200-SWIR

GLH11-040-250-SWIR	H-K9L	40	250	4.06	2.5	247.61	129.24	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-250-SWIR

GLH11-040-500-SWIR	H-K9L	40	500	3.28	2.5	497.83	258.18	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-040-500-SWIR

GLH11-045-100-SWIR	H-K9L	45	100	6.1	0.97	96.4	51.9	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-045-100-SWIR

GLH11-045-120-SWIR	H-K9L	45	120	6.1	1.89	116	62.2	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$43	Quantity for GLH11-045-120-SWIR

GLH11-050-063-SWIR	H-K9L	50	63	14.73	3	53.22	32.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$79	Quantity for GLH11-050-063-SWIR

GLH11-050-080-SWIR	H-K9L	50	80	11.43	3	72.45	41.3	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$73	Quantity for GLH11-050-080-SWIR

GLH11-050-100-SWIR	H-K9L	50	100	9.45	3	93.77	51.64	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$50	Quantity for GLH11-050-100-SWIR

GLH11-050-160-SWIR	H-K9L	50	160	6.87	3	155.47	82.62	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$50	Quantity for GLH11-050-160-SWIR

GLH11-050-250-SWIR	H-K9L	50	250	5.44	3	246.7	129.24	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$50	Quantity for GLH11-050-250-SWIR

GLH11-050-500-SWIR	H-K9L	50	500	4.21	3	497.21	258.18	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$50	Quantity for GLH11-050-500-SWIR

GLH11-063-100-SWIR	H-K9L	63	100	13.72	3	90.96	51.64	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$67	Quantity for GLH11-063-100-SWIR

GLH11-063-125-SWIR	H-K9L	63	125	11.21	3	117.62	64.55	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$63	Quantity for GLH11-063-125-SWIR

GLH11-063-160-SWIR	H-K9L	63	160	9.24	3	153.91	82.62	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$63	Quantity for GLH11-063-160-SWIR

GLH11-063-250-SWIR	H-K9L	63	250	6.9	3	245.74	129.24	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$63	Quantity for GLH11-063-250-SWIR

GLH11-063-500-SWIR	H-K9L	63	500	4.93	3	496.74	258.18	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$63	Quantity for GLH11-063-500-SWIR

GLH11-063-1000-SWIR	H-K9L	63	1000	3.96	3	997.64	516.5	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$63	Quantity for GLH11-063-1000-SWIR

GLH11-080-150-SWIR	H-K9L	80	150	14.12	3	140.69	77.52	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$102	Quantity for GLH11-080-150-SWIR

GLH11-080-300-SWIR	H-K9L	80	300	8.25	3	294.56	155.04	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$102	Quantity for GLH11-080-300-SWIR

GLH11-080-500-SWIR	H-K9L	80	500	6.12	3	495.54	258.18	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$102	Quantity for GLH11-080-500-SWIR

GLH11-080-1000-SWIR	H-K9L	80	1000	4.6	3	996.02	516.82	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$102	Quantity for GLH11-080-1000-SWIR

GLH11-080-2000-SWIR	H-K9L	80	2000	3.76	3	1997.52	1033.65	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$107	Quantity for GLH11-080-2000-SWIR

GLH11-100-160-SWIR	H-K9L	100	160	20.85	4	146.25	82.62	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$234	Quantity for GLH11-100-160-SWIR

GLH11-100-250-SWIR	H-K9L	100	250	14.05	4	241.37	129.24	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$234	Quantity for GLH11-100-250-SWIR

GLH11-100-500-SWIR	H-K9L	100	500	8.89	4	494.13	258.18	SWIR AR coating: Ravg<0.5% @1000–1650 nm	$234	Quantity for GLH11-100-500-SWIR

GLH11-010-020-D膜	H-K9L	10	20	—	—	—	—	D AR coating: Ravg<0.5% @1460–2080 nm	$28	Quantity for GLH11-010-020-D膜

Curves

Supplier reference curves are reproduced unchanged. The uncoated and D-coating charts are labelled N-BK7 in the source, while GLH11 model specifications identify H-K9L. The D-coating chart also contains values above 100%; it is not a verified transmission guarantee. Confirm model-specific performance with your quotation.

Technical notes

Paraxial thin-lens estimate: f ≈ R / (n − 1), where R is the curved-surface radius and n is the refractive index at the relevant wavelength. Use each model’s listed focal length and back focal length.

Review the material, dimensions and other specifications listed for the individual model. Check any available curves against the model's stated operating range.

Illustrations and printable specification summaries are reference information, not manufacturing drawings. Confirm technical suitability and final requirements with your quotation.

Quote list

Choose models and quantities above. Your list is saved in this browser and can include models from other product categories.
